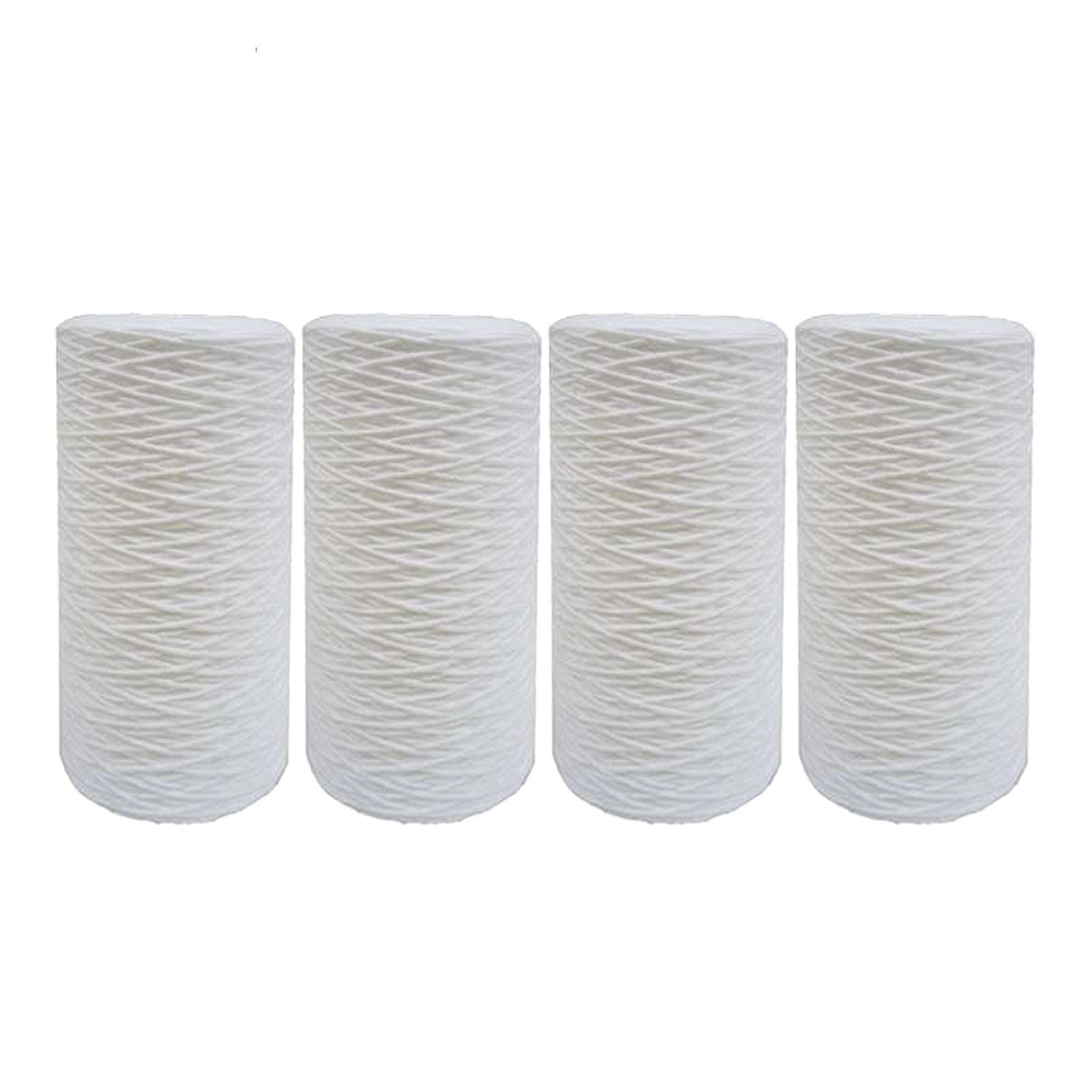

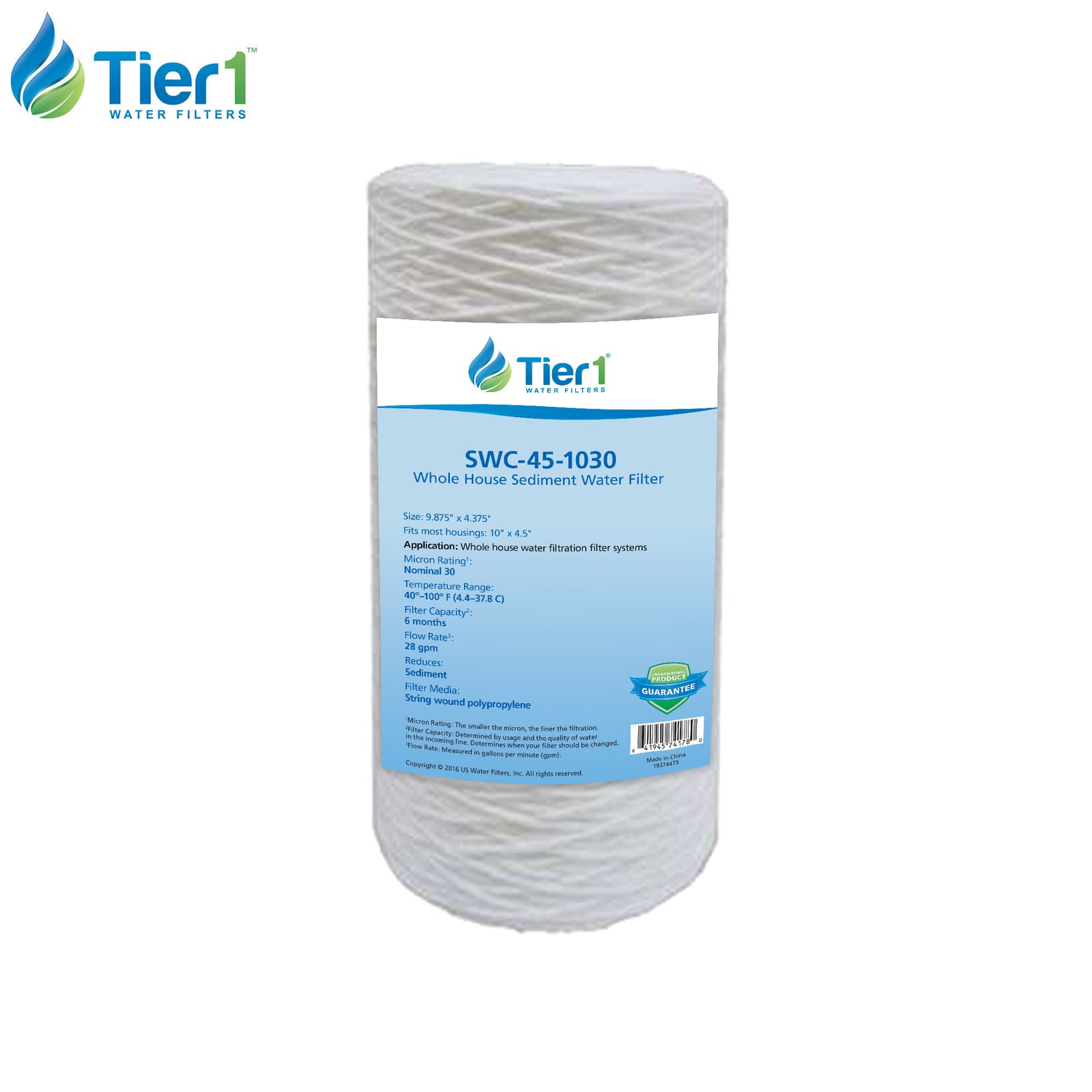

The Tier1 SWC-45-1030 comparable string wound sediment water filter has a 30-micron rating, making it ideal for reducing larger sediment particles such as sand, silt, rust, dirt, and scale from your water supply. This coarser micron rating is often used as a pre-filter to protect finer filters, pumps, and appliances from heavy sediment loads, extending the life of downstream filtration systems.

The Tier1 SWC-45-1030 measures approximately 9-7/8" in length with a 4-1/2" outer diameter (Big Blue size), designed to fit standard 10" x 4.5" whole house filter housings. It is a direct comparable replacement for the Hydronix SWC-45-1030 and similar string wound cartridges, making it compatible with most heavy-duty whole house and commercial filtration systems that accept this industry-standard size.

The Tier1 SWC-45-1030 typically provides a filtration life of approximately 3 to 6 months, depending on your incoming water quality and daily usage. Homes with high sediment levels or well water may need to replace the cartridge more frequently, while households on municipal water with lower sediment content can often reach the 6-month mark. Regular replacement maintains proper flow rate and prevents pressure drops across your system.

The Tier1 SWC-45-1030 is constructed from 100% food-grade polypropylene string tightly wound around a rigid polypropylene core. This string wound design creates a true gradient density structure — coarser on the outside and finer toward the center — which traps sediment progressively through depth filtration. This results in higher dirt-holding capacity, longer service life, and consistent 30-micron performance compared to standard spun or pleated filters.

The Tier1 SWC-45-1030 is manufactured from FDA-compliant, food-grade polypropylene materials that meet NSF/ANSI 42 standards for material safety in drinking water applications. While primarily designed as a mechanical sediment filter (not for chemical or taste/odor reduction), it is safe to use as a pre-filter in potable water systems, whole house setups, and before Tier1 reverse osmosis systems to protect sensitive membranes from sediment damage.
