Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
TIER1_FHR_20_45_PLEATED_KIT

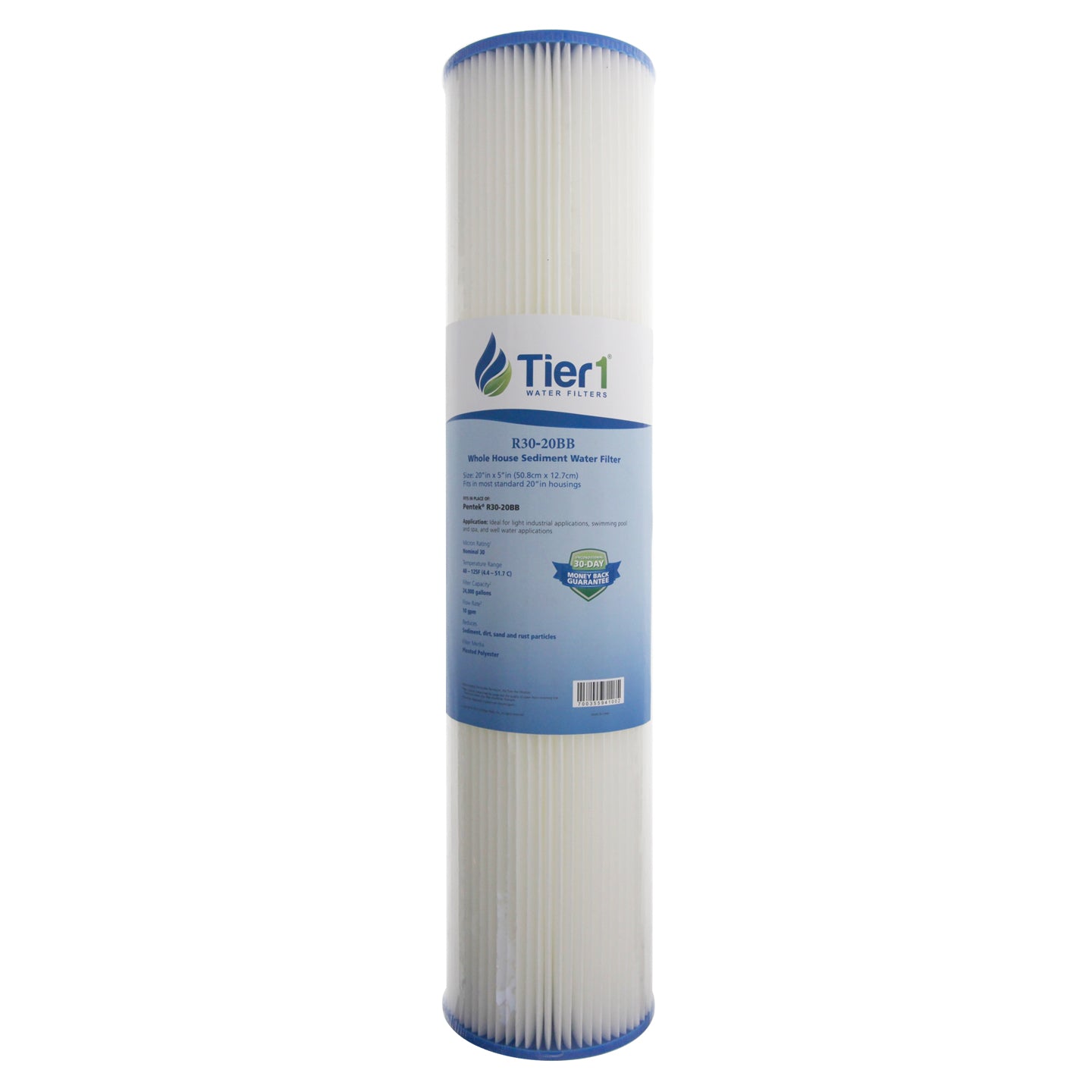

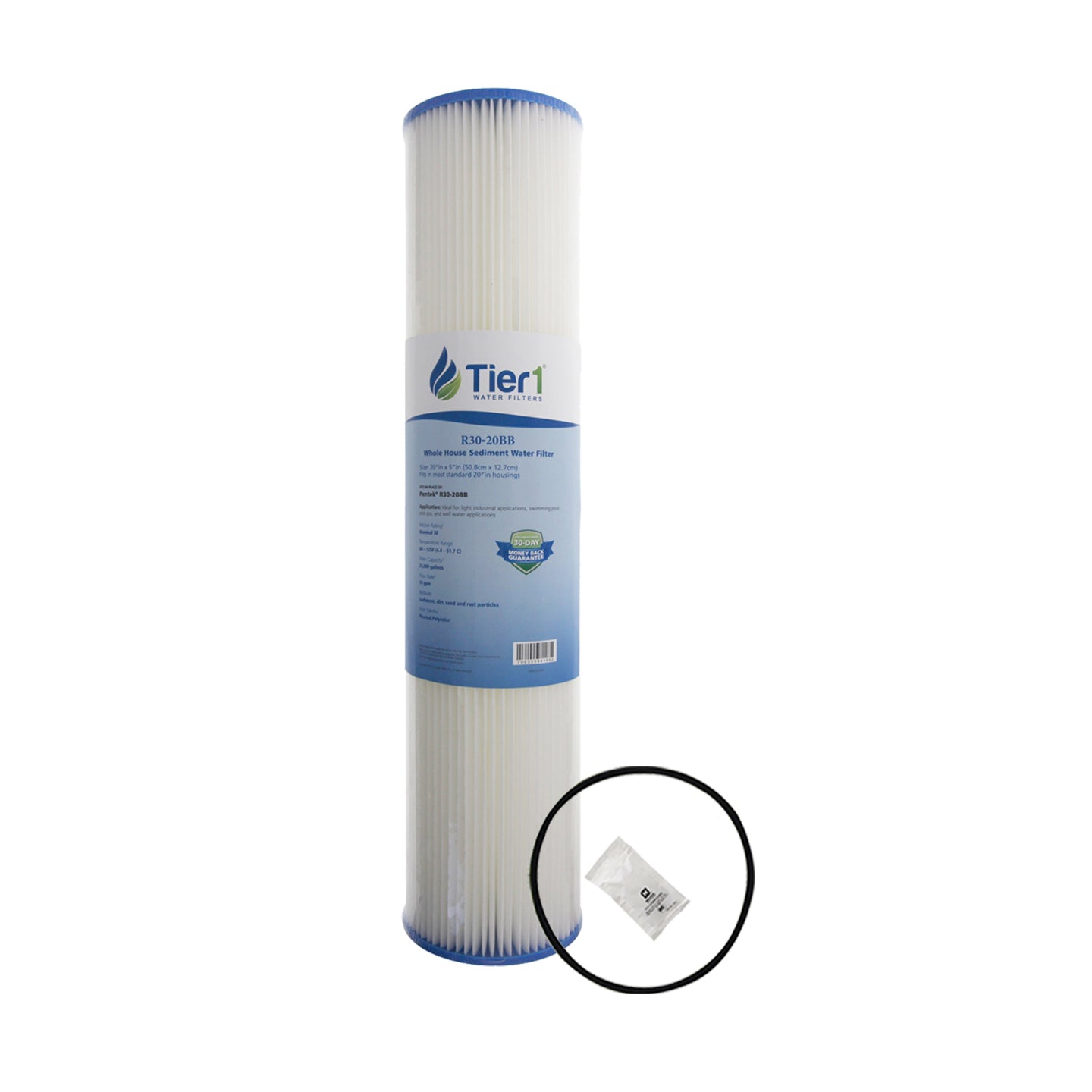

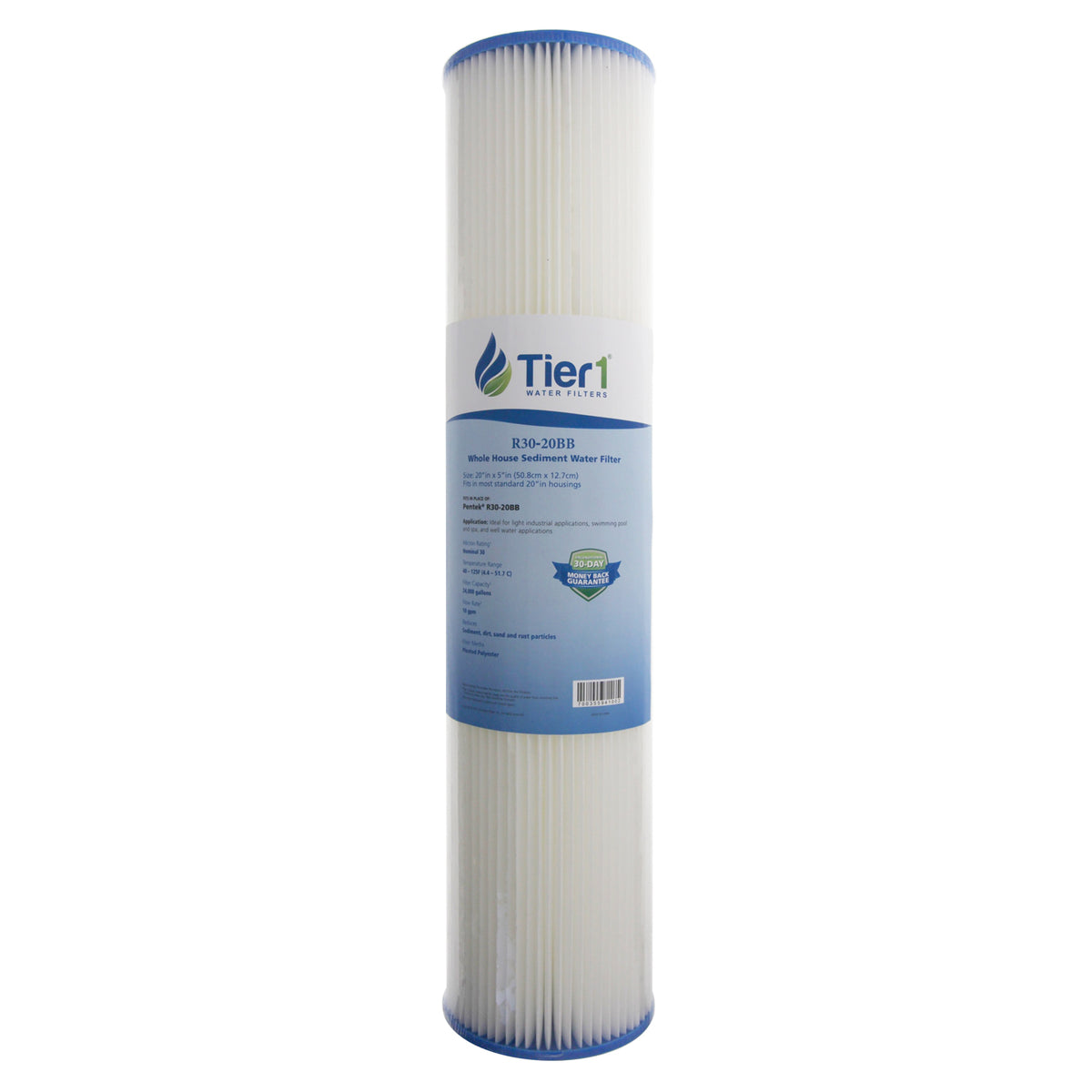

R30-20BB 155430-43 Pentek Pleated Polyester Filter Cartridge Comparable Replacement Kit with O-ring and Lubricant by Tier1 (20 inches x 4-1/2 inches, 30 Micron)
Low Stock (3)
Translation missing: en.products.product.price.regular_price
$31.30
| Price Per Item | |
|---|---|
|
Single
|
$31.30
|
Features & Specs
Features & Specs
Package Qty: 3
Manufacturer: Tier1
Manufacturer's Id: FHR-20-45-PLEATED
UPC: 641945752342
Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
Primary Filter Media: Pleated Polyester
Operating Temperature (°F): 40 - 125
Operating Temperature (°C): 4.4 - 51.7
Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
Brand: Tier1
Advertised Size: 20 x 4-1/2
Depth (in): 4.38 in
Height (in): 6 in
Length (in): 19.78 in
Outside Diameter (in): 4.5 in
Width (in): 4.38 in
Media Type: Sediment Filter
Micron Rating Nominal: 30
Flow Rate (gpm): 10.0
Includes: R30-20BB Pentek Comparable Replacement Filter, O-ring, and Lubricant
Instructions
Instructions- Turn off water supply. Press red pressure-relief button (if present)
- Discard used filter cartridge
- Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
- Insert new filter cartridge

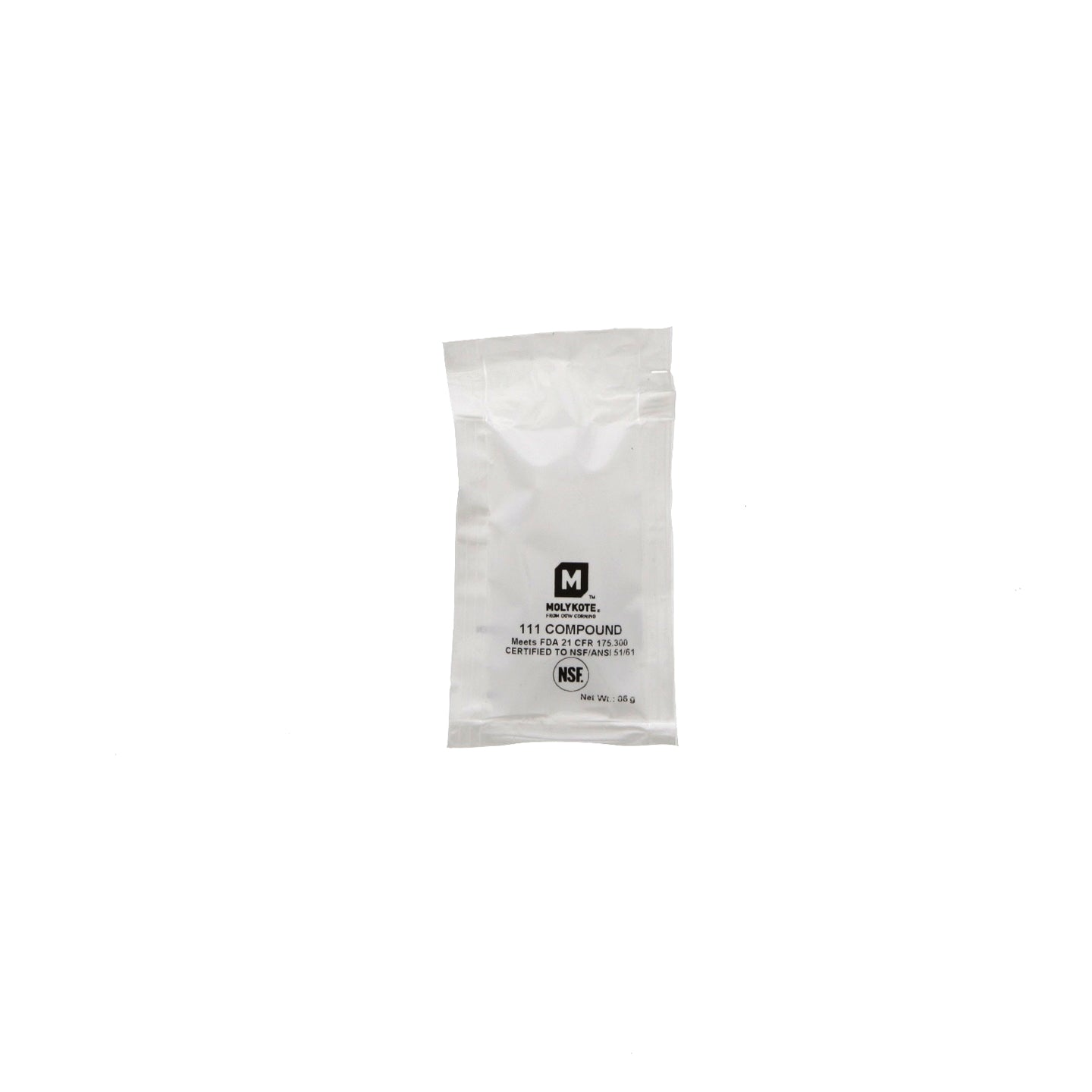

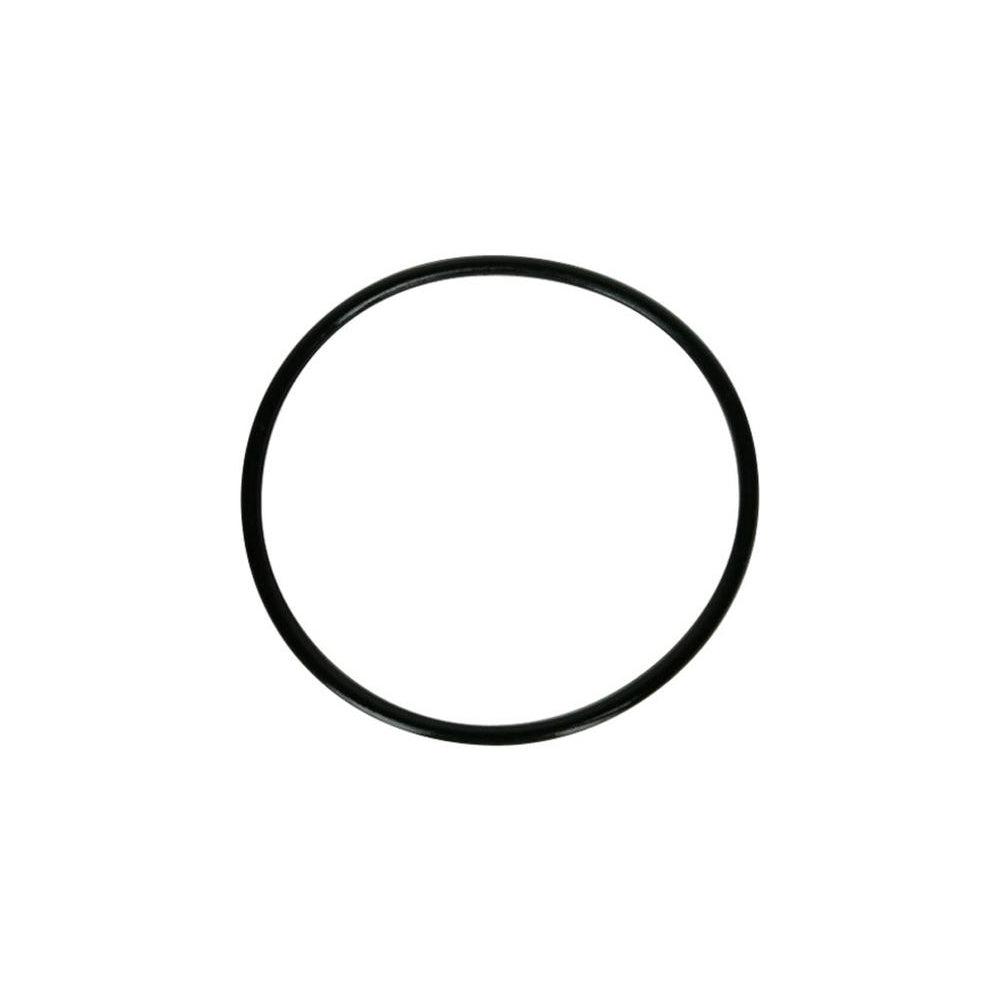

- Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
- NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
- Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
- Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
Replacement Parts
Replacement Parts
Contaminants Reduced
Contaminants Reduced
Filter Life
Filter Life
Filter Life (gallons): 24000
Filter Life (months): 6 months
Warranty Info
Warranty Info
Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
The 20 x 4.5 inch pleated polyester filter replacment kit by Tier1 includes everything you need for filter change maintenance. The exclusive kit includes a 30 micron pleated polyester R30-20BB Pentek comparable filter, replacement O-ring, and lubricant packet to make your next filter change a breeze. The experts at Tier1 have worked hard to ensure this kit contains the filter and component you need to finish the job. The R30-20BB Pentek comparable filter by Tier1 captures dirt, sand and sediment down to 30 microns. The system installs quickly and easily, order today!
