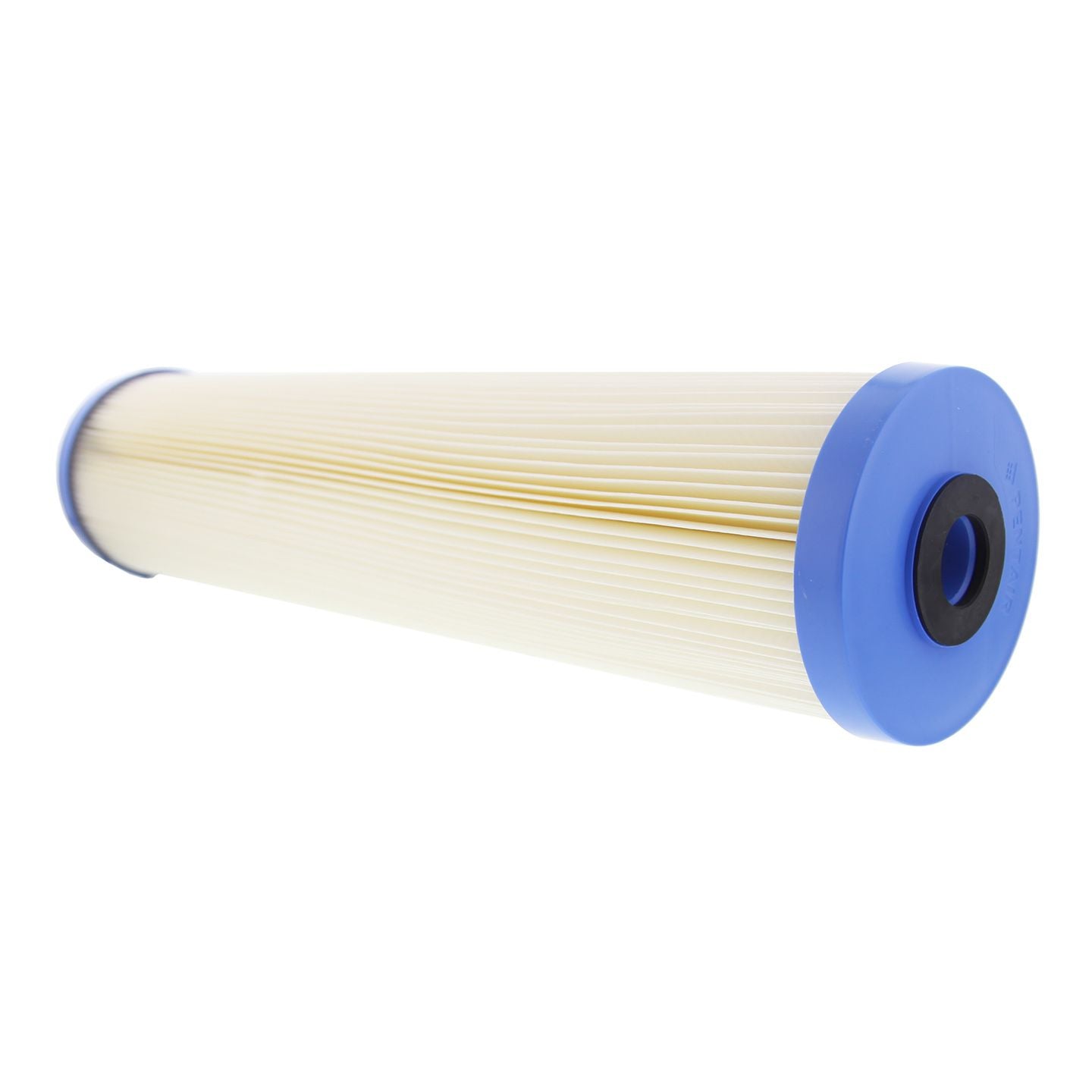

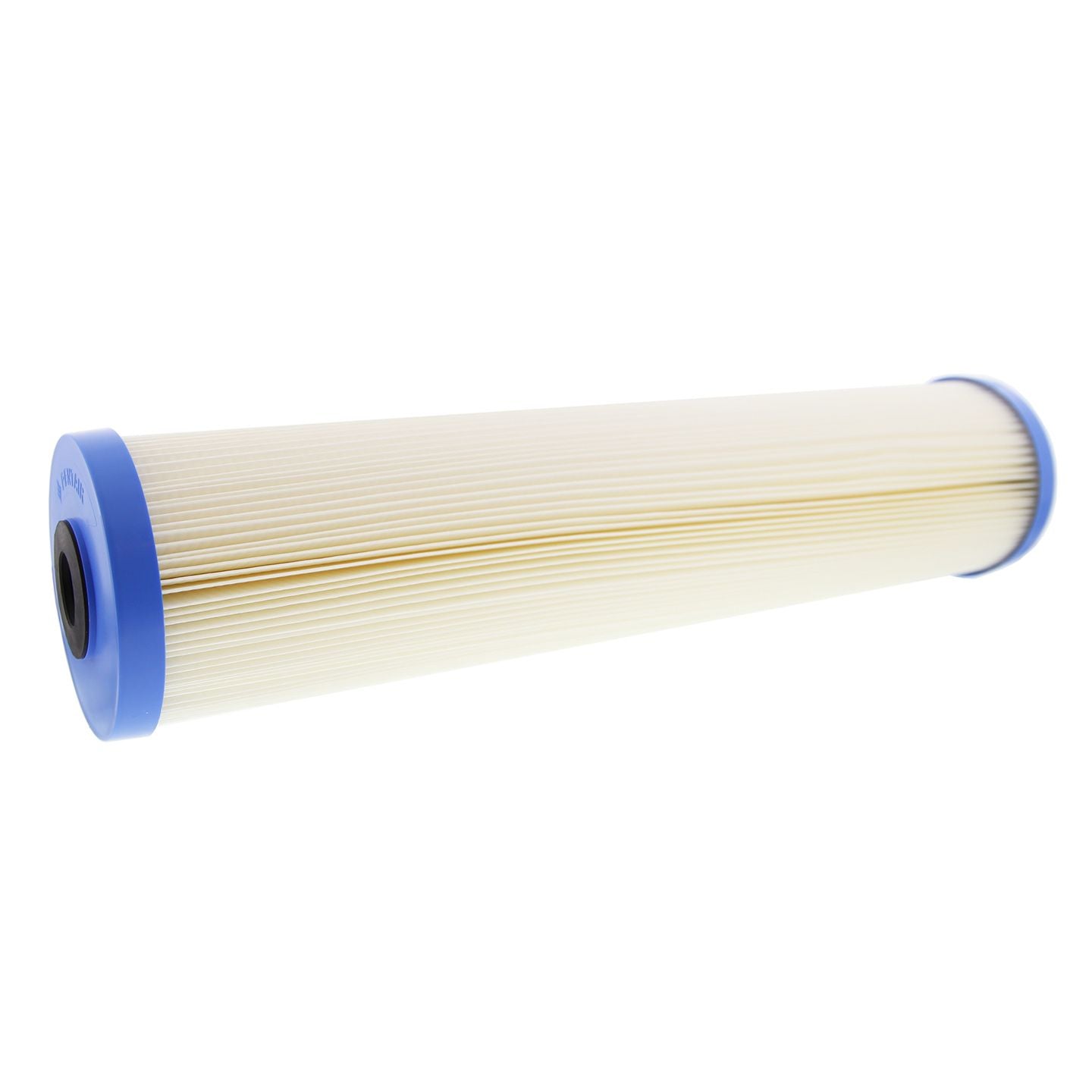

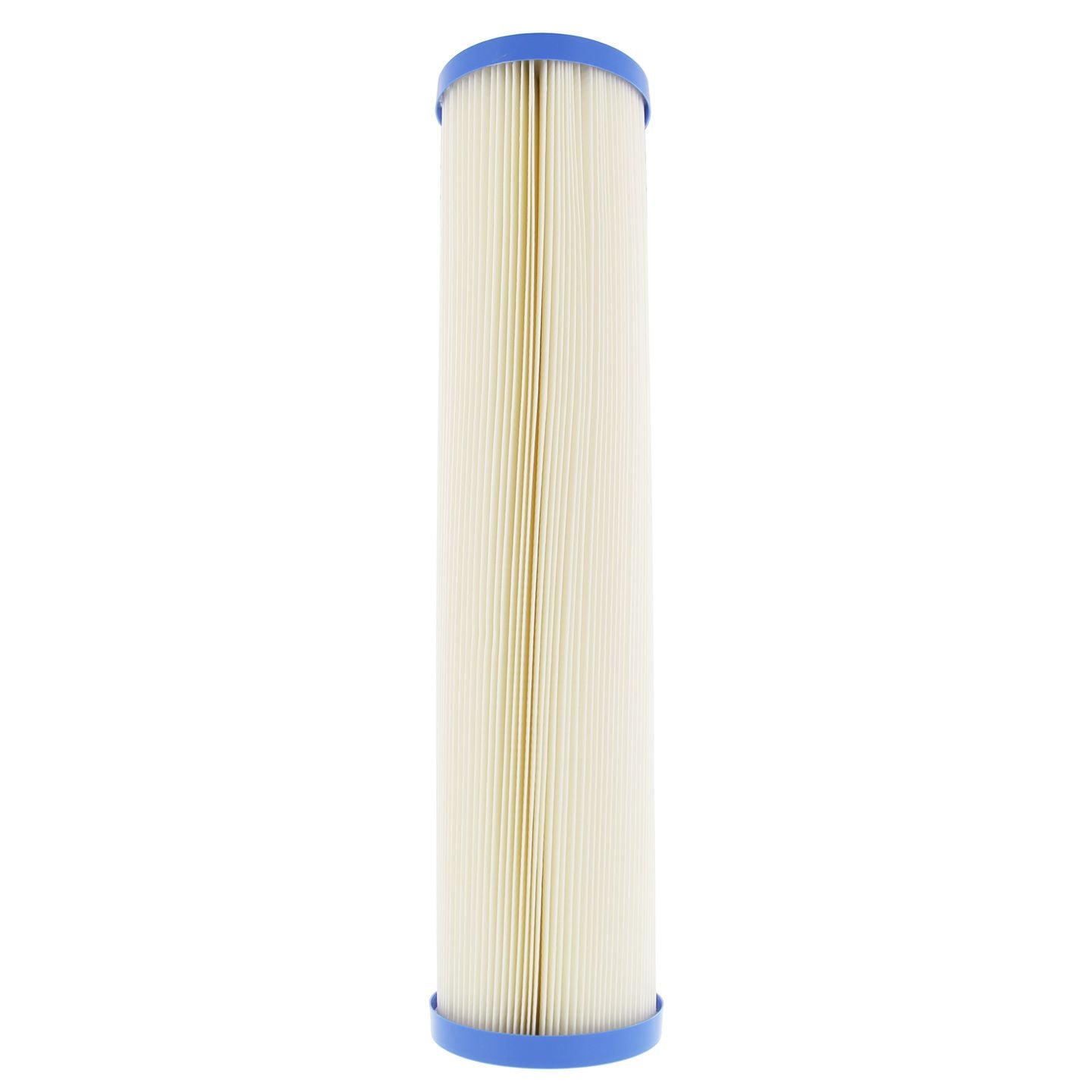

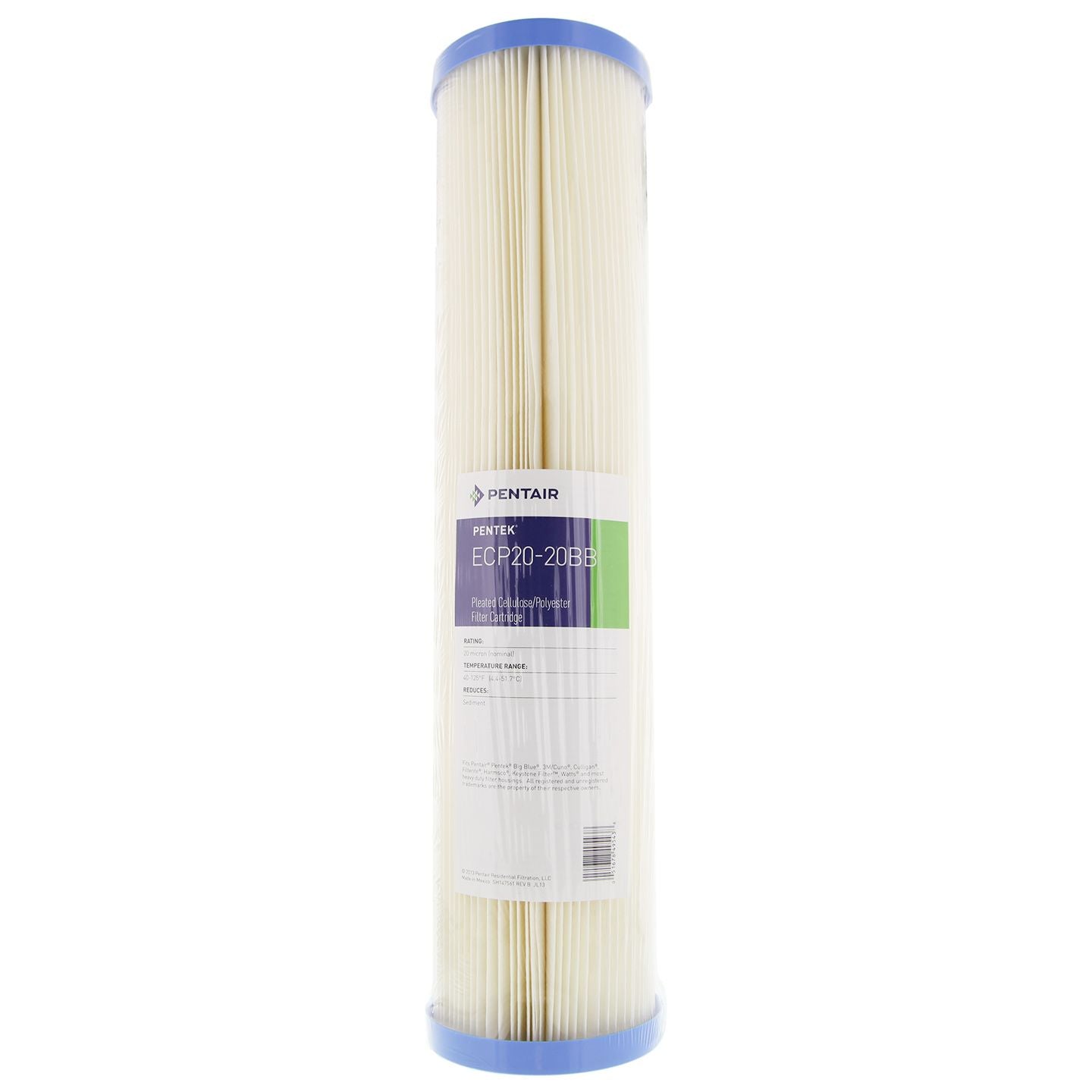

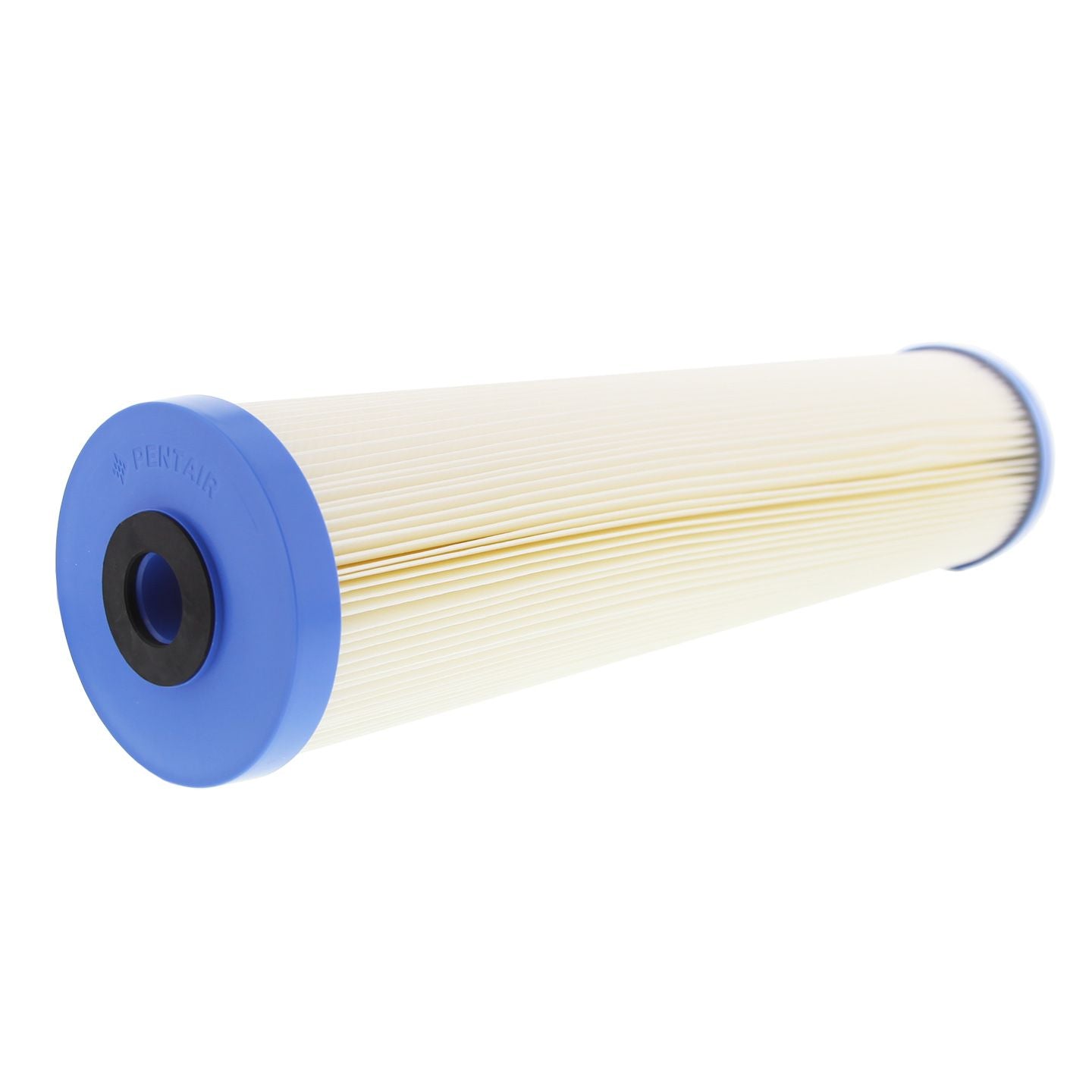

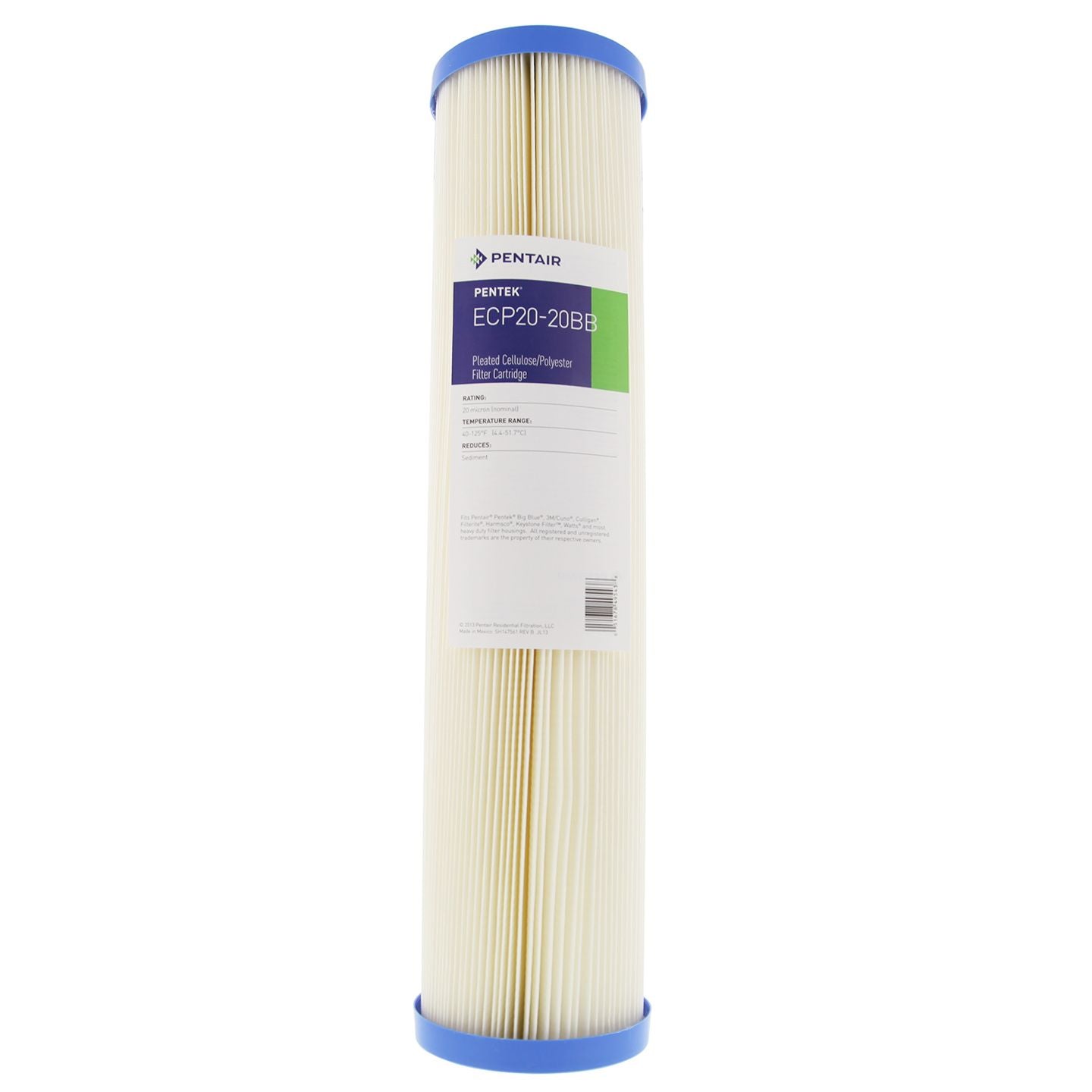

The Pentek ECP20-20BB is a pleated cellulose polyester sediment filter with a 20-micron nominal rating. This micron rating makes it ideal for reducing medium-to-large sediment particles such as sand, silt, rust, and scale from your whole-house or big blue water filtration system. The pleated design provides a greater surface area than standard spun or string-wound sediment filters, allowing for higher dirt-holding capacity and longer filter life.

The Pentek ECP20-20BB measures 20 inches in length with a 4.5-inch outer diameter (Big Blue size) and a 1.125-inch inner diameter. It is specifically designed to fit standard 20" x 4.5" Big Blue filter housings, including Pentek, Pentair, and compatible whole-house filtration systems. Always verify your housing's size before installation to ensure a proper seal and optimal performance.

The Pentek ECP20-20BB typically lasts 3 to 6 months, depending on your incoming water quality, sediment load, and household water usage. For average whole-house applications, this cartridge can filter tens of thousands of gallons before pressure drop indicates replacement. If you notice reduced water flow or pressure throughout your home, it's time to swap in a new ECP20-20BB cartridge.

Yes, the Pentek ECP20-20BB is manufactured with FDA-compliant materials and tested and certified by NSF International against NSF/ANSI Standard 42 for material safety and structural integrity. The cartridge is constructed from pleated cellulose polyester media with a polypropylene core, making it safe for potable water applications and suitable for both residential and light commercial use.

The Pentek ECP20-20BB is a dedicated sediment filter designed to reduce particulate contaminants such as dirt, sand, silt, rust flakes, scale particles, and other suspended solids down to 20 microns in size. It does not remove chlorine, chemicals, or dissolved contaminants — for those, consider pairing it with a whole-house carbon filter. Using the ECP20-20BB as a pre-filter protects downstream filters, appliances, and plumbing from sediment damage and extends the life of your entire filtration system.
