PTC34-JGX18

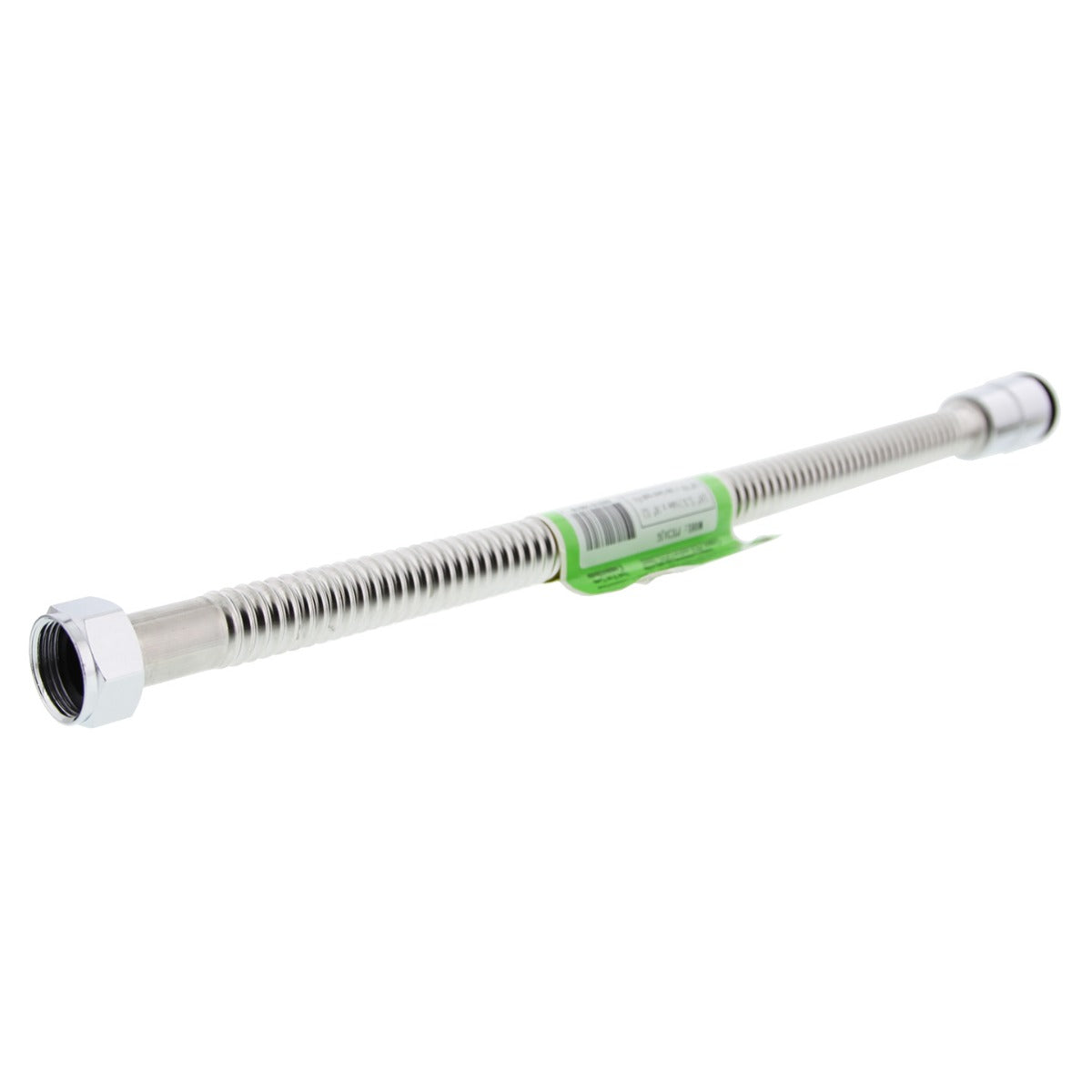

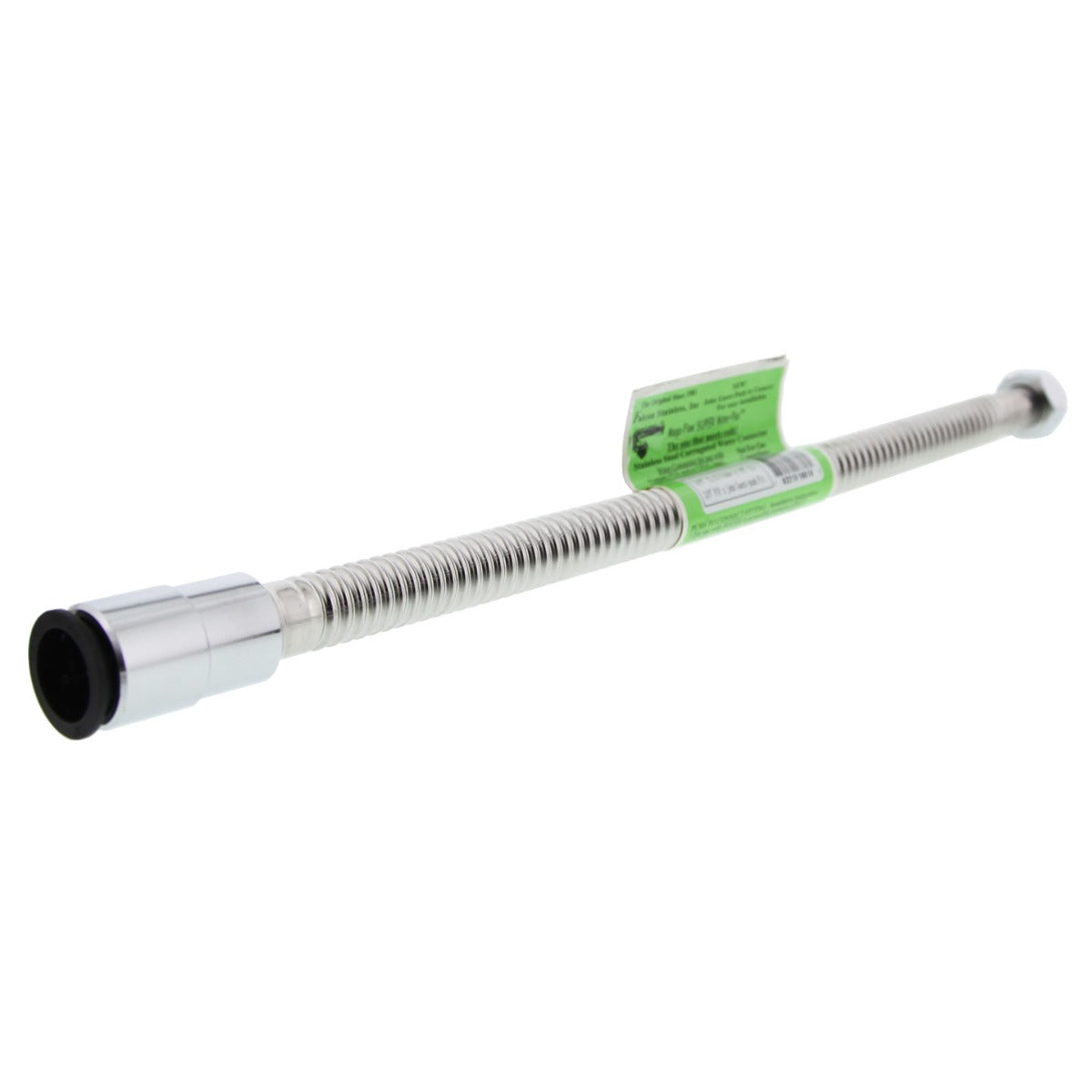

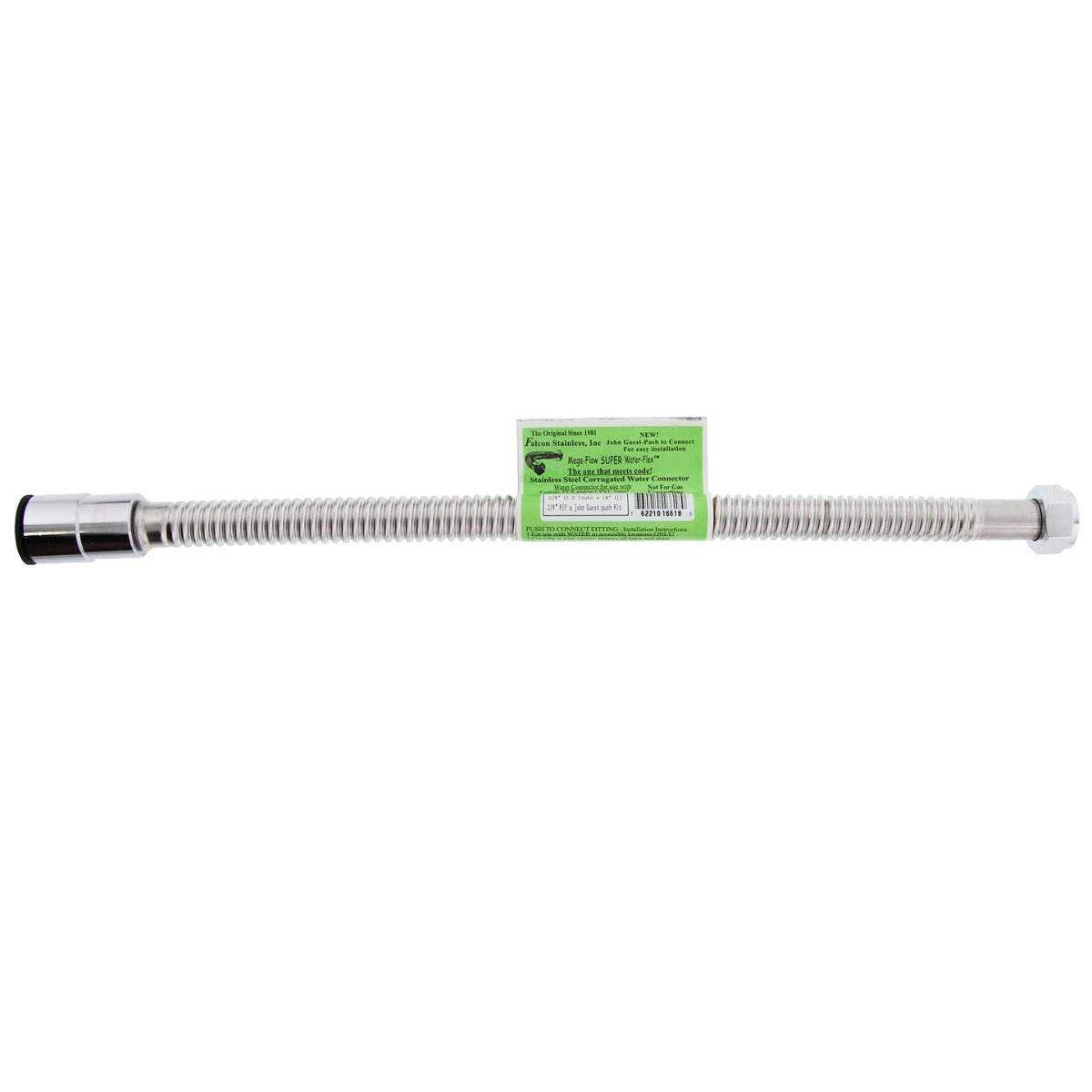

3/4 Inch PTC X 3/4 Inch FIP 18 Inch Stainless Steel Flex Connector
High Stock (15)
$21.27
Features & Specs
Features & Specs
Package Qty: 1
UPC: 762210166180
Actual Size (in): 18 Inch (Length) x 3/4 Inch (Outside Diameter)
Fitting Size (in): 34 in
Length (in): 18 in
Outside Diameter (in): 0.75 in
Materials of Construction: 304 Series Stainless Steel and Chrome plated brass nuts
Maximum Temperature (f): 250
Fitting Type: FIP|Quick Connect
Instructions
Instructions- For use with WATER in accessible locations ONLY.
- Cut tube or pipe square; remove all burrs and sharp edges as these can damage the internal o-ring.
- Push fitting onto the pipe up to the tube stop.
- Pull on the fitting to check that it is secure.
- Check that the rubber washer is installed in the FIP nut of the connector. Bend connector slowly into approximate shape to join water supply to the inlet nipple of the water heater or other appliance and secure snugly. (Caution: do not over-tighten FIP nut or bend tube excessively). Repeat this process for the outlet side of the heater or appliance.
- Turn on the water supply and check connections for leaks.
- To disconnect, ensure that the system is depressurized, and push the white plastic collet square against the fitting. With two fingers pull back on the collet to remove.
Certifications
Certifications3/4 Inch PTC X 3/4 Inch FIP 18 Inch Stainless Steel Flex Connector. This whole house system component makes it easy to configure your water system. Push-to-connect fittings install easily and the flexible pipe design allows for minimal hassle with system spacing. Get your stainless steel flexible connector today!
