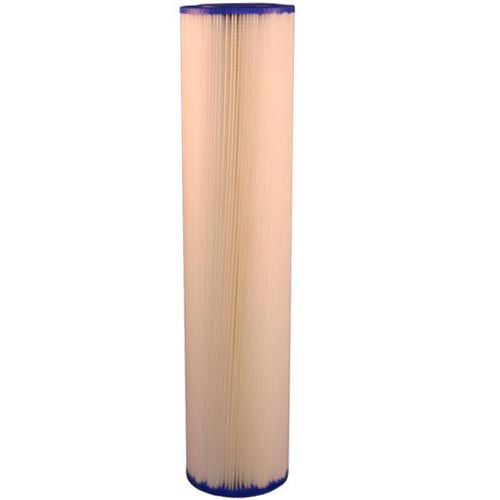

The Pentek ECP50-20BB is a pleated cellulose polyester sediment filter with a 50-micron nominal rating. It is engineered to capture larger sediment particles such as sand, silt, rust, and scale, making it ideal as a pre-filter for whole-house applications or as a primary filter in systems where coarse sediment reduction is the priority. The pleated design provides more surface area than standard melt-blown filters, resulting in higher dirt-holding capacity and longer service life.

The Pentek ECP50-20BB measures 20 inches in length and 4.5 inches in outer diameter, making it a Big Blue (BB) sized cartridge compatible with standard 20" x 4.5" whole-house filter housings such as the Pentek Big Blue series. It supports a maximum service flow rate of 8 GPM (gallons per minute) with an operating temperature range of 40°F to 125°F (4.4°C to 51.7°C) and a maximum pressure of 125 psi.

Yes, the Pentek ECP50-20BB is manufactured from FDA-compliant polyester materials and is tested and certified to NSF/ANSI Standard 42 for material requirements. This certification confirms that the filter media and components meet strict safety standards for contact with potable drinking water, ensuring no harmful substances leach into your water supply during filtration.

The Pentek ECP50-20BB typically lasts between 3 to 6 months, depending on incoming water quality, sediment load, and household usage. In a standard whole-house application, the cartridge can filter approximately 15,000 to 20,000 gallons before requiring replacement. We recommend monitoring pressure drop across the housing—when pressure drop reaches 15 psi above the initial clean cartridge reading, it's time to replace the filter to maintain optimal flow and filtration performance.

The Pentek ECP50-20BB features a pleated cellulose polyester media that significantly increases the surface area compared to traditional spun or melt-blown sediment filters. This pleated construction offers several advantages: higher dirt-holding capacity, extended filter life, lower pressure drop, and consistent flow rates throughout its service life. Additionally, the cartridge can be rinsed and reused multiple times before final disposal, providing excellent value for whole-house sediment filtration in well water or municipal applications with high particulate content.
