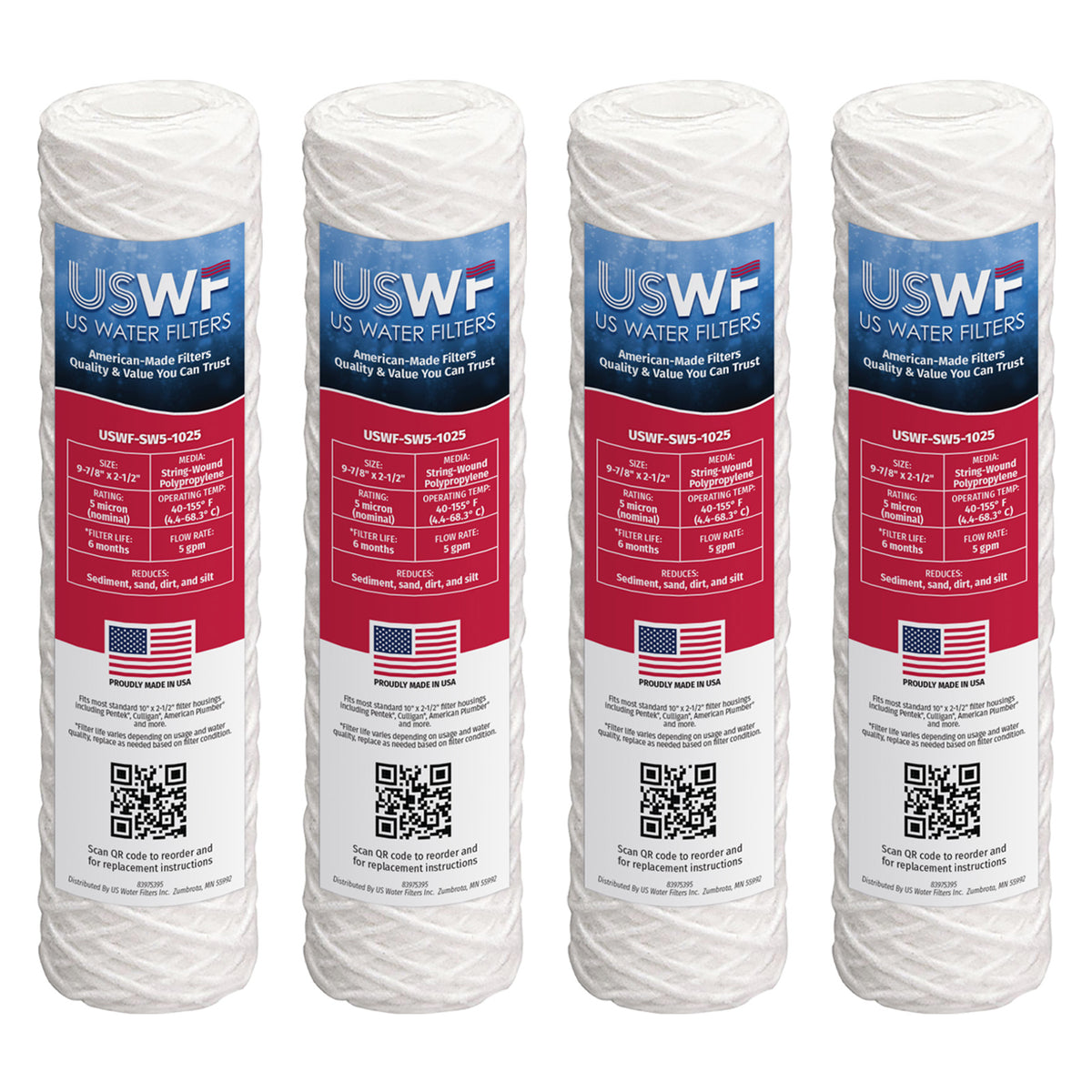

USWF-SW5-1025

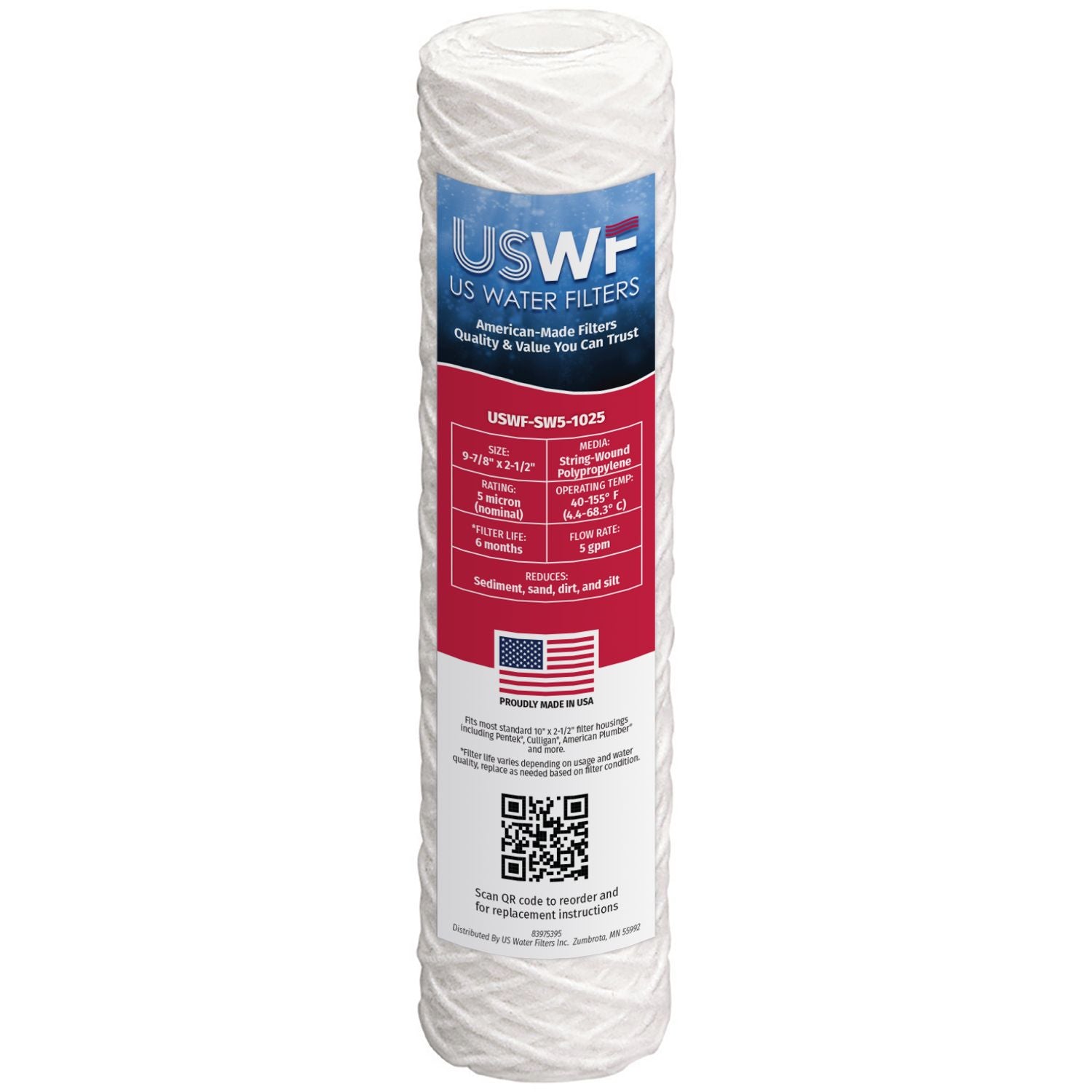

USWF 5 Micron 10"x2.5" String Wound Sediment Filter
High Stock (121)
Translation missing: en.products.product.price.regular_price
$5.03
| Price Per Item | |
|---|---|

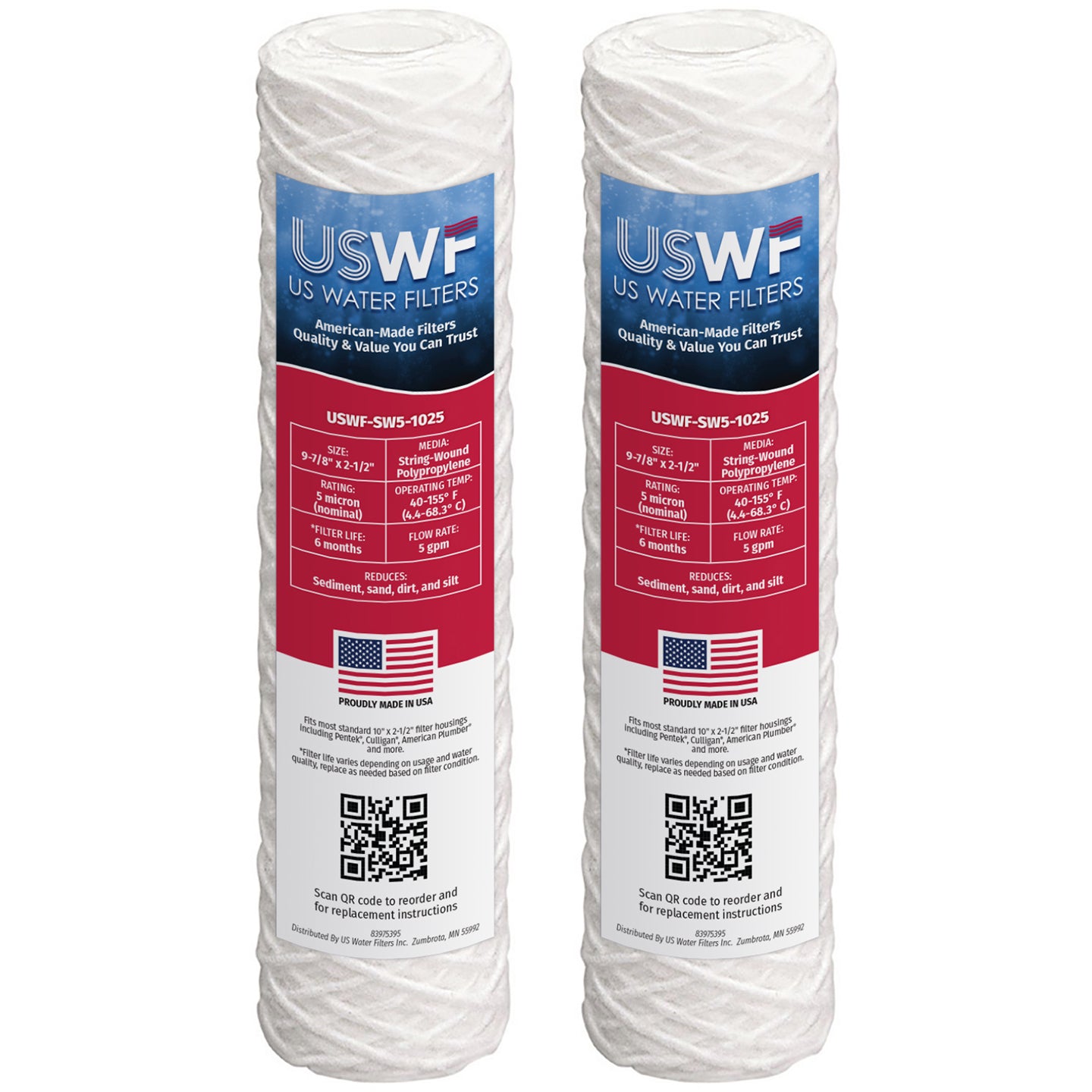

| 2 PACK | $4.88 |

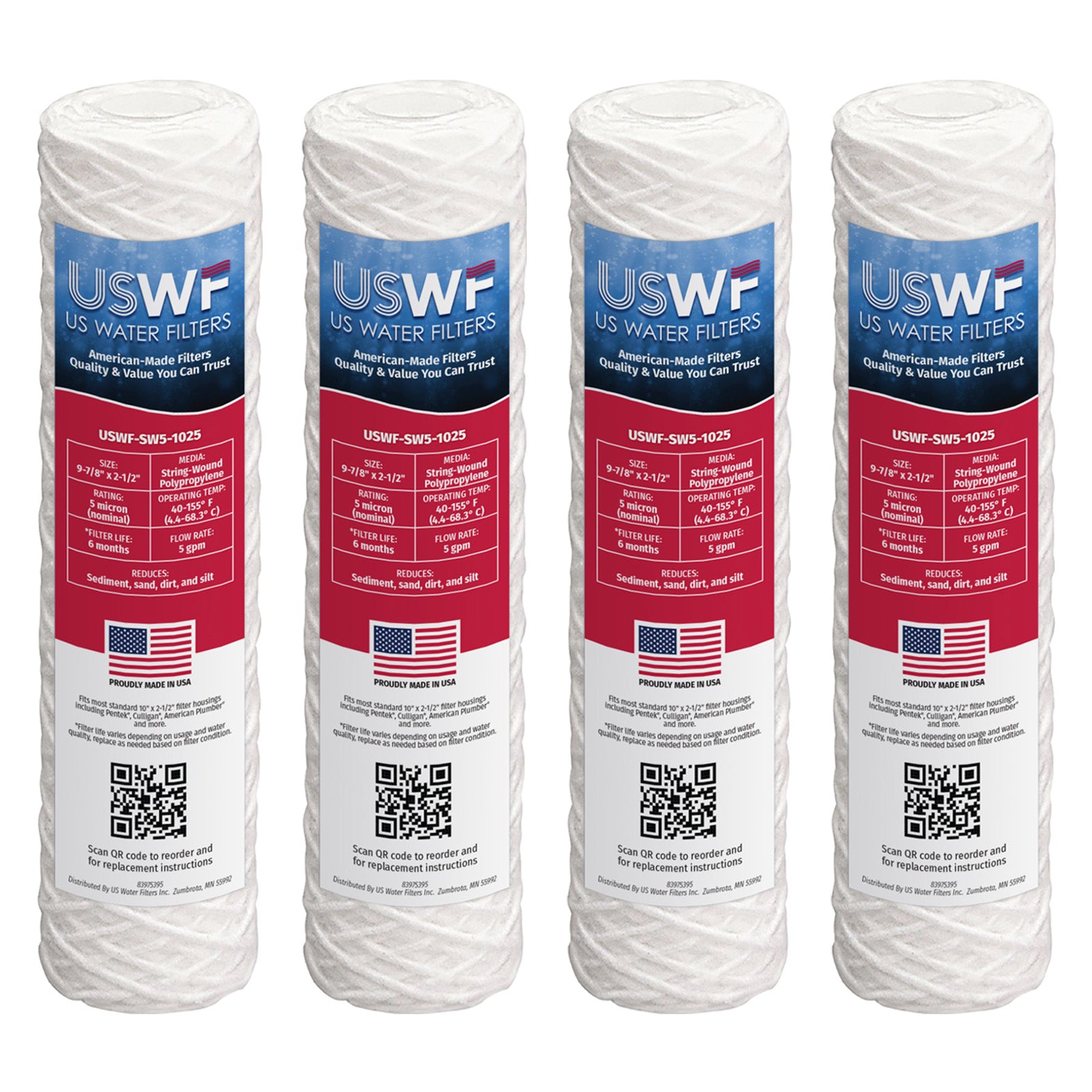

| 4 PACK | $4.72 |

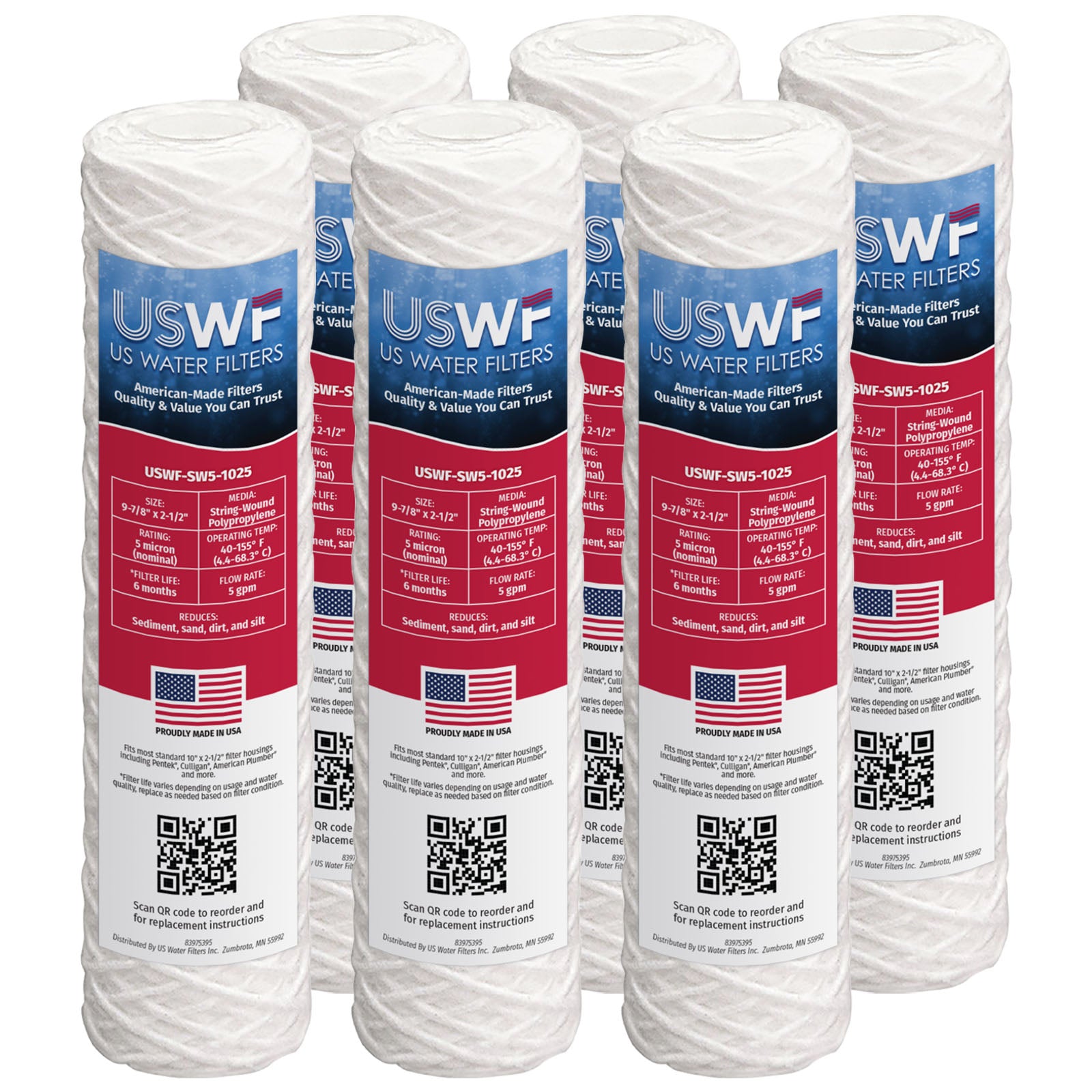

| 6 PACK | $4.57 |
| 24 PACK | $4.42 |
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer's Id: SW5-1025
Actual Size (in): 9 7/8 inches (length) x 2 1/2 inches (outside diameter)
Primary Filter Media: String-Wound Polypropylene
Operating Temperature (°F): 40 - 155
Brand: USWF
Advertised Size: 10 x 2-1/2
Length (in): 9.88 in
Outside Diameter (in): 2.5 in
Maximum Temperature (f): 155
Media Type: Sediment Filter
Country of Origin: United States
Micron Rating Nominal: 5
Flow Rate (gpm): 5.0
Instructions
Instructions- Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
- Unscrew filter housing sump. (Use filter wrench if nessecary.)
- Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
- Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
- If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
- Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
- Insert new filter cartridge ensuring that it is seated properly in the sump housing.
- Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
- Turn on the water supply and check for leaks before leaving the installation.
- Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)
Contaminants Reduced
Contaminants Reduced
Filter Life
Filter Life
Filter Life (months): 6 months

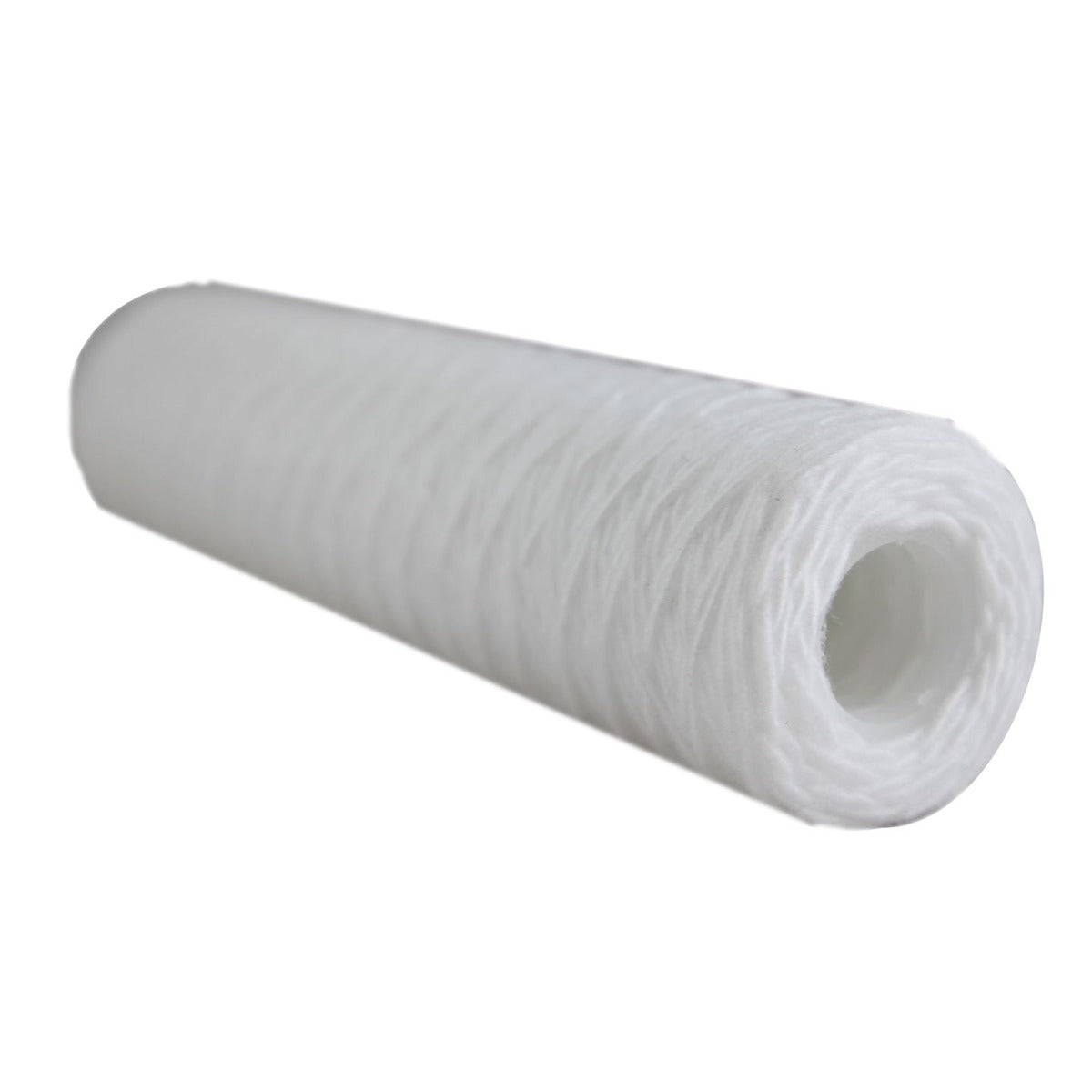

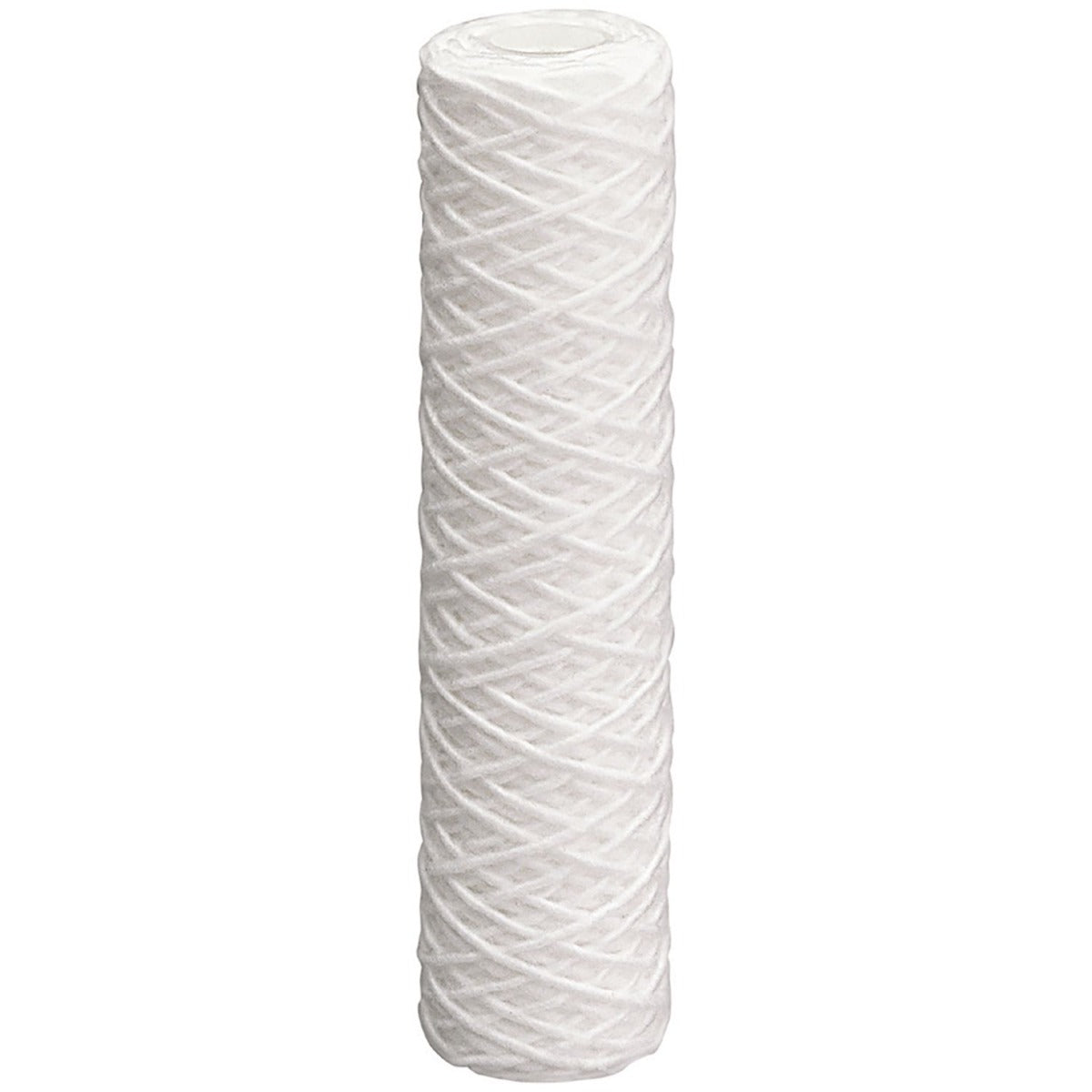

USWF-SW5-1025 is a 5 micron 10"x2.5" string wound sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant polypropylene string wound around a polypropylene core to provide a high quality filter independently tested to NSF / ANSI standards 42, 61, and 372.
String wound filters are typically used in well water applications because they are excellent at handling a wide variety of particle sizes. The string creates a large surface area for dirt holding, and as the string is wound tighter at the core than at the surface it provides great dirt holding capacity for non-uniform sediment.
Most private well owners know to avoid using cellulose filters on non-chlorinated well water, but many don't realize that cotton fibers used in many string wound cartridges are made up of over 90% cellulose material. USWF string wound filters are only made with polypropylene fibers because the synthetic fibers are more bacteria resistant, making USWF string wound filters the perfect sediment filter choice for untreated well water.
This American made filter is a compatible replacement for other popular string wound sediment filters like the Pentek WP5, Omnipure RS2-DS, Hydronix SWC-25-1005, and more.
Choosing American-made products means investing in quality you can trust, while also supporting jobs and communities across the United States. American manufacturing is held to strict quality and safety standards, ensuring durable, reliable products built to last. By buying domestically, you help strengthen the U.S. economy, support local workers, and reduce reliance on overseas production. Plus, with shorter supply chains and lower transportation emissions, American-made goods contribute to a smaller environmental footprint - making it a smart choice for both performance and sustainability.
Interested in reading more about US-made products and what we offer? Read our article, Why Buy American Made Filters?
String wound filters are typically used in well water applications because they are excellent at handling a wide variety of particle sizes. The string creates a large surface area for dirt holding, and as the string is wound tighter at the core than at the surface it provides great dirt holding capacity for non-uniform sediment.
Most private well owners know to avoid using cellulose filters on non-chlorinated well water, but many don't realize that cotton fibers used in many string wound cartridges are made up of over 90% cellulose material. USWF string wound filters are only made with polypropylene fibers because the synthetic fibers are more bacteria resistant, making USWF string wound filters the perfect sediment filter choice for untreated well water.
This American made filter is a compatible replacement for other popular string wound sediment filters like the Pentek WP5, Omnipure RS2-DS, Hydronix SWC-25-1005, and more.
Interested in reading more about US-made products and what we offer? Read our article, Why Buy American Made Filters?
USWF-SW5-1025 is comparable with the following part number(s)
- 155186-52
- W30W
- W34-PR
- W5
- W50W
- WC34-PR
- WVC34
- WVC-34
- W5W
- WHKF-WHSW
- WHIRLPOOL-WHKF-WHSW
- AO-WH-PRE-R2
- 40907
- 250056
- Ace 45025
- Ace 46764
- Ace 49560
- Ametek 250056
- Ametek PSCL-SI
- Ametek PS-OO
- Ametek PVHCL-SI
- Fulflo LCA
- Fulflo WC12
- Fulflo WS12
- RWC-5
- 1019140
- 155071
- 175574
- 155071-43
- RS2
- RS2DS
- RS2-DS
- RS2-DS12-01
- RS2-DS12-02
- RS2-DS12-05
- RS2-SS
- WHCF-WHSW
- WHKFWHSW
- WHKF-WHSW
- WP5
- WP-5
- Ace Hardware 46776
- American Plumber W5W
- Ametek Kleen-Plus CW-F
- CBF1
- CBF20
- CBF3
- Culligan CW-F
- Deluxe
- Do It Best 426658
- Flotec FPWF-RS3
- Master Plumber 583-393
- OB1
- OB3
- OB5
- Omni Regular
- OT2
- OT32
- R12
- R14
- SFM2
- SFM3
- Teledyne Pik IR20W
- True Value 583-393
- U24
- U25
- U26
- U400
- U450
- U500
- U600
- U700
- UC2
- RS2-SS24-05
- RS5-934
- PENTEK-WP-5
- WHIRLPOOL
 |  |  |  | |
|---|---|---|---|---|
