RUSCO-1-100ST-F

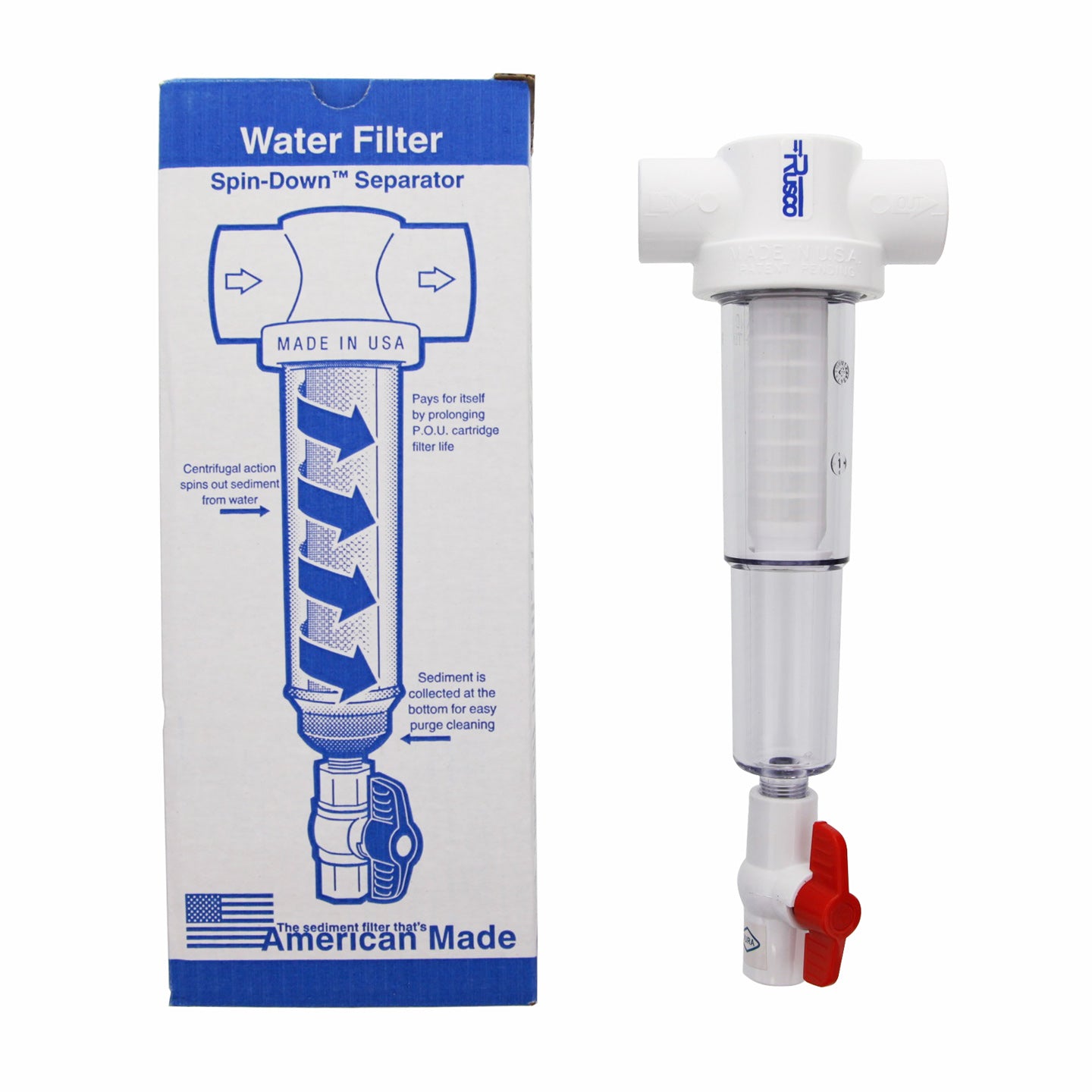

1-100ST-F Rusco Sediment Trapper System
Low Stock (4)
$95.01 - $501.65
100 mesh, 74 micron and built to fit a one-inch pipe
| Price Per Item | |
|---|---|
| 2 PACK | $92.16 |
| 3 PACK | $89.31 |
| 4 PACK | $86.46 |
| 6 PACK | $83.60 |
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Rusco
Manufacturer's Id: 1-100ST-F
UPC: 659498013827
Actual Size (in): 14 3/8 inches (height) x 5 inches (width)
Primary Filter Media: Polyester
Operating Pressure (psi): 0 - 150
Operating Temperature (°F): 40 - 100
Operating Temperature (°C): 4.4 - 37.8
Brand: Rusco
Fitting Size (in): 1 in
Height (in): 14.38 in
Length (in): 14.38 in
Width (in): 5 in
Materials of Construction: Screen Material: Polyester, Cover Material: High Impact Polymer Resin, Body Material: PVC
Media Type: Sediment Filter
Mesh Size: 100
Micron Rating Nominal: 152
Flow Rate (gpm): 10.0
Includes: Polyester Screen Sediment Trapper System
Instructions
Instructions- Install the filter in a location that protects it from damage such as impact, freeze, excessive heat, chemical contact and water hammer.
- Install the filter in the preferred vertical position with the purge outlet pointing down and also where it can be easily accessed for cleaning and maintenance.
- Install the filter on the discharge side of the pump to allow the filter to be cleaned by purging through the flush valve.
- Refer to arrows on the filter body for correct water flow direction.
- Adhere to all local and state codes, laws and regulations.
- Use approved solvent cement for gluing PVC connections. Follow gluing instructions on glue container.
- It is recommended that the clear cover be removed from the PVC body prior to the gluing process. Any excess glue that comes in contact with the clear cover will damage it.
Contaminants Reduced
Contaminants ReducedFeaturing reusable, polyester screens that fit into a strong polymer resin cover, the 1-100ST-F Rusco Sediment Trapper system helps reduce virtually all potentially harmful sediment from your home’s water. Easy to clean and maintain, this system is most ideal for heavy sediment applications. This filter system is 100 mesh, 74 micron and built to fit a one-inch pipe. Ensure your home’s drinking water quality remains high and that corrosive sediment is kept away from the inside of high-end appliances by order the 1-100ST-F Rusco Sediment Trapper system from us online today. All orders placed by 4pm CST ship same day. This genuine, OE system ships FREE!
RUSCO-1-100ST-F is comparable with the following part number(s)
- RUSCO-FS-1-100ST
