VIQUA-VH150
Viqua VH150 Whole House UV System
Out of Stock
Translation missing: en.products.product.price.regular_price
$578.00
The VH150 replaces the S5Q-PA system.
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Viqua
Actual Size (in): 13 inches (Lengh) x 3.5 inches (Width)
Brand: Viqua
Fitting Size (in): 3/4 inch
Length (in): 13 in
Width (in): 3.5 in
Materials of Construction: Chamber Material: 304 SS
Power Requirements: 120-240V / 50/60 Hz
UPC's For Search: 773058994095
Fitting Type: FNPT
Flow Rate (gpm): 3.5
Includes: Controller
Downloads
Downloads

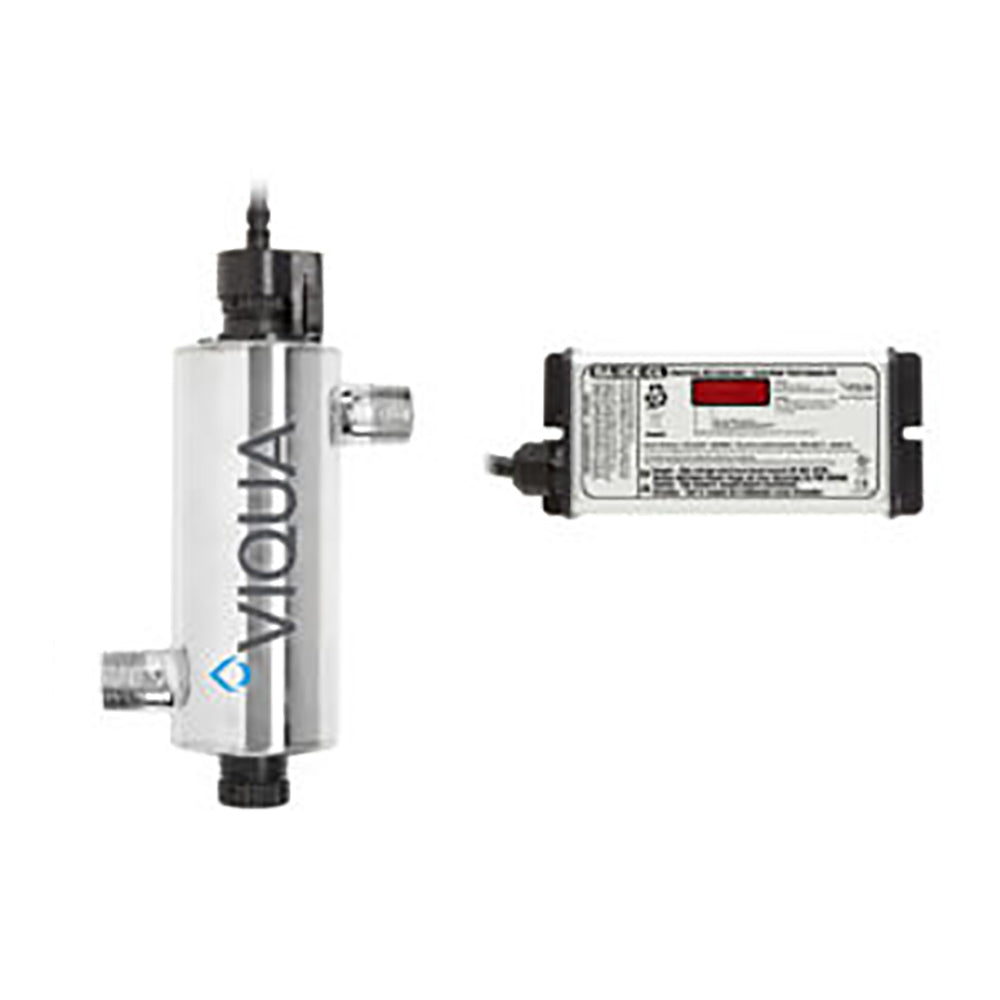

The Viqua VH150 is a whole house UV system designed to provide the same quality output as larger UV chambers in a compact, space-efficient, smaller design. This system delivers a consistent output even if power fluctuates and features ease of use monitoring with the included controller that will alert the user when a lamp replacement is needed or if the current lamp fails. If possible, UV systems should be accompanied by additional water filtration, preceding the UV chamber, to reduce larger particles that might clutter or damage the internal quartz sleeve and lamp. An installation diagram is included below to demonstrate the proper setup. This system works optimally when the following water quality parameters are met.
Water Quality Parameters:
Water Quality Parameters:
- Hardness: <7 grains (120mg/L)
- Iron: <0.3 mg/L
- Tannins: <0.1 mg/L
VIQUA-VH150 is comparable with the following part number(s)
- VIQUA-VH150
- VH150
- VH150\/2
- VH150\/2A
- VH150\/2B
- S5Q-PA
