USWF 30 Micron 20"x4.5" Pleated Polyester Sediment Filter - Whole House Cartridges - 24.45 - DiscountFilterStore.com

USWF-PP30-2045

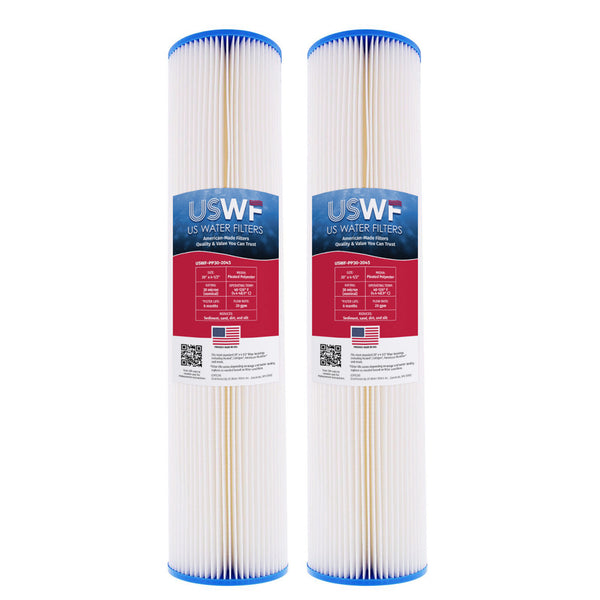

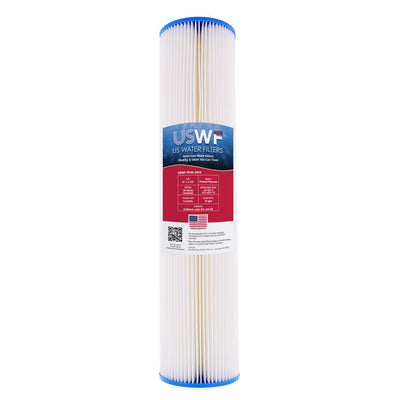

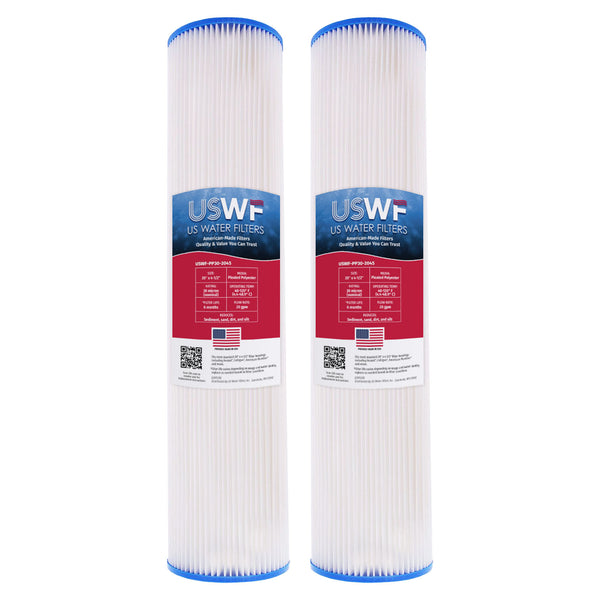

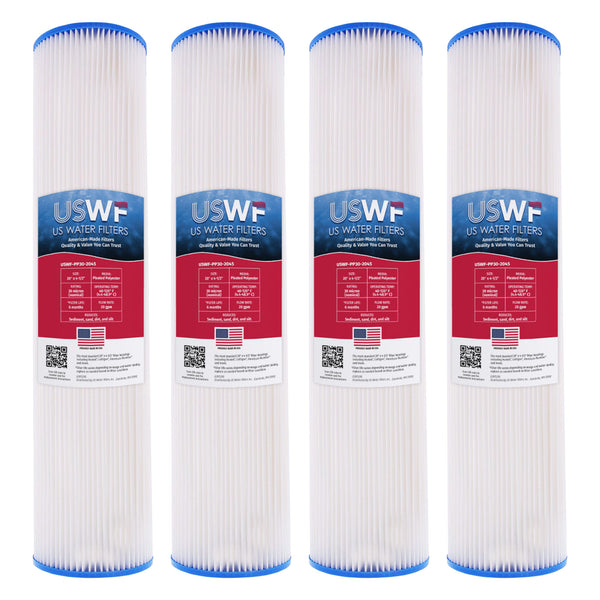

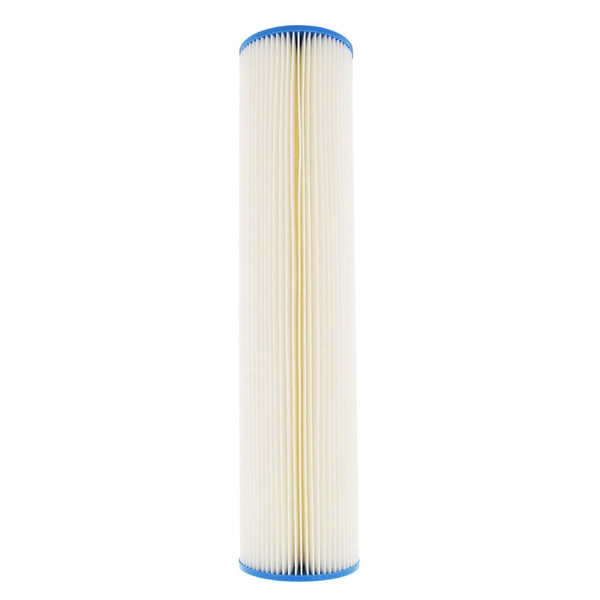

USWF 30 Micron 20"x4.5" Pleated Polyester Sediment Filter

Out of Stock

$24.45

Price Per Item
Single	$24.45
2 PACK	$23.72
4 PACK	$22.98
6 PACK	$22.25
24 PACK	$21.52

Choose a Pack Size:

Single

2 PACK

4 PACK

6 PACK

24 PACK

One Time Delivery

Select Auto-Ship and Save 10%

What's this?

Proudly manufactured in America supporting American workers and ensuring a high quality product.
Pleated filter's high surface area provides the best flow rate and lowest initial pressure drop of any sediment filter type.
Constructed with FDA Title 21 compliant polyester fabric for use on untreated water supplies.
Fits most standard 20" x 4 1/2" filter housings including Pentek, Culligan, American Plumber and more.

Features & Specs

Package Qty: 1

Manufacturer's Id: PP30-2045

Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)

Primary Filter Media: Pleated Polyester

Operating Temperature (°F): 40 - 120

Brand: USWF

Advertised Size: 20 x 4-1/2

Length (in): 20 in

Outside Diameter (in): 4.5 in

Maximum Temperature (f): 120

Media Type: Sediment Filter

Country of Origin: United States

Micron Rating Nominal: 30

Flow Rate (gpm): 20.0

Instructions

Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
Unscrew filter housing sump. (Use filter wrench if nessecary.)
Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
Insert new filter cartridge ensuring that it is seated properly in the sump housing.
Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
Turn on the water supply and check for leaks before leaving the installation.
Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)

Contaminants Reduced

Sediment

Coarse Sand

Filter Life

Filter Life (months): 6 months

Check Our Comparable Products

Product Details

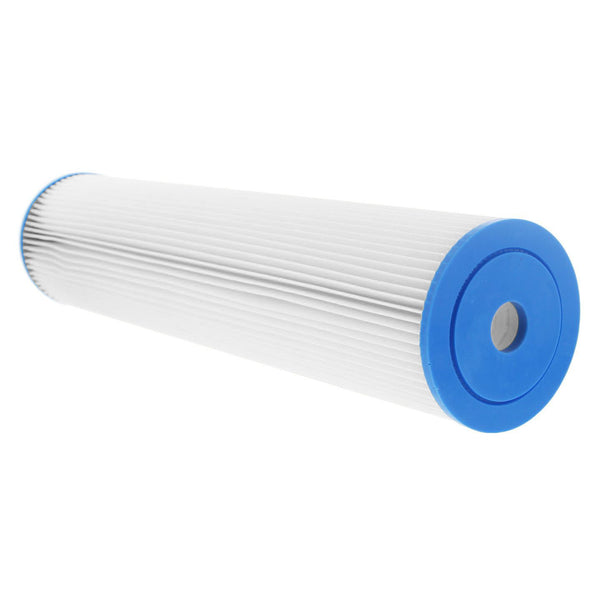

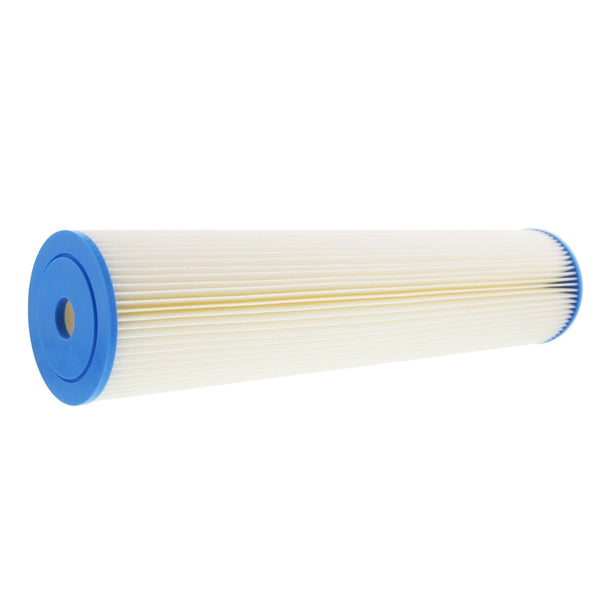

USWF-PP30-2045 is a 30 micron 20"x4.5" pleated polyester sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant polyester fabric pleated around a polypropylene core to provide a high quality filter independently tested to NSF / ANSI standards 42, 61, and 372.
Pleated filters offer the lowest pressure drop and highest flow rate of all sediment filter types by providing as much filtration surface as possible to maximize water flow. However because pleated filters offer no filtration gradient or depth they are best suited to filter sediment of uniform particle size.
USWF only carries pleated polyester filters. The synthetic filter media is bacteria resistant so that it can be used on both treated and untreated water supplies. The pleated polyester is also highly durable meaning that you may rinse and clean the filter once it becomes clogs to extend the filter life.
This American made filter is a compatible replacement for other popular pleated sediment filters like the Pentek R30-20BB, Hydronix SPC-45-2030, and more.
Proudly made in America

Choosing American-made products means investing in quality you can trust, while also supporting jobs and communities across the United States. American manufacturing is held to strict quality and safety standards, ensuring durable, reliable products built to last. By buying domestically, you help strengthen the U.S. economy, support local workers, and reduce reliance on overseas production. Plus, with shorter supply chains and lower transportation emissions, American-made goods contribute to a smaller environmental footprint - making it a smart choice for both performance and sustainability.

Interested in reading more about US-made products and what we offer? Read our article, Why Buy American Made Filters?

Frequently Asked Questions

What is the micron rating of the USWF 20x4.5 Pleated Polyester Sediment Filter, and what does it remove?

The USWF 30 Micron 20"x4.5" Pleated Polyester Sediment Filter has a 30-micron rating, making it ideal for removing larger sediment particles such as sand, silt, rust flakes, dirt, and scale from your water supply. Its pleated polyester design provides a greater surface area compared to standard spun filters, allowing for higher dirt-holding capacity and improved flow rates. This filter is best used as a pre-filter to protect downstream filtration equipment and plumbing fixtures.

What are the exact dimensions and housing compatibility for this USWF sediment filter?

This USWF filter measures 20 inches in length and 4.5 inches in diameter (often referred to as "Big Blue" size). It is compatible with any standard 20" x 4.5" whole house filter housing, including Pentek Big Blue, Pentair, Culligan HD-950A, American Plumber, and similar-sized systems. Always verify your housing's inner dimensions before purchasing to ensure a proper fit and seal.

How long does the USWF 30 Micron Pleated Polyester Sediment Filter last?

The USWF 20x4.5 Pleated Polyester Sediment Filter typically lasts 6 to 12 months, depending on your water quality, sediment load, and household water usage. In homes with heavy sediment or well water, replacement may be needed sooner—every 3 to 6 months. A key advantage of pleated polyester media is that it can be rinsed and reused in some cases, extending its usable life compared to melt-blown or spun polypropylene alternatives.

Is the USWF Pleated Polyester Sediment Filter washable and reusable?

Yes, one of the standout features of the USWF pleated polyester design is that it is washable and reusable. When flow begins to decrease, simply remove the filter from the housing and rinse it with clean water to dislodge trapped sediment. This can be done multiple times before replacement is necessary, making it a cost-effective and environmentally friendly choice compared to single-use sediment cartridges.

What is the recommended flow rate and temperature range for this USWF filter?

The USWF 30 Micron 20"x4.5" Pleated Polyester Sediment Filter supports flow rates up to approximately 8–10 GPM (gallons per minute), making it suitable for whole-house applications. It operates within a temperature range of 40°F to 145°F (4°C to 62°C) and handles working pressures up to 125 PSI. For optimal performance, pair it with a finer-micron post-filter (such as a 5-micron carbon block) to address taste, odor, and smaller particles.

Comparable Part Number

USWF 30 Micron 20"x4.5" Pleated Polyester Sediment Filter

Frequently Asked Questions

USWF-PP30-2045 is comparable with the following part number(s)

Customers Also Purchased

	USWF 30 Micron 20"x4.5" Pleated Polyester Sediment FilterFrom $24.45	R30-20BB Pentek Whole House Filter Replacement CartridgeFrom $50.47	R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1From $25.09
Product Price	$24.45	$50.47	$25.09
Product SKU	USWF-PP30-2045	PENTEK-R30-20BB	TIER1-R30-20BB
Filter Life (months)	6 months	6 months	6 months
Primary Filter Media	Pleated Polyester	Pleated Polyester	Pleated Polyester
Micron Rating (Nominal)	30	30	30
Actual Size (in)	20 inches (length) x 4 1/2 inches (outside diameter)	20 inches (length) x 4 1/2 inches (outside diameter)	20 inches (length) x 4 1/2 inches (outside diameter)
Country of Manufacture	United States	Mexico	China
