The 3M Aqua-Pure AP801 whole house system uses the AP810 replacement cartridge, which has a 5-micron nominal rating for sediment and chlorine taste & odor reduction. Each AP810 cartridge is rated for up to 100,000 gallons or approximately 12 months of service life (whichever comes first), making it ideal for point-of-entry filtration in homes with average water usage. Its high-capacity design delivers a flow rate of up to 20 gallons per minute (GPM), ensuring consistent pressure throughout your entire home.

Yes, the 3M Aqua-Pure AP801 system and its AP810 replacement cartridge are tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of chlorine taste & odor, and for material safety and structural integrity. This certification ensures the AP801 meets rigorous independent standards for performance and durability in whole-house applications.

3M recommends replacing the AP810 filter cartridge every 12 months or after 100,000 gallons of use, whichever comes first. However, if you notice reduced water flow, a return of chlorine taste or odor, or visible sediment in your water before that point, the cartridge should be changed sooner. Homes with well water or higher sediment loads may require more frequent replacements to maintain optimal flow and filtration performance.

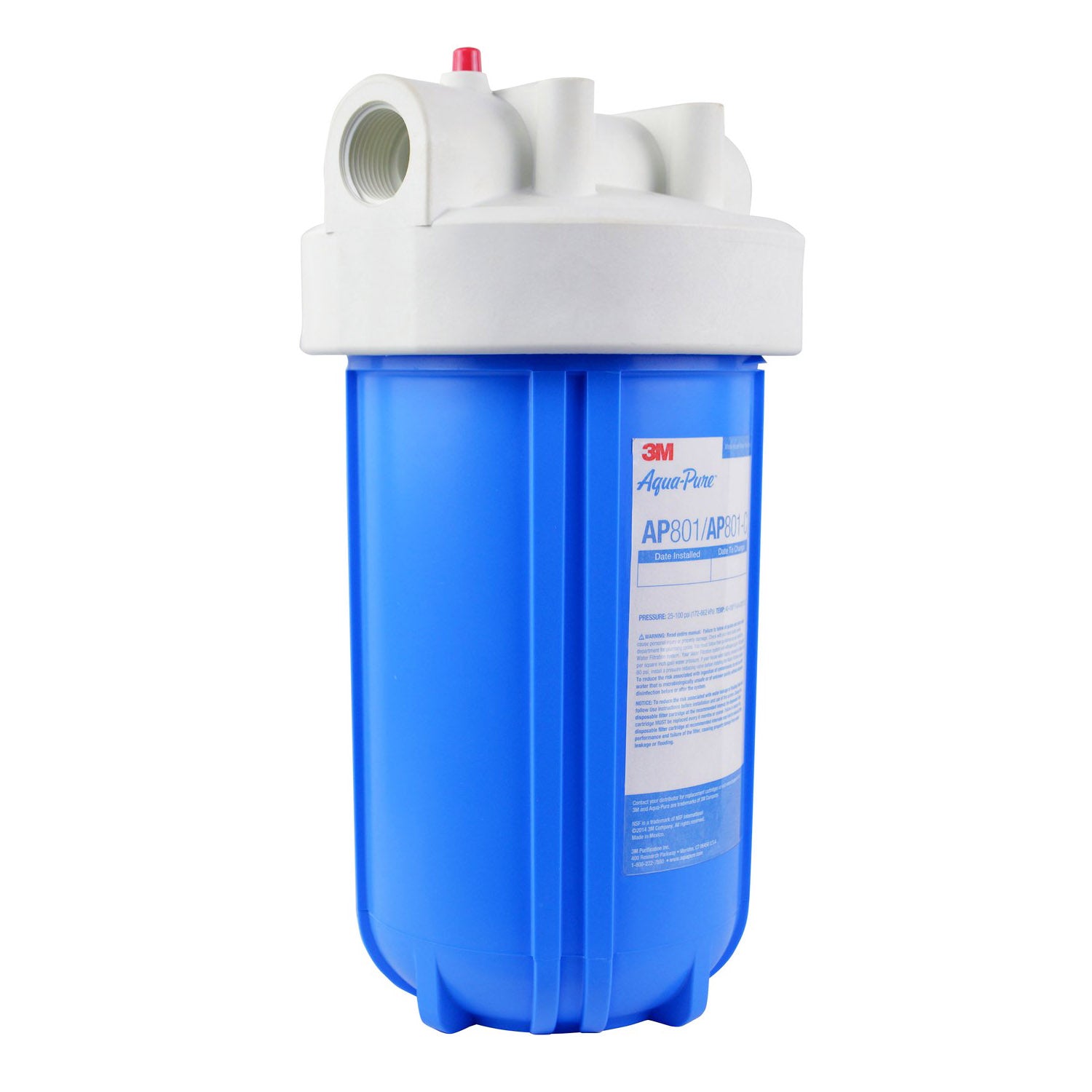

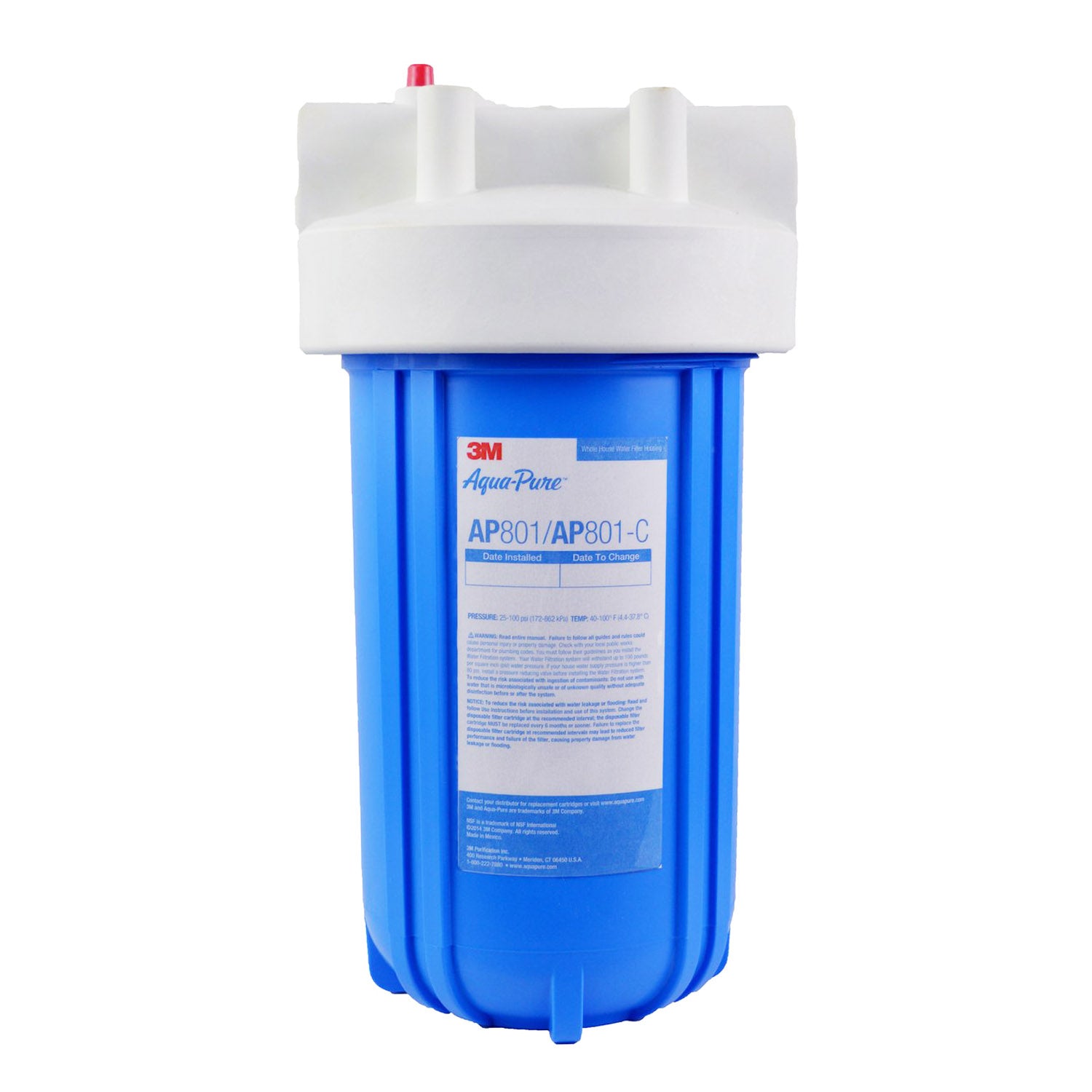

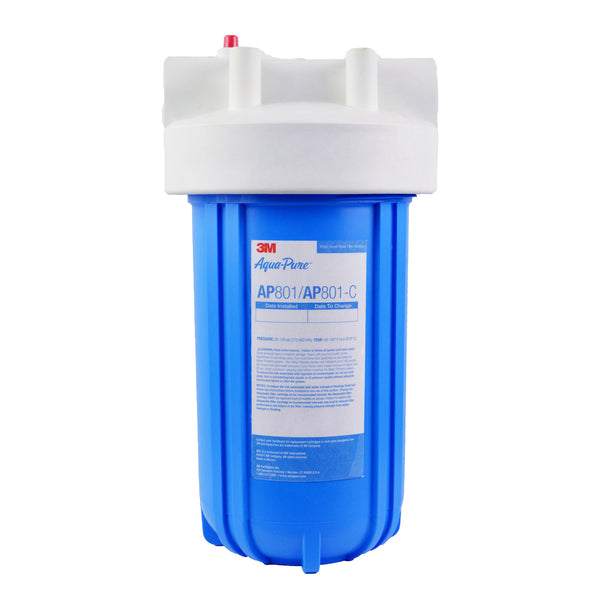

The Aqua-Pure AP801 housing measures approximately 25.4" in height with a 7.25" diameter and uses 1" NPT inlet/outlet connections, making it compatible with standard whole-house plumbing. It is designed to be installed at the main water line entry point and features a built-in pressure relief valve for easy cartridge changes. The system operates within a pressure range of 25–125 psi and a temperature range of 40°F–100°F.

The AP801 with the AP810 cartridge is specifically designed to reduce sediment, dirt, rust, sand, silt, and chlorine taste & odor throughout your entire home. It is not designed to remove dissolved solids, lead, fluoride, or bacteria. For additional contaminant reduction such as scale, lead, or cysts, 3M offers upgraded cartridges like the AP810-2 (high-flow) or pairing the AP801 with a downstream scale inhibitor or under-sink drinking water system.
