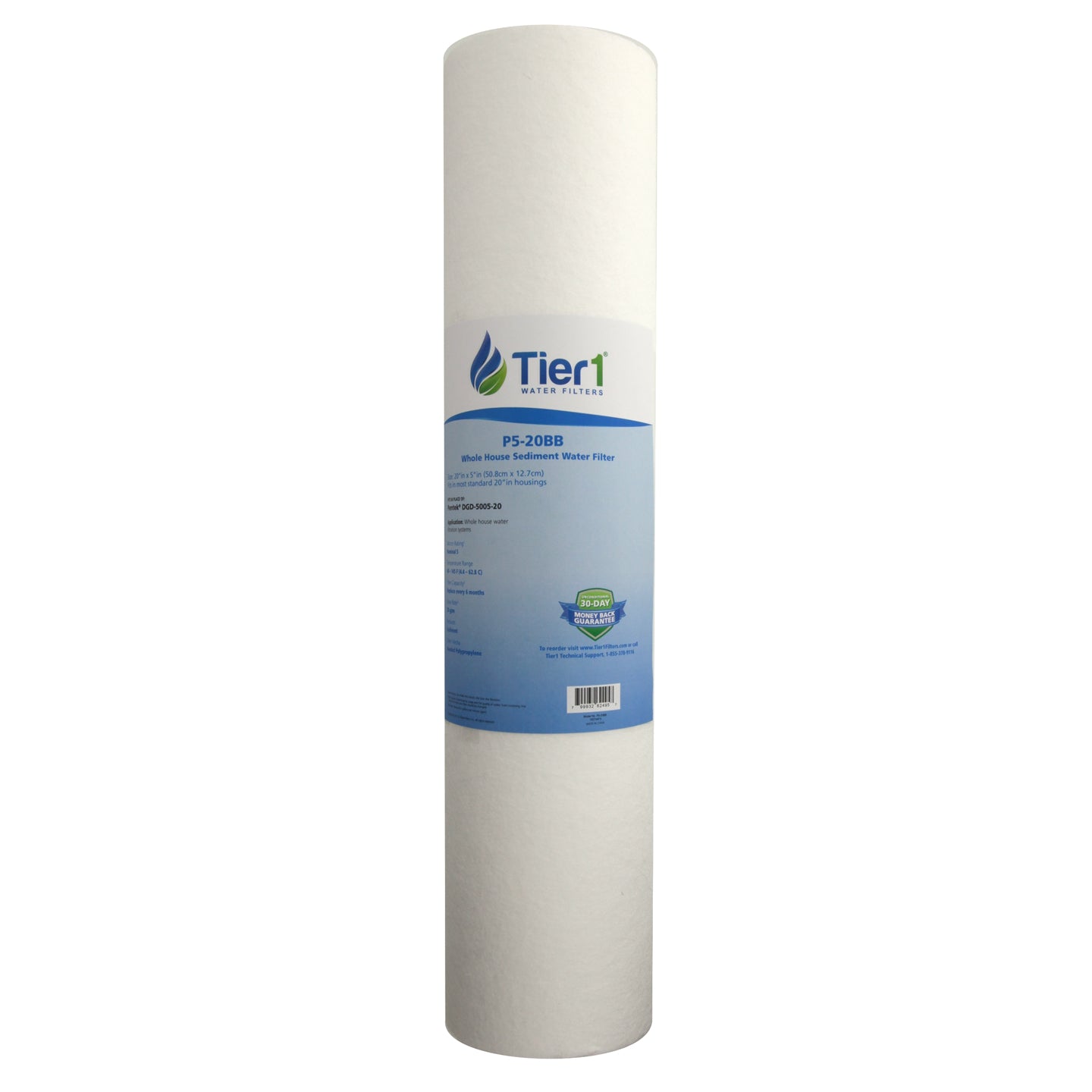

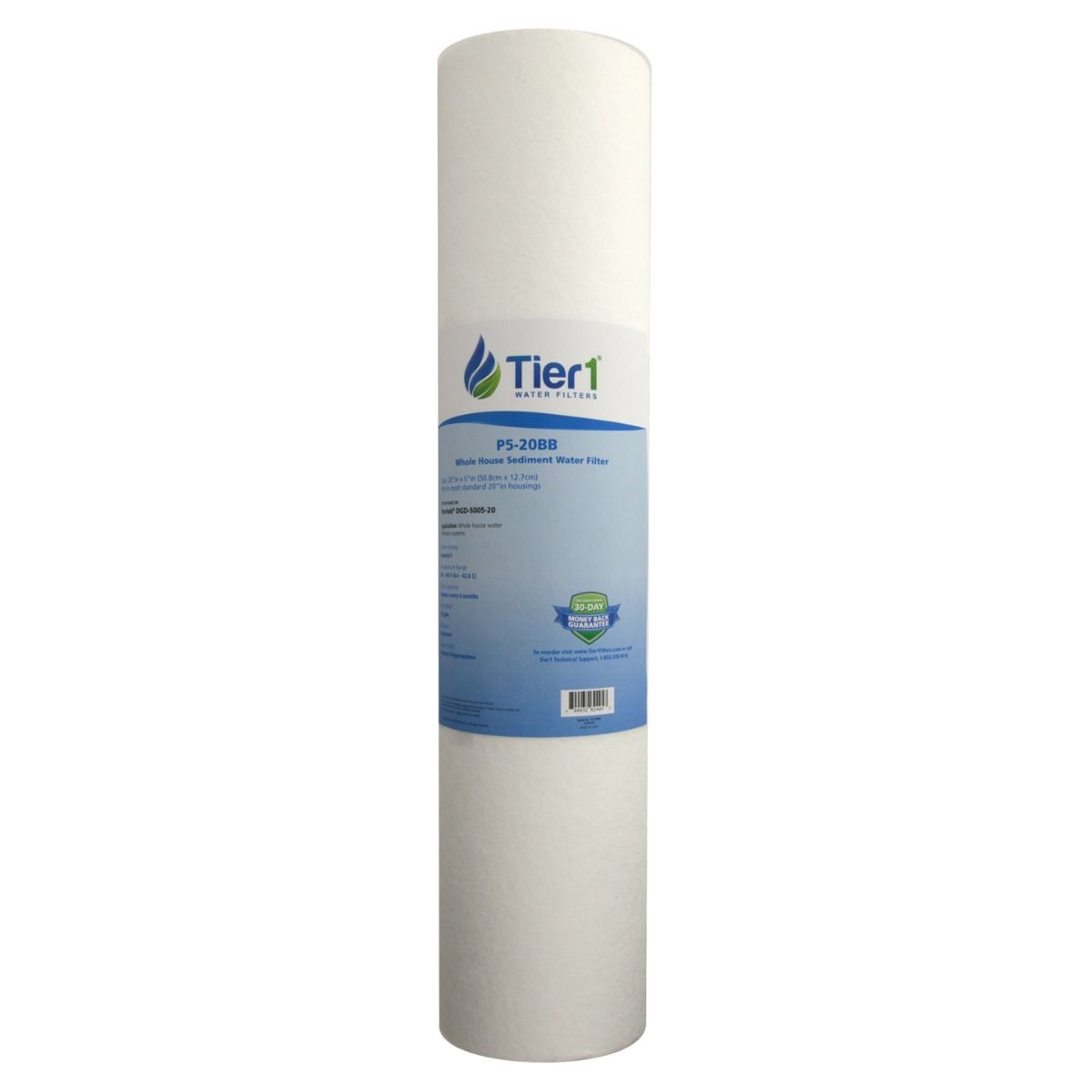

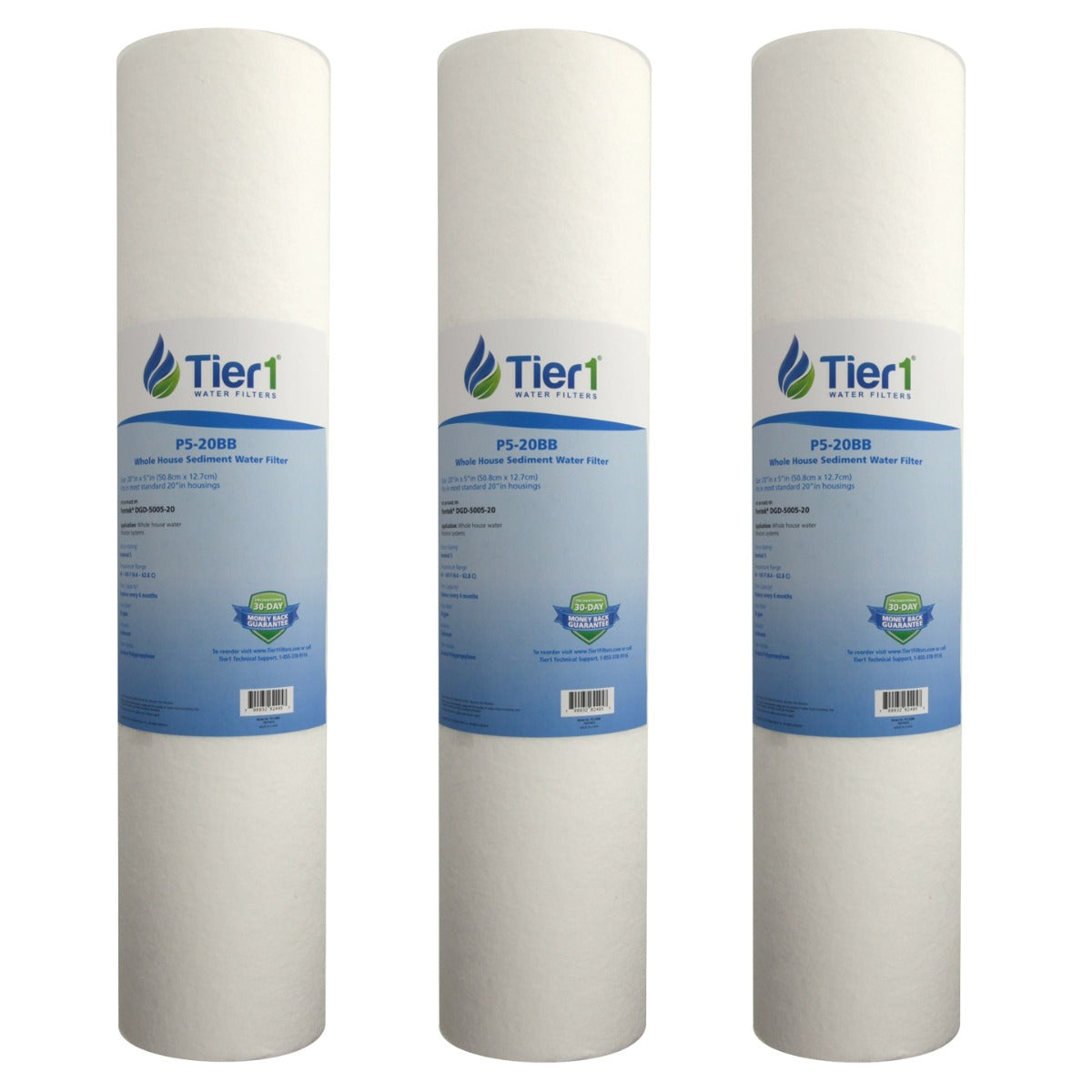

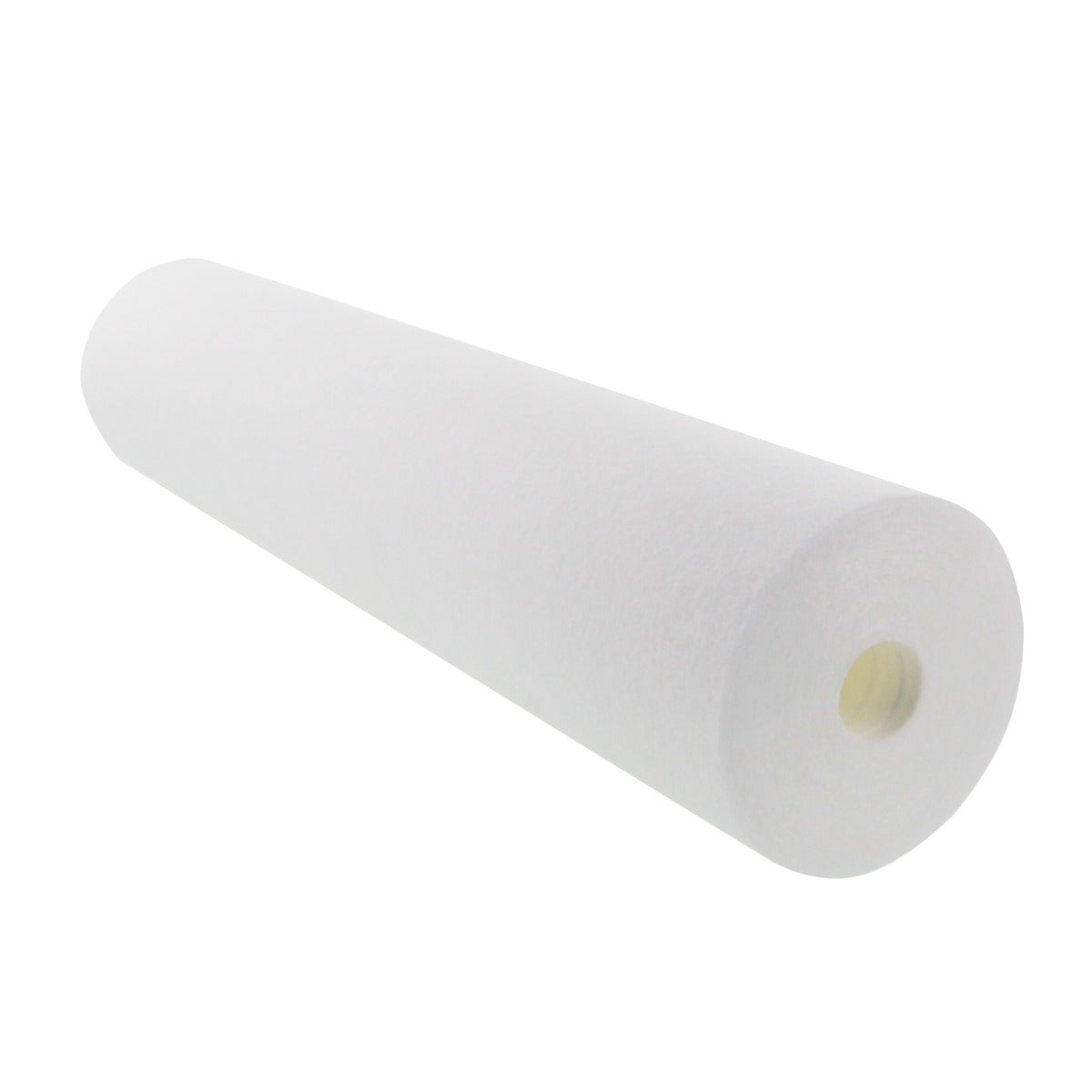

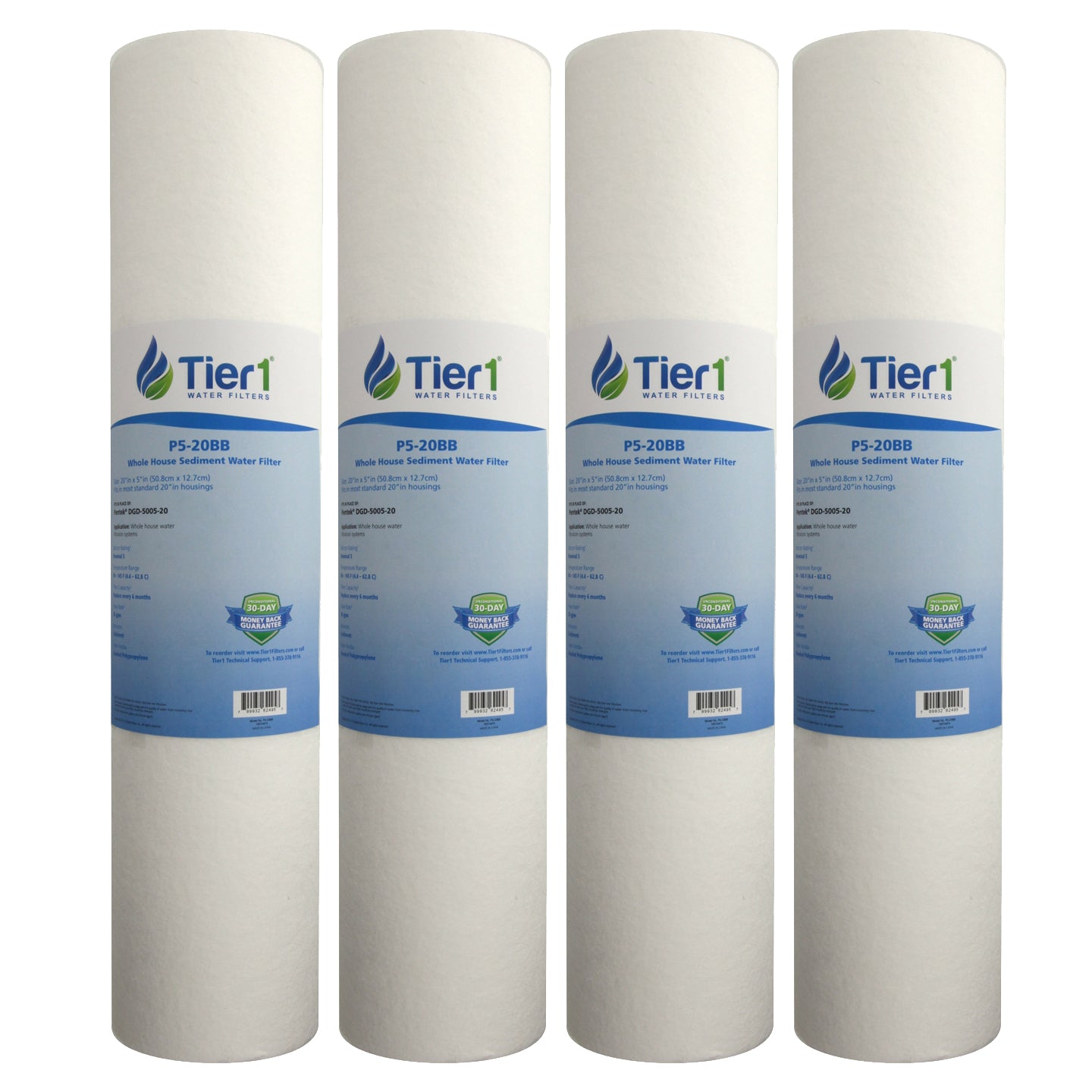

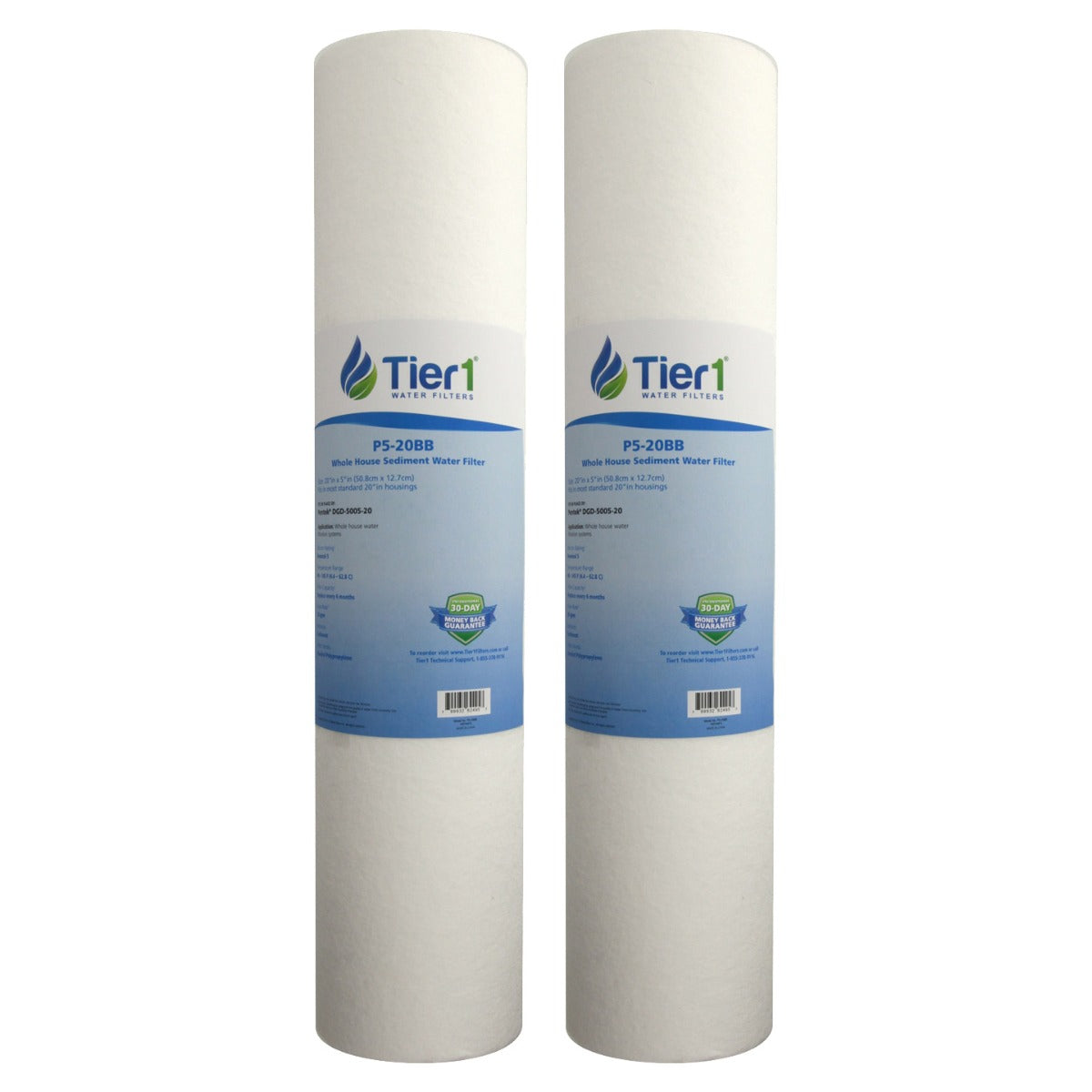

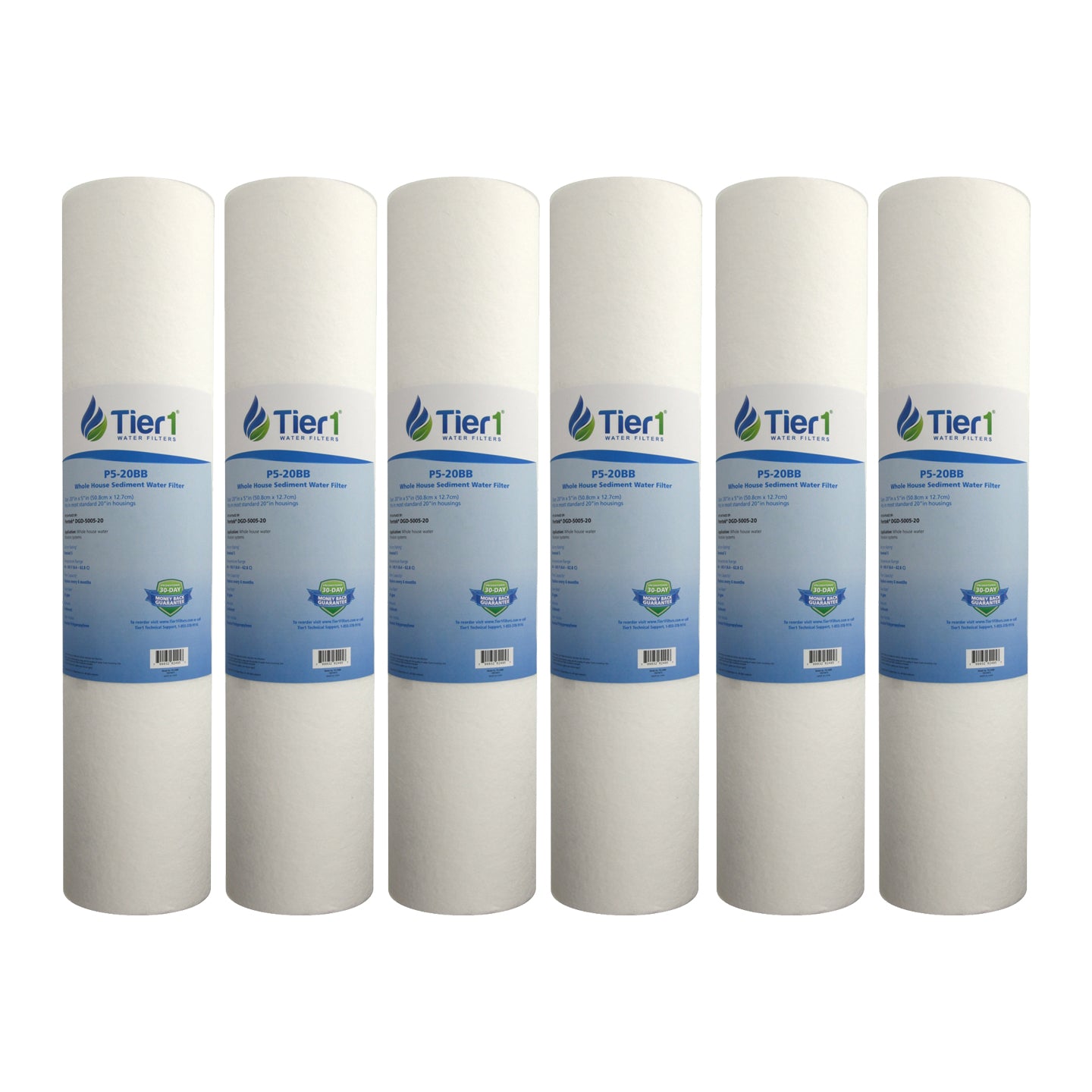

DGD-5005-20 Pentek Whole House Filter Replacement Cartridge by Tier1

SKU

TIER1-P5-20BB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price $15.46 List Price Price $21.99 Save 29%

Availability: BackOrder

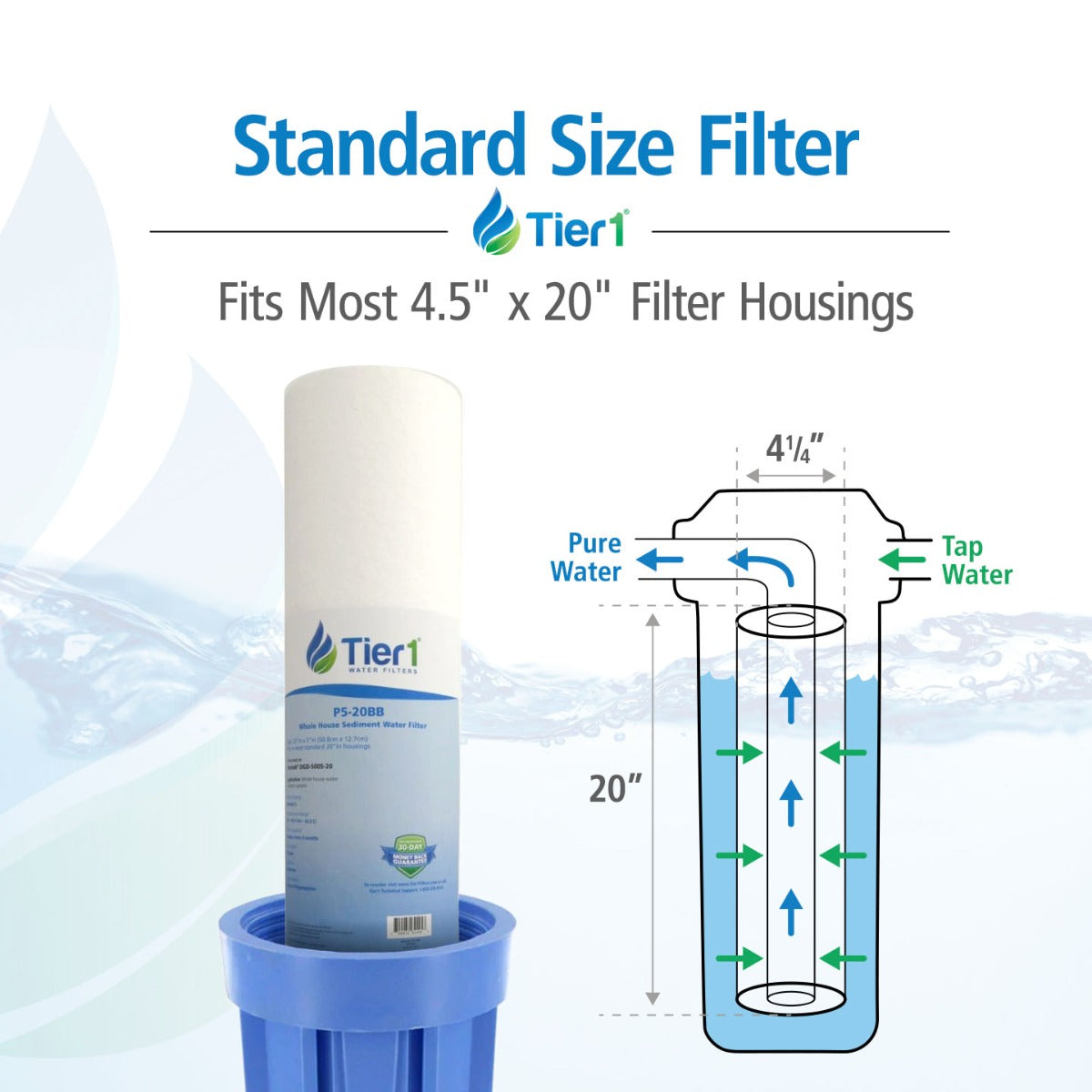

Fits filtration system housings that accept 20 x 4.5 inch cartridges

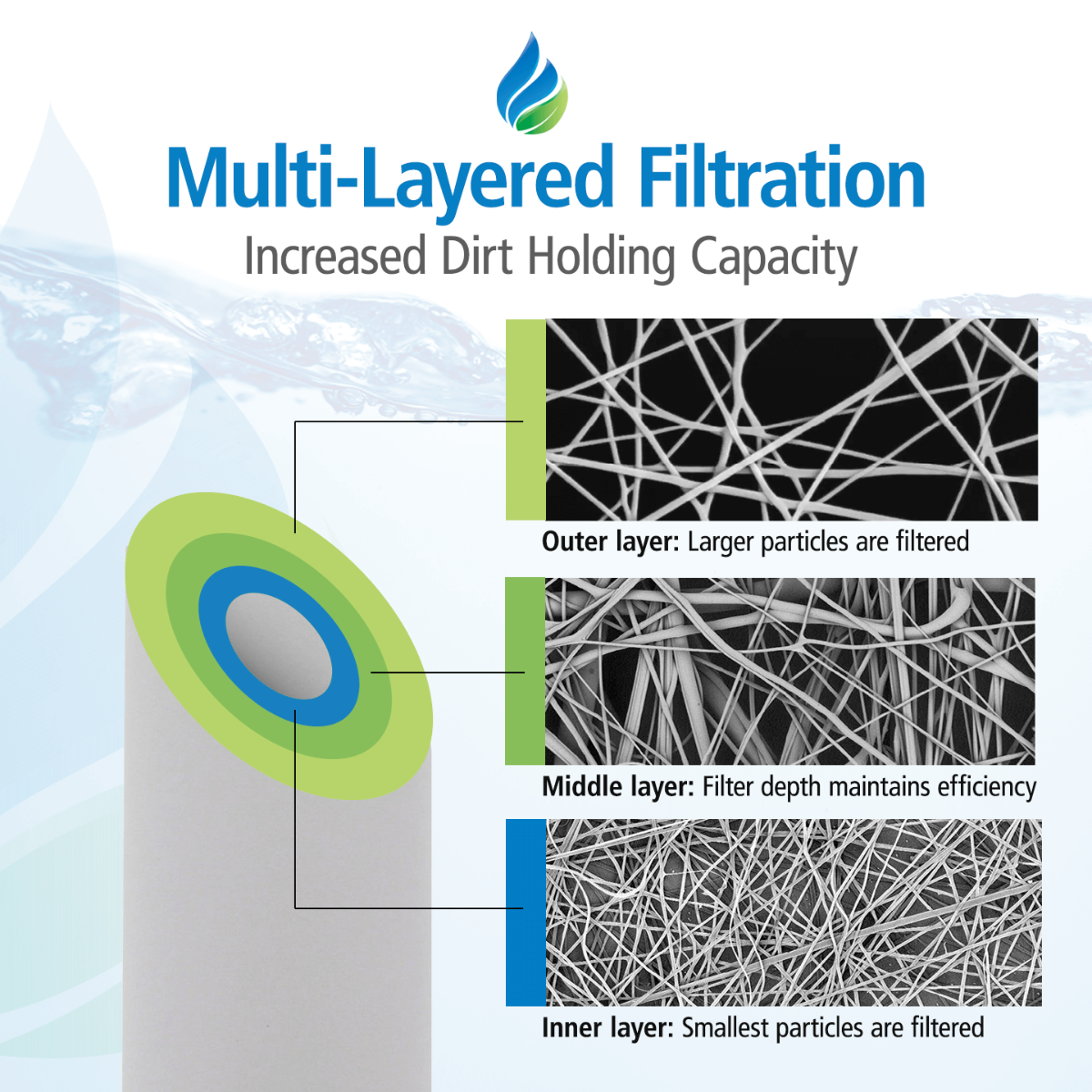

Spun wound polypropylene media serves as a great option for water filtration on municipal or rural water sources.
Reduces sediment particles, dirt, rust and corrosion, sand , and silt 5 micron or larger
Provides the highest quality water while reducing the risk of sediment corrosion in fixtures and appliances
Supports a flow rate of up to 20 gpm (gallons per minute)

› See more product details

Shipping

Return Policy

Spun wound polypropylene media serves as a great option for water filtration on municipal or rural water sources.
Reduces sediment particles, dirt, rust and corrosion, sand , and silt 5 micron or larger
Provides the highest quality water while reducing the risk of sediment corrosion in fixtures and appliances
Supports a flow rate of up to 20 gpm (gallons per minute)

Product Details

The P5-20BB Tier1 sediment water filter is an affordably priced option that ensures you serve only high quality water from every faucet throughout your home! Built to capture and filter virtually all types of sediment particles, 5 micron or larger, out of the water in your home. In addition, these filters help to ensure your water tastes great while reducing the risk of sediment corrosion in your fixtures and appliances. Get the high quality sediment filters you deserve by ordering P5-20BB Tier1 sediment water filters from us today.

Experience the Tier1 Difference

Tier1 manufactures high-quality filtration and household products. We take creating and maintaining a healthy home seriously. Products must undergo rigorous testing and meet demanding quality expectations in order to earn the Tier1 badge. Every purchase is backed by the Tier1® Guarantee:

Guaranteed Fit
Guaranteed Quality
Guaranteed Price

Features & Specs

More Information
Package Qty	1
Used In Brands	Pentek, Tier1
Manufacturer's Id	P5-20BB
UPC	799932624957
Advertised Size (in)	20 x 4-1/2
Actual Size (in)	20 inches (length) x 4 1/4 inches (outside diameter)
Actual Size (cm)	50.8 x 10.795
Outside Diameter (inches)	4.25
Media Type	Sediment Filter
Media	Spun Wound Polypropylene
Primary Filter Media	Polypropylene
Filter Life (months) Filter's should be replaced based on usage and filter condition. Filter life is an estimation of expected performance based on typical filtration conditions.x	Filter's should be replaced based on usage and filter condition. Filter life is an estimation of expected performance based on typical filtration conditions.x 6 months
Micron Rating (Nominal) The smallest size at which particles are retained by the filter. One micron is equivalent 1/1000th of a millimeter.x	The smallest size at which particles are retained by the filter. One micron is equivalent 1/1000th of a millimeter.x 5
Operating Temperature (°F)	40 - 145
Operating Temperature (°C)	4.4 - 62.8
Flow Rate (gpm) Flow rate is the volume of water that passes through a filtration system measured in gallons per minute. A filter's flow rate indicates the maximum recommened flow for optimum filter performance. x	Flow rate is the volume of water that passes through a filtration system measured in gallons per minute. A filter's flow rate indicates the maximum recommened flow for optimum filter performance. x 20
Flow Rate (lpm)	75.7082
Color	White
Warranty Guarantee	Unconditional Product Guarantee for Life of the Product
Includes	One Tier1 20 x 4.375 inch Spun Wound Polypropylene Replacement Filter

Reduced Contaminants

The TIER1-P5-20BB reduces the following contaminants:

Dirt
Rust and Corrosion
Sand
Sediment
Silt

The TIER1-P5-20BB is comparable with the following part numbers

155358-43	C155358-43
DGD-5005-20	FPMB-BB5-20
Hydronix SDC-45-2005	P50-20BB
P5-20BB	PENTEK-DGD-5005-20
SDC-45-2005	SDF-45-2005
TIER1-P5-20BB

The TIER1-P5-20BB fits the following model numbers

AP802

CFS22

PENTEK-150166

All 20 x 4.5 inch Big Blue filter housings

Instructions

Turn off water supply. Press red pressure-relief button (if present)

Unscrew housing. Remove large o-ring, wipe clean and set aside

Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly

Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly

Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove

NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove

Insert new filter cartridge

Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge

Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
