RUSCO-1-140STSS-F

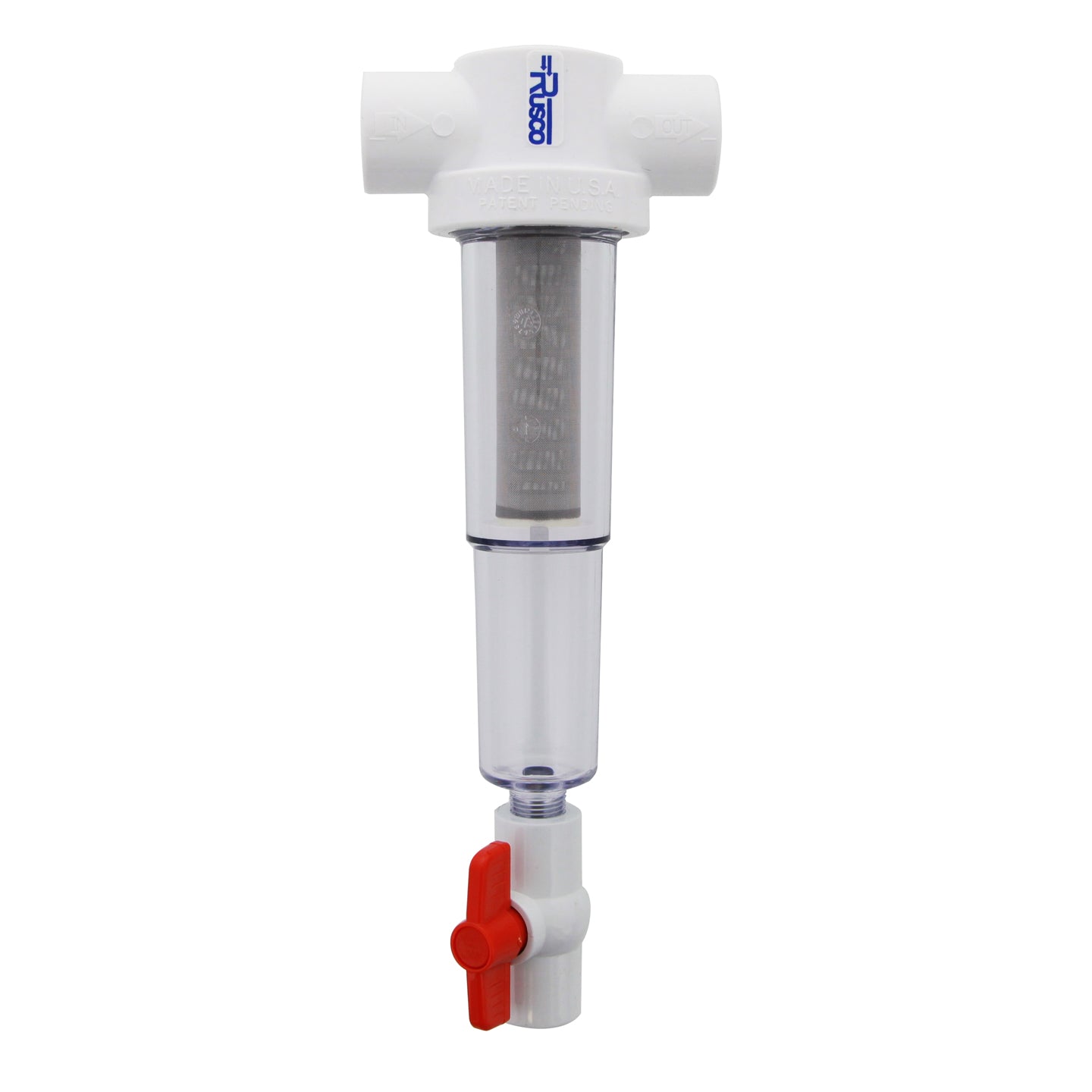

1-140STSS-F Rusco Sediment Trapper System
Backordered
Translation missing: en.products.product.price.regular_price
$80.50
| Price Per Item | |
|---|---|
|
Single
|
$80.50
|
|
2 PACK
|
$76.15
|
|
3 PACK
|
$76.26
|
|
4 PACK
|
$71.12
|
|
6 PACK
|
$67.80
|
140 mesh, 104 micron and designed to fit a one-inch pipe
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Rusco
Manufacturer's Id: 1-140STSS-F
UPC: 659498014060
Actual Size (in): 14 3/8 inches (height) x 5 inches (width)
Media: Stainless Steel Screen
Primary Filter Media: Spindown
Operating Pressure (psi): 0 - 150
Operating Temperature (°F): 40 - 100
Operating Temperature (°C): 4.4 - 37.8
Brand: Rusco
Fitting Size (in): 1 inch
Height (in): 14.38 in
Length (in): 14.38 in
Width (in): 5 in
Materials of Construction: Body Material: PVC, Screen Material: Stainless Steel, Cover Material: High Impact Polymer Resin
Media Type: Specialty Filter
Mesh Size: 140
Micron Rating Nominal: 104
Flow Rate (gpm): 10.0
Includes: Stainless Steel Screened Sediment Trapper System
Instructions
Instructions- Install the filter in a location that protects it from damage such as impact, freeze, excessive heat, chemical contact and water hammer.
- Install the filter in the preferred vertical position with the purge outlet pointing down and also where it can be easily accessed for cleaning and maintenance.
- Install the filter on the discharge side of the pump to allow the filter to be cleaned by purging through the flush valve.
- Refer to arrows on the filter body for correct water flow direction.
- Adhere to all local and state codes, laws and regulations.
- Use approved solvent cement for gluing PVC connections. Follow gluing instructions on glue container.
- It is recommended that the clear cover be removed from the PVC body prior to the gluing process. Any excess glue that comes in contact with the clear cover will damage it.
Contaminants Reduced
Contaminants ReducedOffered with a flush valve for easy sediment removal, the 1-140STSS-F Sediment Trapper is a genuine, OE system from Rusco. By using centrifugal-separation technology, this system significantly reduces dirt, sediment, sand and grit from your water helping to improve your water quality and preserve the life of high-ticket appliances and fixtures. Built from a maximum strength, polymer resin cover and a reusable, stainless-steel screen filter. Ideal for heavy sediment applications. This system is 140 mesh, 104 micron and designed to fit a one-inch pipe. Order the 1-140STSS-F Rusco Sediment Trapper system from us today!
