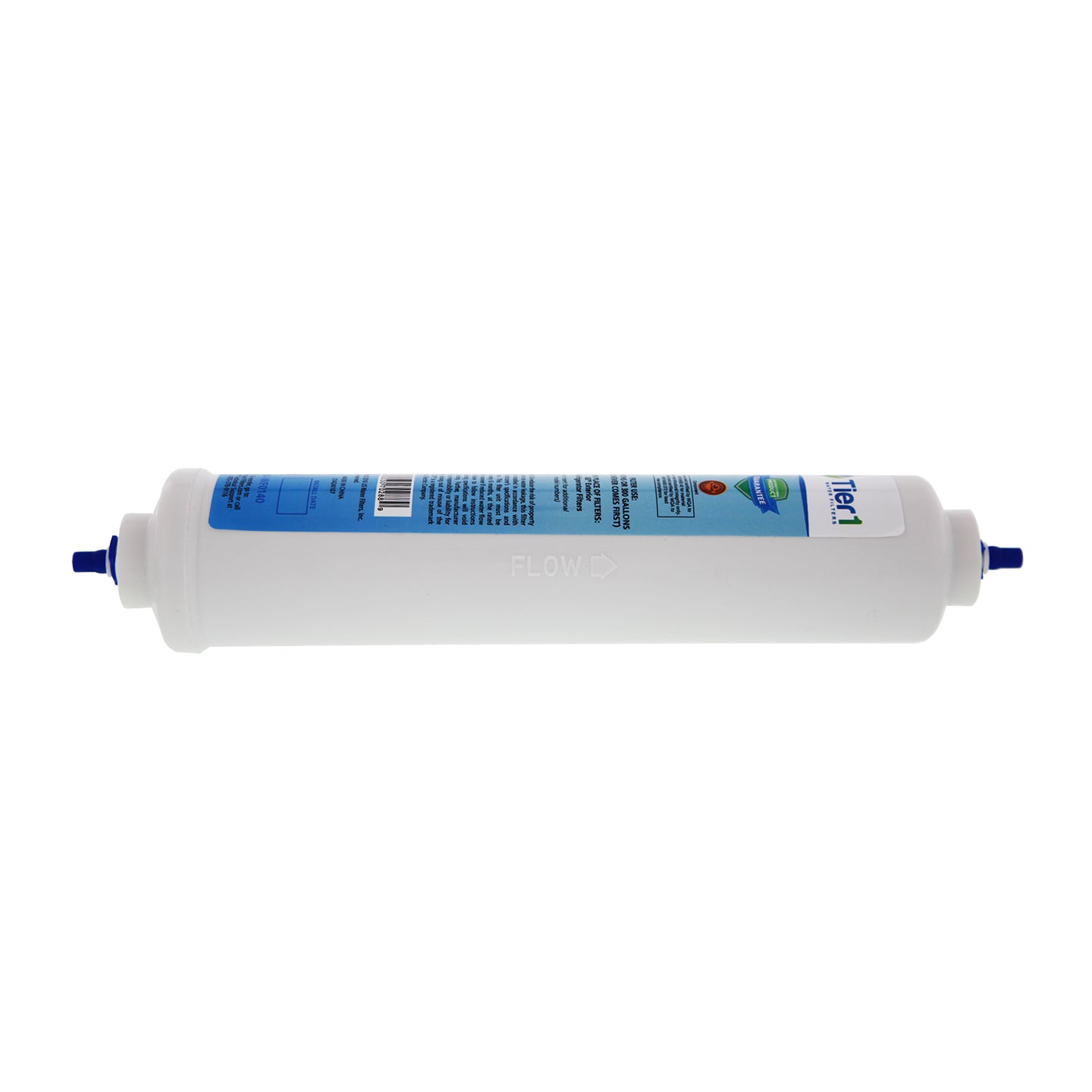

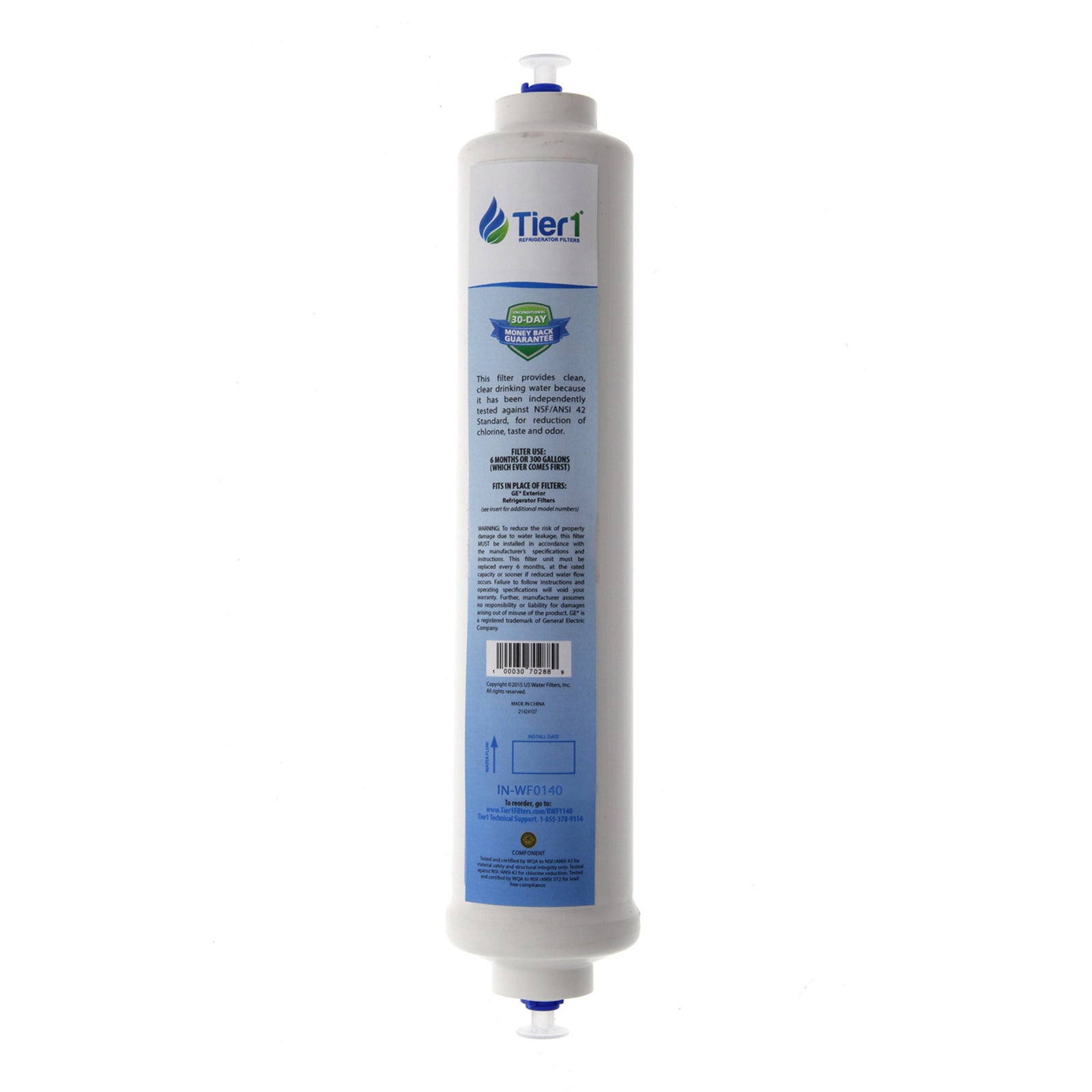

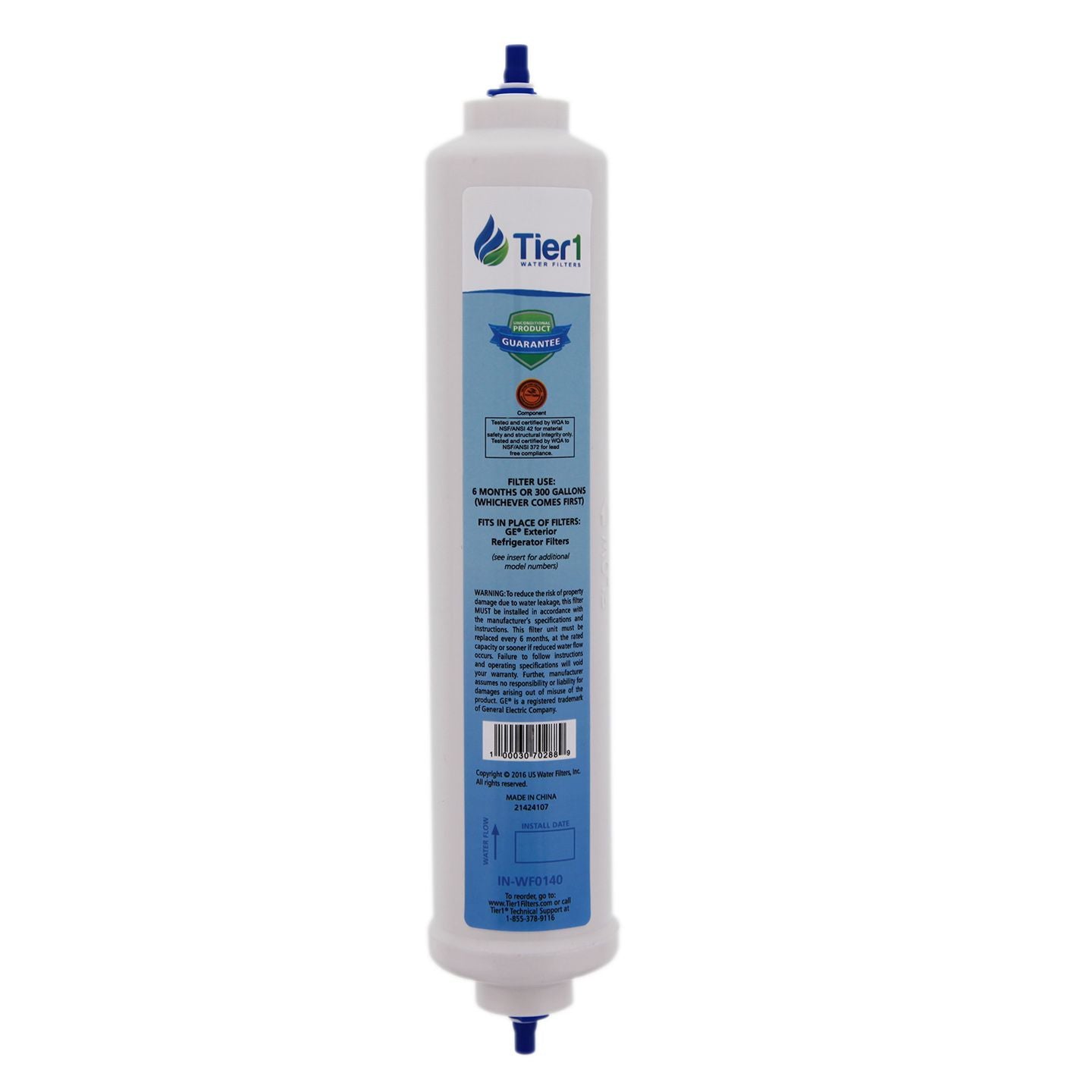

GXRTDR GE Inline Water Filter Cartridge Comparable By Tier1

Name: GXRTDR GE Inline Water Filter Cartridge Comparable By Tier1
Brand: Tier1
SKU: TIER1-IN-WF0140
Price: 11.48 USD
Availability: InStock
Rating: 4.8 (14 reviews)

High Stock (703)

$11.48

Price Per Item
Single	$11.48
2 PACK	$7.70
3 PACK	$7.41
4 PACK	$7.17
6 PACK	$6.94

Remove dust caps from both ends before use.

Choose a Pack Size:

Single

2 PACK

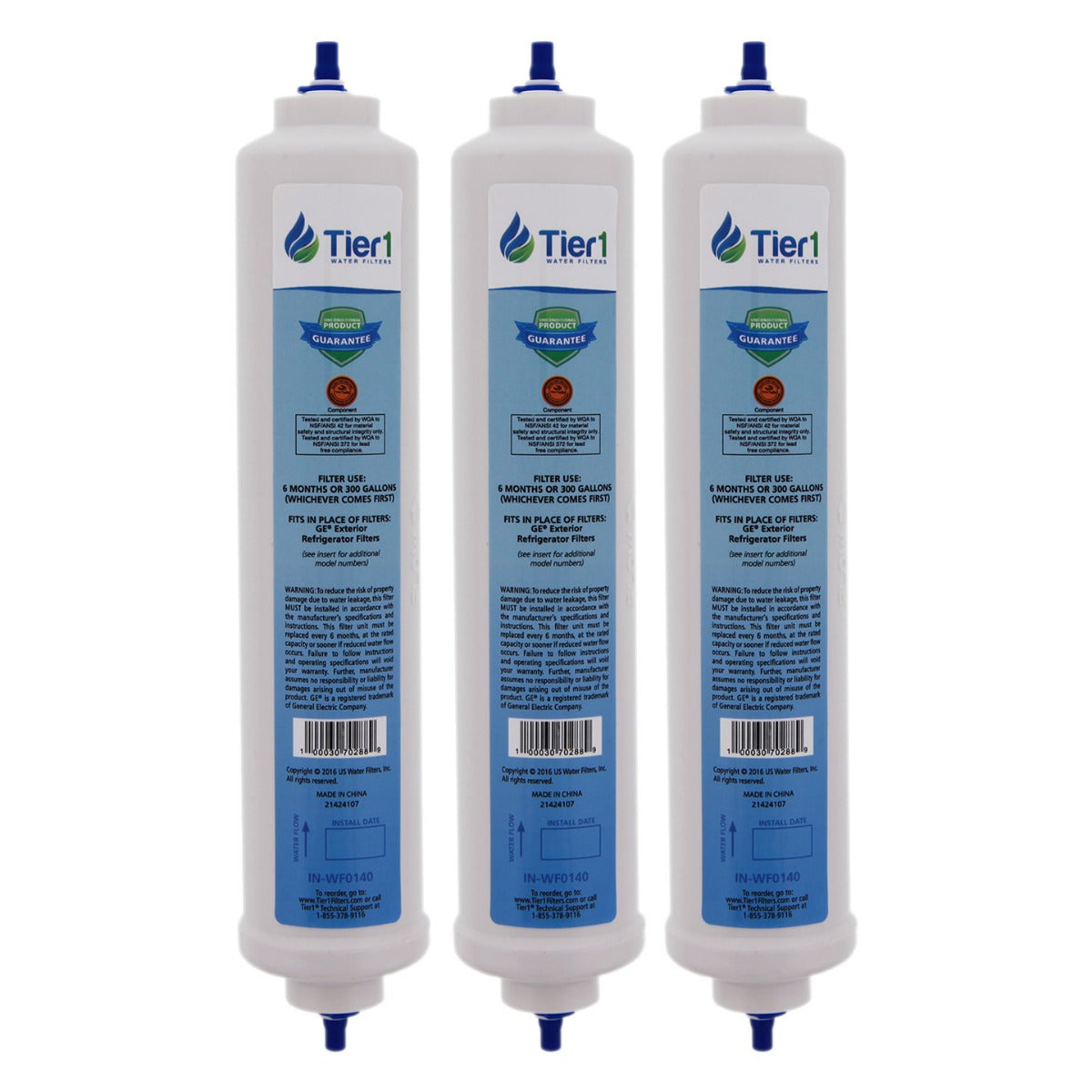

3 PACK

4 PACK

6 PACK

One Time Delivery

Select Auto-Ship and Save 10%

What's this?

Estimated Shipping Widget will be displayed here!

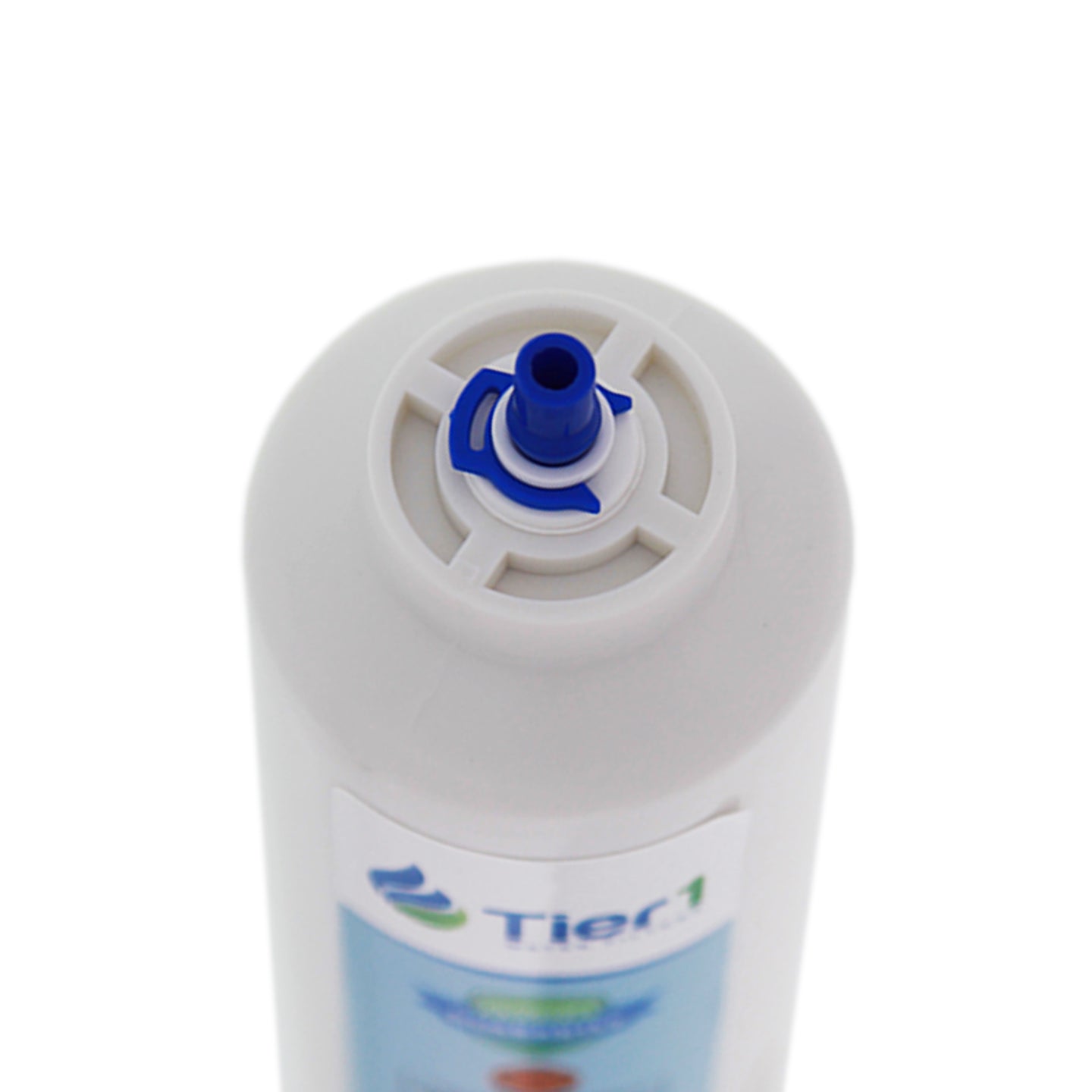

1/4 inch quick connect fittings
Reduces chlorine taste and odor, not beneficial minerals
Lasts up to 6 months
Great tasting water at a great looking price!

Features & Specs

Package Qty: 1

Manufacturer: Tier1

Manufacturer's Id: IN-WF0140

UPC: 100030702889

Actual Size (in): 10 inches (length) x 2 inches (outside diameter)

Primary Filter Media: Activated Carbon Block

Operating Pressure (psi): 20 - 120

Operating Temperature (°F): 40 - 125

Operating Temperature (°C): 4.4 - 51.7

Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

Brand: Tier1

Depth (in): 2.06 in

Fitting Size (in): 1/4 inch

Length (in): 10.47 in

Outside Diameter (in): 2 in

Width (in): 2.06 in

Media Type: Carbon Filter

UPC's For Search: 100030702889

Country of Origin: China

Fitting Type: Quick Connect

Flow Rate (gpm): 0.75

Instructions

Shut off the water supply
Remove the dust caps from both ends of the filter before use.
The filter is to be inserted into the 1/4 inch OD supply tube that feeds water to the refrigerator. (Do not cut any water lines inside the refrigerator).
Locate the filter as close as possible to the supply water shut-off valve.
(NOTE: If the filter is located behind the refrigerator, there needs to be at least a 6-inch clearance between the wall and the refrigerator).
Locate fitting for the tubing on each side of the inline filtration system.
Push the tubing into the filter inlet, ensuring the line is flush with the fitting collar. Do not insert the tubing into the filter outlet until step 8.
Flush the filter. Place filter outlet over a bucket or pan; fine particles of carbon may be present. Flush by connecting the filter inlet to fitting. Attach the blue clip provided with the filter under the collar to secure it in place (this will help prevent the inlet line from popping out during service). Fine carbon particles will be removed during the flushing. Stop flushing after 5 minutes or approximately 2.5 gallons or until water runs clear.
Connect the outlet of the filter to the water line going to the refrigerator. Attach the second blue clip under the collar of the connection to the outlet water line.
Connect the inlet of the filter to the water supply line and inspect for leaks. If a leak occurs, tighten fittings.
Write the date of installation on the filter and mark your calendar to replace it with another filter after 6 months.

Certifications

Independently Tested against NSF/ANSI Standard 42

Contaminants Reduced

Chlorine Taste & Odor

Odor

Filter Life

Filter Life (gallons): 300

Filter Life (months): 6 months

Warranty Info

Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Details

The GE GXRTDR replacement water filter by Tier1 delivers great tasting water. The IN-WF0140 Tier1 replacement reduces flavor-impacting chlorine taste and odor, for up to six months. The filter will perform immediately after installation, ensuring great tasting water and ice directly from your refrigerator. Order today!

Frequently Asked Questions

Is the Tier1 GXRTDR a compatible replacement for the GE GXRTDR inline refrigerator water filter?

Yes, the Tier1 GXRTDR is engineered as a direct, compatible replacement for the GE GXRTDR inline refrigerator water filter. It fits the same 1/4" quick-connect compression fittings used on GE inline applications, making installation simple on refrigerator and icemaker water supply lines without the need for adapters or additional hardware.

What contaminants does the Tier1 GXRTDR inline filter reduce, and what is its micron rating?

The Tier1 GXRTDR uses a granular activated carbon (GAC) media with a 20-micron filtration rating to reduce chlorine taste and odor, sediment, rust particles, and other impurities that affect the clarity and flavor of your drinking water and ice. It is specifically designed for inline use on the water line feeding your refrigerator's ice maker and water dispenser.

How long does the Tier1 GXRTDR filter last before replacement?

The Tier1 GXRTDR has a filtration life of up to 1,500 gallons or approximately 6 months, whichever comes first. Households with higher water usage, heavy ice production, or poor incoming water quality should plan to replace the filter sooner to maintain optimal flow rate and filtration performance.

Is the Tier1 GXRTDR NSF/ANSI certified?

The Tier1 GXRTDR is tested to NSF/ANSI Standard 42 criteria for the reduction of chlorine taste and odor. Its components are manufactured from FDA-compliant materials, ensuring the filter is safe for use with potable drinking water in residential refrigerator and icemaker applications.

How do I install and flush the Tier1 GXRTDR inline filter?

Installation is straightforward: shut off the cold water supply feeding your refrigerator, cut the 1/4" water line where the filter will be placed, and push the tubing into the quick-connect fittings on each end of the GXRTDR, observing the arrow for correct flow direction. Once installed, turn the water back on, check for leaks, and flush approximately 2–3 gallons through the dispenser or icemaker to purge air and carbon fines before use.

Comparable Part Number

TIER1-IN-WF0140 is comparable with the following part number(s)

AP4405223
GXRTDR
PC52430
PS2353273
55616
155083
497818
4210359
4210508
4210573
4378411
4392945
18001001
18001009
18001010
25004006
25004018
25004022
25004082
3010541600
3019974100
5303310266
5303917335
3650JD8050A
3890JC2990A
5231JA2003B
5231JA2010A
5231JA2010B
5231JA2012A
AP2615841
AP3109540
AP3219862
AP4324927
BL9808
BL-9808
C00114417
CL10RO
DA29-10105C
DA29-10105E
DA29-10105J
DD7098
DD-7098
EF9603
EF-9603
GXITQ
GXRTO
GXRTQ
HAFEX-EXP
IF30
IF-30
IF30A
IF30-A
IF31
IF-31
IF-35
ILIM01
IL-IM-01
IN-WF0140
IN-1
K2533
K32010CB
K3MFC2010F
R0183114
R200
R-200
R-400
SBS70524
SBS7052-4
USC100
WF283
WIC
WIC6A
WIC-6A
WICS
WPRO
WR97X180
WR97X214
WR97X215
WSF100
WSF-100
WSI-1
WSS3
WSS-3
3 650JD8050A
3-650JD8050A
5231JA2010B-9808
AP4405223
APIL3R
EV9100-06
GDXRTQ
GS-10-B
GS-10-JG14
GS215-CB5-B
GS-6RO-B
GXRTDR
GXRTQR
IC-100-D
K2567JJ
K5567BB
PC52430
PS2353273
RWF1150
TIER1-IN-WF0140
TIER1-RWF1150
RWF0400A
RFC0300A
