QL-410 Replacement UV Lamp and Quartz Sleeve for VH410

VIQUA-QL-410

QL-410 Replacement UV Lamp and Quartz Sleeve for VH410

.price-ui--loading { display: block !important; opacity: 1 !important; }

$184.00

UV lamp and Quartz sleeve combination is ideal for full system refurbish
Easy do it yourself replacement
Reduces health risks due to contaminants in water
Low maintenance UV system replacements

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Viqua

Manufacturer's Id: QL-410

UPC: 773058111324

Actual Size (in): 22-inches (length) x 2-inches (outside diameter)

Operating Temperature (°F): 40 - 125

Operating Temperature (°C): 2.2 - 40

Brand: Viqua

Length (in): 22 in

Outside Diameter (in): 2 in

Power Requirements: 60W

Flow Rate (gpm): 18.0

Includes: Replacement Lamp, Quartz Sleeve, and necessary O-rings

description Instructions

Close main water supply to the UV System, and then open a tap downstream of the UV System to release pressure.
Disconnect main power source and allow the unit to cool for 10 minutes. Note: Ensure there is no other power source connected such as, Solenoid Junction Box.
Remove the UV lamp connector and the UV lamp
(SEE STEP 7-9) Re-insert the new UV lamp inside the quartz sleeve. Attach the connector to the UV lamp and note that the connector will only allow correct installation in one position. Place and tighten the UV lamp connector.
Plug the unit back to the power source. Reset the end of lamp timer alarm back to 365 days.
Close the downstream tap once the UV chamber is filled with water, and inspect for any leakages.
(Quartz Sleeve) Remove the top retaining nut and O-ring. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water. Remove the quartz sleeve from the UV chamber.
Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s). Hand tighten the retaining nut(s), taking care not to over-tighten.

warning_amber Contaminants Reduced

Bacteria

Cryptosporidium

Cysts

Ecoli

Giardia

Microorganisms

Viruses

filter_alt Filter Life

Filter Life (months): 12 months

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

help Product Details

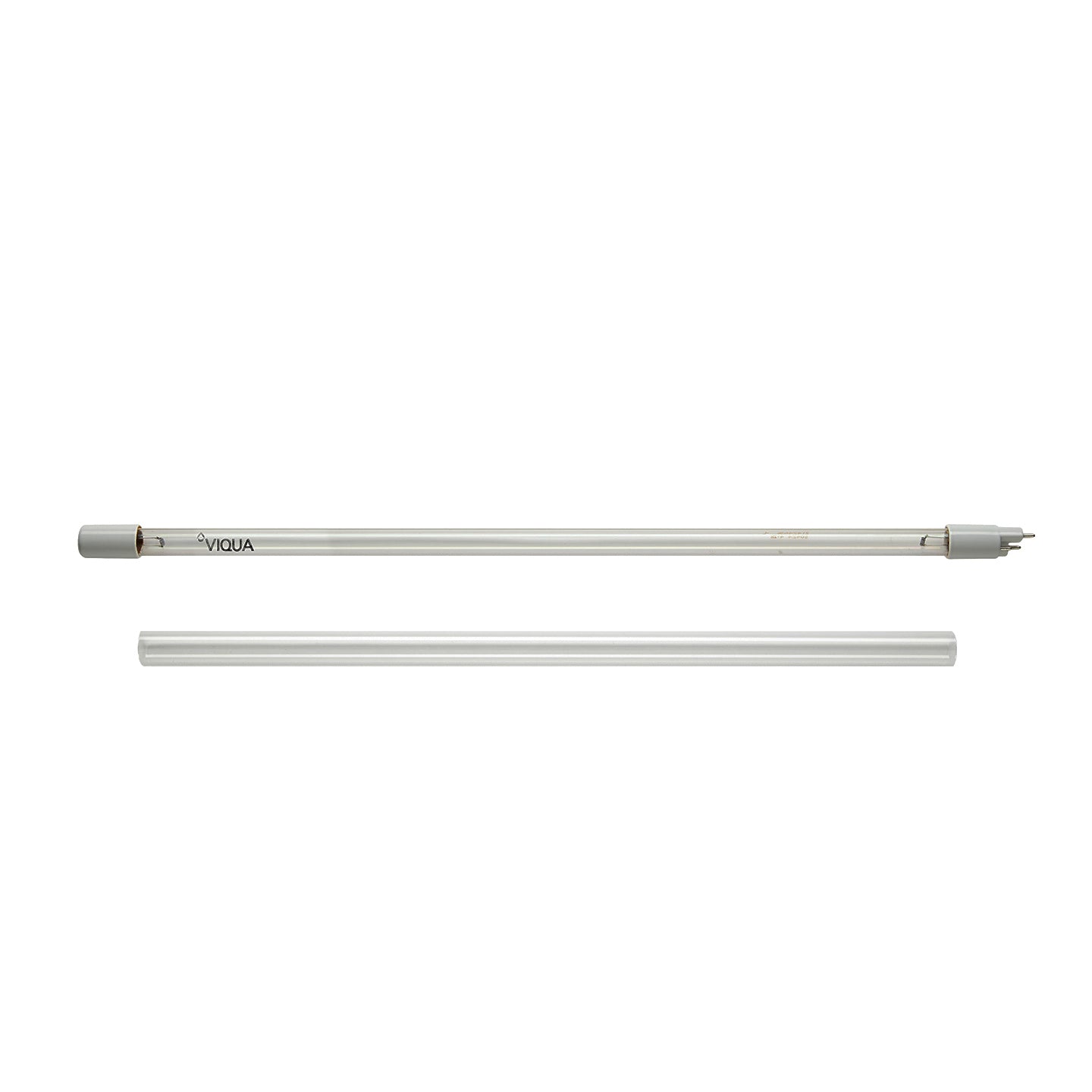

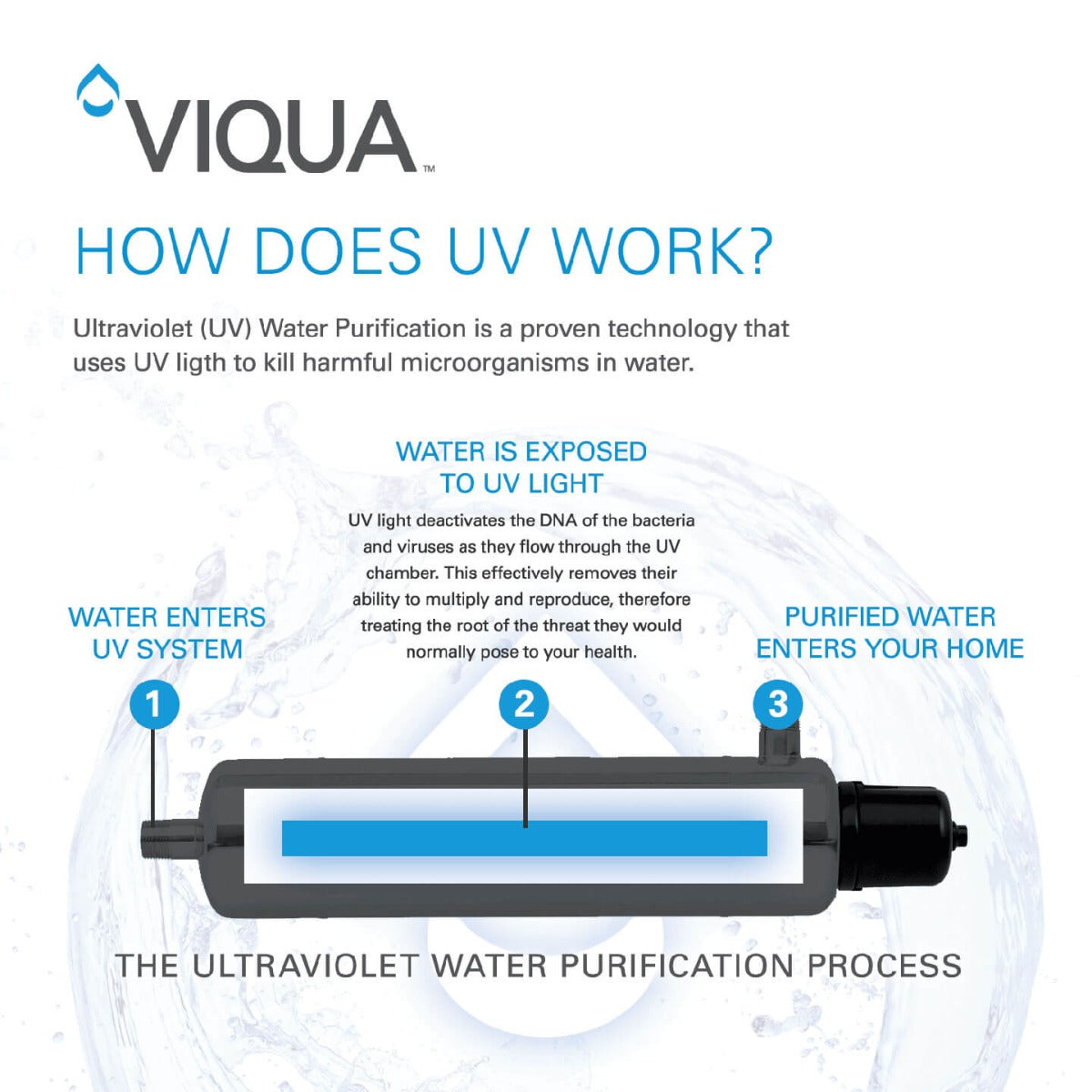

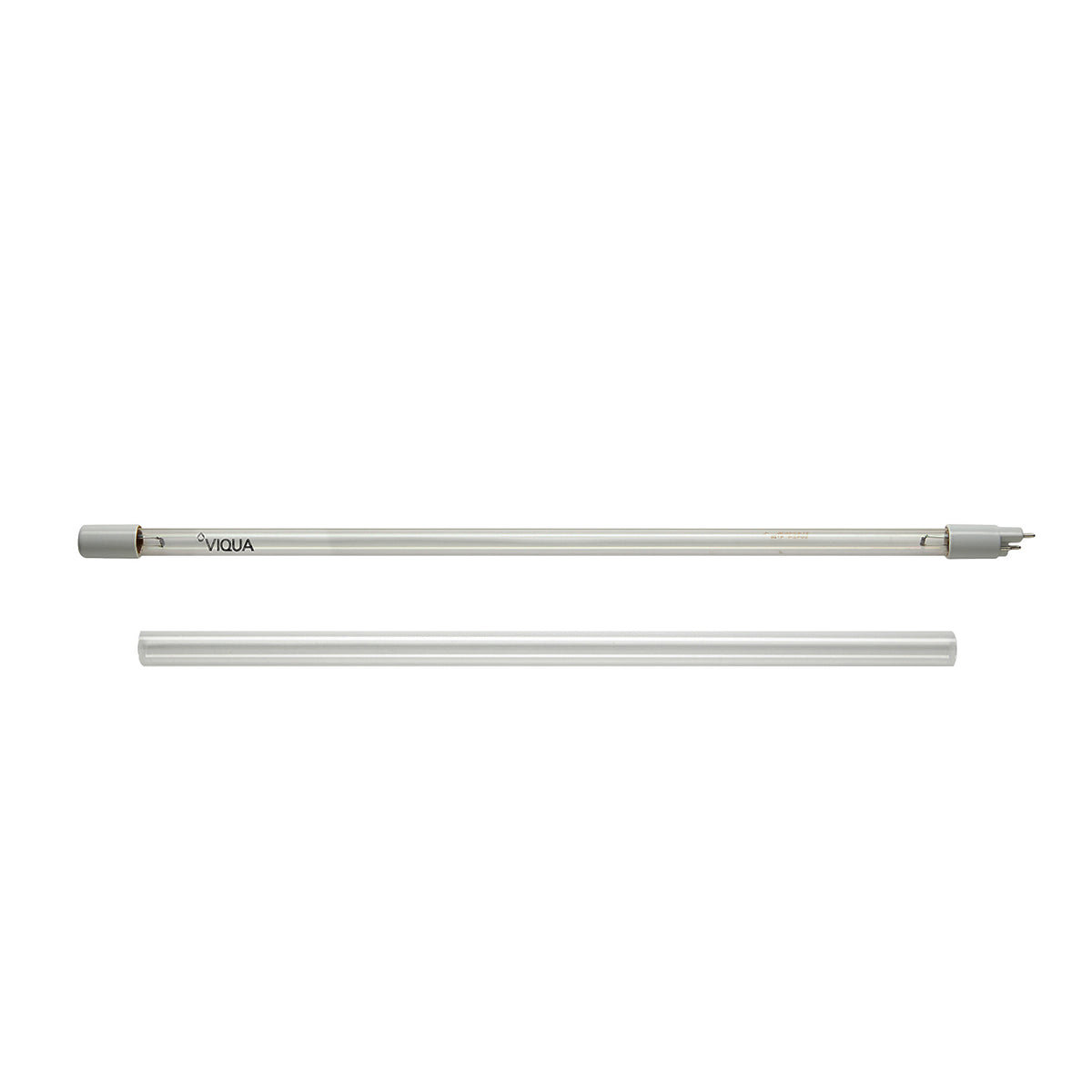

This replacement set includes the replacement UV lamp and quartz sleeve for VH410 as well as necessary o-rings for installation. This pairing of necessary components is ideal for situations when an overhaul of your UV system is necessary. The quartz sleeve is an important part of the UV filter treatment process, it surrounds the UV light preventing it from coming in contact with the water. UV light is transmitted through the quartz sleeve and purifies the water. Over time the sleeve will accumulate minerals from the water which must be cleaned to prevent the UV treatment from becoming less effective. Once the mineral layer becomes permanent and can not be removed the sleeve needs to be replaced. UV lamps should be replaced every twelve months to ensure the highest quality and purity of water. No need to worry about your VH410 system with this convenient replacement kit, order yours today!

extension Comparable Part Number

QL-410 Replacement UV Lamp and Quartz Sleeve for VH410

VIQUA-QL-410 is comparable with the following part number(s)
