    Warranty Guarantee: Five (5) Year Limited Warranty. See Precision Series Warranty for more information.

    TIER1-WH-HD-IRN-MG-948

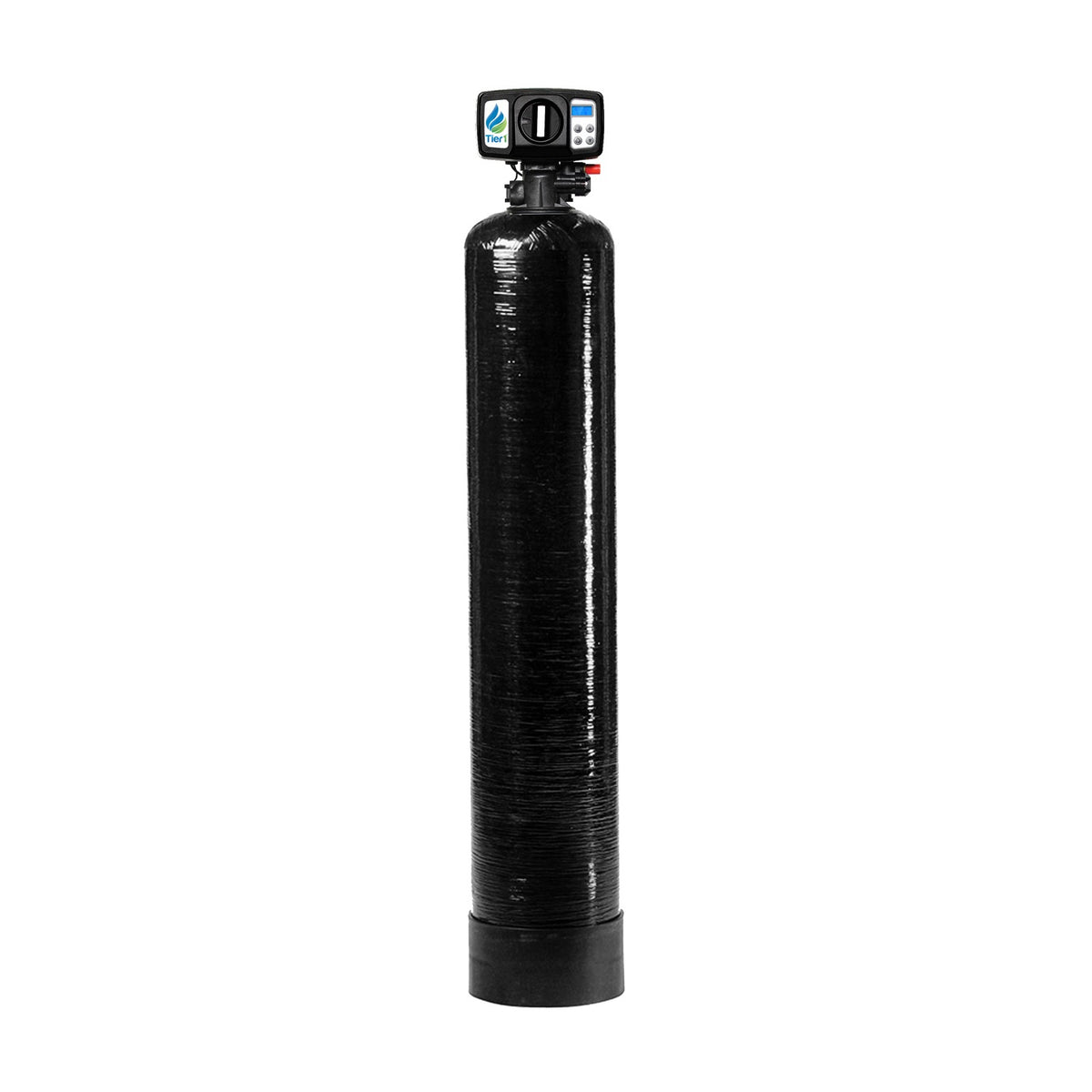

    Precision Series 30,000 Grain High Efficiency Digital Water Softening System For Hardness + Iron And Manganese Reduction by Tier1

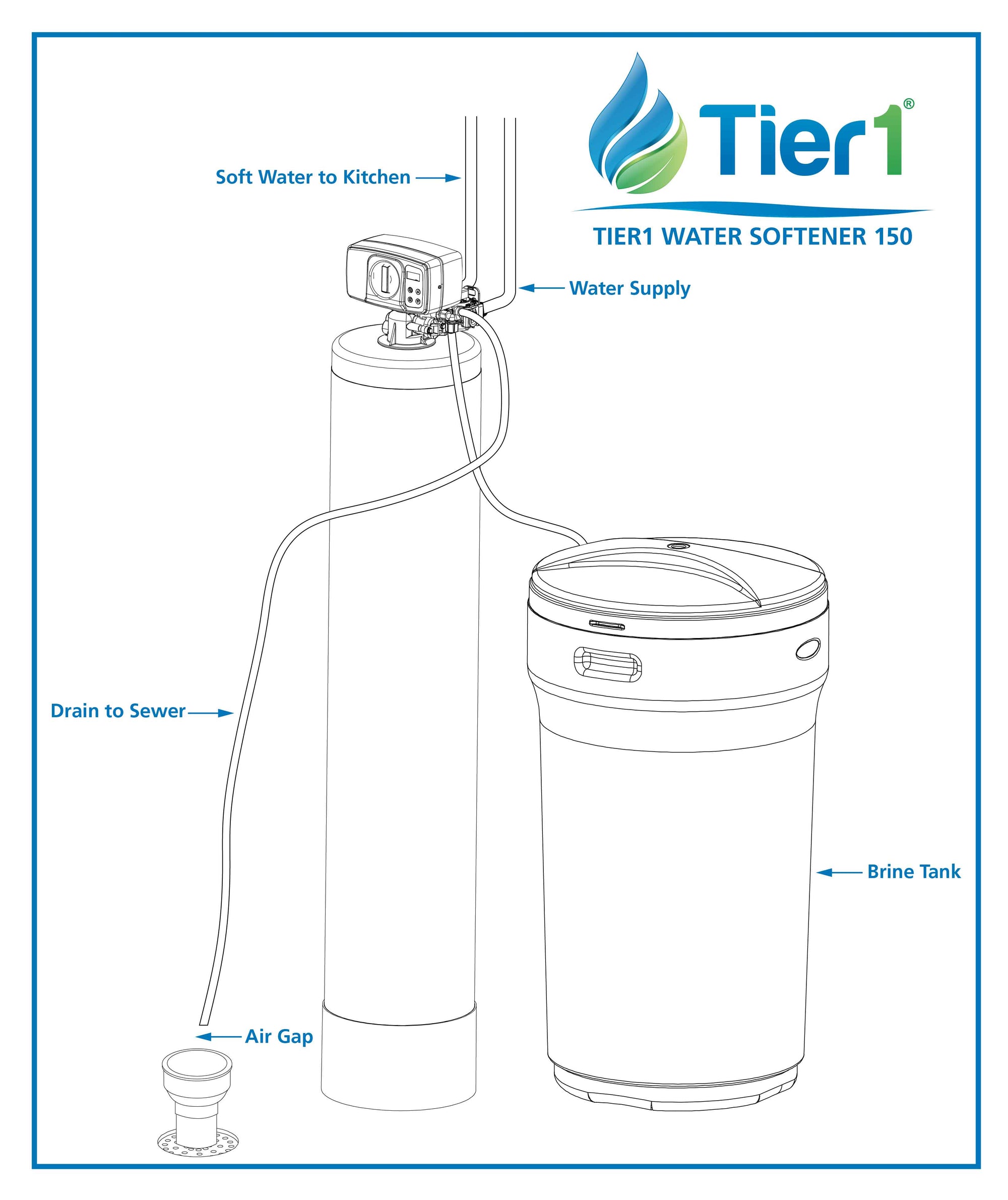

    Installs directly onto water inlet line. System includes 3/4-inch and 1-inch fittings. Depending on the point-of-installation plumbing, the purchase of reducers or couplers may be necessary.

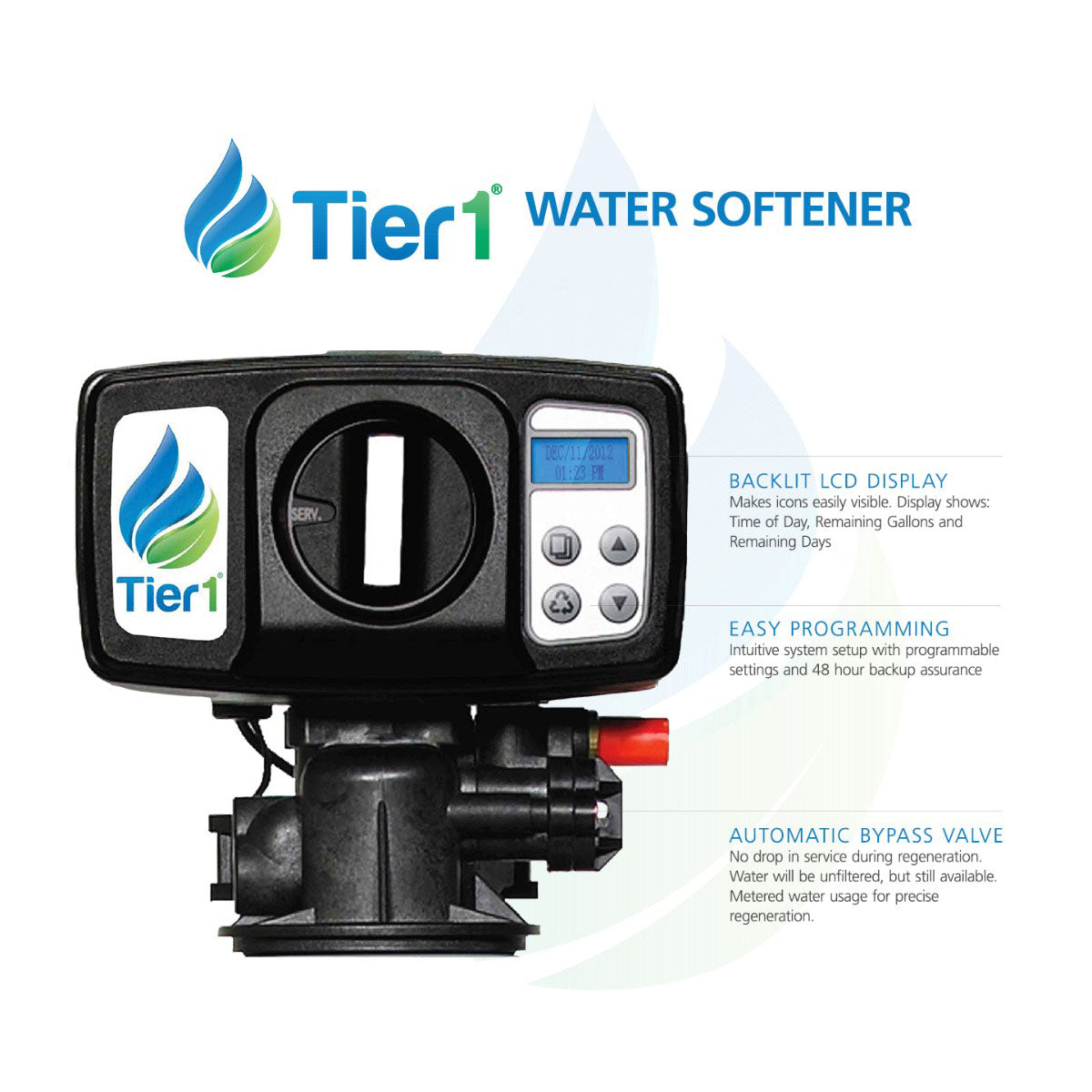

    • Exclusive NSF Certified electronic control valve

    • Brine safety valve for added overflow protection

    • Protect fixtures, pipes and appliances from harmful scale

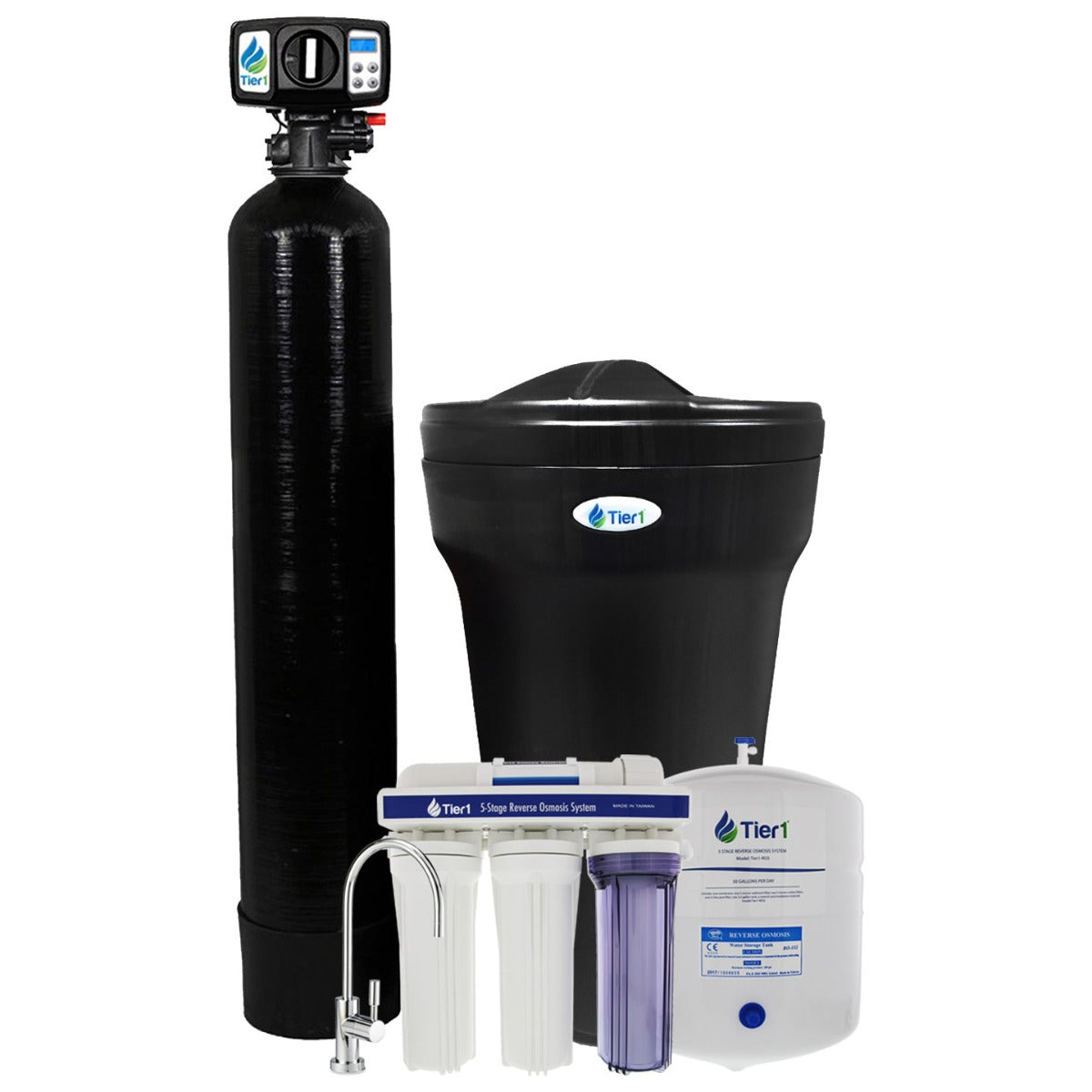

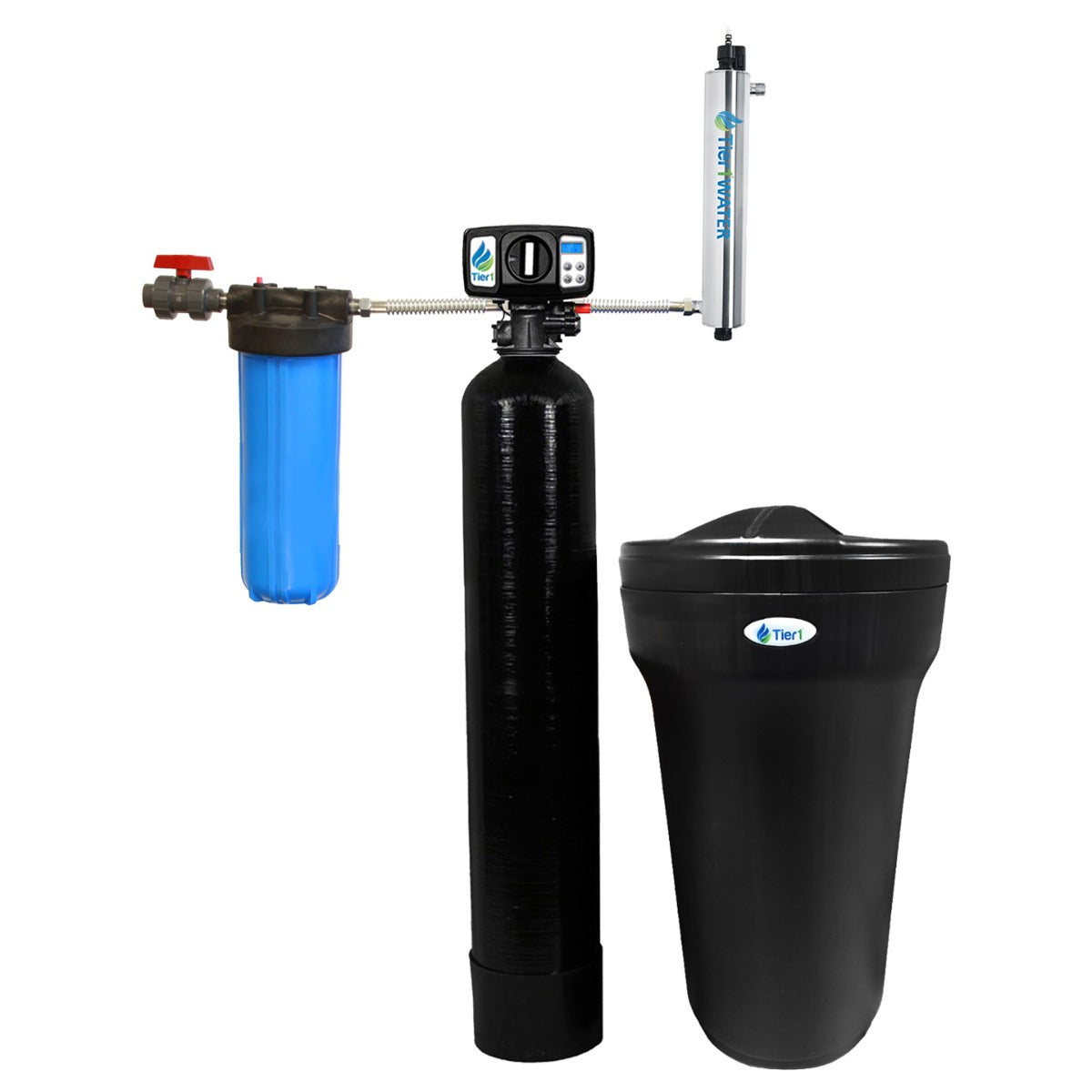

    • Perfect on its own or as part of a total home solution by Tier1

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: WH-HD-IRN-MG-948
    UPC: 810004473027
    Actual Size (in): 52-1/4 inches (length) x 9 inches (outside diameter)
    Primary Filter Media: Scale Reduction media
    Operating Pressure (psi): 20 - 125
    Operating Temperature (°F): 40 - 100
    Warranty Guarantee: Five (5) Year Limited Warranty. See Precision Series Warranty for more information.
    Brand: Tier1
    Fitting Size (in): 34 in
    Length (in): 52.25 in
    Outside Diameter (in): 9 in
    Reduction Class: Hardness|Iron
    Power Requirements: Standard 120v
    Tank Dimensions: Resin tank: 9 inches x 48 inches, Brine tank: 18.1 inches x 34.5 inches
    UPC's For Search: 810004473027
    Flow Rate (gpm): 9.6

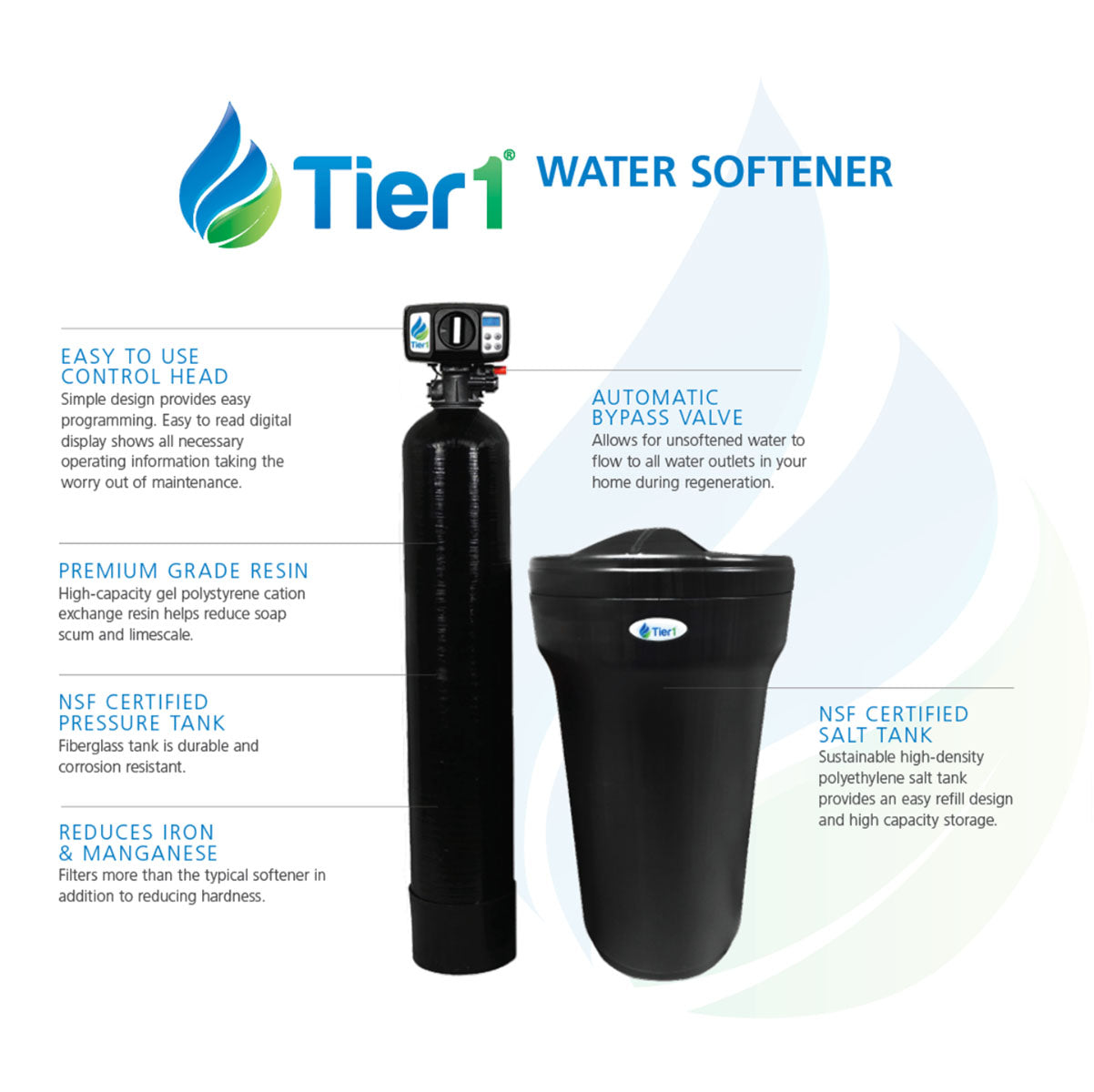

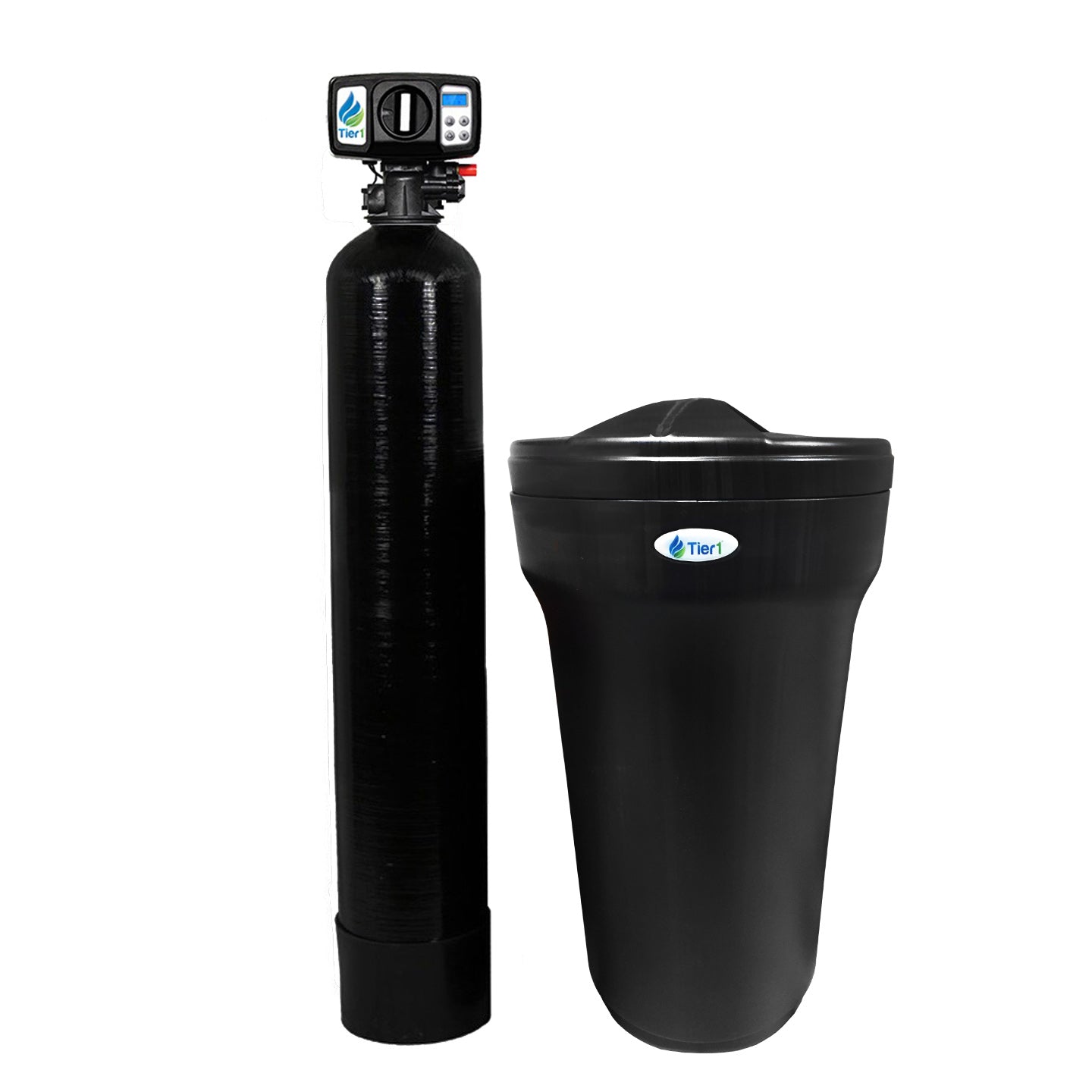

    Includes: 9 inch x 48 inch pre-filled resin tank, brine tank, control valve, power cord and 3/4 inch and 1 inch fittings
    description Instructions
    1. For installation instructions please read the System Installation Guide
    workspace_premium Certifications
  • NSF/ANSI Standard 42|NSF/ANSI Standard 44
  • warning_amber Contaminants Reduced
  • Calcium
  • Hardness
  • Hard Scale
  • Iron
  • Manganese
  • verified_user Warranty Info
    Warranty Guarantee: Five (5) Year Limited Warranty. See Precision Series Warranty for more information.
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    The Precision Series 30,000 Grain High-Efficiency Digital Water Softening System For Hardness + Iron And Manganese Reduction is a water softening solution that is ideal for families of 1-6 people, based on water usage and demand. This system softens your water by reducing hard water and contaminants contributing to scale build-up such as calcium and magnesium. Reducing the presence of these chemicals increases the effectiveness of soaps and detergents as well as protects your water-using appliances. With softened water, you can enjoy spot-free dishes, smoother hair, brighter laundry, and less water stains around drains, in addition to protecting your appliances from lowered productivity and early mechanical failure due to scale build-up. The Tier1 premium media blend also allows you to filter up to 5 ppm of Iron and 2 ppm of Magnesium. By reducing these chemicals not only can you see, smell, and taste the improved quality of your water but you can trust its filtering out harmful contaminants and improving every drop. Order your Precision Series 30,000 Grain High-Efficiency Digital Water Softening System For Hardness + Iron And Manganese Reduction today.

    Note: Inlet water that contains measurable levels of chlorine or chloramines may adversely affect the resin life.

    Hard Water Worries

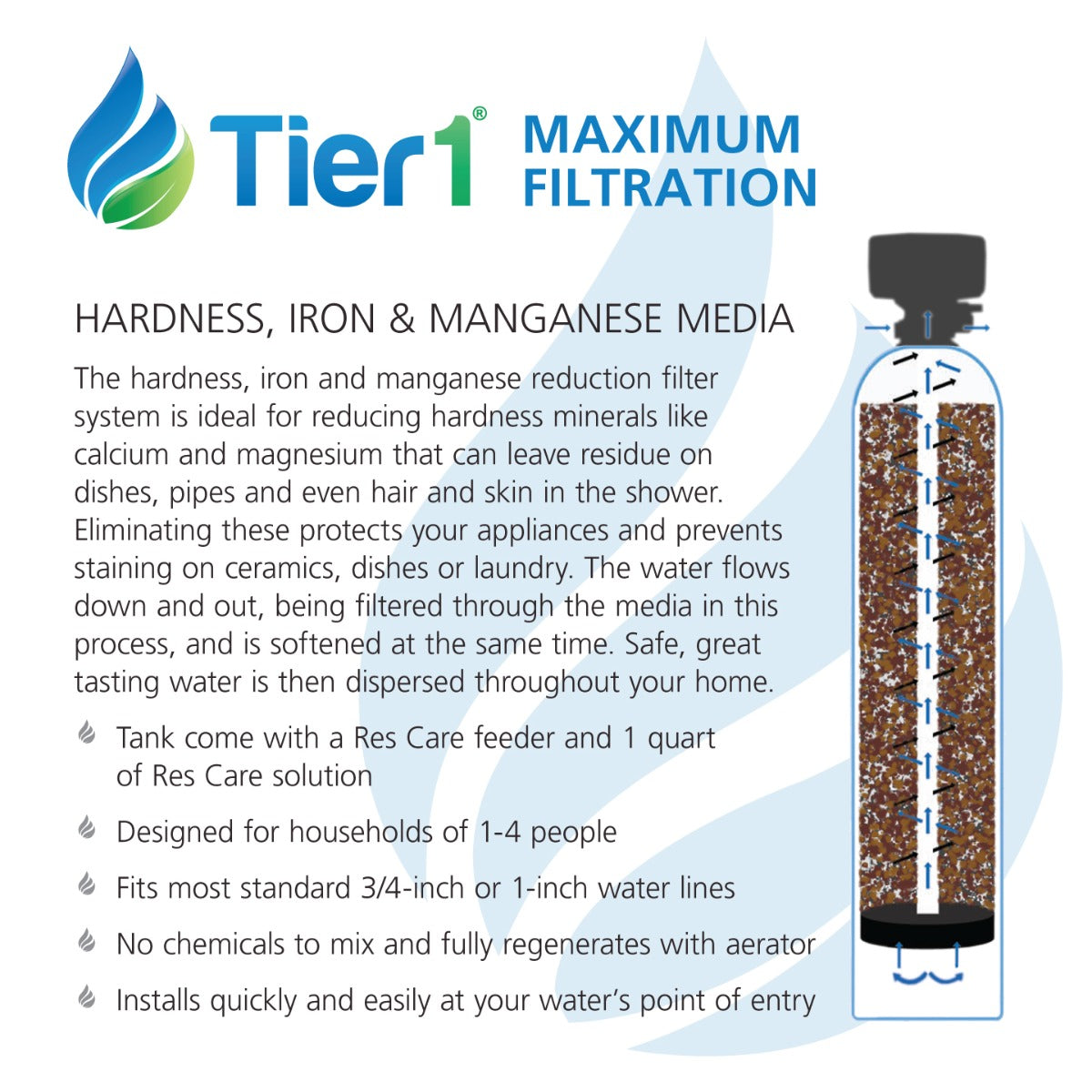

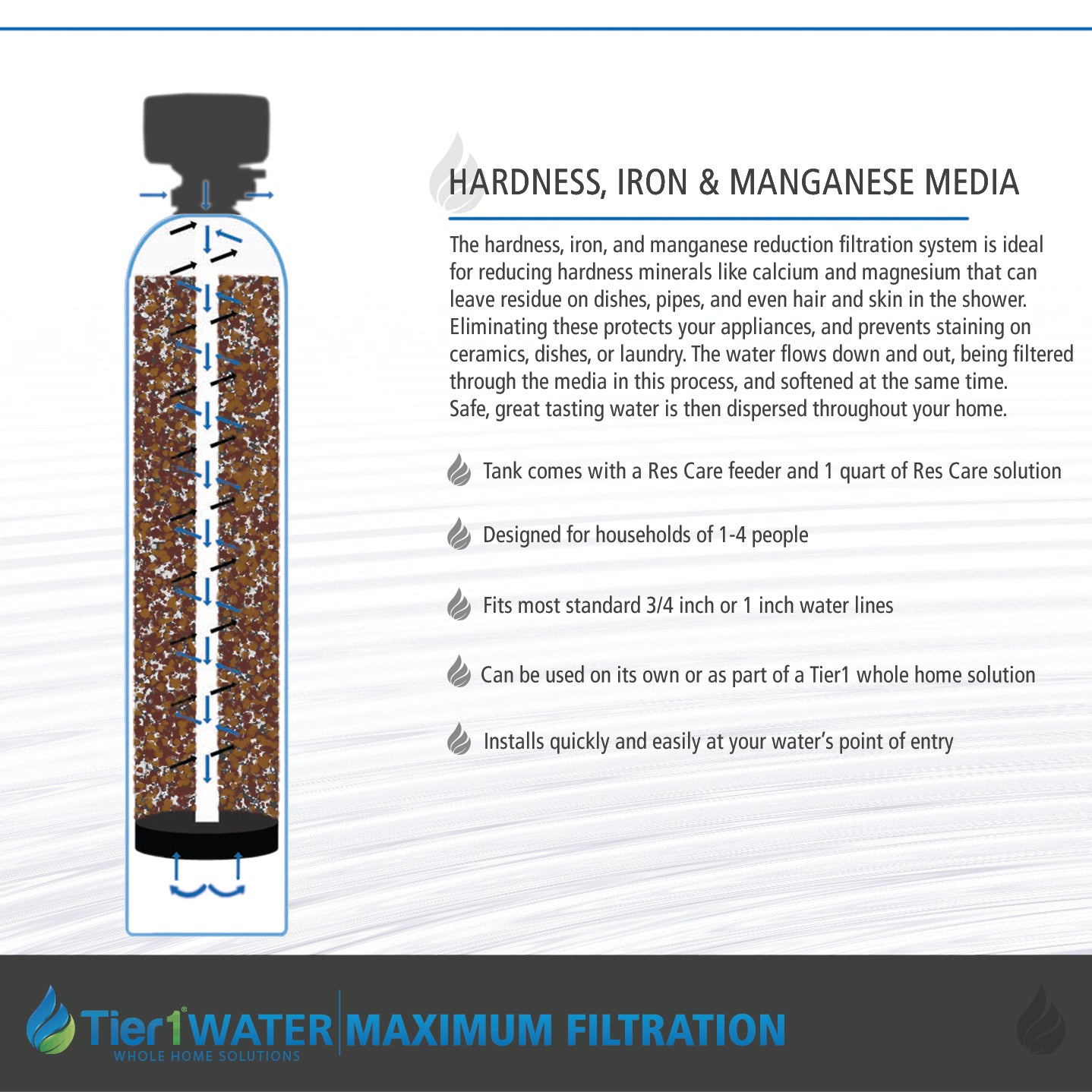

    Hard water is a phrase used to describe the presence of untreated water containing magnesium and calcium, two minerals that contribute to scaling build-up. Left untreated, the scale can cause inefficiencies of water-using appliances, block or corrode pipes and plumbing, cause early appliance failure, and lower the effectiveness of detergents and soaps. Treating your water with a softener helps reduce these concerns by using ion exchange resin to capture, retain, and finally remove these minerals from your water. This process adds sodium to your water at the cost recharging the resin but yields the results of cleaner dishes, brighter clothes, smoother hair and skin

    Frequently Asked Questions

    How much is the Max. Hardness of the Water (in GPG)? During set-up, the customer customizes the regeneration cycle based on their water hardness level. Instructions for how to calculate this level can be found in the user guide with every product. How much is the max. Clear Water Iron Removal (ppm)? An iron filter is recommended for iron levels above 5 ppm Is it Demand Initiated or Timed? Tier1 water softeners are demand initiated, the control valve features a water use probe, which measures water use How long does the Regeneration Cycle take? Approximately one hour Will I experience a disruption in water service during the Regeneration Cycle? No, this system features the Tier1 Automatic Bypass Control Valve What is in the mineral tank? The system arrives to you pre-filled with Tier1's premium HIM and Ion Exchange Resin blend Does it have an indicator to notify me about low salt? No, there is not a low salt indicator. The brine tank storage limit should be 120 pounds. What if my home is plumbed with PEX or CPVC supply tubing? Homes plumbed with PEX or CPVC supply tubing may require the use of compression fittings, such as the Sharkbite® brand. Due to varying sizes and configurations, compression fittings are not included with the water softener. If these fittings are required, they can be purchased for a reasonable price at most hardware stores.

    TIER1-WH-HD-IRN-MG-948   fits the following model number(s)

    • TIER1-WH-HD-IRN-MG-948
