CULLIGAN-US-600

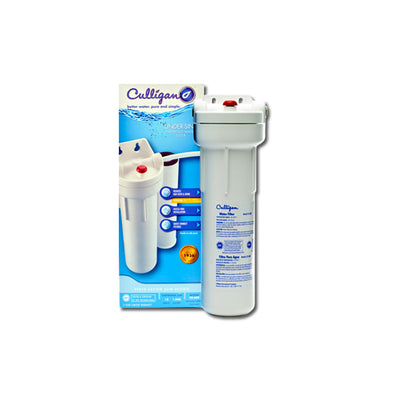

US-600 Culligan Slim Undersink Filter System
$59.84 - $315.96
| Price Per Item | |
|---|---|
| 2 PACK | $58.04 |
| 3 PACK | $56.25 |
| 4 PACK | $54.45 |
| 6 PACK | $52.66 |
Slim design saves space under your sink
Installs easily with built-in quick-connect fittings
For use with your existing faucet
format_list_bulleted Features & Specs
Package Qty: 1
Manufacturer: Culligan
Manufacturer's Id: US-600
UPC: 033663005440
Actual Size (in): 12 inches (length) x 4 1/4 inches (outside diameter)
Media: Granular Activated Carbon
Primary Filter Media: Granular Activated Carbon
Operating Pressure (psi): 30 - 125
Operating Temperature (°F): 40 - 100
Operating Temperature (°C): 4.4 - 37.8
Warranty Guarantee: 5 year limited warranty
Brand: Culligan
Fitting Size (in): 38 in
Length (in): 12 in
Outside Diameter (in): 4.25 in
Media Type: Carbon Filter
UPC's For Search: 10033663005447 | 033663005440
Country of Origin: China
Fitting Type: Quick Connect
Flow Rate (gpm): 1.0
Includes: Filter housing with built-in bracket, Culligan D-20 filter cartridge, Culligan SW-5 housing wrench, Installation instructions, Cartridge change reminder sticker, Mounting hardware, 3/8 inch plastic tubing
description Instructions
- For standard under-sink installation on 3/8-inch cold water line (copper or PVC). Turn off cold water supply and open nearest faucet to release pressure in pipes before starting. Place a tray or towels under the cold water line to catch excess water
- Use mounting bracket as a template to mark screw locations. Mount filter in marked location using mounting bracket. NOTE: Allow 1-1/2 inches (33 mm) clearance below housing to enable filter cartridge changes
- Remove a 3-inch (76 mm) section of pipe from the 3/8-inch (10 mm) cold water line. Deburr ends of remaining pipe with a file. Push a quick-connect elbow onto each end of remaining cold water line. Be sure to push elbow onto pipe until you hit a hard stop
- Determine the lengths of tubing needed to connect the filter to the cold water line. Cut tubing between black guide arrows and short enough to prevent kinking. Insert tubing into appropriate inlet or outlet fitting until it stops (approximately 5/8-inch)
- Slowly turn on the water supply to allow filter to fill with water, then press the red pressure-relief button on top of filter to release trapped air. Check for leaks before leaving installation
- To remove tubing, turn off the water to the filter and open faucet to drain pipes. Depress the gray collar around the inlet fitting and pull to release tubing. Repeat for outlet fitting. Routine maintenance and cartridge replacement do not require this
- To replace the filter; turn off water supply to filter, use a tray or towel under the system to catch any water that spills. Push red pressure-relief button. Remove and wash bottom of filter housing. Fill 1/3 full with water and 2 tbls of bleach. Rinse
- Discard used filter. Locate and remove large O-ring, wipe clean and set aside. Lubricate O-ring with clean silicone grease. Insert O-ring in groove and press into groove to ensure a proper housing seal. Insert new filter cartridge in bottom of housing
- Screw housing onto the cap and hand-tighten. DO NOT overtighten. Slowly turn on water to allow filter to fill with water, then press the red pressure-relief button on top of housing to release trapped air. Check for leaks
- After installation, flush the cartridge for 5 minutes to remove any fines before using the water. It is recommended that you run the tap at least 20 seconds prior to using water for drinking or cooking purposes
warning_amber Contaminants Reduced
filter_alt Filter Life
Filter Life (gallons): 1,000
Filter Life (months): 12 months
verified_user Warranty Info
Warranty Guarantee: 5 year limited warranty
warning Prop65 warning applies to products that contain carbon media. Click here for more details
Prop65 warning applies to products that contain carbon media. Click here for more details
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
The Culligan Slim US-600 Slim Undersink Water Filter System is an easy to install water filtration system with filter head, filter housing, and built-in mounting bracket.
CULLIGAN-US-600 is comparable with the following part number(s)
- 4158622
- Ametek US-600
- D-10
- D-15
- D-20
- D-28
- D-30
- D-40
- OR-233
- SW-5
- US-600
- US-600A
- 1020691
