Warranty Guarantee: 5 year limited warranty
CULLIGAN-HF-360

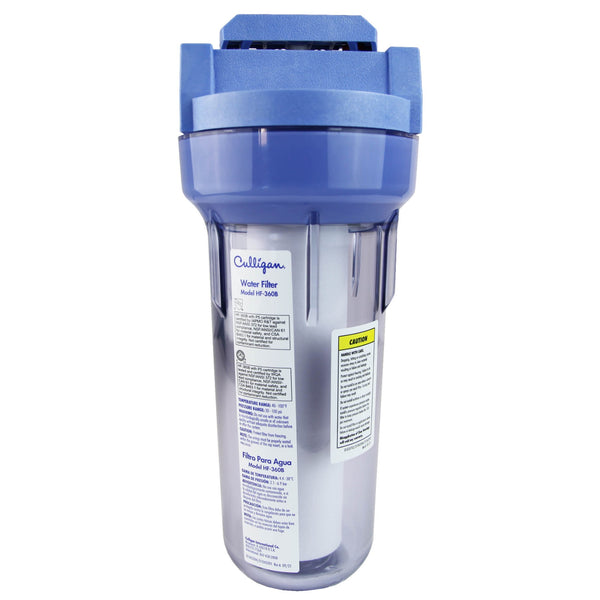

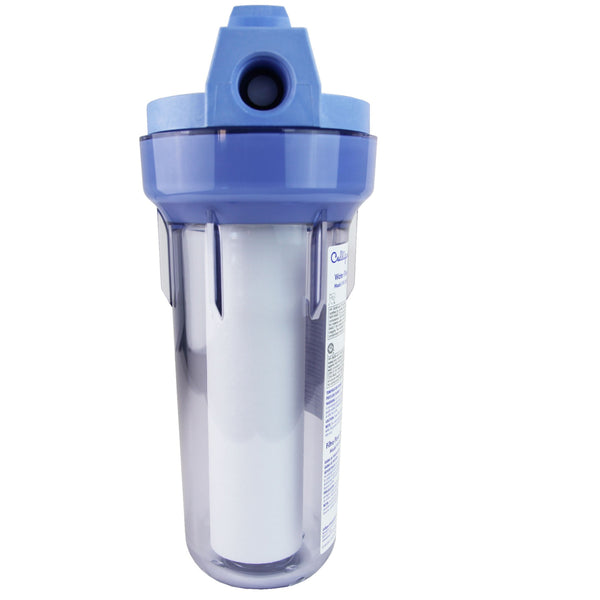

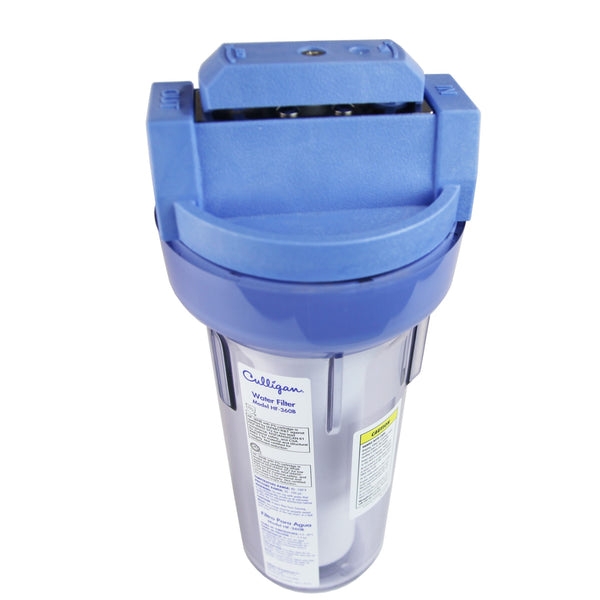

HF-360B Culligan Valve-In-Head Whole House Filter System
Out of Stock
$55.87
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Culligan
Manufacturer's Id: HF-360
UPC: 033663005310
Actual Size (in): 13 1/2 inches (length) x 5 1/2 inches (outside diameter)
Operating Pressure (psi): 30 - 125
Operating Temperature (°F): 40 - 100
Operating Temperature (°C): 4.4 - 37.8
Warranty Guarantee: 5 year limited warranty
Brand: Culligan
Fitting Size (in): 34 in
Length (in): 13.5 in
Outside Diameter (in): 5.5 in
UPC's For Search: 10033663005317 | 033663005310
Country of Origin: Mexico
Includes: Housing, Culligan SW-2 housing wrench, Installation and operating instructions
Instructions
Instructions- The housing should not be installed near a well pump
- The whole house system has 3/4-inch inlet/outlets for easy installation on the 3/4-inch main cold water line (if you have a 1/2-inch water line, you can use a reducer nipple to reduce the inlet/outlet down to the 1/2-inch size)
- If water is leaking around the red pressure relief valve, it means that the o-ring in the cap assembly needs lubrication
- Lubricating O-Ring with silicone grease will keep it from kinking when the lever is operated, and it will also swell to keep the seal tight
- To lubricate O-Ring, remove the screw from the on/off lever and remove the lever
- Under the lever is a metal plate with four screws, remove screws and then plate
- Remove the white plastic valve stem (it comes straight up and out)
- Under the stem is a 3/4-inch diameter black O-Ring, lubricate thoroughly with some silicone grease
- There is a 2nd o-ring on the underside of the HF-360 cap that would also be beneficial to lubricate at the same time
- The on/off valve operates a white plastic plunger, and at the end of that plunger is a 1/4-inch black o-ring that may need some lubrication also (this o-ring cannot be removed)
Warranty Info
Warranty Info
Warranty Guarantee: 5 year limited warranty
CULLIGAN HF-360B (previously HF-360 or CULLIGAN-HF-360A) is a whole-house water filtration system with a built-in shut-off valve. The HF-360B has a newer design that has an added o-ring to the head and the head has an added piece where both o-rings are on the head. Uses most 2 1/2 inch x 10 inch replacement filter cartridges.
CULLIGAN-HF-360 is comparable with the following part number(s)
- 49560
- 150443
- American Plumber WVC-34
- Ametek Kleen Plus PSCL-S1
- Ametek Kleen Plus PSCL-SI
- Ametek Kleen Plus PVHCL-S1
- Ametek Kleen Plus PVHCL-SI
- Culligan\/Pentek\/American Plumber OR-34 O-Ring
- CW-F
- HF-160
- HF-360
- HF-360A
- HF-360B
- HF-365
- P1
- P5
- Pentek 150437
- S1A
- SW-2 Housing Wrench
- UB-1 Mounting Bracket
- 1020702
