PENTEK-SLIM-CLEAR-14-WPR5

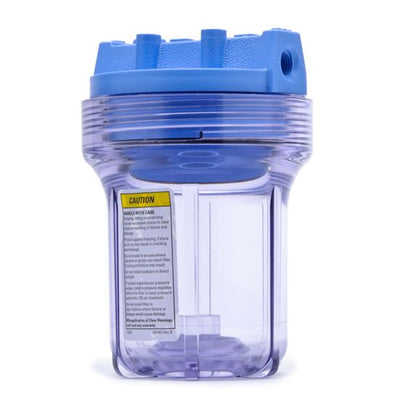

SLIM-CLEAR-14-WPR5 Pentek Whole House Slim 5 inch Filter Housing
Out of Stock
Availability: Discontinued
This item is no longer available.
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Pentair Water
Manufacturer's Id: SLIM-CLEAR-14-WPR5
UPC: 799932596063
Actual Size (in): 7 3/8 inches (length) x 4 5/8 inches (outside diameter)
Operating Pressure (psi): 30 - 125
Operating Temperature (Β°F): 40 - 125
Operating Temperature (Β°C): 4.4 - 51.7
Brand: Pentek
Fitting Size (in): 14 in
Length (in): 7.38 in
Outside Diameter (in): 4.63 in
Materials of Construction: O-Ring: Buna-N, Cap: Reinforced Polypropylene, Housing: SAN
UPC's For Search: 10051678581336
Country of Origin: Mexico
Fitting Type: NPT
Flow Rate (gpm): 3.0
Instructions
Instructions- Easy to install number 5 Slim Line Clear Water Filter System
- The housing is 7-3/8-inch L x 4-5/8-inch W (187 mm x 118 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
- 1/4-inch inlet/outlet for easy installation on a cold water line
- A SL-BR mounting bracket is recommended for installation of the whole house housing
Downloads
DownloadsPentek's Slim Line filter housings are an excellent choice for low-flow applications and when space and compatibility are primary concerns. The PENTEK-SLIM-CLEAR-14-WPR5 offers a rugged reinforced polypropylene design with outstanding chemical compatibility and is ideal for use in a variety of low-flow applications.
PENTEK-SLIM-CLEAR-14-WPR5 is comparable with the following part number(s)
- 158133
- SLIM-CLEAR-14-WPR5
