PENTEK-ECP5-20BB

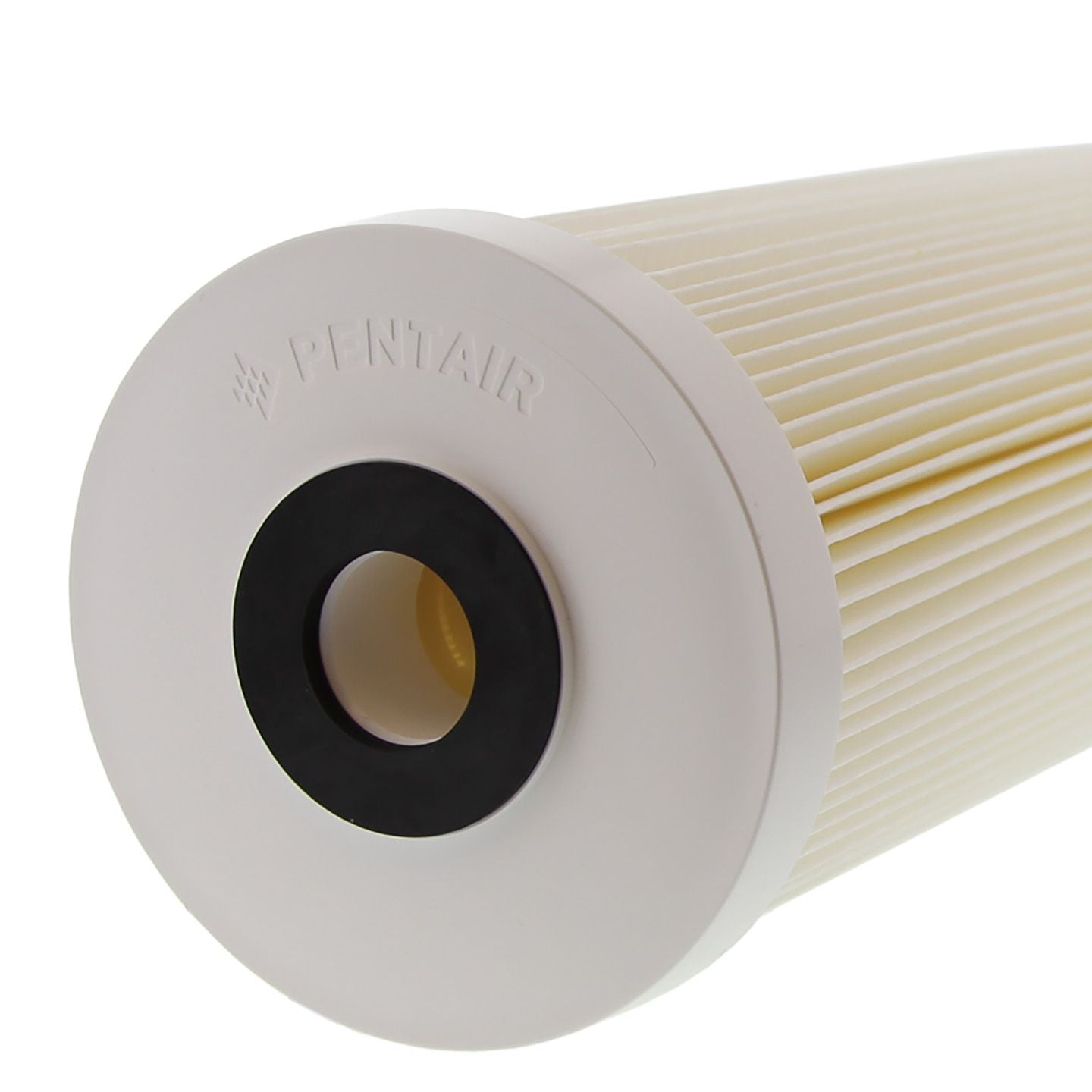

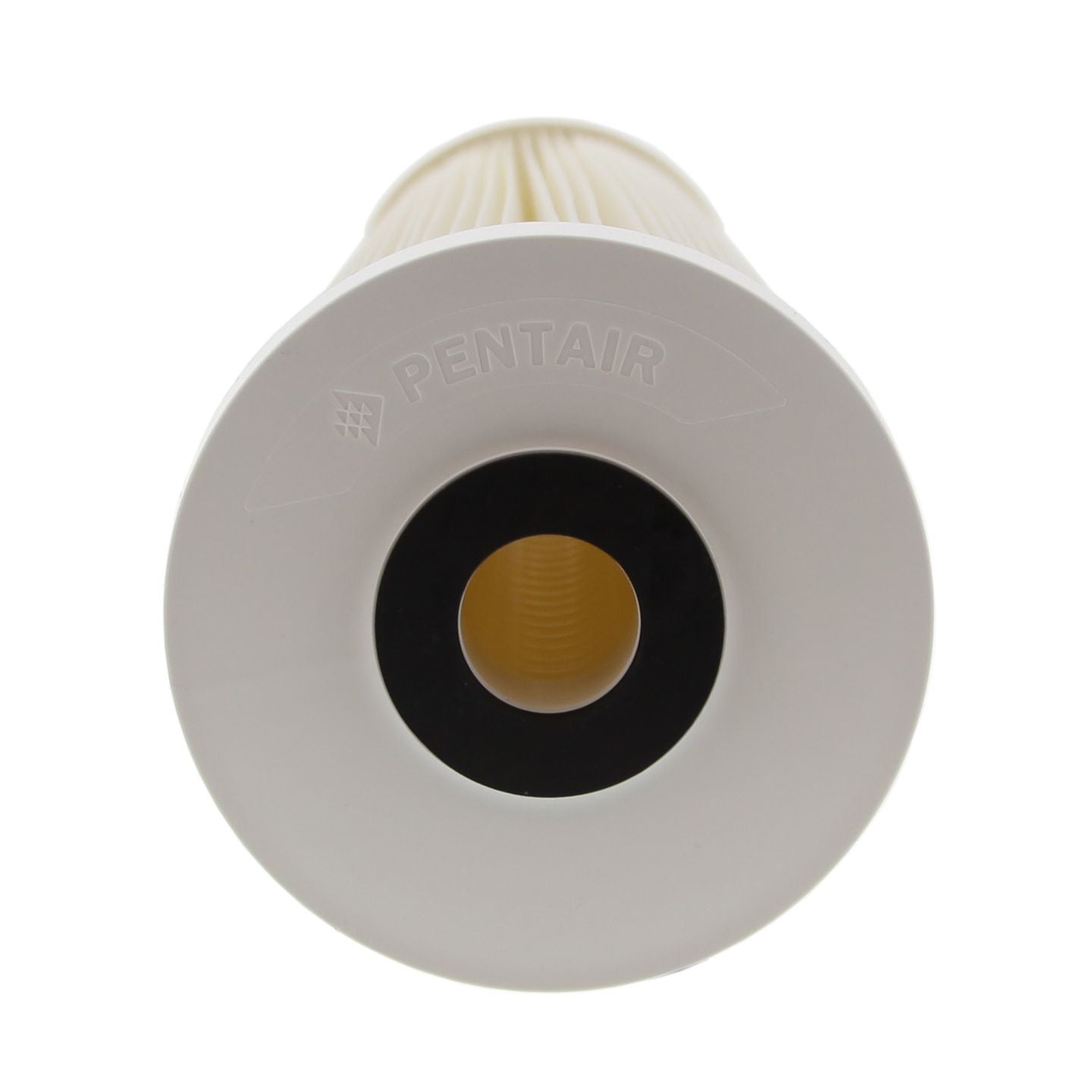

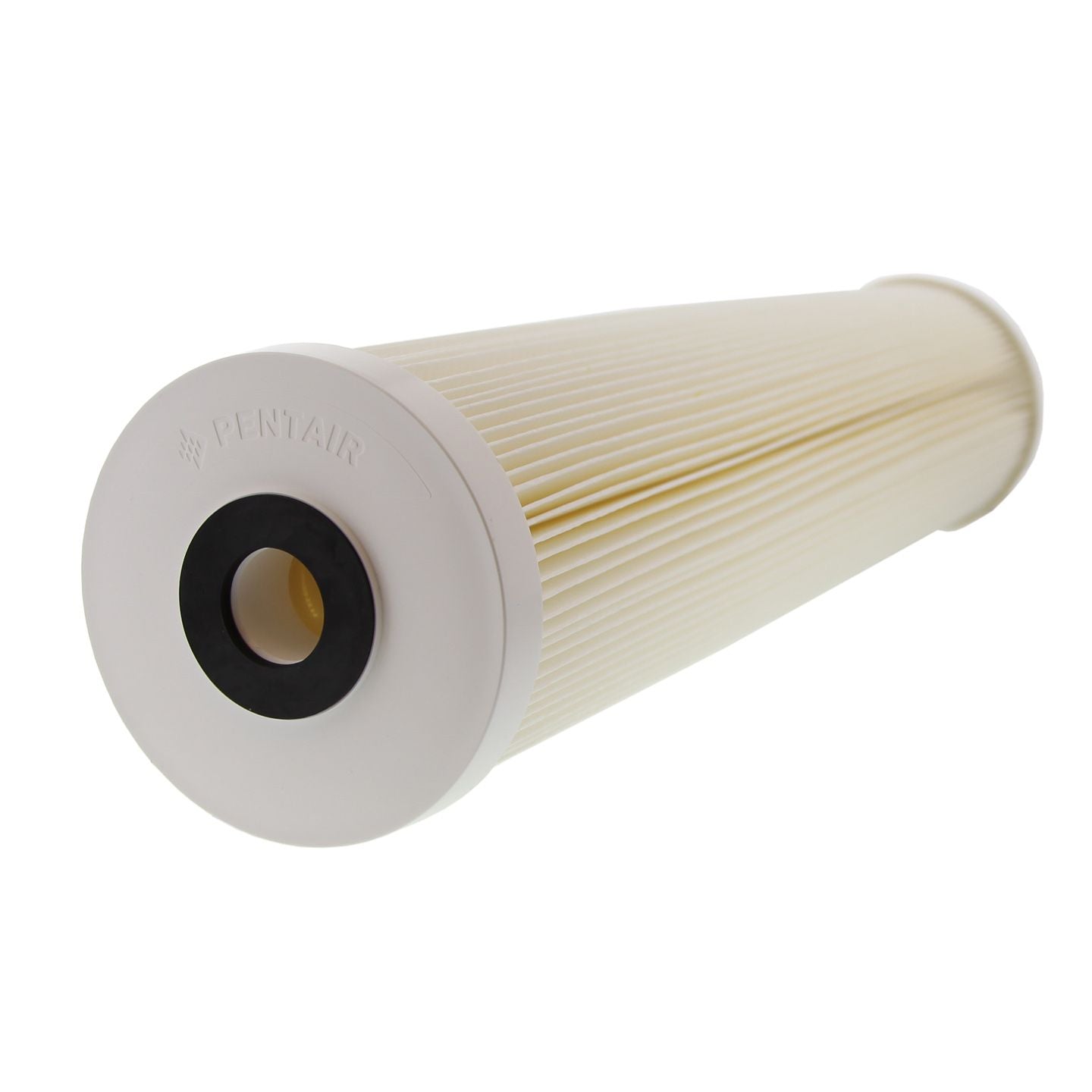

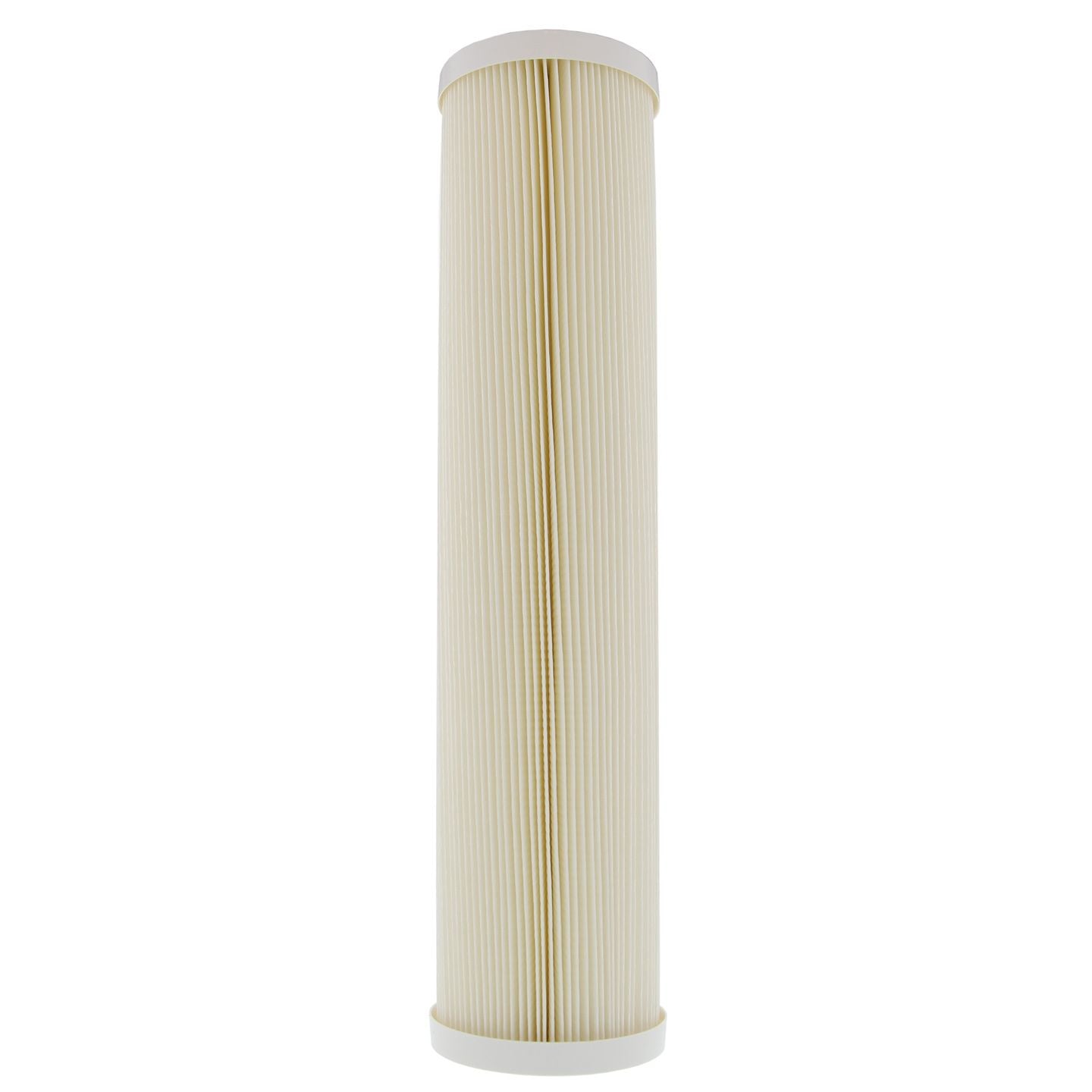

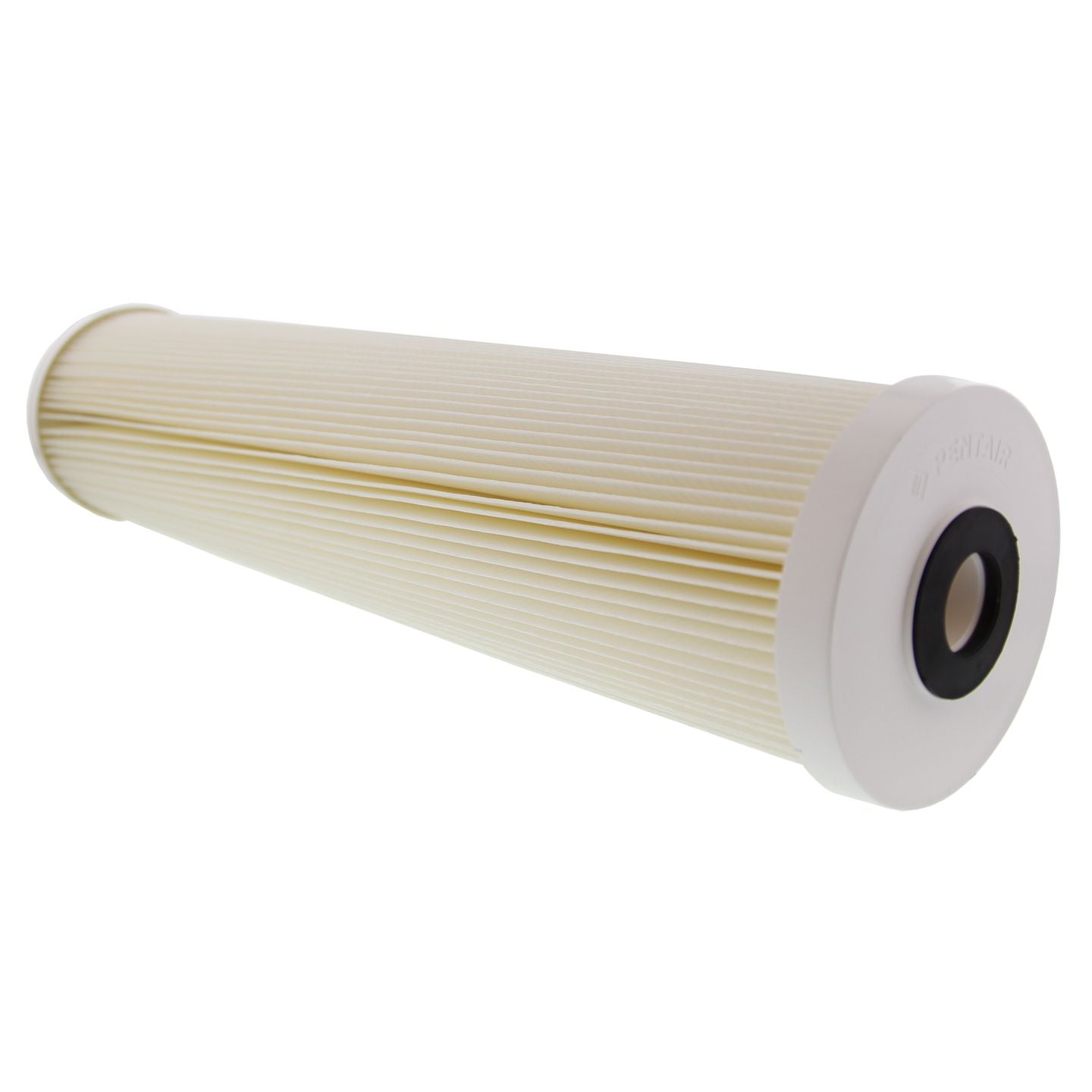

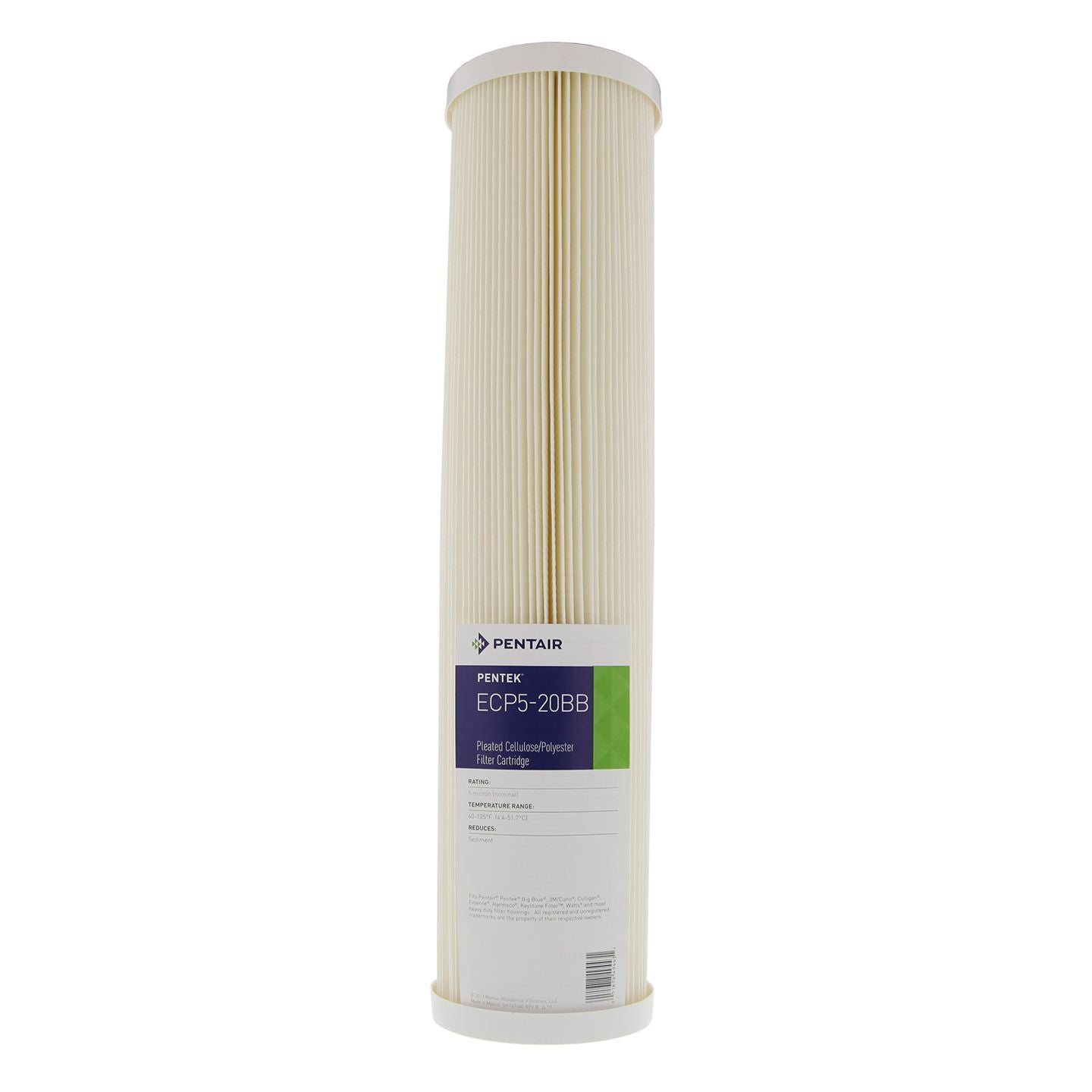

ECP5-20BB Pentek Whole House Filter Replacement Cartridge
High Stock (27)
$40.99 - $865.71
Fits Pentek 20-inch Big Blue and any standard housing that uses 20-inch x 4 1/2-inch replacement filter cartridges
| Price Per Item | |
|---|---|
| 2 PACK | $39.76 |
| 4 PACK | $38.53 |

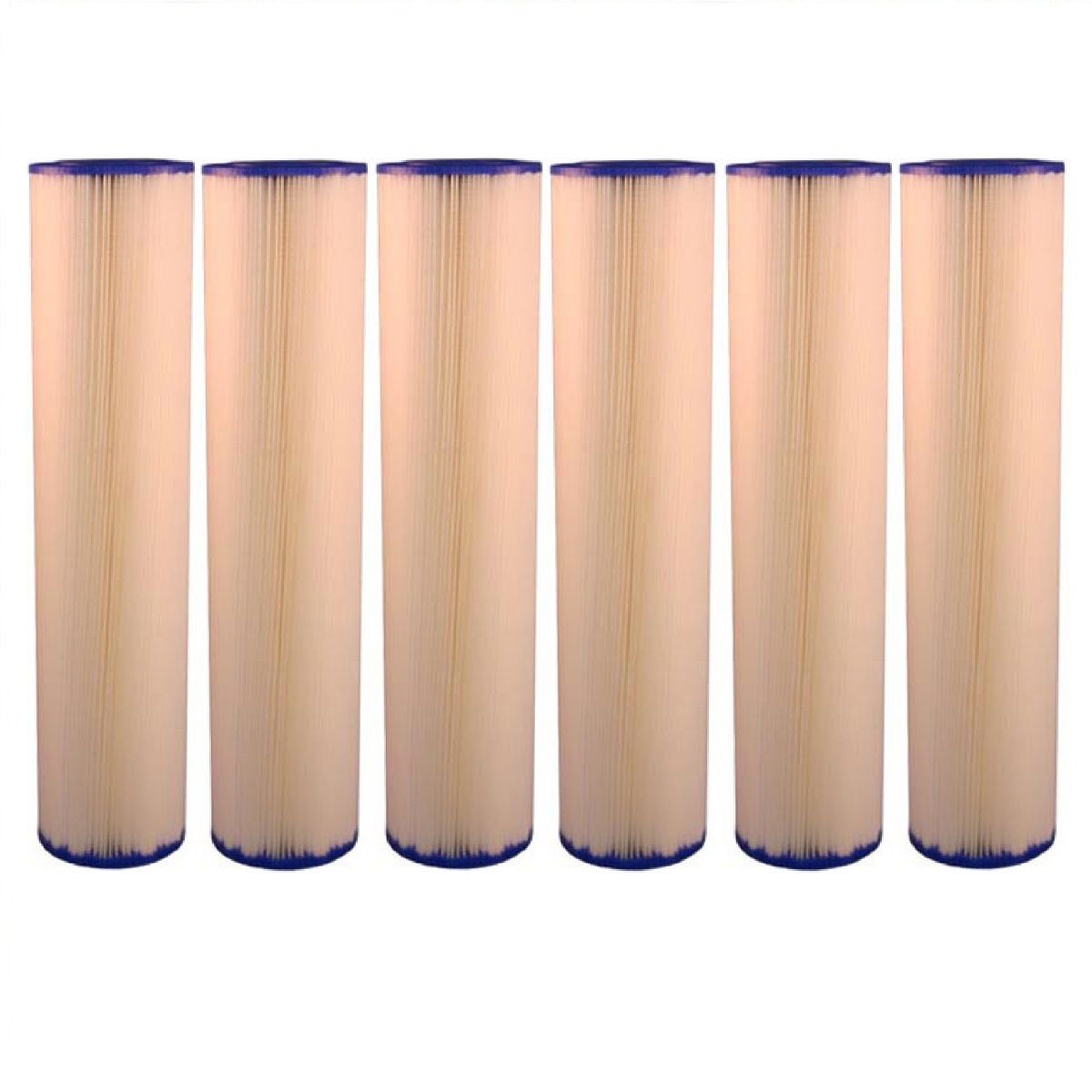

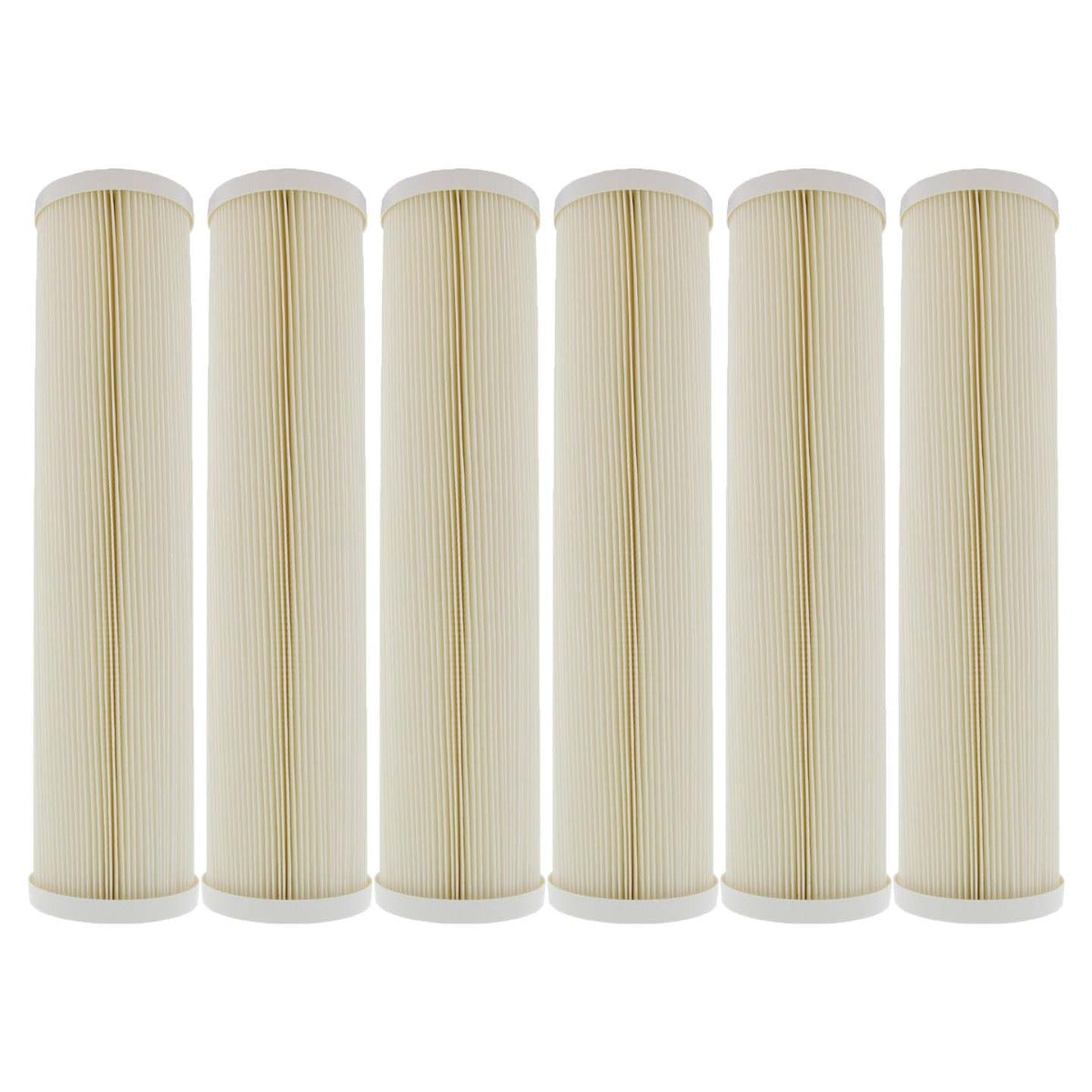

| 6 PACK | $37.30 |
| 24 PACK | $36.07 |
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Pentair Water
Manufacturer's Id: ECP5-20BB
UPC: 051678494431
Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
Media: Pleated Cellulose/Polyester
Primary Filter Media: Pleated Cellulose Polyester
Operating Temperature (°F): 40 - 125
Operating Temperature (°C): 4.4 - 51.7
Brand: Pentek
Advertised Size: 20 x 4-1/2
Length (in): 20 in
Outside Diameter (in): 4.5 in
Width (in): 4.5 in
Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol
Media Type: Sediment Filter
UPC's For Search: 10051678494438 | 051678494431
Country of Origin: Mexico
Micron Rating Nominal: 5
Flow Rate (gpm): 20.0
Includes: One Pentek ECP5-20BB 20-inch x 4-1/2-inch Pleated Sediment Water Filter
Instructions
Instructions- Turn off water supply. Press red pressure-relief button (if present).
- Unscrew housing. Remove large o-ring, wipe clean and set aside.
- Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
- Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
- Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
- NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
- Insert new filter cartridge.
- Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
- Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
Downloads
Downloads
Contaminants Reduced
Contaminants Reduced
Filter Life
Filter Life
Filter Life (months): 6 months
The ECP5-20BB provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop making it ideal for a variety of uses and applications.
PENTEK-ECP5-20BB is comparable with the following part number(s)
- 255494-43
- ECP5-20BB
- PENTEK-ECP5-20BB
 |  |  | |
|---|---|---|---|
Product Price |
$40.99
|
$62.47
|
$20.86
|
Product SKU |
PENTEK-ECP5-20BB
|
HARMSCO-HB-20-5W
|
TIER1-ECP5-20
|
Filter Life (months) |
|
|
|
Primary Filter Media |
|
|
|
Micron Rating (Nominal) |
|
|
|
Actual Size (in) |
|
|
|
Country of Manufacture |
|
|
|
