    TIER1-ECP5-20

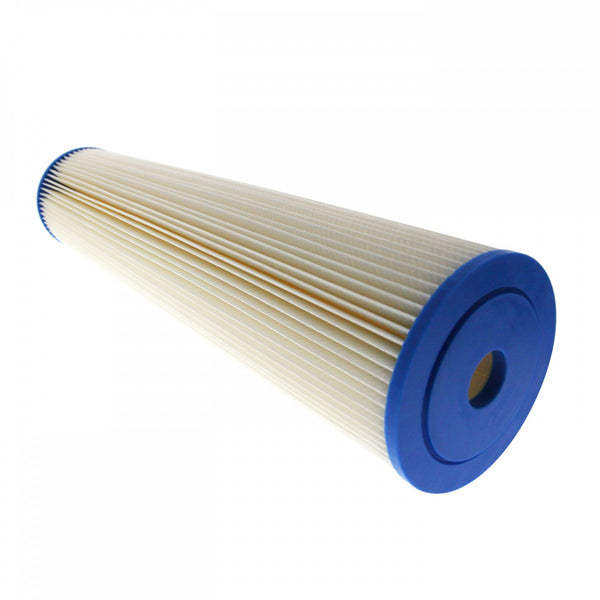

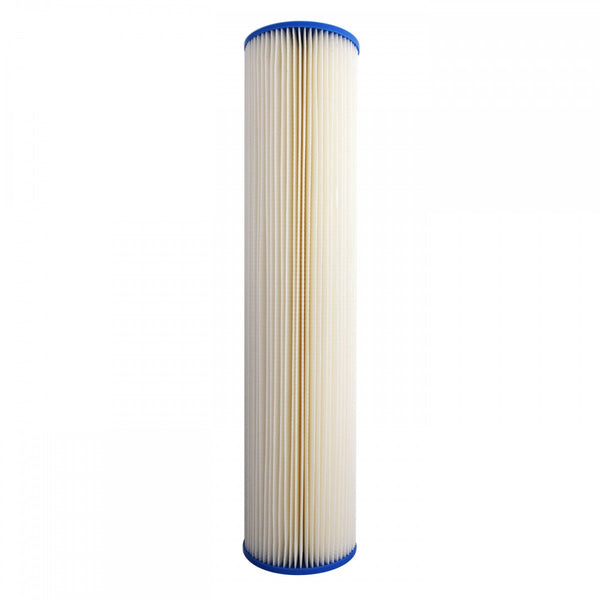

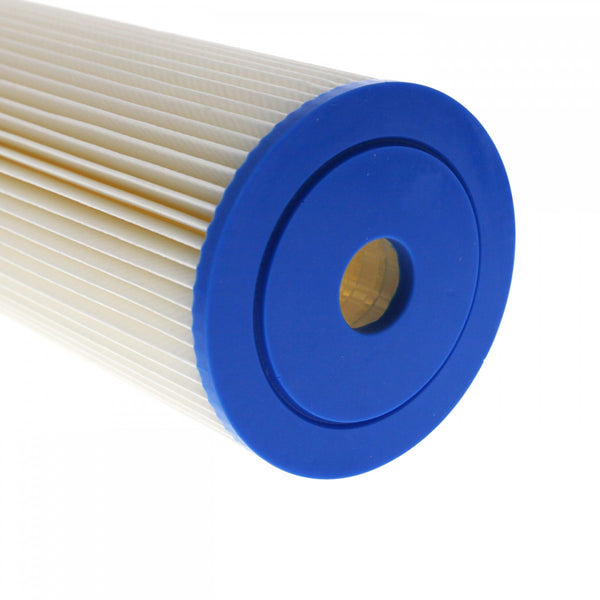

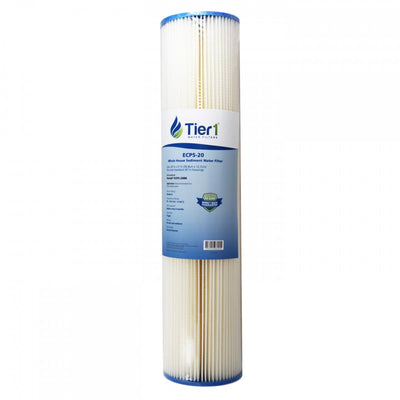

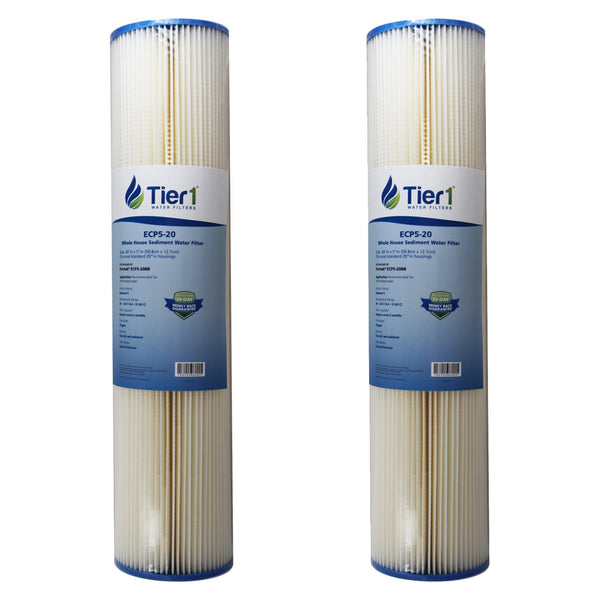

    20 inch x 4.5 inch Whole House Pleated Polyester Water Filter by Tier1 (5 Micron)

    Fits most 20 x 5-inch filter housings
    Price Per Item
    2 PACK $20.23

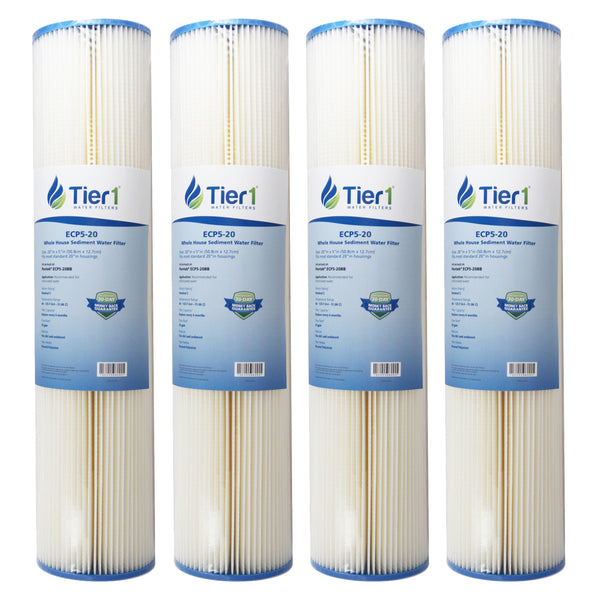

    4 PACK $19.60

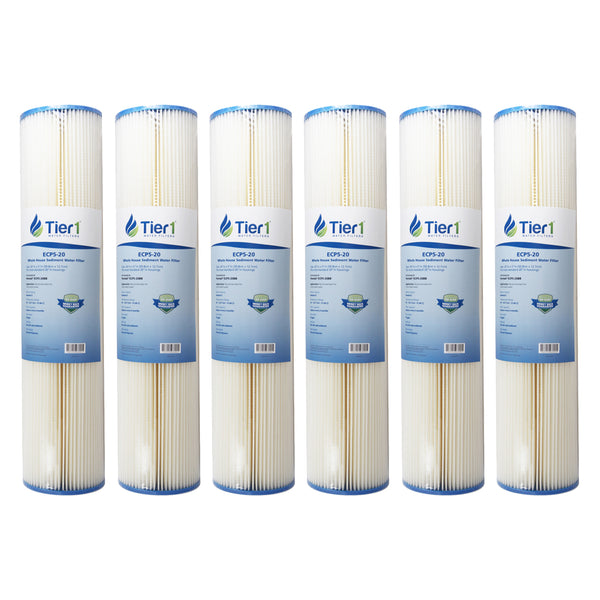

    6 PACK $18.98
    24 PACK $18.35
    Choose a Pack Size:
    • Ships fast!

    • Ensures quality water throughout your home

    • Easy installation for a frustration-free return to better water

    • Pleated polyester media reduces particles down to 5 microns

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: ECP5-20
    UPC: 700355940937
    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Polyester
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Depth (in): 4.5 in
    Length (in): 19.78 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940937 | 051678496435
    Country of Origin: China
    Micron Rating Nominal: 5
    Flow Rate (gpm): 20.0
    Includes: One Tier1 20 x 4.5 inch Whole House Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    7. Insert new filter cartridge
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particles
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    The ECP5-20BB Pentek comparable whole house pleated polyester water filter by Tier1 is ideal for 20 x 4.5-inch whole house filtration systems with chlorinated water. Reduce the fine dirt and sediment that disrupt your home water use. Pleated filter design allows more maximum contact time between filter media and contaminants. Reduce common household water contaminants like dirt, sediment, particles, and more! First time and veteran users alike can experience this excellent product with the protection of an Unconditional Product Guarantee for Life of the Product. Order the ECP5-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 today!


    TIER1-ECP5-20   is comparable with the following part number(s)

    • 255494-43
    • 255496-43
    • 4PAY5
    • Pentek ECP5-20BB

    TIER1-ECP5-20   fits the following model number(s)

    • W20FFPH1CBPR
    • CFS22
