10 inch x 2.5 inch Pleated Sediment Water Filter by Tier1 (30 Micron) - DiscountFilterStore.com

verified_user Warranty Info

Warranty Guarantee: Unconditional Guarantee for Life of the Product

TIER1-SPC-25-1030

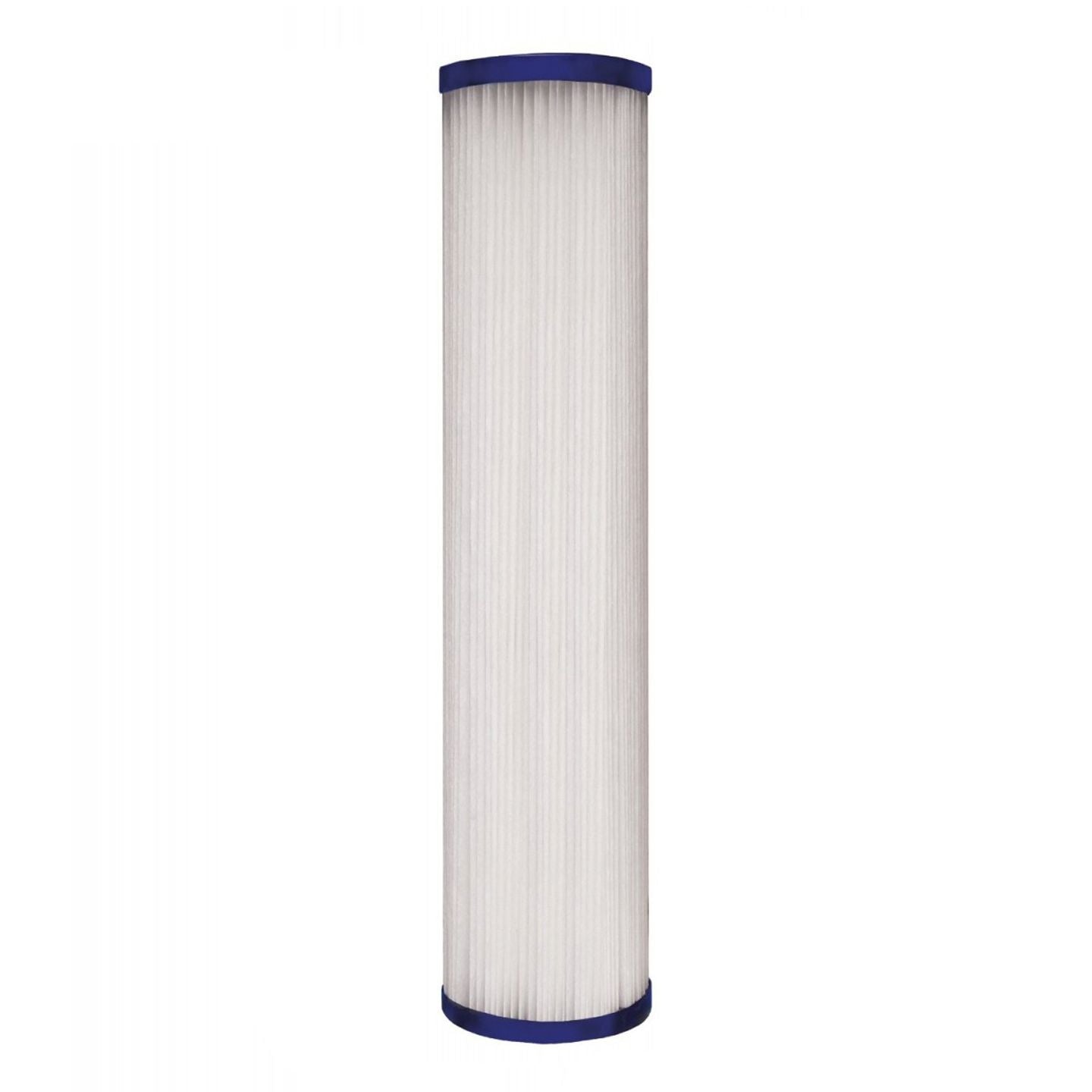

10 inch x 2.5 inch Pleated Sediment Water Filter by Tier1 (30 Micron)

Name: 10 inch x 2.5 inch Pleated Sediment Water Filter by Tier1 (30 Micron)
Brand: Tier1
SKU: TIER1-SPC-25-1030
Price: 6.32 USD
Availability: InStock

High Stock (62)

.price-ui--loading { display: block !important; opacity: 1 !important; }

$6.32 - $133.48

Fits standard 2-1/2 inch by 10 inch filter housings

Price Per Item

2 PACK	$6.13
4 PACK	$5.94
6 PACK	$5.75
24 PACK	$5.56

Choose a Pack Size:

Single

2 PACK

4 PACK

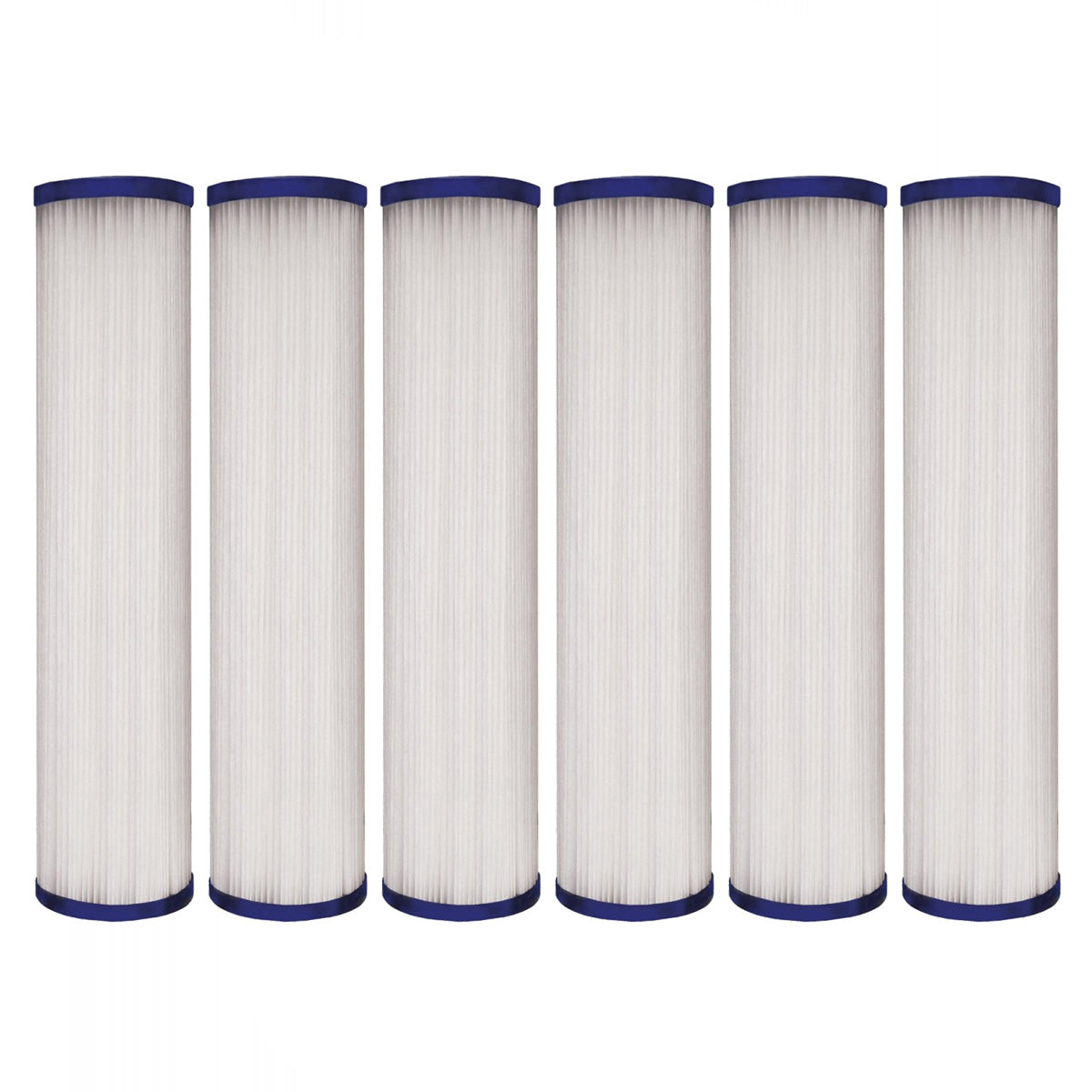

6 PACK

24 PACK

Ships fast!
Greater dirt holding capacity
Used in a variety of applications
Made from a non-woven pleated polyester material

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Tier1

Manufacturer's Id: SPC-25-1030

UPC: 810004477513

Actual Size (in): 9 7/8 inches (length) x 2 1/2 inches (outside diameter)

Media: Non-Woven Pleated Polyester

Primary Filter Media: Pleated Polyester

Operating Temperature (°F): 40 - 125

Operating Temperature (°C): 4.4 - 51.7

Warranty Guarantee: Unconditional Guarantee for Life of the Product

Brand: Tier1

Advertised Size: 10 x 2-1/2

Length (in): 9.88 in

Outside Diameter (in): 2.5 in

Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol

Media Type: Sediment Filter

Micron Rating Nominal: 30

Flow Rate (gpm): 10.0

description Instructions

Turn off water supply. Press red pressure-relief button (if present)
Unscrew housing. Remove large o-ring, wipe clean and set aside
Discard used filter cartridge
Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
Insert new filter cartridge
Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation

warning_amber Contaminants Reduced

Dirt

Particulates

Sand

Sediment

Silt

filter_alt Filter Life

Filter Life (months): 6 months

verified_user Warranty Info

Warranty Guarantee: Unconditional Guarantee for Life of the Product

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

compare_arrows

Check Our Comparable Products

help Product Details

The 10 inch x 2.5 inch pleated sediment water filter by Tier1 (30 Micron) offers a pleated design that captures more dirt, and particles keeping your water clean and drinkable. Designed for applications such as residential, commercial and industrial environments this filter is resistant to bacteria and chemicals while also reducing different kinds of sediment. You can even wash and re-use this filter for better use. Be sure to order today!

extension Comparable Part Number

	10 inch x 2.5 inch Pleated Sediment Water Filter by Tier1 (30 Micron)From $6.32 View details	W30PE American Plumber Whole House Sediment Filter Cartridge (2-Pack)From $29.63 View details	R30 Pentek Replacement Filter CartridgeFrom $12.59 View details
Product Price	$6.32	$29.63	$12.59
Product SKU	TIER1-SPC-25-1030	AMERICAN-PLUMBER-W30PE	PENTEK-R30
Filter Life (months)	6 months	4 months	6 months
Primary Filter Media	Pleated Polyester	Pleated Polyester	Pleated Polyester
Micron Rating (Nominal)	30	30	30
Actual Size (in)	9 7/8 inches (length) x 2 1/2 inches (outside diameter)	9 3/4 inches (length) x 2 inches (outside diameter)	9 3/4 inches (length) x 2 5/8 inches (outside diameter)
Country of Manufacture	—	Mexico	Mexico

10 inch x 2.5 inch Pleated Sediment Water Filter by Tier1 (30 Micron)

TIER1-SPC-25-1030 is comparable with the following part number(s)
