USWF-PP20-1045

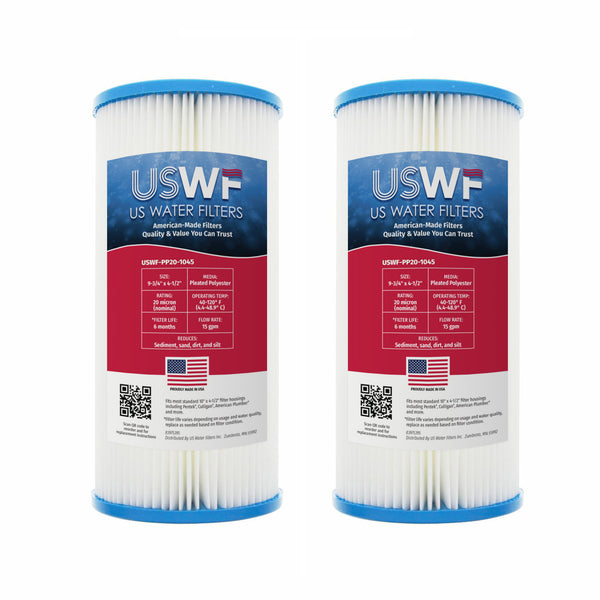

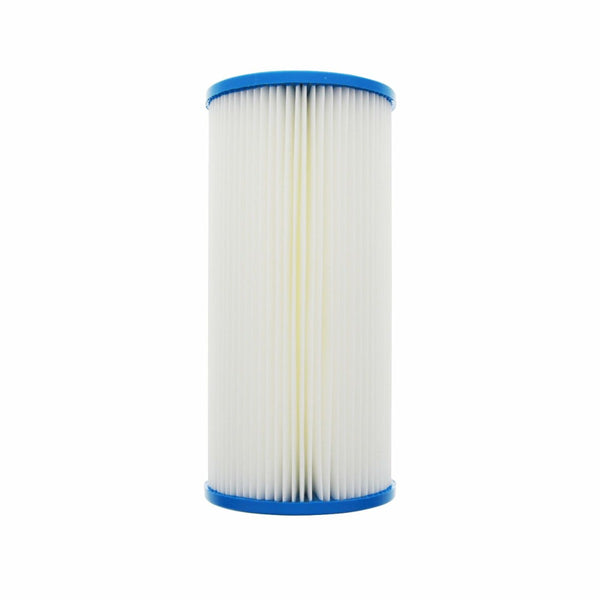

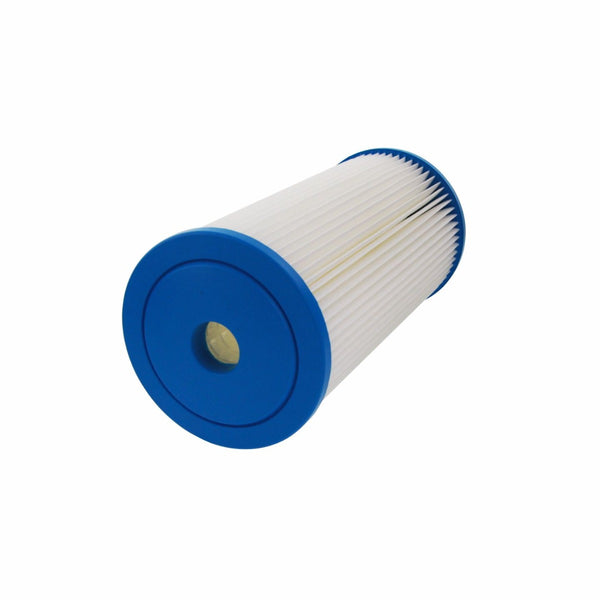

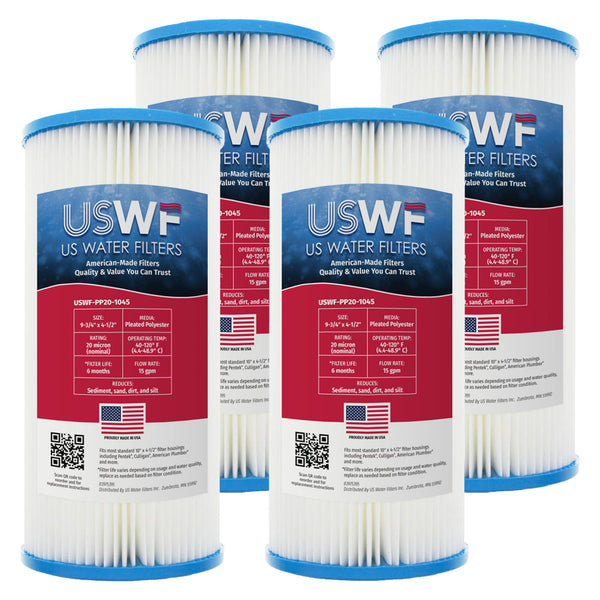

USWF 20 Micron 10"x4.5" Pleated Polyester Sediment Filter
High Stock (74)
Translation missing: en.products.product.price.regular_price
$13.18
| Price Per Item | |
|---|---|
|
Single
|
$13.18
|
|
2 PACK
|
$12.79
|
|
4 PACK
|
$12.39
|
|
6 PACK
|
$11.99
|
|
24 PACK
|
$11.60
|
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer's Id: PP20-1045
Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
Primary Filter Media: Pleated Polyester
Operating Temperature (°F): 40 - 120
Brand: USWF
Advertised Size: 10 x 4-1/2
Length (in): 9.75 in
Outside Diameter (in): 4.5 in
Maximum Temperature (f): 120
Media Type: Sediment Filter
Country of Origin: United States
Micron Rating Nominal: 20
Flow Rate (gpm): 15.0
Instructions
Instructions- Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
- Unscrew filter housing sump. (Use filter wrench if nessecary.)
- Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
- Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
- If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
- Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
- Insert new filter cartridge ensuring that it is seated properly in the sump housing.
- Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
- Turn on the water supply and check for leaks before leaving the installation.
- Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)
Contaminants Reduced
Contaminants Reduced
Filter Life
Filter Life
Filter Life (months): 6 months
Check Our Comparable Products
USWF-PP20-1045 is a 20 micron 10"x4.5" pleated polyester sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant polyester fabric pleated around a polypropylene core to provide a high quality filter independently tested to NSF / ANSI standards 42, 61, and 372.
Pleated filters offer the lowest pressure drop and highest flow rate of all sediment filter types by providing as much filtration surface as possible to maximize water flow. However because pleated filters offer no filtration gradient or depth they are best suited to filter sediment of uniform particle size.
USWF only carries pleated polyester filters. The synthetic filter media is bacteria resistant so that it can be used on both treated and untreated water supplies. The pleated polyester is also highly durable meaning that you may rinse and clean the filter once it becomes clogs to extend the filter life.
This American made filter is a compatible replacement for other popular pleated sediment filters like the Watts FM-BB-10-20, Pentek S1-BB, Hydronix SPC-45-1020, and more.
Choosing American-made products means investing in quality you can trust, while also supporting jobs and communities across the United States. American manufacturing is held to strict quality and safety standards, ensuring durable, reliable products built to last. By buying domestically, you help strengthen the U.S. economy, support local workers, and reduce reliance on overseas production. Plus, with shorter supply chains and lower transportation emissions, American-made goods contribute to a smaller environmental footprint - making it a smart choice for both performance and sustainability.
Interested in reading more about US-made products and what we offer? Read our article, Why Buy American Made Filters?
Pleated filters offer the lowest pressure drop and highest flow rate of all sediment filter types by providing as much filtration surface as possible to maximize water flow. However because pleated filters offer no filtration gradient or depth they are best suited to filter sediment of uniform particle size.
USWF only carries pleated polyester filters. The synthetic filter media is bacteria resistant so that it can be used on both treated and untreated water supplies. The pleated polyester is also highly durable meaning that you may rinse and clean the filter once it becomes clogs to extend the filter life.
This American made filter is a compatible replacement for other popular pleated sediment filters like the Watts FM-BB-10-20, Pentek S1-BB, Hydronix SPC-45-1020, and more.
Interested in reading more about US-made products and what we offer? Read our article, Why Buy American Made Filters?
Frequently Asked Questions
USWF-PP20-1045 is comparable with the following part number(s)
- SPC-45-1010
- Pentek S1-BB
- 155405-43
- ECP20-BB
- 255491-43
 |  |  ECP20-BB Pentek Replacement Filter CartridgeFrom $22.93 | |
|---|---|---|---|
Product Price |
$13.18 |
$13.12 |
$22.93 |
Product SKU |
USWF-PP20-1045
|
TIER1-SPC-45-1020
|
PENTEK-ECP20-BB
|
Filter Life (months) |
|
|
|
Primary Filter Media |
|
|
|
Micron Rating (Nominal) |
|
|
|
Actual Size (in) |
|
|
|
Country of Manufacture |
|
—
|
|
