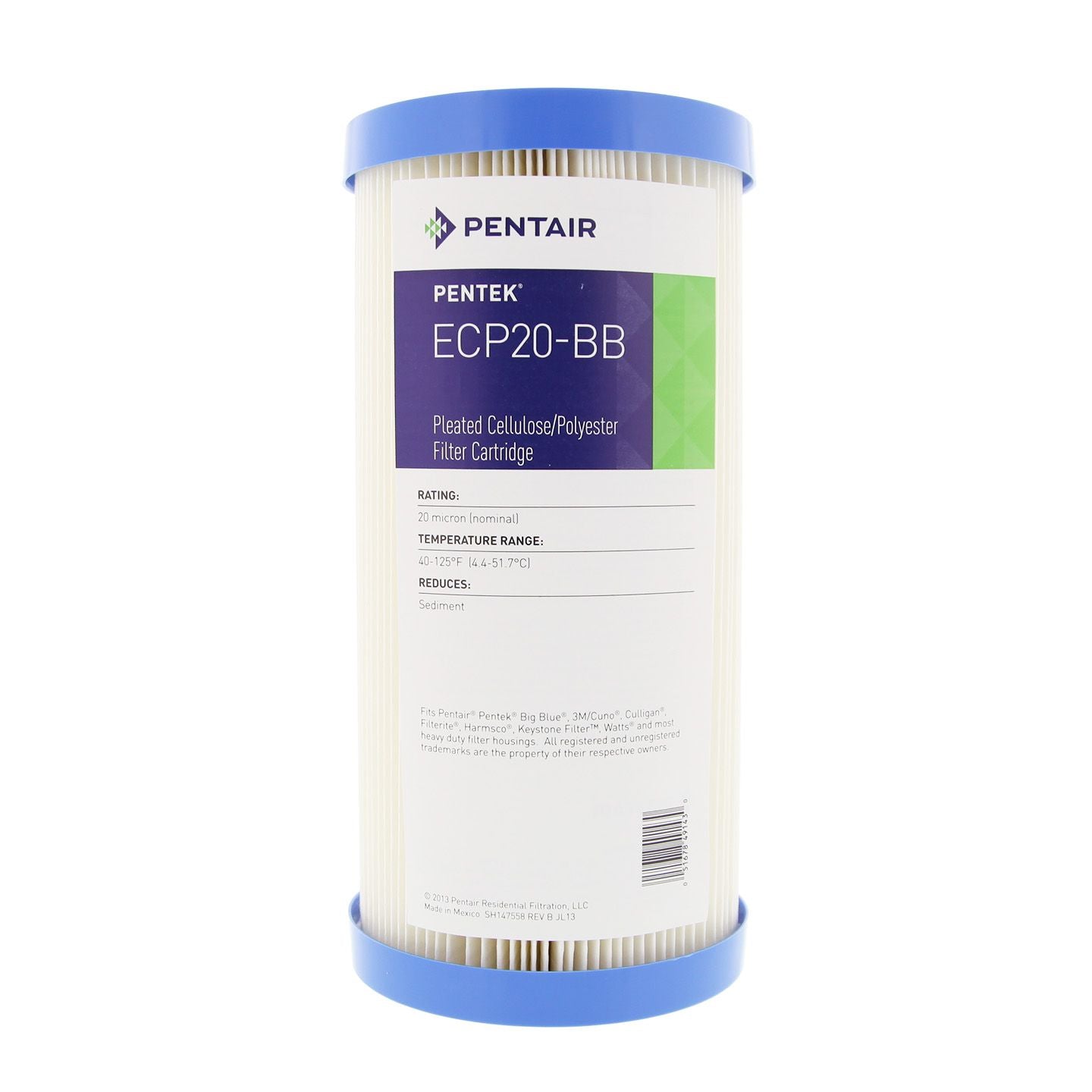

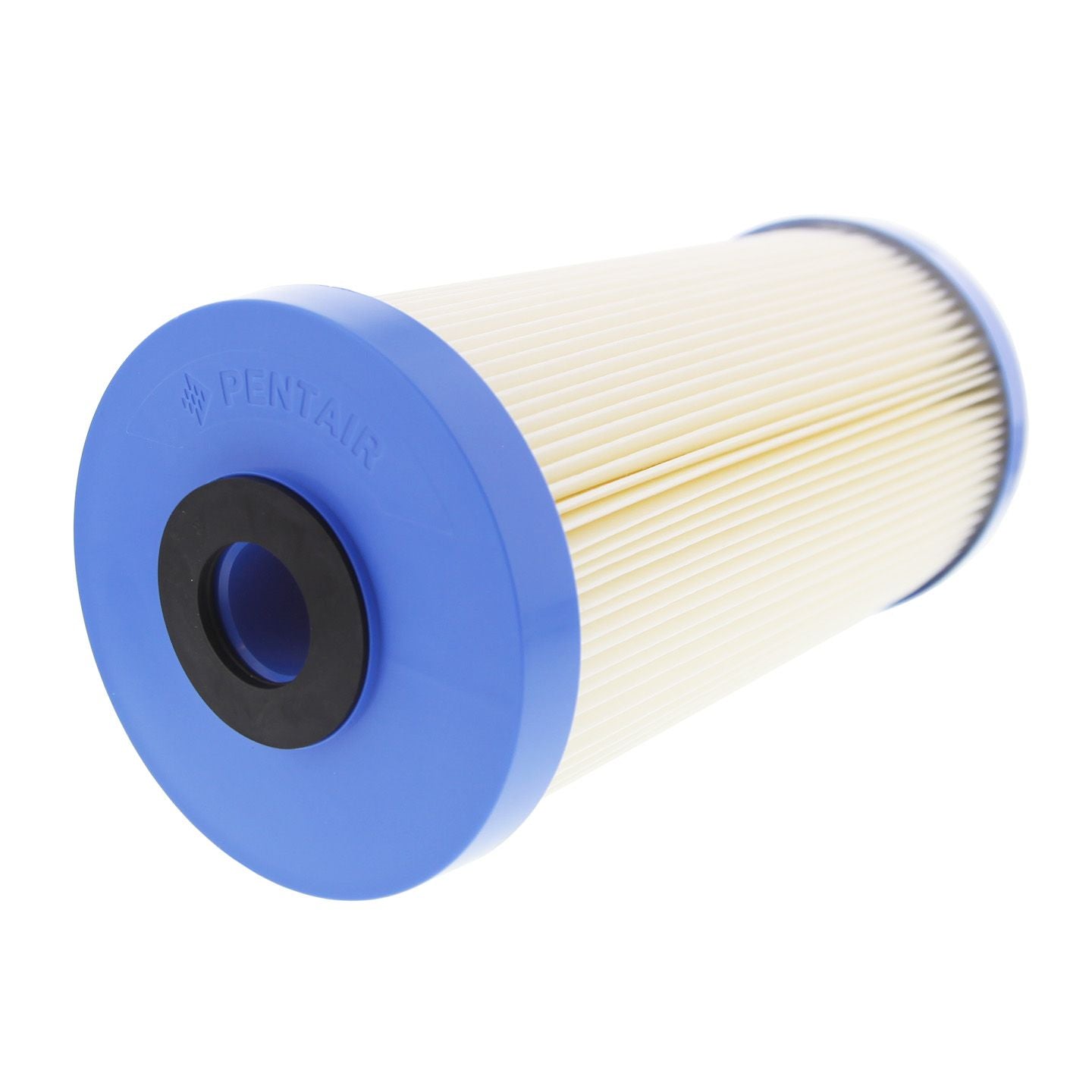

    • Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch)

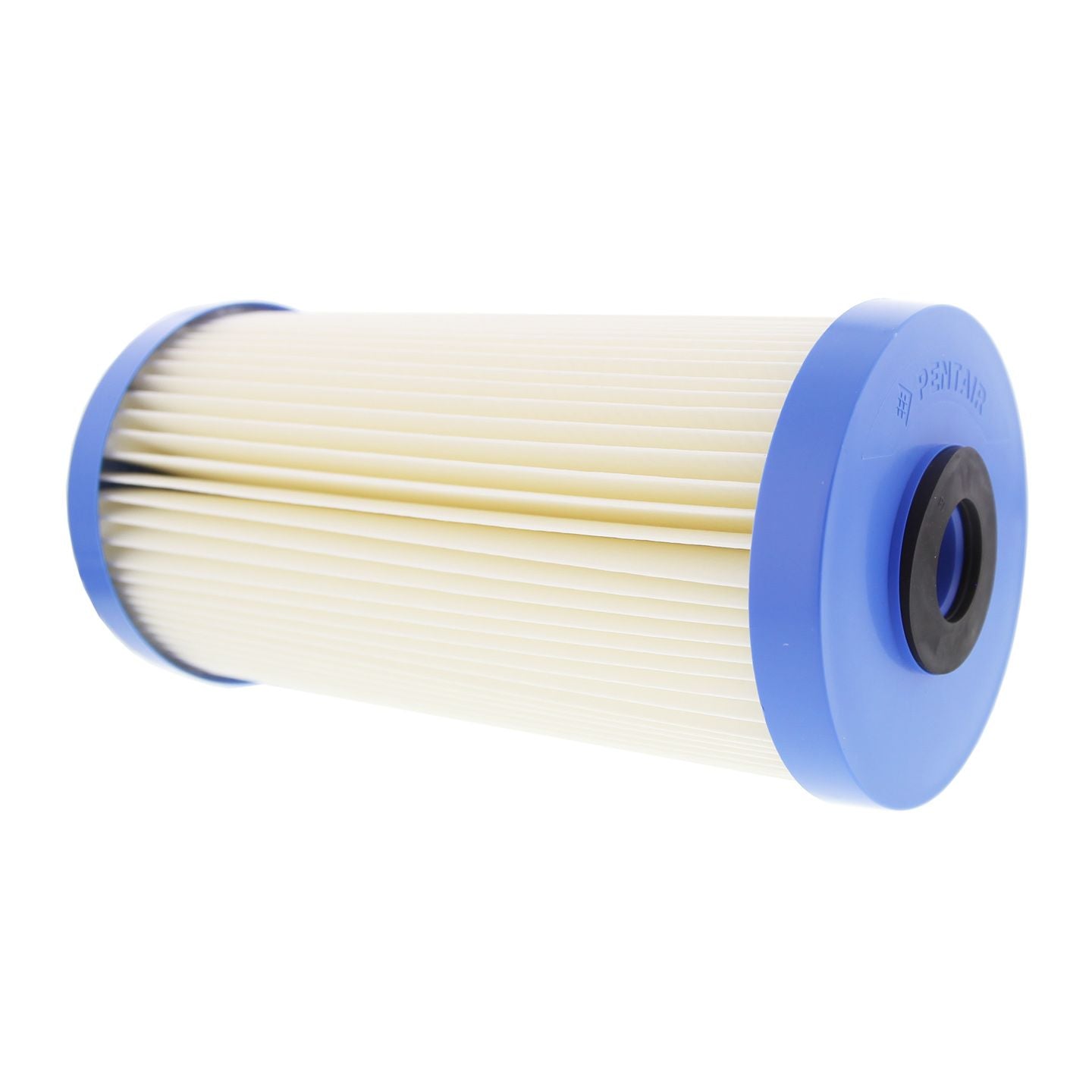

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side Two View)

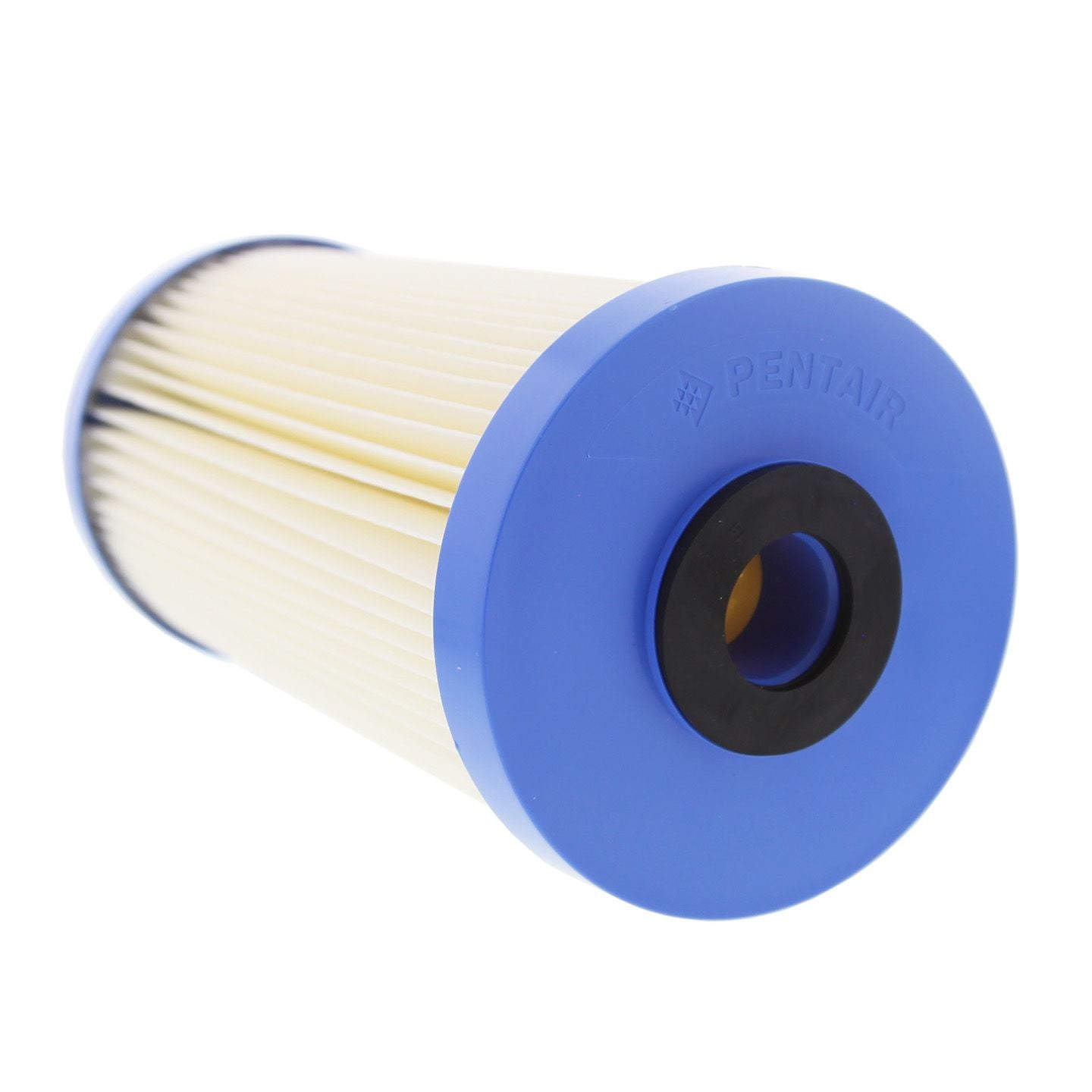

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side One Top view)

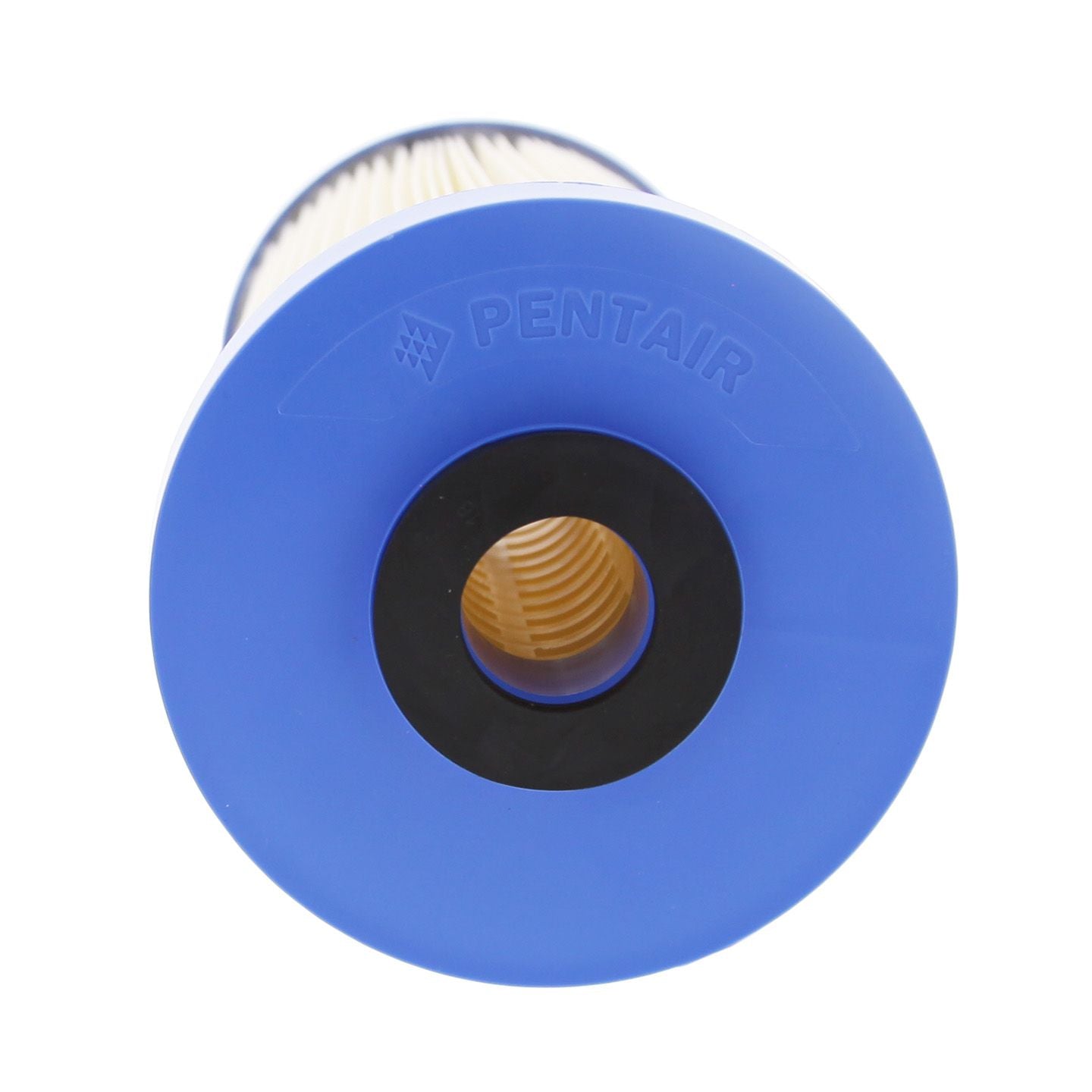

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Top View)

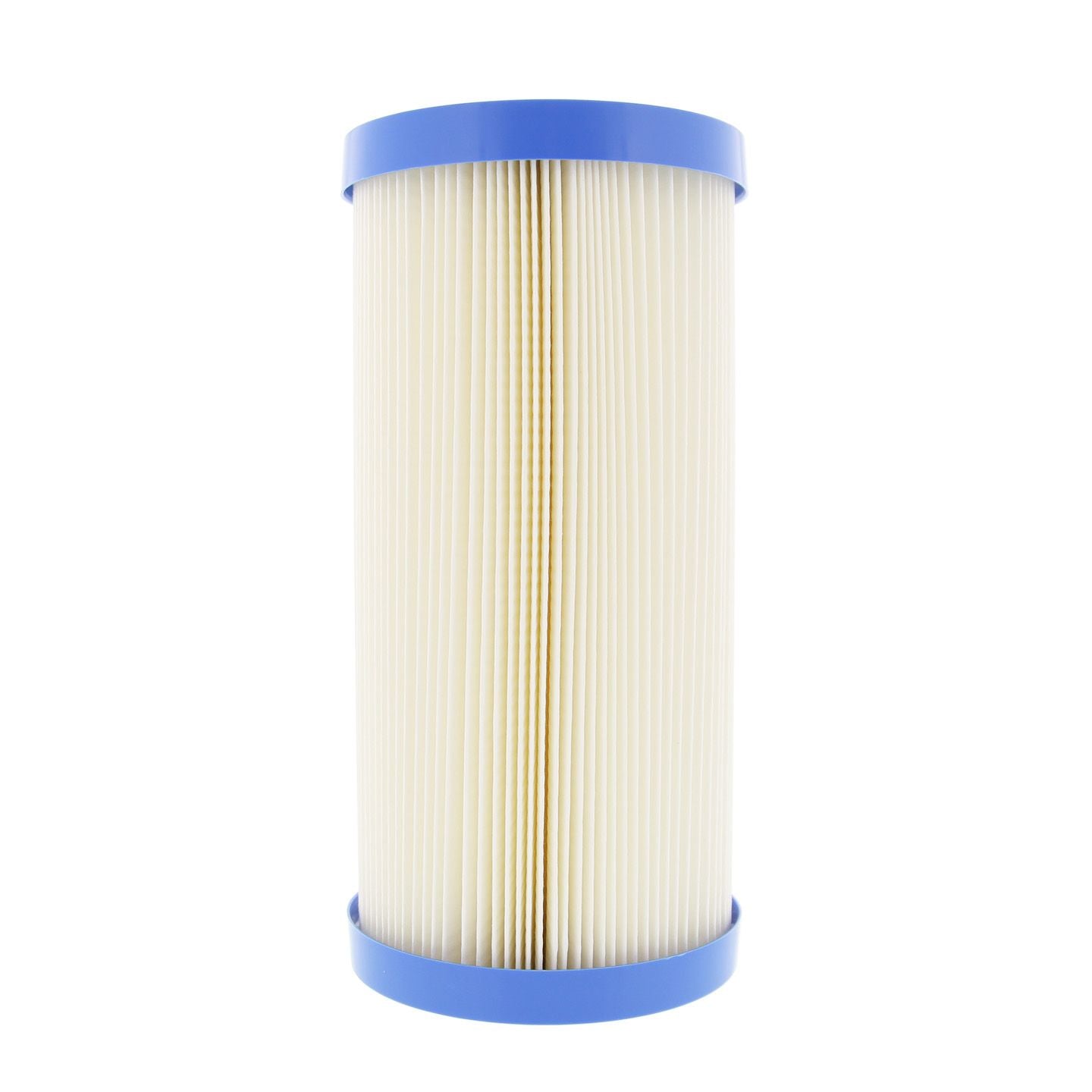

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Front No Label)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side Two Top View)

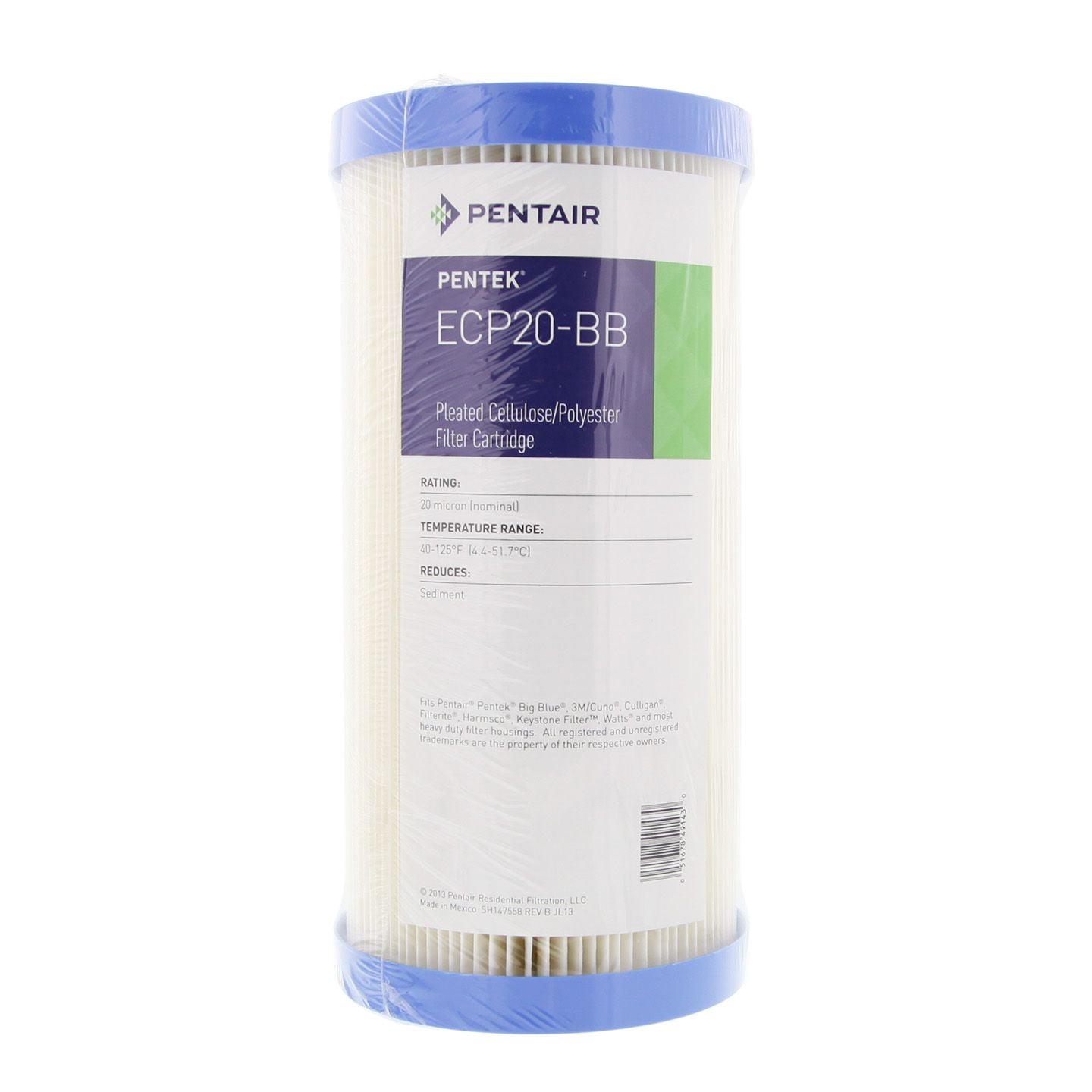

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (In Wrap)

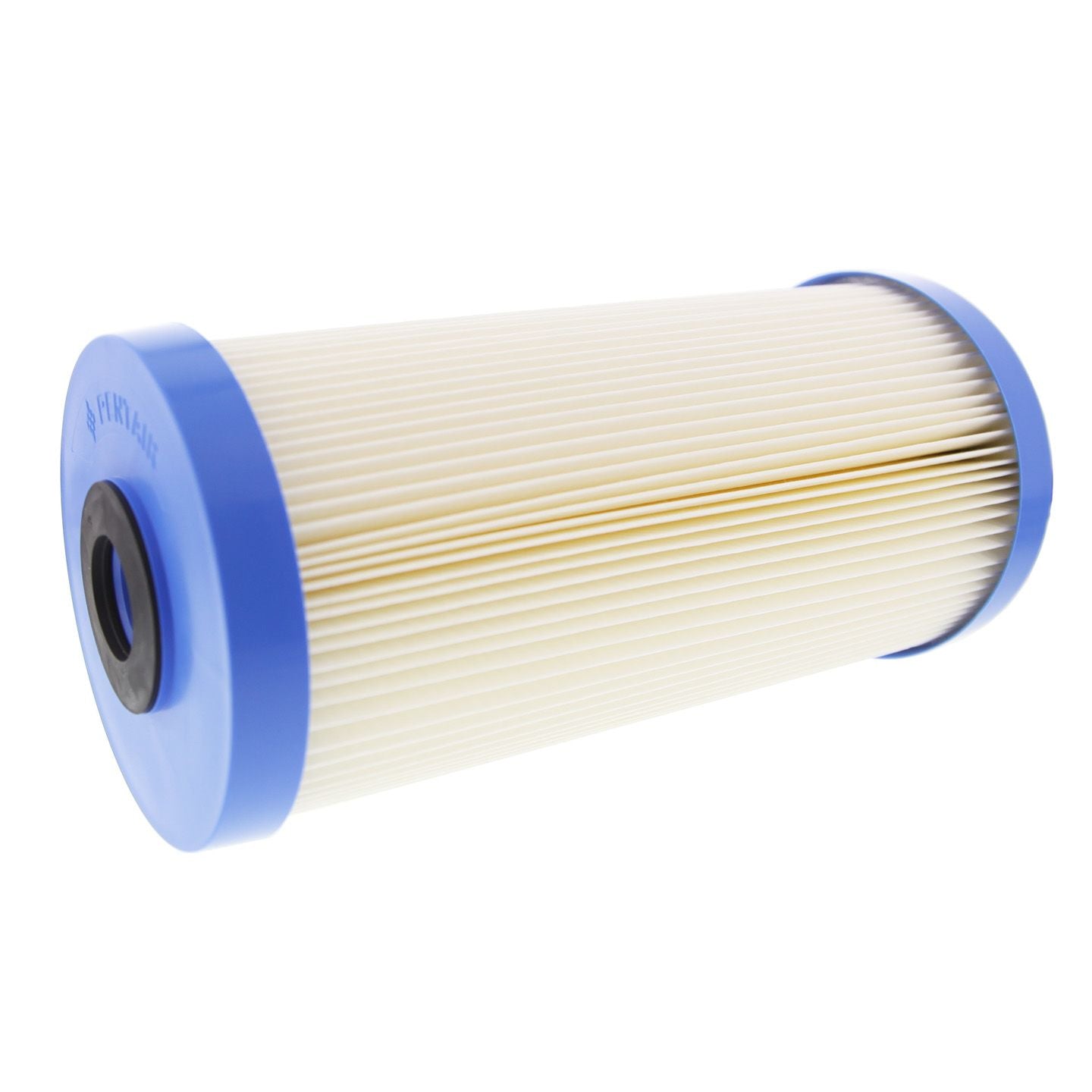

    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side One View)
    ECP20-BB Pentek Replacement Filter Cartridge
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side Two View)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side One Top view)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Top View)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Front No Label)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side Two Top View)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (In Wrap)
    Pentek ECP20-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch) (Side One View)
    ECP20-BB Pentek Replacement Filter Cartridge
    verified_user Warranty Info
    Warranty Guarantee: Manufacturer 30 Day Limited Warranty

    PENTEK-ECP20-BB

    ECP20-BB Pentek Replacement Filter Cartridge

    $22.93 - $484.28
    Fits most Big Blue housings that accept 10-inch x 4.5-inch water filter cartridges
    Price Per Item
    2 PACK $22.24
    4 PACK $21.55
    6 PACK $20.86
    24 PACK $20.17
    Choose a Pack Size:

    • 20 Micron Pleated Cellulose--great filtration in a clean, reusable cartridge

    • Strong and reliable, with a special formulation of resin-impregnated cellulose and polyester fibers

    • Provides higher wet strength than regular cellulose cartridges

    • Features high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: ECP20-BB
    UPC: 051678491430
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Cellulose Polyester
    Primary Filter Media: Pleated Cellulose Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Manufacturer 30 Day Limited Warranty
    Brand: Pentek
    Advertised Size: 10 x 4-1/2
    Length (in): 9.75 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol
    Media Type: Sediment Filter
    Country of Origin: Mexico
    Micron Rating Nominal: 20
    Flow Rate (gpm): 20.0
    Includes: One 9-3/4 x 4-1/2 Inch Pentek ECP20-BB Pleated Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    User Guide
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Rust And Corrosion
  • Sand
  • Sand Fine
  • Sediment
    • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Manufacturer 30 Day Limited Warranty
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

    The Pentek ECP20-BB Sediment Water Filter media is pleated around a rugged polypropylene core for additional strength, with end caps and gasket fused together for a unified and reliable whole. This filter is a great deal, with more surface area than most competitive cartridges (18 square feet of media, compared to 13.5 square feet in other brands). It's easy to install, with a long-lasting filter life. Recommended for chlorinated water supplies only.


    PENTEK-ECP20-BB   is comparable with the following part number(s)

    • 4PCC3
    • 255491-43
