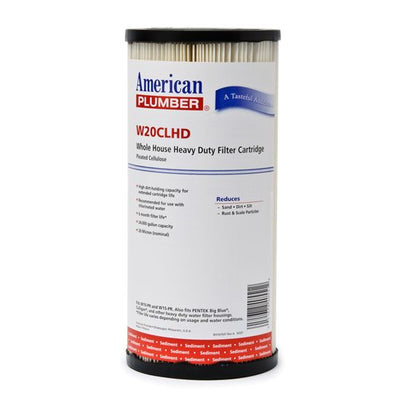

The American Plumber W20CLHD is a heavy-duty whole house pleated cellulose sediment filter with a 20 micron rating. It has a high dirt-holding capacity and is designed to handle flow rates up to 8 GPM, making it ideal for whole house applications. The large 20" x 4.5" Big Blue form factor provides extended service life compared to standard 10" cartridges, typically lasting 3–6 months depending on your sediment load and water usage.

The W20CLHD is specifically engineered to reduce sediment, dirt, sand, silt, rust flakes, and scale particles down to 20 microns from your household water supply. Its pleated cellulose media maximizes surface area for superior particle capture, protecting downstream appliances, plumbing, and point-of-use filters. Note that this is a sediment-only filter—it does not reduce chlorine, taste, odor, or chemical contaminants. For chlorine/taste reduction, pair it with a carbon filter in a multi-stage whole house system.

The W20CLHD fits standard 20" x 4.5" Big Blue-style whole house filter housings, including American Plumber, Pentek, and other compatible heavy-duty housings with the same dimensions. Always verify your housing accepts a 20-inch "Big Blue" size cartridge (4.5" outer diameter) before ordering. The pleated design allows it to be rinsed and reused once or twice to extend service life before replacement is required.

Replacement frequency for the W20CLHD depends on your incoming water quality and household usage. On average, this heavy-duty pleated cartridge lasts 3 to 6 months. Homes on well water or with high sediment levels may need more frequent changes, while municipal water users often achieve the full 6-month cycle. A noticeable drop in water pressure throughout the house is the most reliable indicator it's time to replace the cartridge.

The American Plumber W20CLHD is manufactured with materials that meet NSF/ANSI Standard 42 requirements for material safety in drinking water systems. Its pleated cellulose construction is designed for mechanical sediment reduction and is built to industry standards for whole house filtration. For specific certification documentation, refer to the product specification sheet on the product page.
