    TIER1-DGD1-20BB

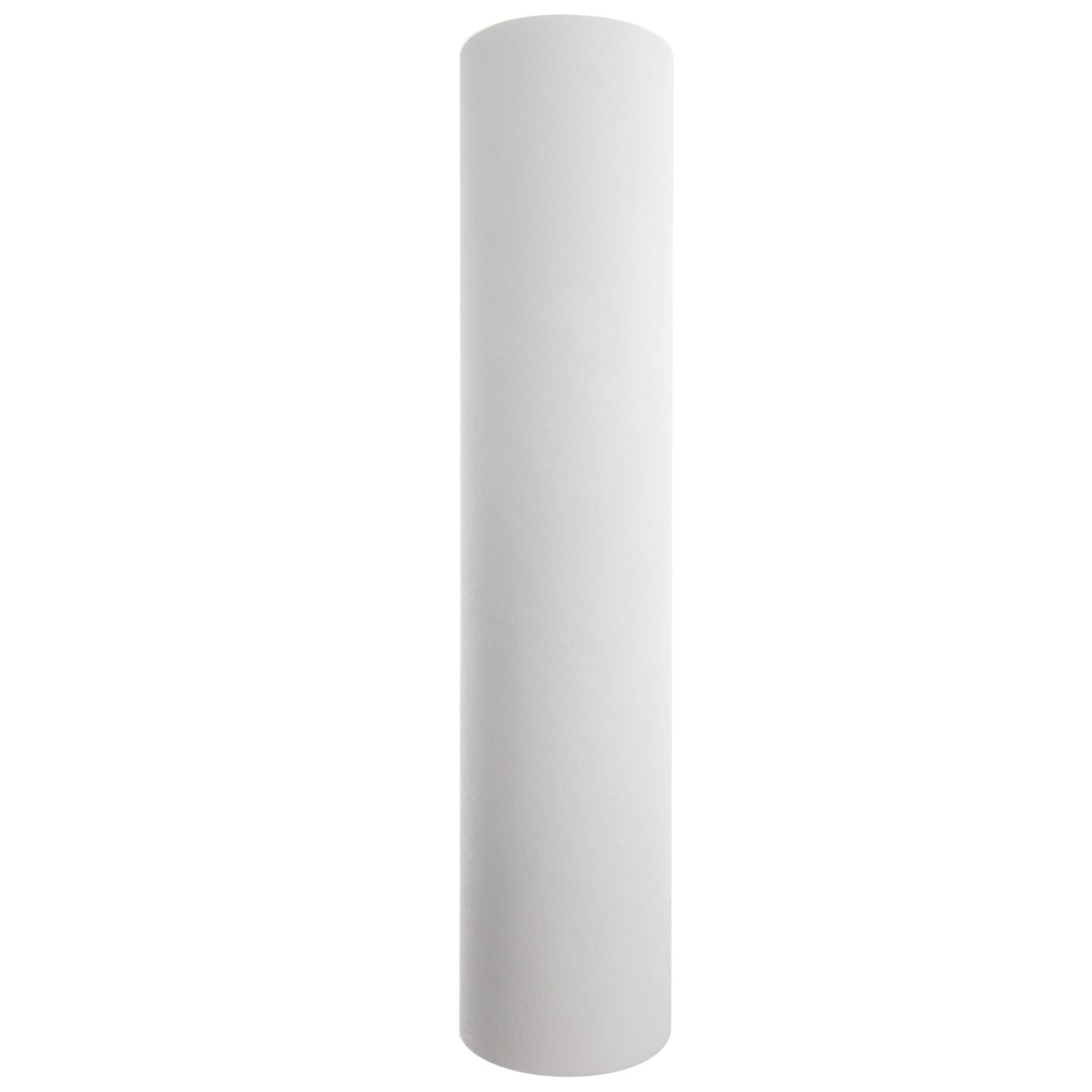

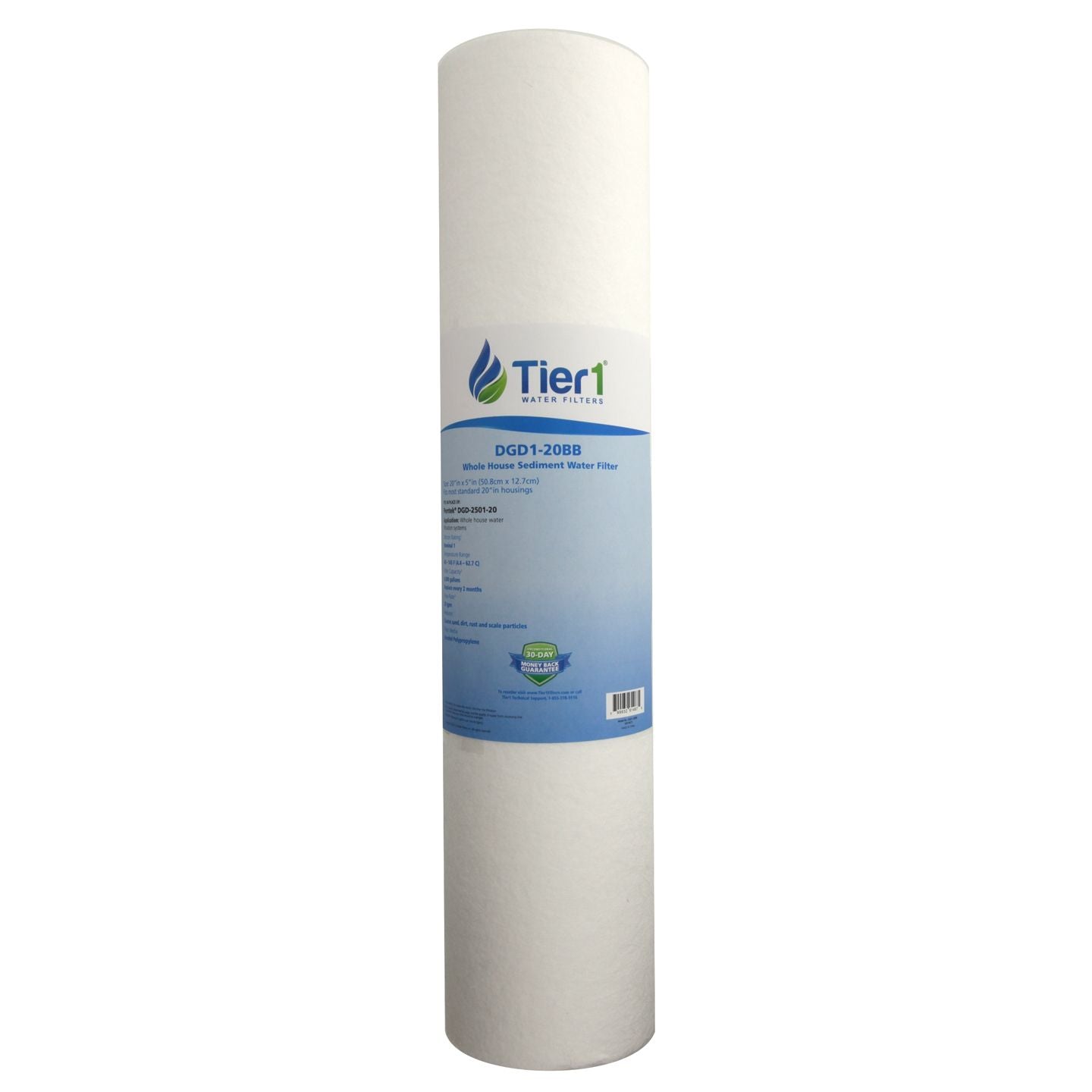

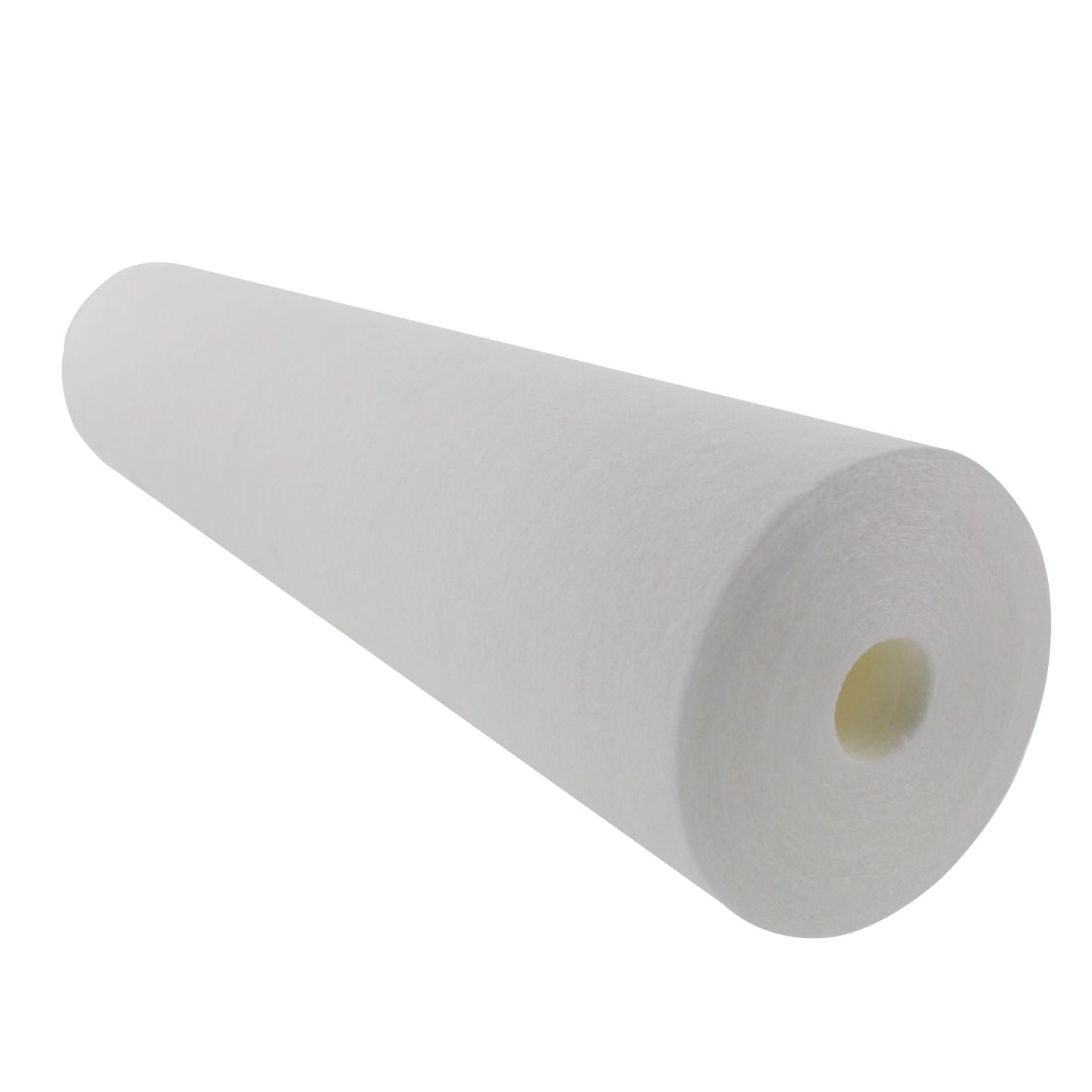

    DGD-2501-20 Pentek Comparable Whole House Sediment Water Filter by Tier1

    Fits most standard 20 x 4.5-inch housings
    Price Per Item

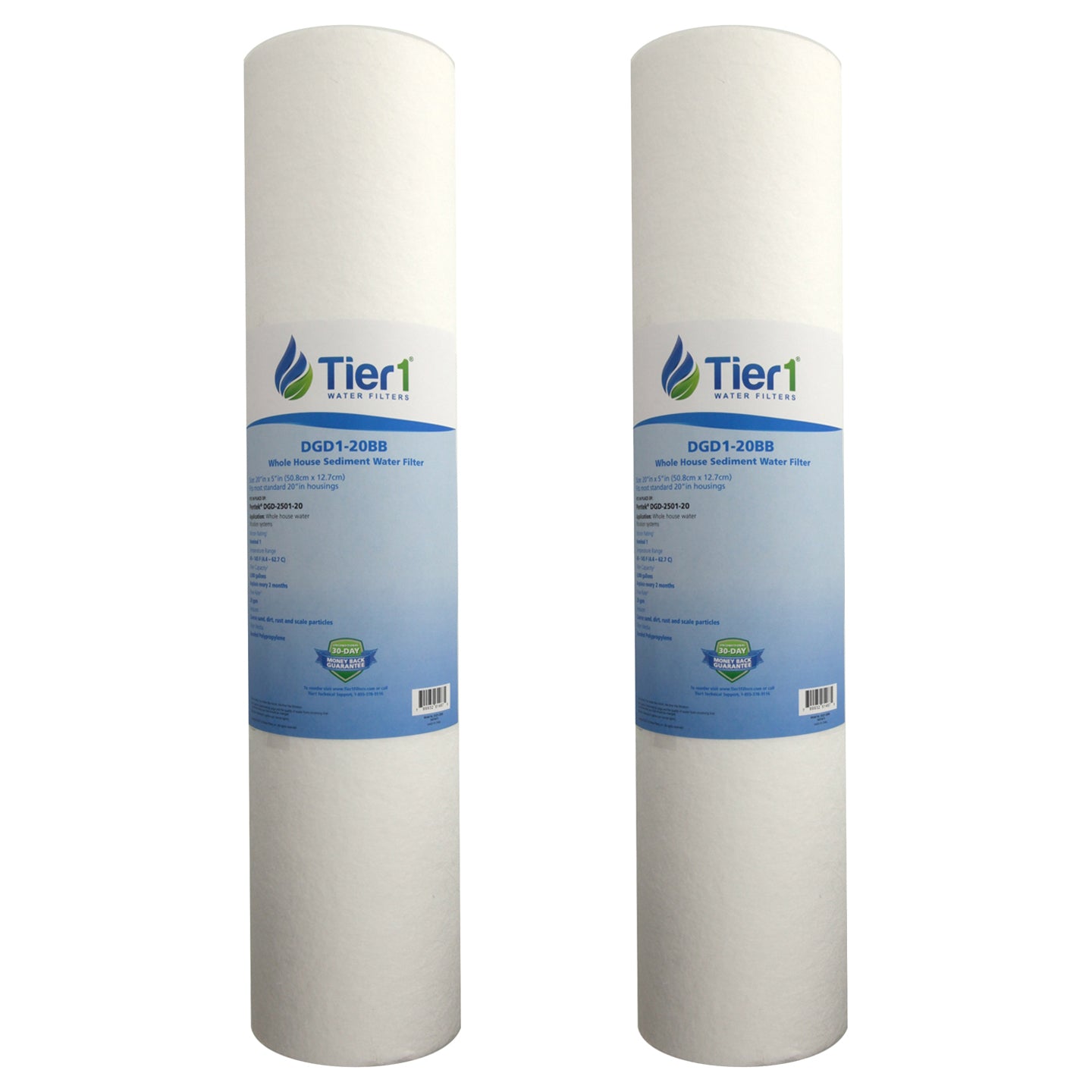

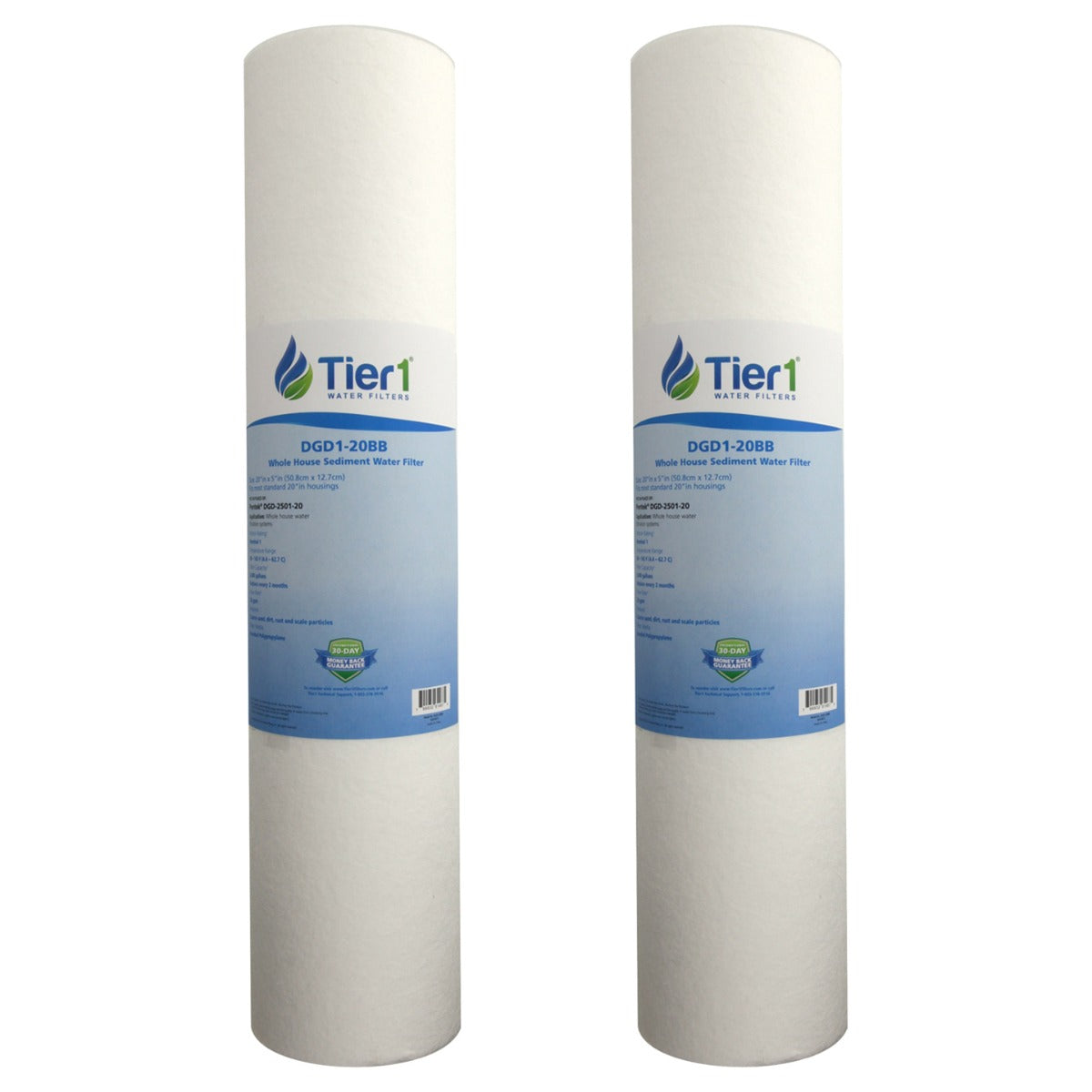

    2 PACK $18.40
    4 PACK $17.83
    6 PACK $17.26
    24 PACK $16.69
    Choose a Pack Size:
    • Ships fast!

    • Ensures quality water throughout your home

    • Easy installation for a frustration-free return to better water

    • Bonded Polypropylene filter media helps capture particles 1 micron or larger

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: DGD1-20BB
    UPC: 799932614675
    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)

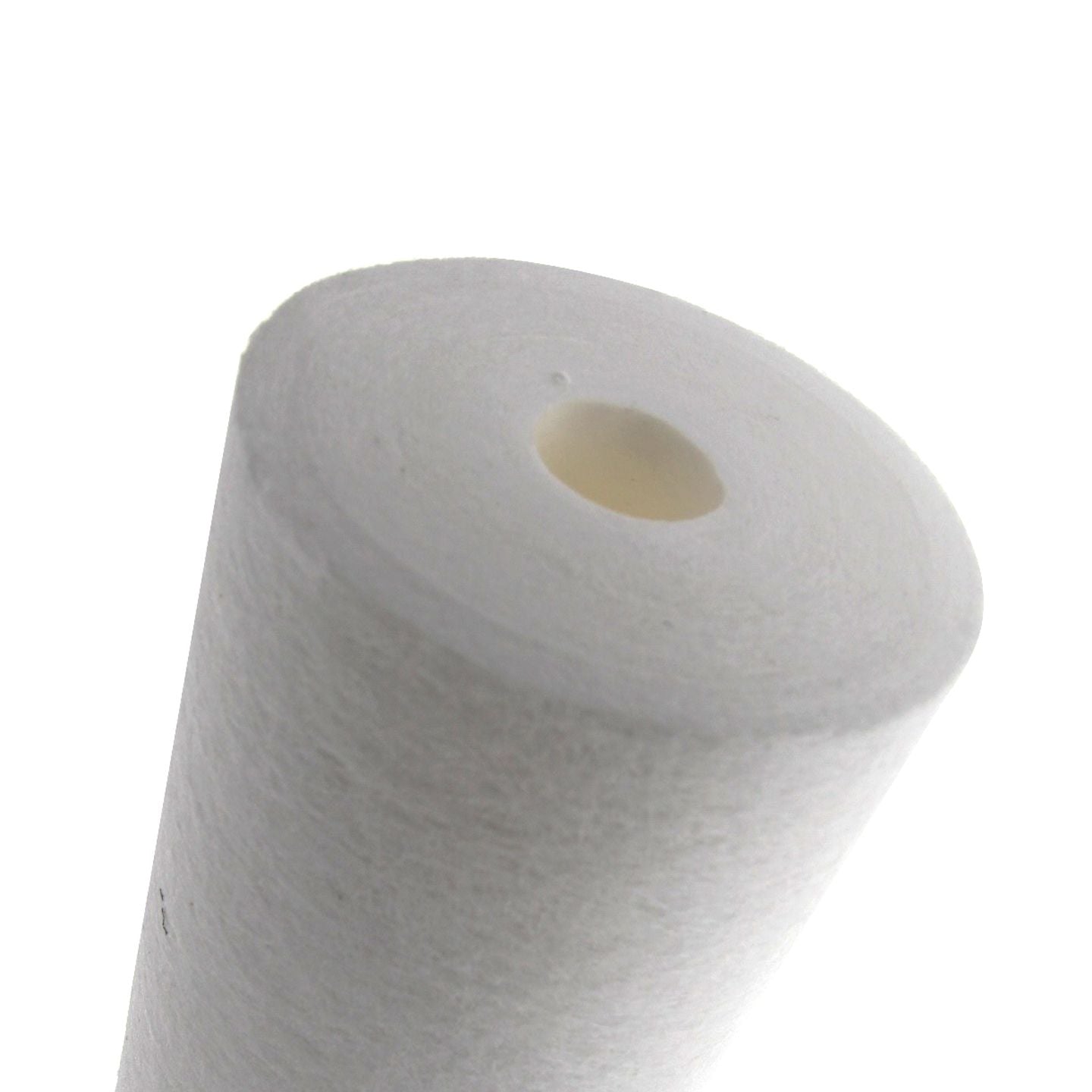

    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Depth (in): 4.5 in
    Height (in): 4.5 in
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 051678360439 | 799705708259 | 799932614675
    Country of Origin: China
    Micron Rating Nominal: 1
    Flow Rate (gpm): 20.0
    Includes: One 20 X 4.5 Inch Spun Wound Polypropylene Replacement Filter by Tier1
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Limescale
  • Oxidized Iron
  • Particles
  • Sand
  • Sand Coarse
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 8,000
    Filter Life (months): 3 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    The DGD-2501-20 Pentek Comparable Sediment Water Filter by Tier1 is ideal for 20 x 4.5-inch whole house water filtration systems. Reduce the rust and scale particles, dirt, and coarse sand that disrupt your home water use. First-time and veteran users alike can experience this excellent product with the protection of a 30 day 100% satisfaction guarantee. Order today!


    TIER1-DGD1-20BB   is comparable with the following part number(s)

    • DGD-2501-20
    • 155360-43
    • DGD-2501-20
    • FPMB-BB1-20
    • P1-20BB
    • Pentek DGD-2501-20
    • SDC-45-2001
    • SDF-45-2001
    • TIER1-DGD1-20BB
    • TIER1-P1-20BB

    TIER1-DGD1-20BB   fits the following model number(s)

    • W20FFPH1CBPR
    • CFS22
