    TIER1-S20-20

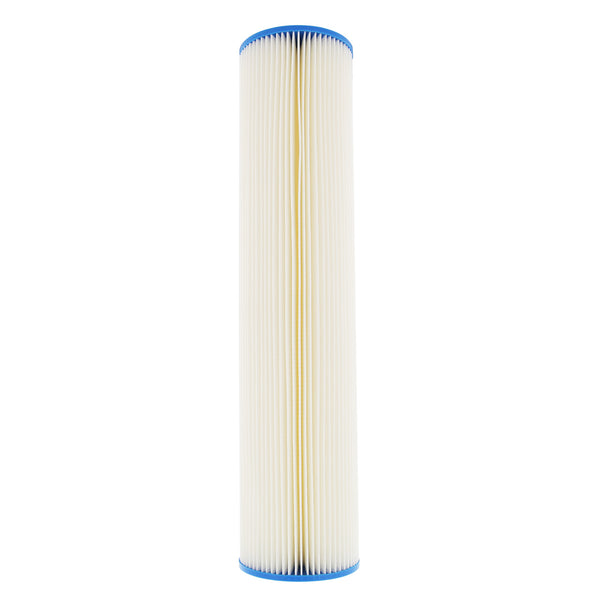

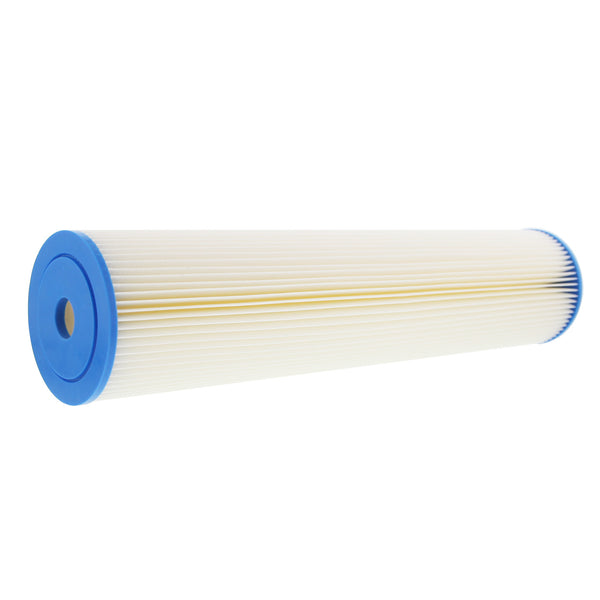

    S1-20BB Pentek Comparable Whole House Water Filter by Tier1

    Fits PENTEK S1-20BB, American Plumber W20CLHD20 and 155305
    Price Per Item

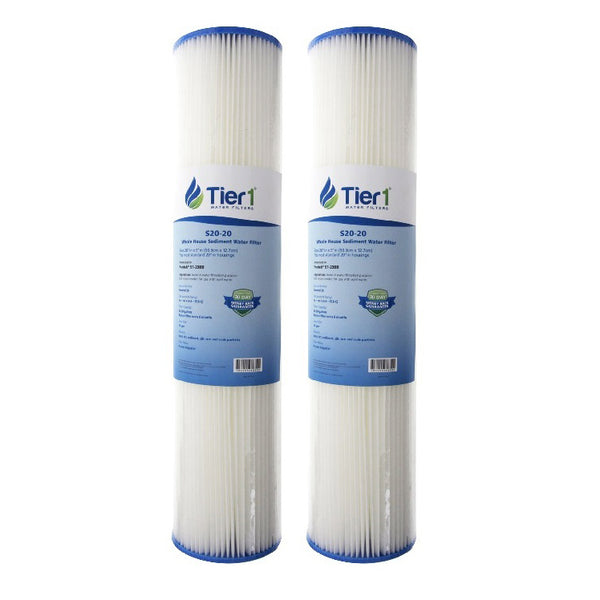

    2 PACK $18.68

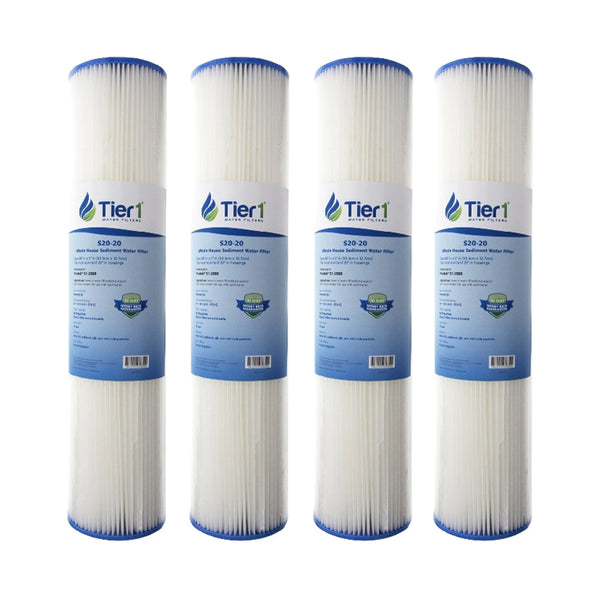

    4 PACK $18.10

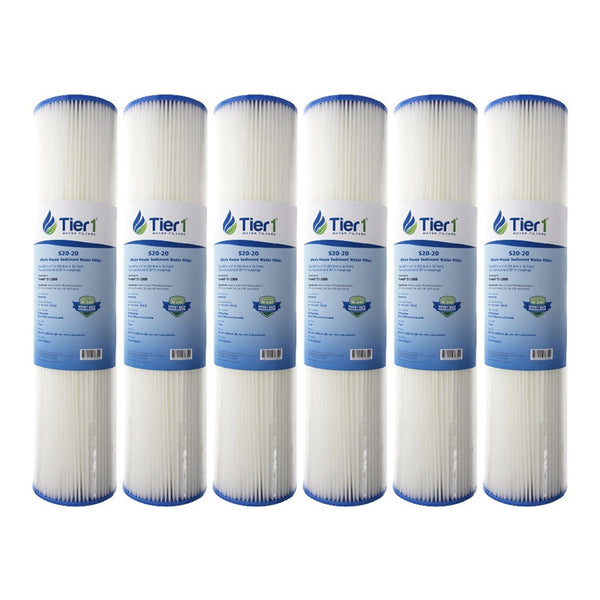

    6 PACK $17.52
    24 PACK $16.94
    Choose a Pack Size:
    • Ships fast!

    • Nominal 20-micron rating

    • Reduces sand, dirt, sediment, silt, rust and scale particles

    • Filter capacity of 24,000 gallons replace filter every 6 months

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: S20-20
    UPC: 700355940906

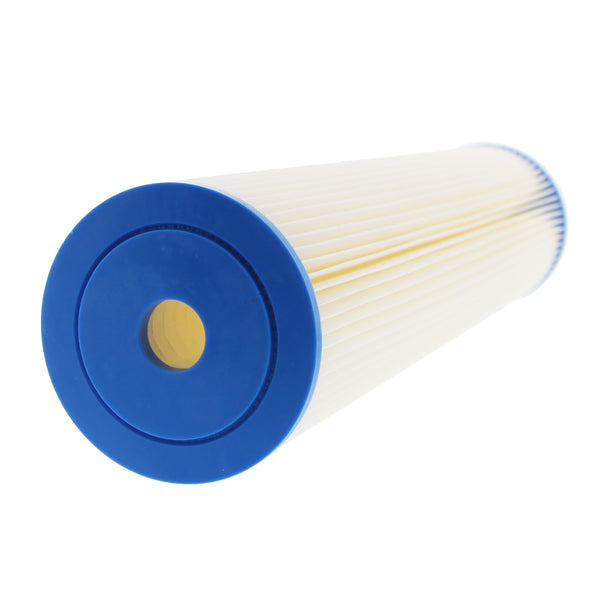

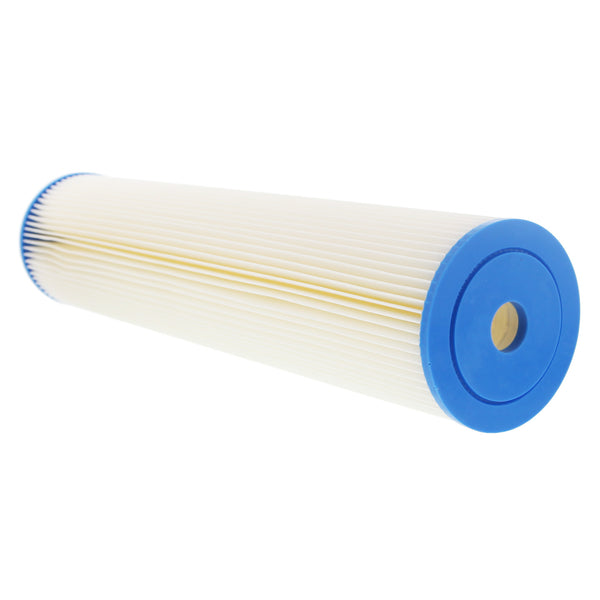

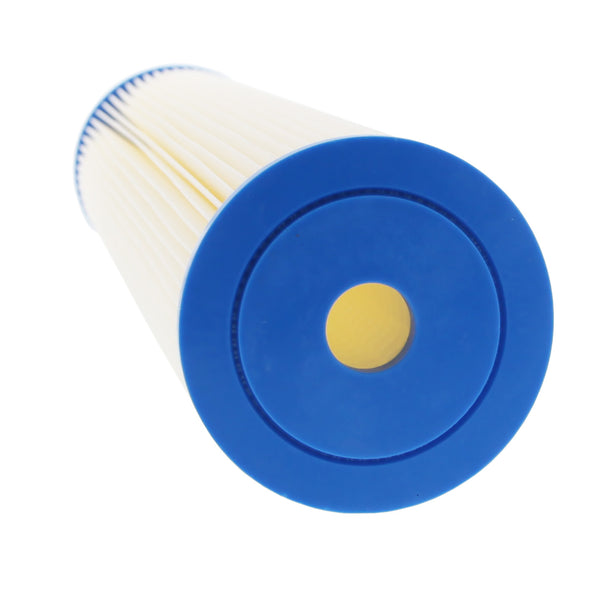

    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Cellulose
    Primary Filter Media: Pleated Cellulose
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Depth (in): 4.5 in
    Height (in): 4.5 in
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940906
    Country of Origin: China
    Micron Rating Nominal: 20
    Flow Rate (gpm): 10.0
    Includes: One 20 X 4.5 Inch 20 Micron Pleated Cellulose Replacement Filter by Tier1
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    4. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    5. Insert new filter cartridge.
    6. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    7. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particles
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 24,000
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    The S1-20BB Pentek Comparable Whole House Water Filter by Tier1 is ideal for 20 x 5 inch general water filtration and is not recommended for use with well water. Reduce the sand, dirt, sediment, silt, rust and scale particles that can disrupt your home water use. First time and veteran users alike can experience this excellent product with the protection of a 30 day 100% satisfaction guarantee. Order today!


    TIER1-S20-20   is comparable with the following part number(s)

    • PENTEK-S1-20BB
    • American Plumber W20CLHD20
    • 155305
