USWF 5 Micron 10"x4.5" Melt Blown Sediment Filter - DiscountFilterStore.com

USWF-MB5-1045

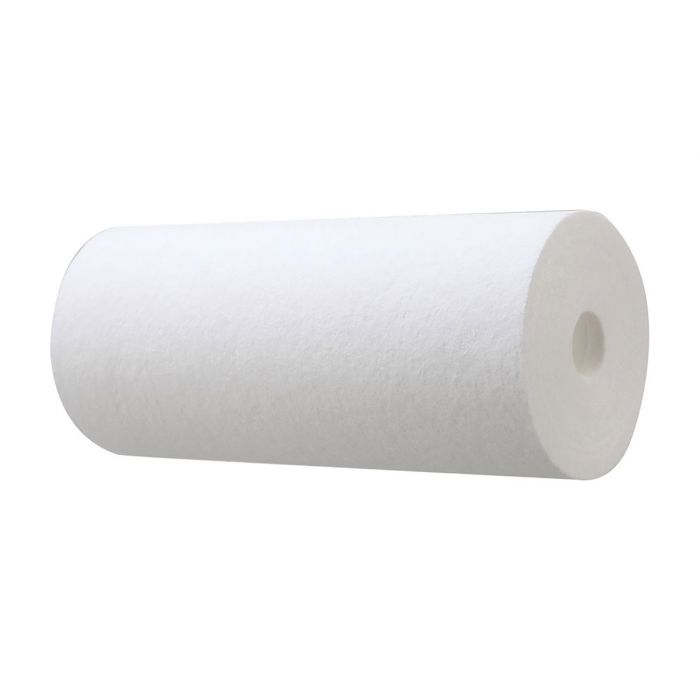

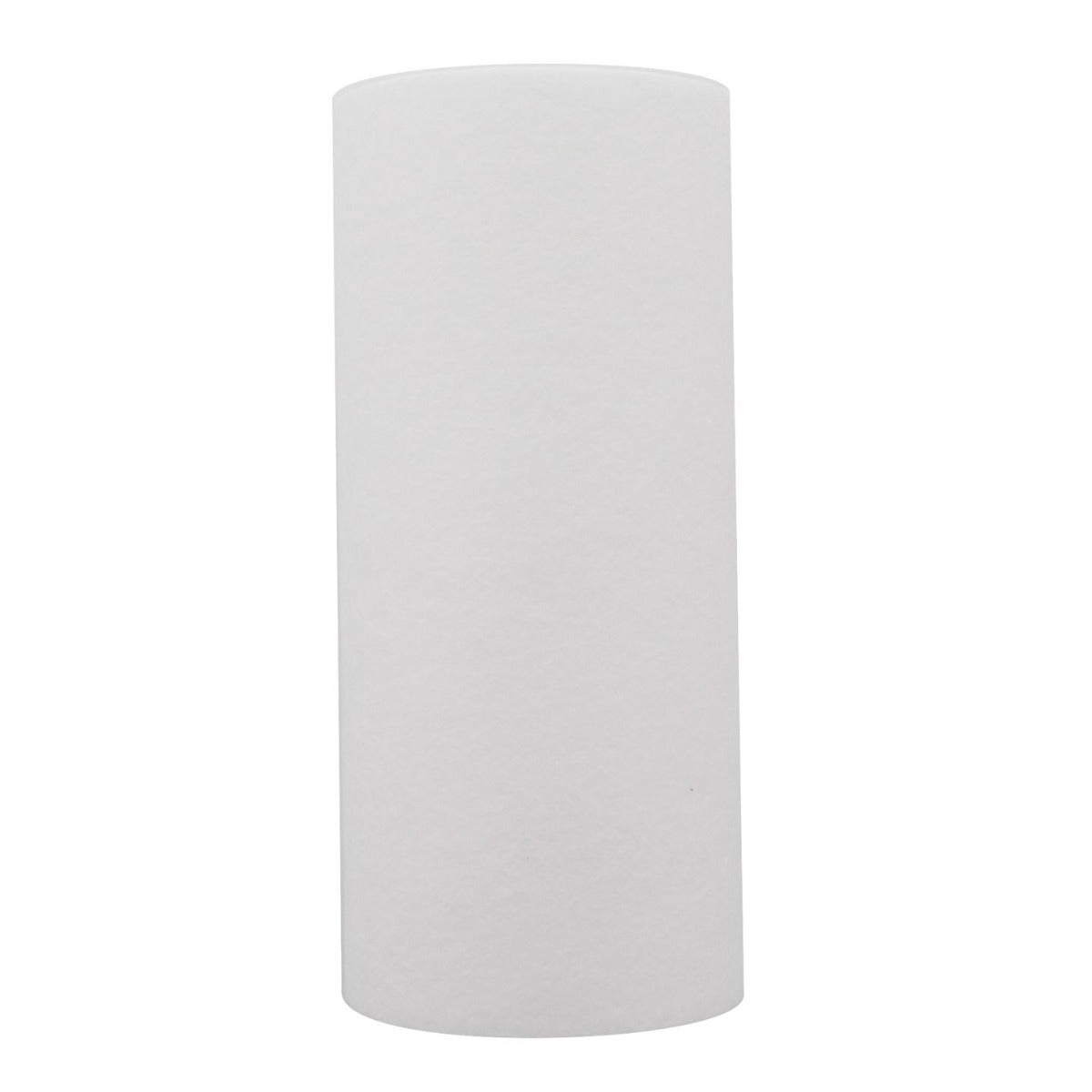

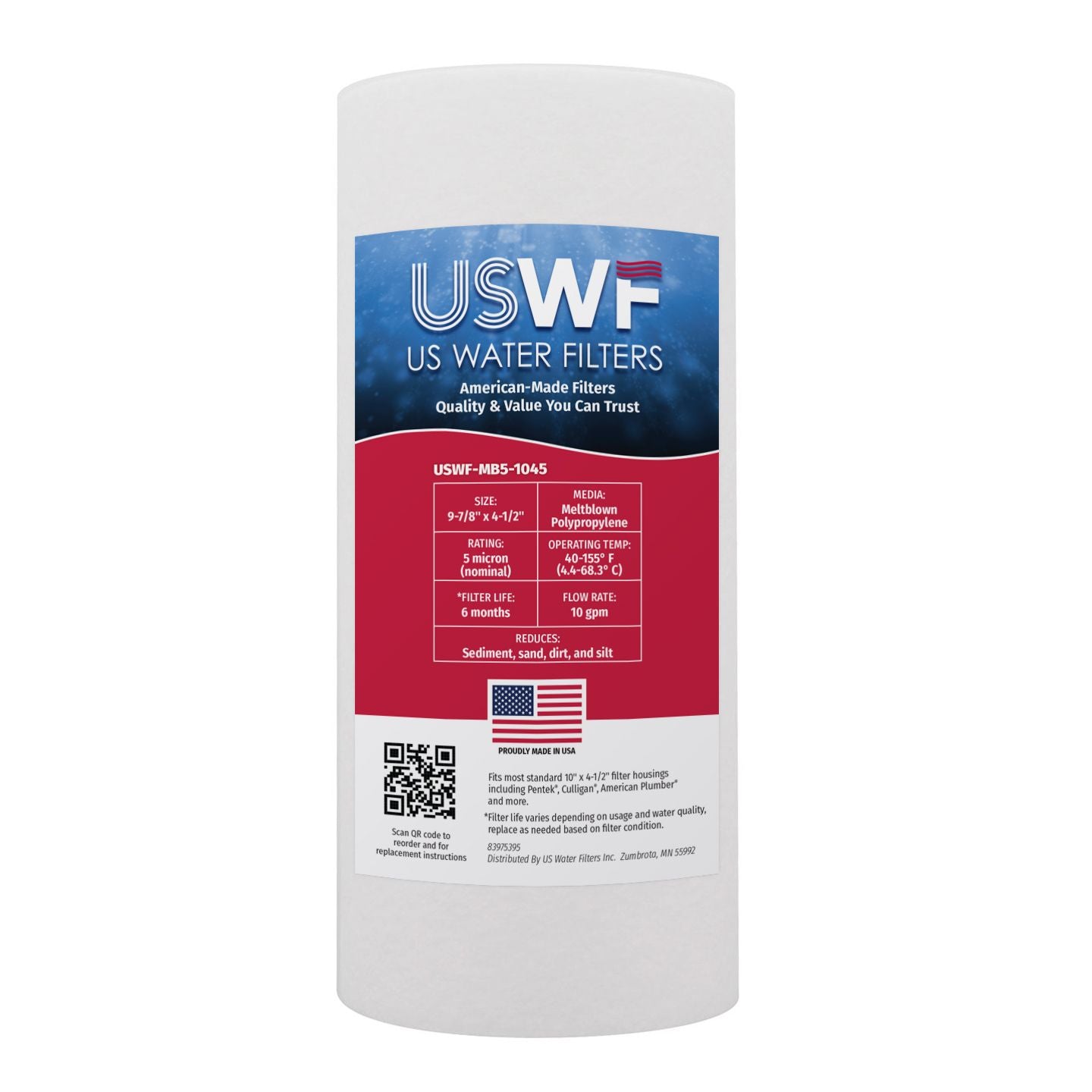

USWF 5 Micron 10"x4.5" Melt Blown Sediment Filter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$9.93 - $209.72

Price Per Item

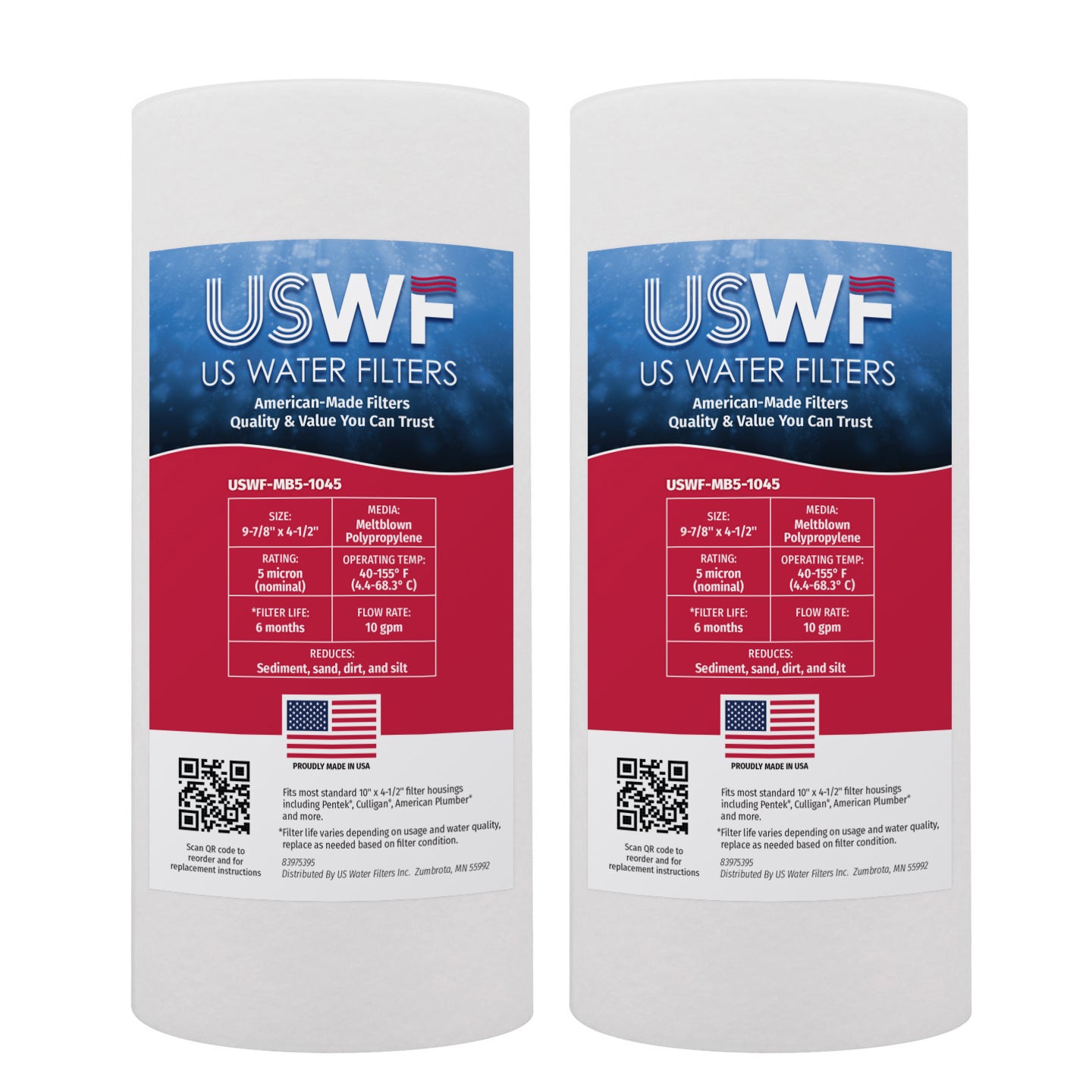

2 PACK	$9.63

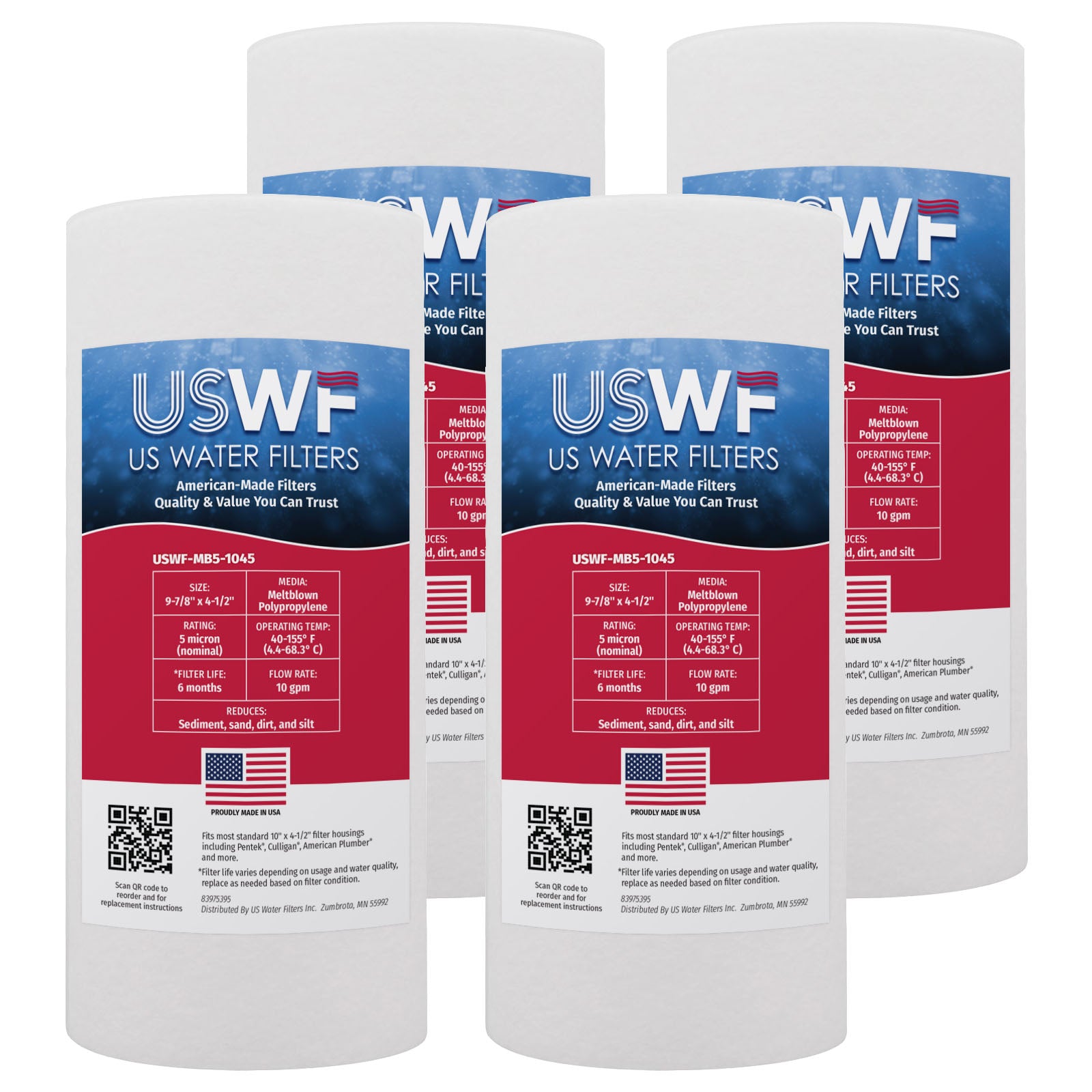

4 PACK	$9.33
6 PACK	$9.03
24 PACK	$8.73

Choose a Pack Size:

Single

2 PACK

4 PACK

6 PACK

24 PACK

Proudly manufactured in America supporting American workers and ensuring a high quality product.
4-layered filtration for improved efficiency and dirt holding capacity throughout the entire life of the filter.
100% melt blown polypropylene construction with no binders or adhesives.
Fits most standard 10" x 4 1/2" filter housings including Pentek, Culligan, American Plumber and more.

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer's Id: MB5-1045

Actual Size (in): 9 7/8 inches (length) x 4 1/2 inches (outside diameter)

Media: Melt Blown

Primary Filter Media: Meltblown Polypropylene

Operating Temperature (°F): 40 - 155

Brand: USWF

Advertised Size: 10 x 4-1/2

Length (in): 9.88 in

Outside Diameter (in): 4.5 in

Maximum Temperature (f): 155

Media Type: Sediment Filter

Country of Origin: United States

Micron Rating Nominal: 5

Flow Rate (gpm): 10.0

description Instructions

Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
Unscrew filter housing sump. (Use filter wrench if nessecary.)
Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
Insert new filter cartridge ensuring that it is seated properly in the sump housing.
Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
Turn on the water supply and check for leaks before leaving the installation.
Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)

warning_amber Contaminants Reduced

Fine Sand

Sediment

Coarse Sand

filter_alt Filter Life

Filter Life (months): 6 months

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

compare_arrows

help Product Details

USWF-MB5-1045 is a 5 micron 10"x4.5" melt blown sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant 100% melt blown polypropylene and doesn't use any surfactants, binders, or adhesives to create an exceptional product independently tested to NSF / ANSI standards 42, 61, and 372.
USWF melt blown filters utilize staged depth loading for maximum dirt holding and filter efficiency. The outermost layers of the filter are made of larger fibers to trap larger particles while the innermost layer traps the fine particles down the filter's micron rating. Most of the competition only has 3 stages of filtration, but USWF melt blown filters include an additional layer. This fourth layer of filtration provides a more consistent distribution of dirt through the filter improving its efficiency without sacrificing any dirt holding capacity.
This American made filter is a compatible replacement for other popular polypropylene sediment filters like the Pentek DGD-5005, Hydronix SDC-45-1005, and more.

extension Comparable Part Number

USWF-MB5-1045 is comparable with the following part number(s)

155357-43
ADVANCED-WATER-CMB-510-HF
CMB-510-HF
AP110 R
CFS110
AP110
56121-11
9547
9577
9591
9747
12461
13110
17367
173884
1227867
5541014
155014-52
529-286
55410-14
55410-15
55410-16
W5P
WHCF-DWHV
WHCF-GD05
WHKF-DWHV
WHKF-GD05
56204.06
5577915
5577916
55779-15
55779-16
56122-05
56122-06
Pentek DGD 5005
AP801
AP801-1.5C
AP801-C
AP801T-C
AP802
AP802-1.5C
AP810
AP-810
AP810T-C
Pentek WP5BB97P 35521443
WHCFGD25BB
WHCF-GD25BB
WHKF-GD25BB
5618902
70020287739
4WH-HDGR-F01
FXHSC
PS220393
WHCF-DWHBB
WHCF-WHPLBB
WHKFDWHBB
WHKF-DWHBB
WHKF-WHPLBB
SDC-45-1005
155357-43
355217-43
DGD-5005
PENTEK-DGD-5005
WDGD-5005
WDGD 5005
AP85-934
5005
DGD5005
P510BB
P5-10BB
TIER1-P5-10BB
WDGD
3M Cuno 5618902
3M Cuno 56189-02
3M Cuno AP801
3M Cuno AP801-1.5-C
3M Cuno AP801-C
4LW37
56189-02
AP801-1.5-C
Aqua-Pure AP810
CFS810
WHCF-GD25B
5005
CMB 510 HF
CMB510HF
AP110-R
AP110R
56121-11
56121 11
5612111
9547
9577
9591
155014 52
15501452
529 286
529286
55410 14
55410 15
5541015
55410 16
5541016
WHCF DWHV
WHCFDWHV
WHCF GD05
WHCFGD05
WHKF DWHV
WHKFDWHV
WHKF GD05
WHKFGD05

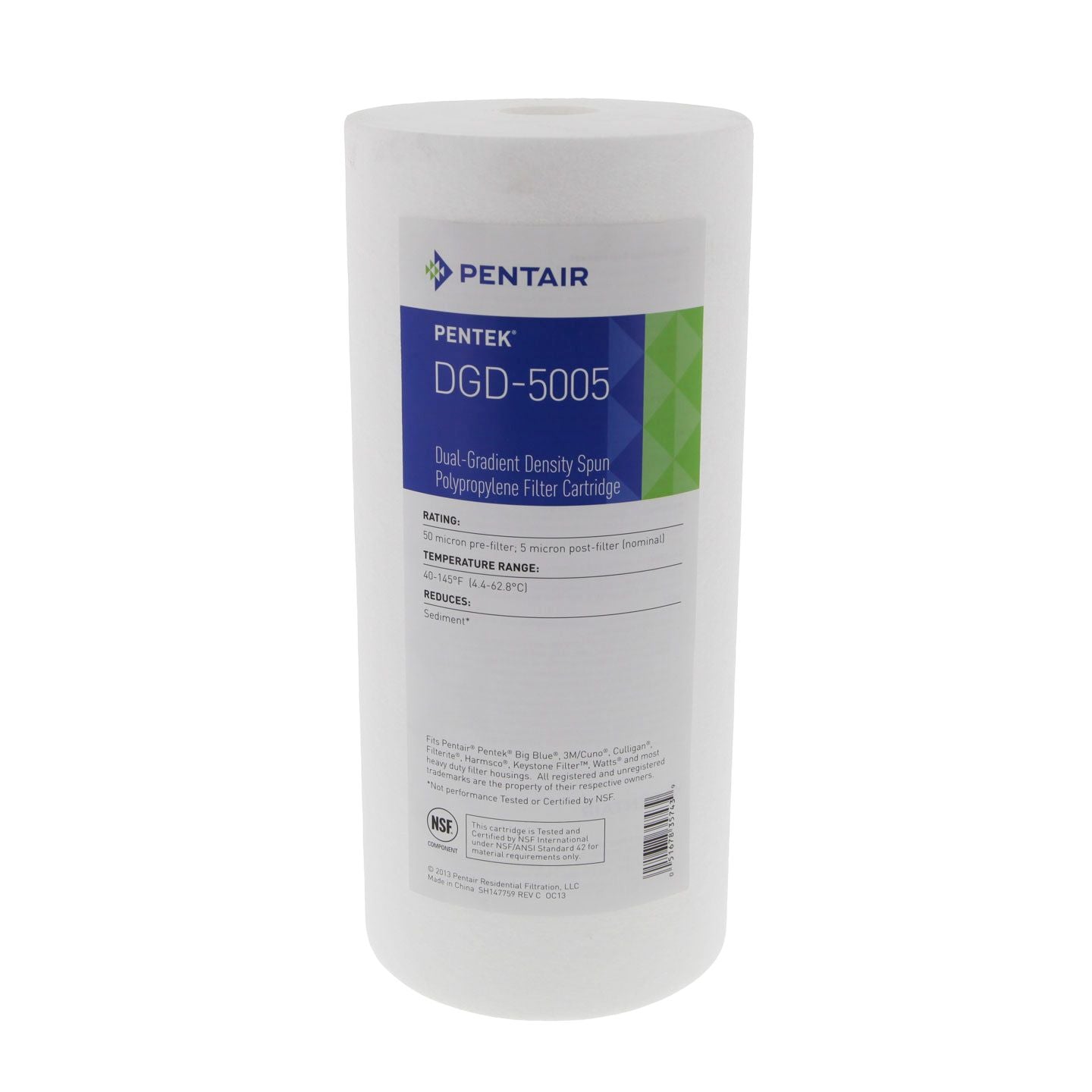

	USWF 5 Micron 10"x4.5" Melt Blown Sediment FilterFrom $9.93 View details	CMB-510-HF Viqua Sediment Whole House FilterFrom $25.09 View details	DGD-5005 Pentek Whole House Filter Replacement CartridgeFrom $13.14 View details	DGD-5005 Pentek Whole House Filter Replacement Cartridge by Tier1From $8.99 View details
Product Price	$9.93	$25.09	$13.14	$8.99
Product SKU	USWF-MB5-1045	VIQUA-CMB-510-HF	PENTEK-DGD-5005	TIER1-P5-10BB
Filter Life (months)	6 months	3 months	6 months	6 months
Primary Filter Media	Meltblown Polypropylene	Polypropylene	Polypropylene	Polypropylene
Micron Rating (Nominal)	5	5	5	5
Actual Size (in)	9 7/8 inches (length) x 4 1/2 inches (outside diameter)	10 inches (length) x 4 3/8 inches (outside diameter)	10 inches (length) x 4 1/2 inches (outside diameter)	9 7/8 inches (length) x 4 1/4 inches (outside diameter)
Country of Manufacture	United States	—	China	China
