Warranty Guarantee: One (1) Year Limited Warranty

VIQUA-QS-330

QS-330 Viqua Replacement Quartz Sleeve

.price-ui--loading { display: block !important; opacity: 1 !important; }

$52.00

Genuine VIQUA Sterilight QS-330 Quartz Sleeve
Compatible with VIQUA Sterilight R-Can VT4, VTV/2, S2Q-PA, S2Q-PA/2, S2Q, S2Q/2, S2Q-GOLD, S2Q-GOLD/2, SSM-17, SSM-17/2 UV Systems
Viqua Sterilight Replaces the Brands R-Can and Sterilume
VIQUA UV system will disinfect against microbiological contaminants, providing you and your family with treated drinking water

format_list_bulleted Features & Specs

Package Qty: 1

UPC: 773058032056

Actual Size (in): 25.25 inches (Length) x 3.25 inches (Width)

Warranty Guarantee: One (1) Year Limited Warranty

Brand: Viqua

Length (in): 25.25 in

Width (in): 3.25 in

UPC's For Search: 773058032056

Includes: UV Quartz Sleeve, O-rings sold separately

description Instructions

Close the main water supply to the UV System, and then open a tap downstream of the UV System to release pressure.
Disconnect the main power source and allow the unit to cool for 10 minutes.
Remove the top retaining nut and O-ring.
Remove the bottom retaining nut, spring, and loosen the Oring to drain the water. NOTE: Ensure that the quartz sleeve does not slide through.
Remove the quartz sleeve from the UV chamber.
Clean the quartz sleeve with a cloth soaked in CLR, vinegar, or some other mild acid, and then rinse with water.
Re-insert the quartz sleeve with O-ring(s), spring, and retaining nut(s).
Hand tighten the retaining nut(s), taking care not to over-tighten.

filter_alt Filter Life

Filter Life (months): 12 months

verified_user Warranty Info

Warranty Guarantee: One (1) Year Limited Warranty

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

compare_arrows

help Product Details

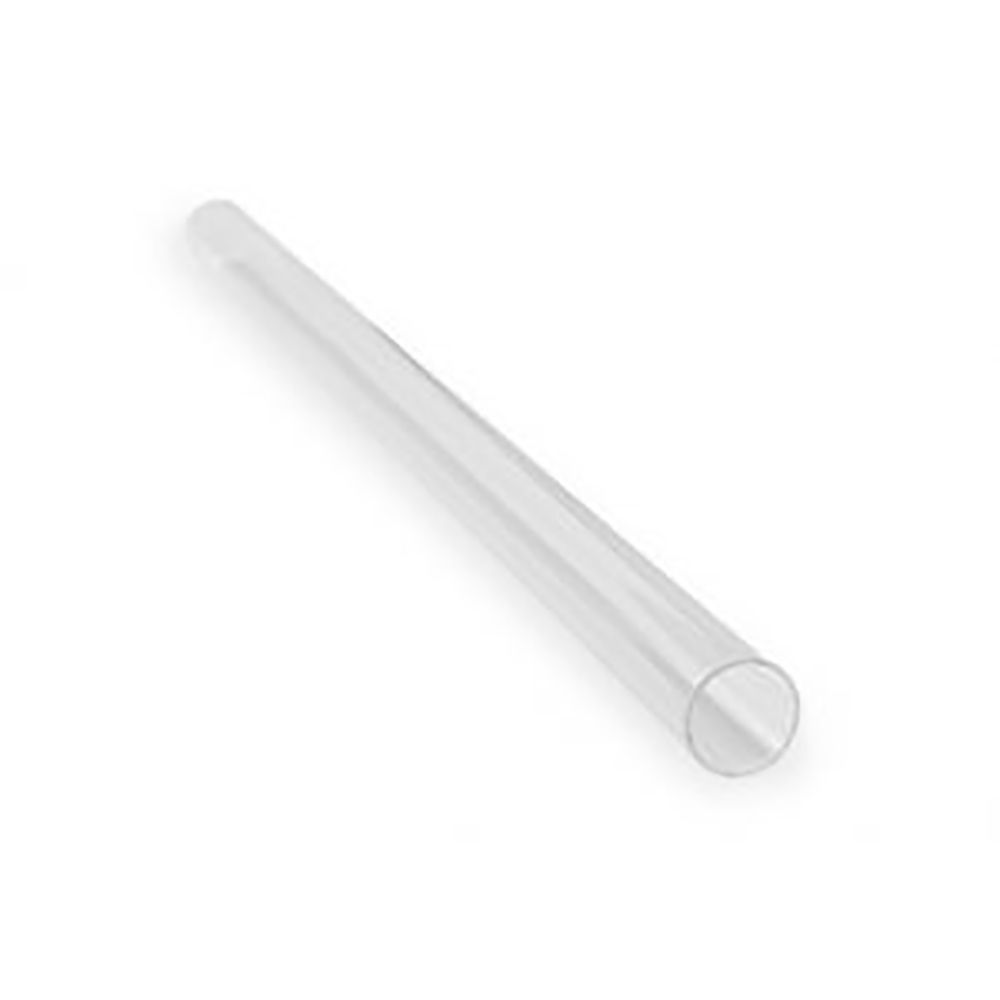

The QS-330 Sterilight UV quartz sleeve is used with the S2Q-PA system and comes with 2 o-rings. Minerals in your water will coat the quartz sleeve over time with use, this coating must we cleaned off to prevent a reduction in filtration performance. When the quartz sleeve can not be cleaned then it must be replaced.

Specs End type: Open Ended ID: 0.79" or 20mm ± .2mm OD: 0.91" or 23mm ± .2mm Length: 14.76" or 375mm ± 3.5mm

extension Comparable Part Number

QS-330 Viqua Replacement Quartz Sleeve

VIQUA-QS-330 is comparable with the following part number(s)

Customer also purchased

	QS-330 Viqua Replacement Quartz Sleeve$52.00 View details	USWF Replacement for QS-330 Quartz Sleeve \| Fits the VIQUA S2Q-PA, VT4, SC-4, & SSM-17 UV Series UV SystemsFrom $21.88 View details
Product Price	$52.00	$21.88
Product SKU	VIQUA-QS-330	USWF-350074
Warranty Guarantee	One (1) Year Limited Warranty	One (1) Year Limited Warranty
Includes	UV Quartz Sleeve, O-rings sold separately	UV Quartz Sleeve, 2 O-rings
