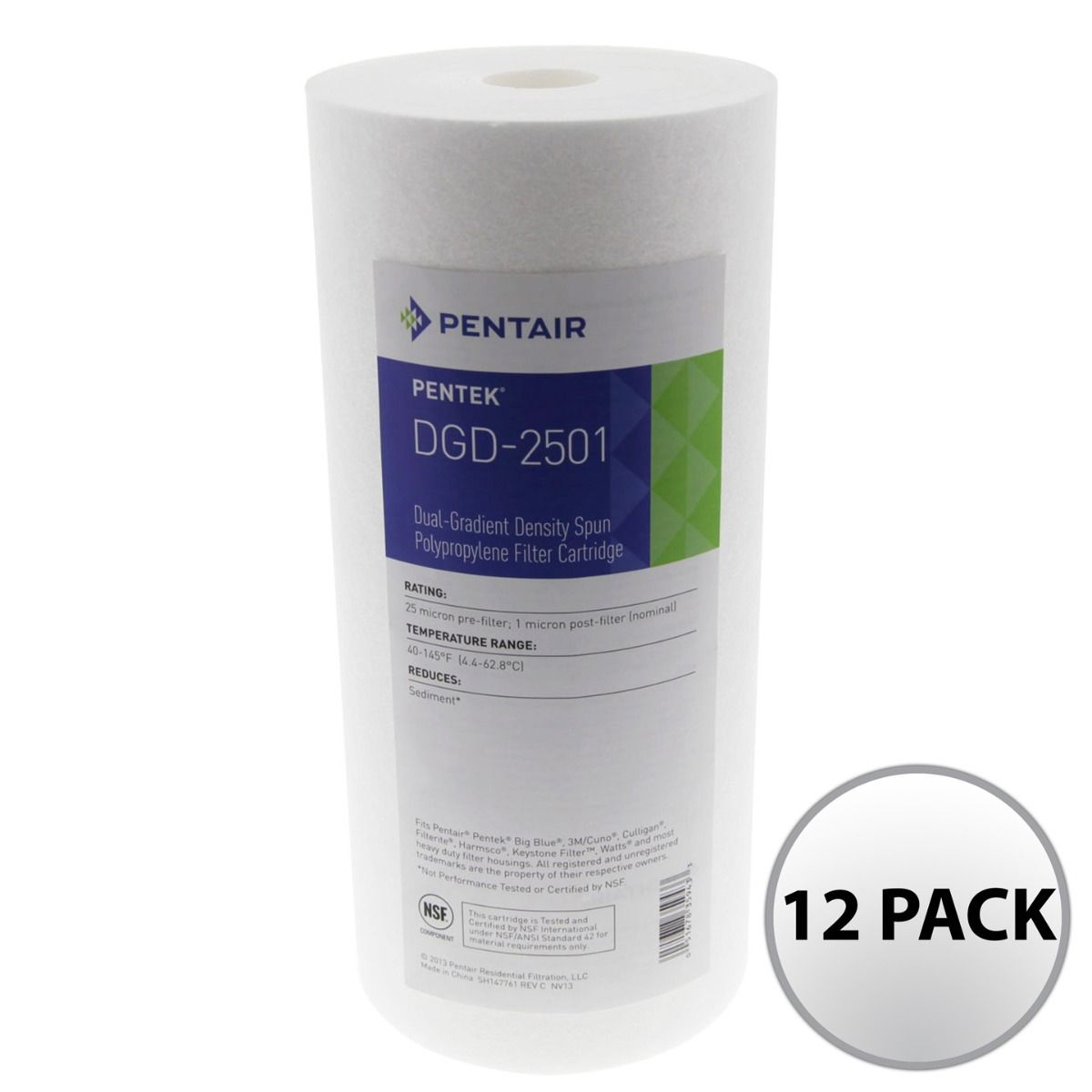

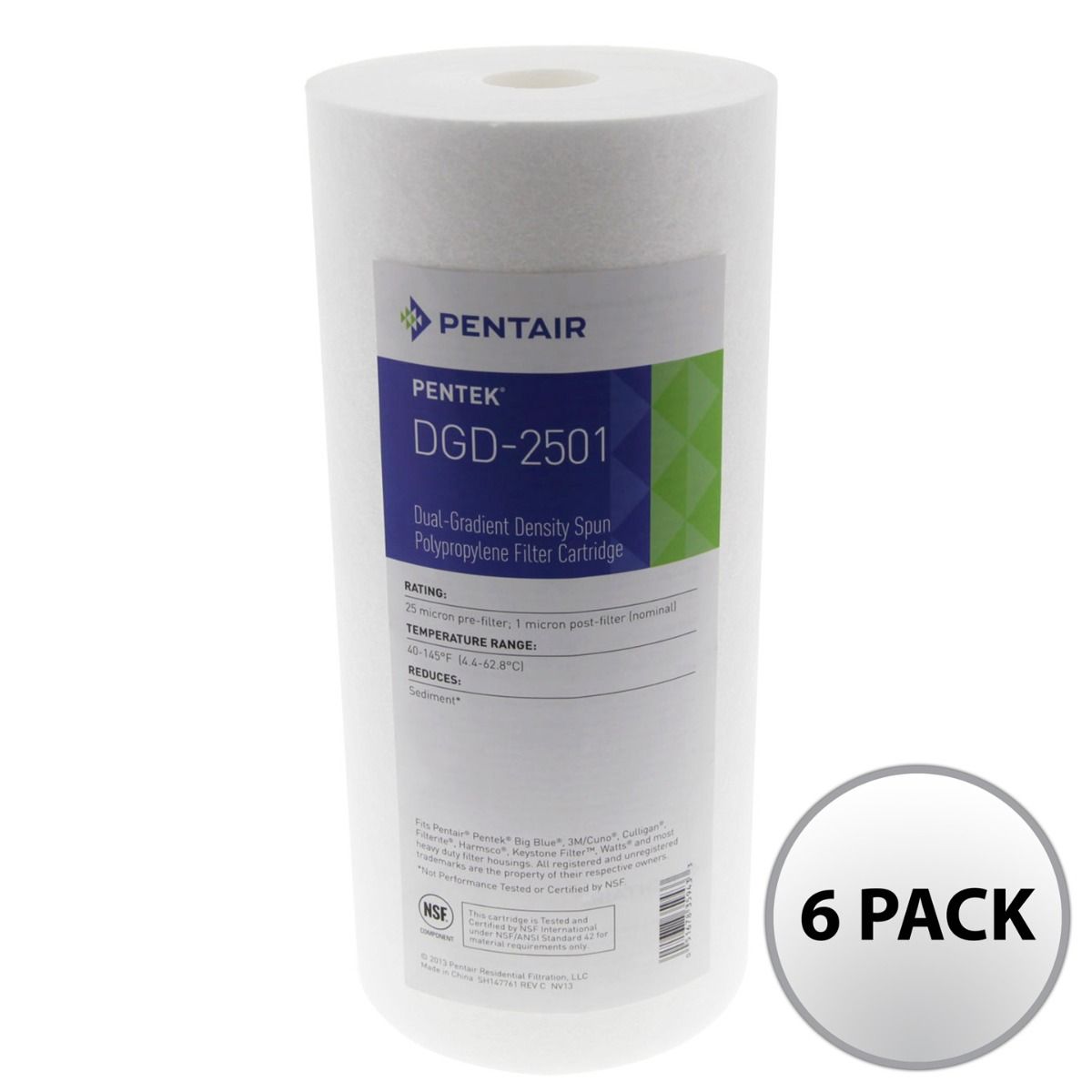

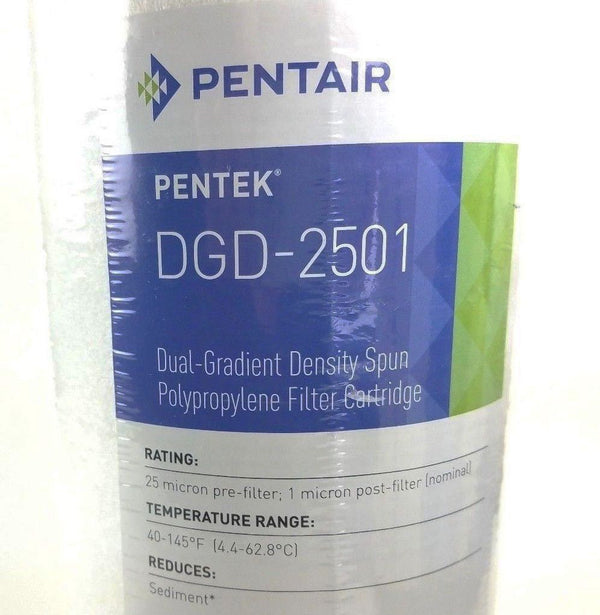

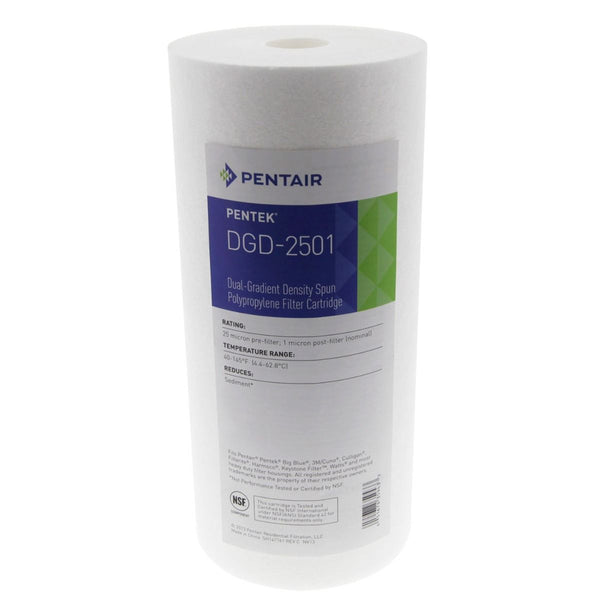

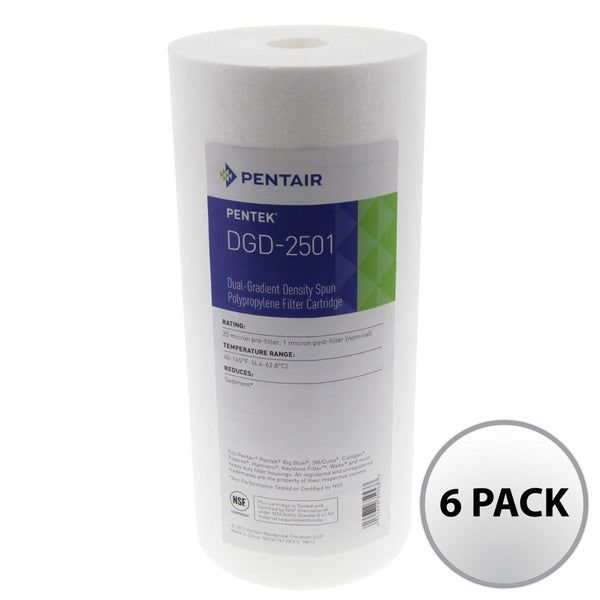

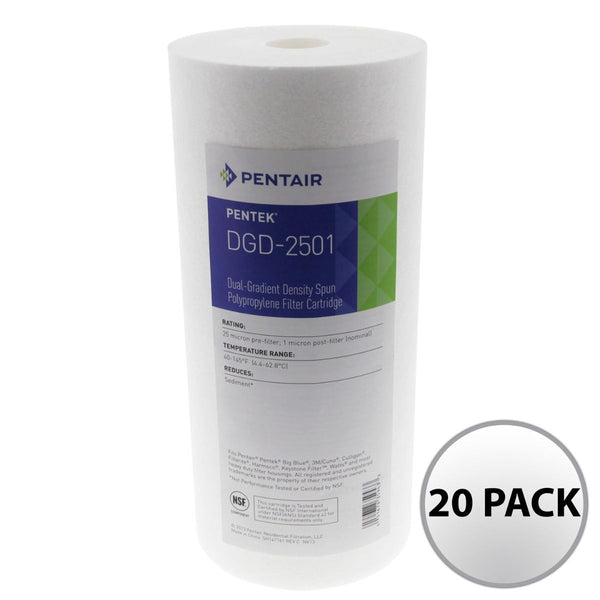

DGD-2501 Pentek Whole House Filter Replacement Cartridge

PENTEK-DGD-2501

DGD-2501 Pentek Whole House Filter Replacement Cartridge

Name: DGD-2501 Pentek Whole House Filter Replacement Cartridge
Brand: DiscountFilterStore Staging USE THIS
SKU: PENTEK-DGD-2501
Price: 19.45 USD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$19.45 - $410.78

Fits Pentek Big Blue and other heavy-duty filter housings

Price Per Item

2 PACK	$18.86
4 PACK	$18.28
6 PACK	$17.70
24 PACK	$17.11

Choose a Pack Size:

Single

2 PACK

4 PACK

6 PACK

24 PACK

Dual-Gradient Density (DGD) offers a 25 micron pre-filter and 1 micron post-filter in one cartridge
Effective filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters
Spun fibers form a true gradient density from outer to inner surfaces
Manufactured from pure 100% polypropylene

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Pentair Water

Manufacturer's Id: DGD-2501

UPC: 051678359433

Actual Size (in): 10 inches (length) x 4 1/2 inches (outside diameter)

Media: Spun Wound Polypropylene

Primary Filter Media: Polypropylene

Operating Temperature (°F): 40 - 145

Operating Temperature (°C): 4.4 - 62.8

Brand: Pentek

Advertised Size: 10 x 4-1/2

Length (in): 10 in

Outside Diameter (in): 4.5 in

Width (in): 4.5 in

Media Type: Sediment Filter

UPC's For Search: 10051678359430 | 051678359433

Country of Origin: China

Micron Rating Nominal: 1

Flow Rate (gpm): 10.0

Includes: One Pentek DGD-2501 10 x 4.5 inch Sediment Water Filter

description Instructions

Turn off water supply. Press red pressure-relief button (if present).
Unscrew housing. Remove large o-ring, wipe clean and set aside.
Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
Insert new filter cartridge.
Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.

file_download Downloads

User Guide

workspace_premium Certifications

NSF/ANSI Standard 42

warning_amber Contaminants Reduced

Dirt Sand Sediment

Rust And Corrosion

Sand

Sand Extra Fine

Sand Fine

Sediment

Silt

filter_alt Filter Life

Filter Life (gallons): 8000

Filter Life (months): 6 months

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

help Product Details

The PENTEK-DGD-2501 heavy duty filter cartridge is manufactured from 100% pure polypropylene and is sized for use in Big Blue and other heavy-duty filter housings. The DGD-2501 cartridge uses a performance enhancing dual-gradient density filtration to achieve up to three times the dirt-holding capacity of similar size sediment cartridges. The increased depth of the filter media provides for very high particulate reduction efficiencies and makes it an excellent choice for all residential, rural, municipal and commercial applications.

extension Comparable Part Number

DGD-2501 Pentek Whole House Filter Replacement Cartridge

PENTEK-DGD-2501 is comparable with the following part number(s)
