    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge
    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge

    PENTEK-DGD-5005-20

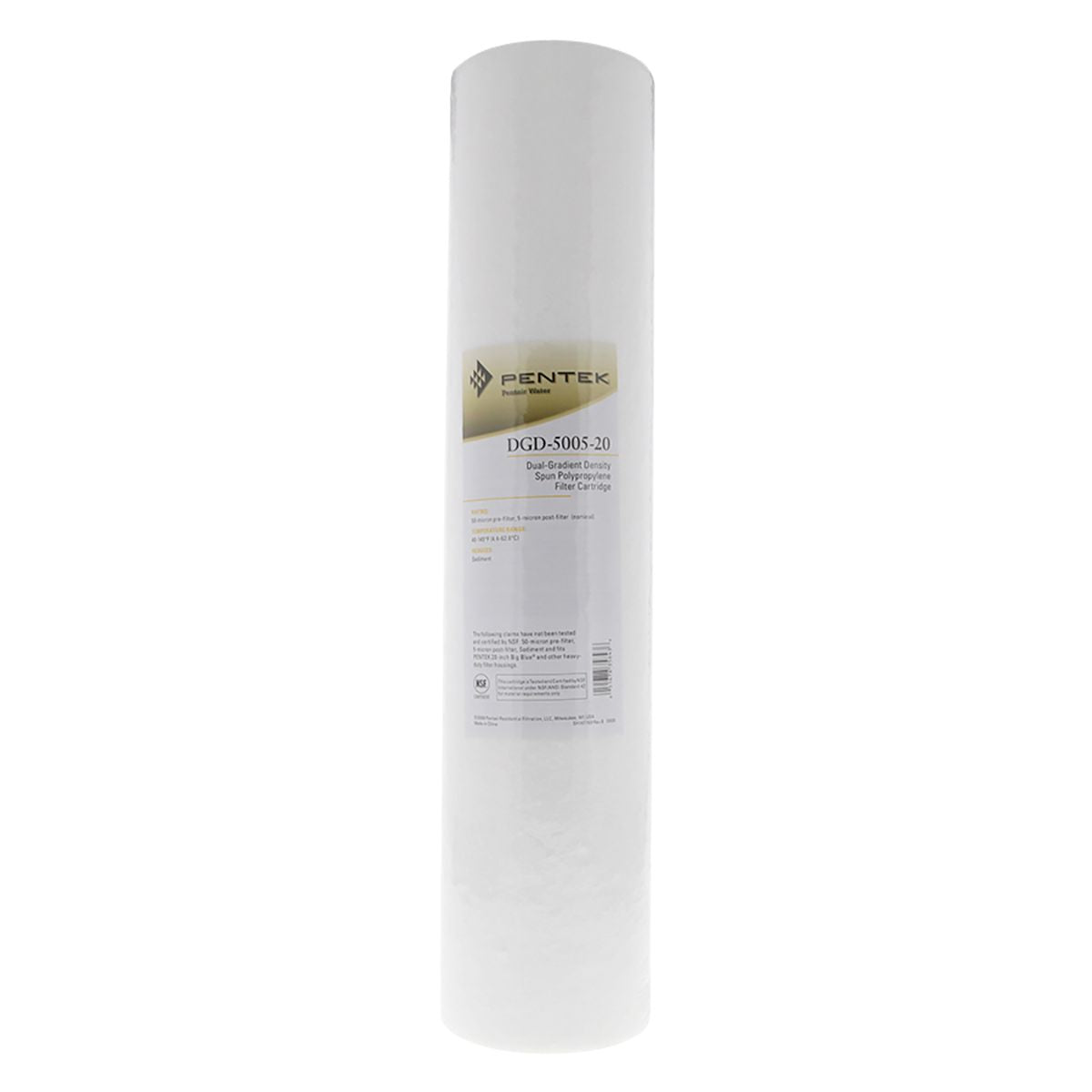

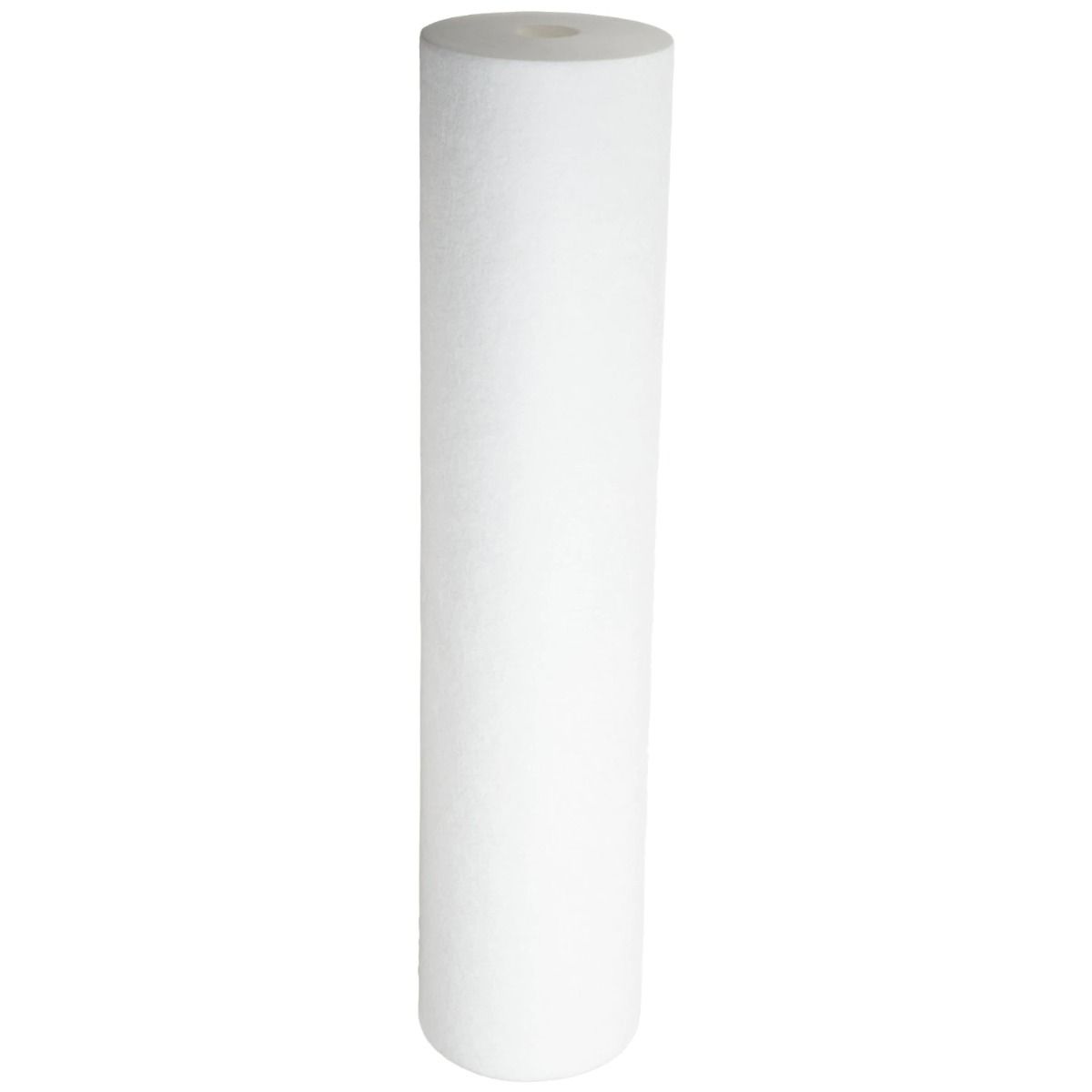

    DGD-5005-20 Pentek Whole House Filter Replacement Cartridge

    $26.59 - $561.58
    Fits Pentek 20-inch Big Blue and other heavy-duty filter housings
    Price Per Item
    2 PACK $25.79
    4 PACK $24.99

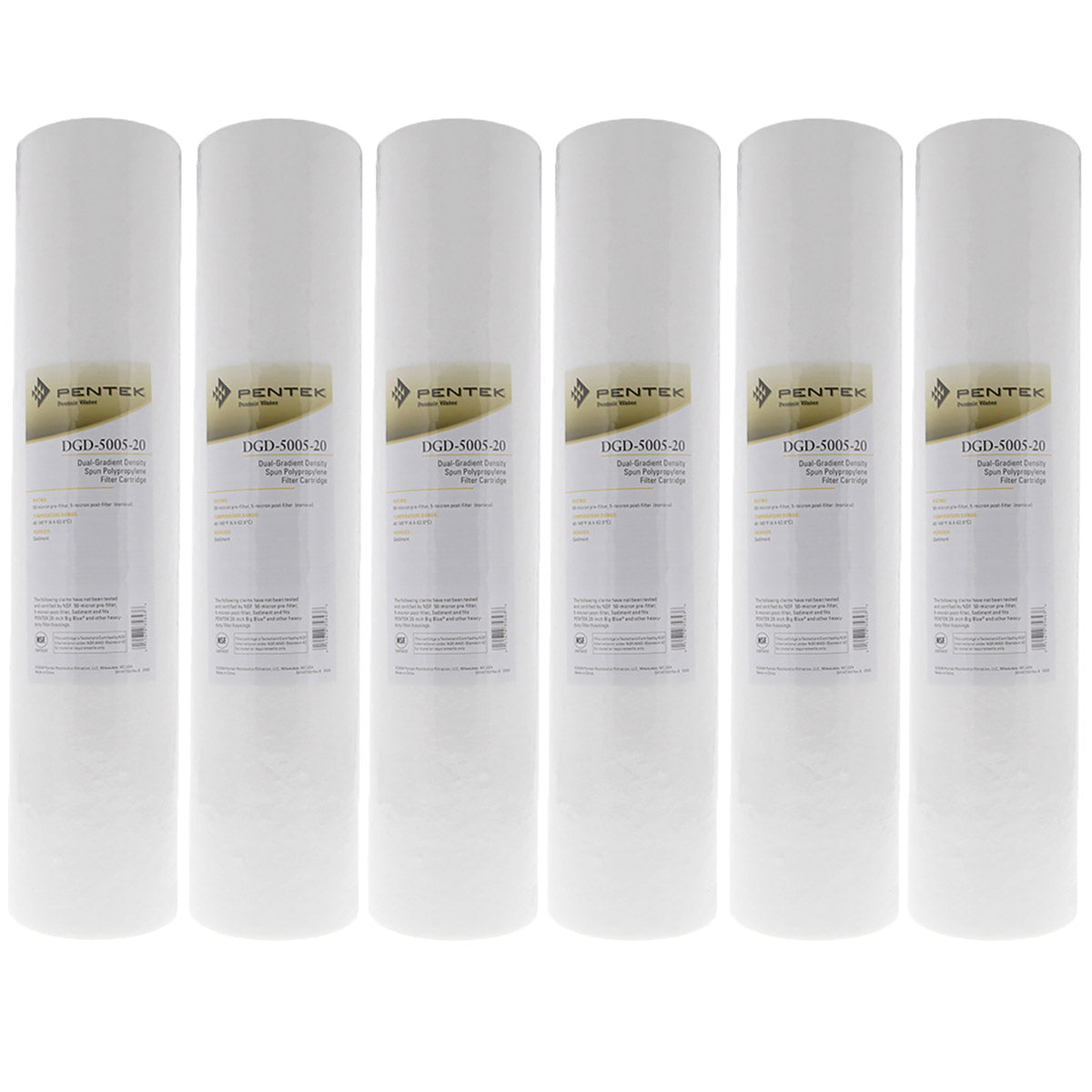

    6 PACK $24.19
    24 PACK $23.39
    Choose a Pack Size:

    • Dual-Gradient Density (DGD) offers a 50 micron pre-filter and 5 micron post-filter in one cartridge

    • Effective filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters

    • Spun fibers form a true gradient density from outer to inner surfaces

    • Manufactured from pure 100% polypropylene

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: DGD-5005-20
    UPC: 051678358436
    Actual Size (in): 19.75 inches (length) x 4.25 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Brand: Pentek
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Materials of Construction: Spun Wound Polypropylene
    Media Type: Sediment Filter
    UPC's For Search: 10051678358433 | 051678358436
    Country of Origin: China
    Micron Rating Nominal: 5
    Flow Rate (gpm): 20.0
    Includes: One Dual Gradient Density Pentek DGD-5005-20 Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    User Guide
    workspace_premium Certifications
  • NSF/ANSI Standard 42
    • warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particles
  • Rust And Corrosion
  • Sand
  • Sediment
  • Silt
    • filter_alt Filter Life
    Filter Life (months): 6 months
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

    compare_arrows

    The PENTEK-DGD-5005-20 heavy duty filter cartridge is manufactured from 100% pure polypropylene and is sized for use in 20-inch Big Blue and other heavy-duty filter housings. The DGD-5005-20 cartridge uses a performance enhancing dual-gradient density filtration to achieve up to three times the dirt-holding capacity of similar size sediment cartridges. The increased depth of the filter media provides for very high particulate reduction efficiencies and makes it an excellent choice for all residential, rural, municipal and commercial applications.


    PENTEK-DGD-5005-20   is comparable with the following part number(s)

    • 155358-43
    • C155358-43
    • DGD-5005-20
    • FPMB-BB5-20
    • P5-20BB
    • PENTEK-DGD-5005-20
    • SDC-45-2005
    • SDF-45-2005
