    • VIH-34-PR10 Pentek Whole House Valve-in-Head 10 inch Filter Housing

    PENTEK-VIN-34-PR10

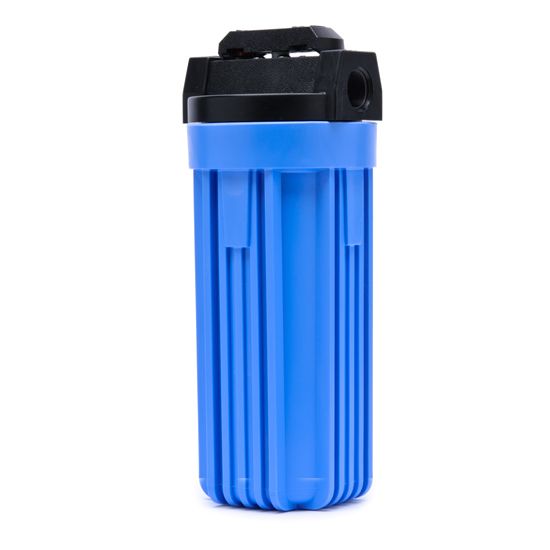

    VIN-34-PR10 Pentek Whole House Valve-in-Head 10 inch Filter Housing

    $54.87

    • 3/4 inch NPT inlet and outlet ports

    • Housing accommodates any standard 10 inch filter cartridges with a 2 3/8 - 2 7/8 inch diameter

    • Built in pressure-relief button

    • Leak proof sealing with top seated Buna-N O-ring

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: VIH-34-PR10
    UPC: 799932596308
    Actual Size (in): 12 1/4 inches (length) x 5 1/8 inches (outside diameter)
    Operating Pressure (psi): 30 - 125
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Fitting Size (in): 34 in
    Length (in): 12.25 in
    Outside Diameter (in): 5.13 in
    Materials of Construction: Cap: Reinforced Polypropylene, Button Assembly: 300-series Stainless Steel, EPDM, and Polypropylene, Valve Parts: Delrin
    UPC's For Search: 10051678501648
    Country of Origin: Mexico
    Fitting Type: NPT
    Flow Rate (gpm): 8.0
    description Instructions
    1. Easy to install number 10 Standard VIH Whole House Water Filter System. The housing is 12-1/2-inches x 5-1/8-inches(318 mm x 130 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 3/4-inch inlet/outlet for easy installation on a cold water line
    3. A UB-1 mounting bracket is recommended for installation of the whole house housing
    4. NOTE: When installed, protect housing against freezing to prevent cracking of the filter and water leakage
    file_download Downloads
    User Guide
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

    The Pentek valve-in-head filter housing allows both inlet and outlet ports to be simultaneously shut-off with a half turn of the handle. The PENTEK-VIN-34-PR10 is made from a durable polypropylene and accommodates a wide variety of replacement filter cartridges. The VIN-34-PR10 offers outstanding chemical compatibility and is ideal for use in a variety of low-flow applications.


    PENTEK-VIN-34-PR10   is comparable with the following part number(s)

    • 150164
    • VIN-34-PR10
